Grass Rejuvenator

Introduction

Grass Rejuvenator

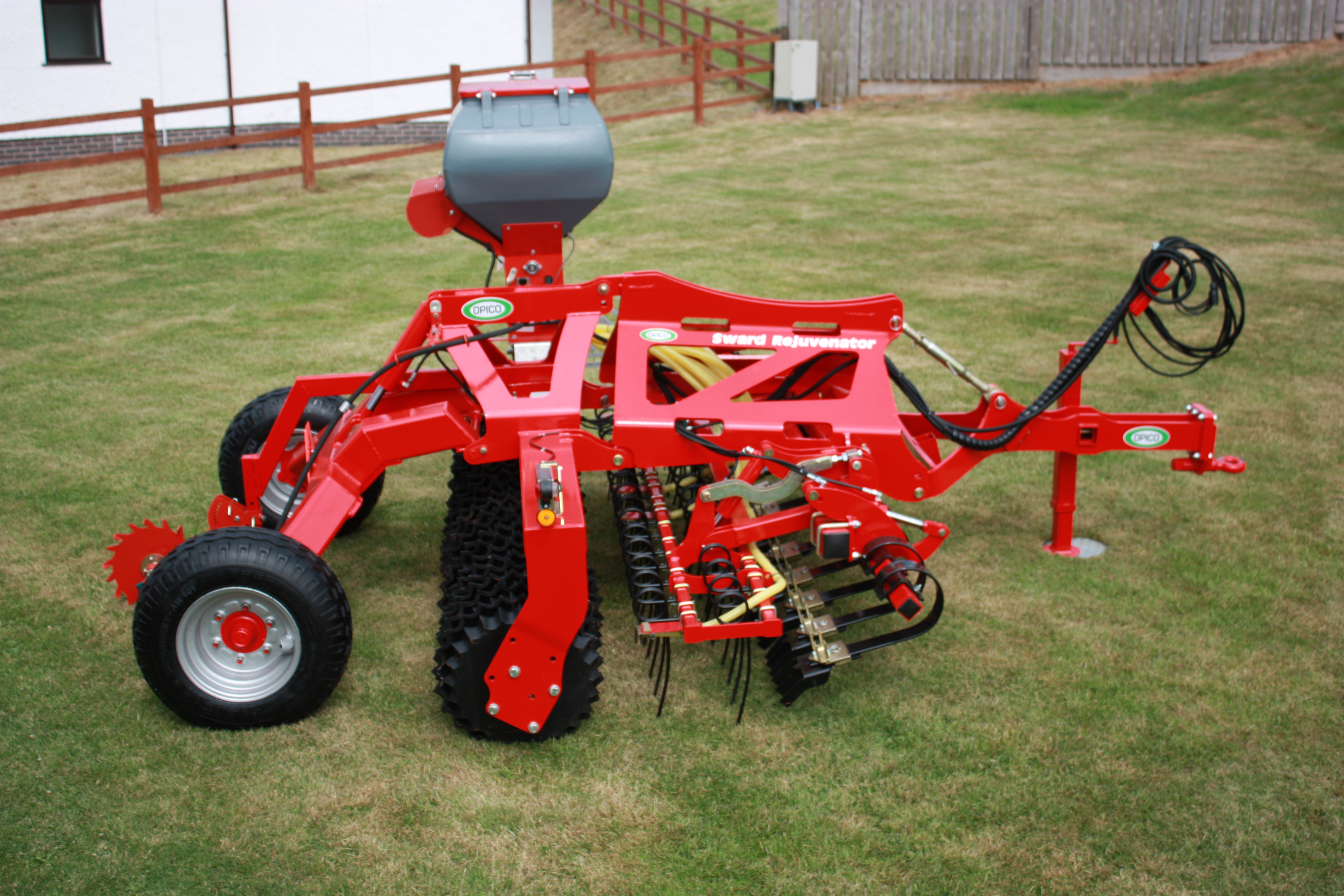

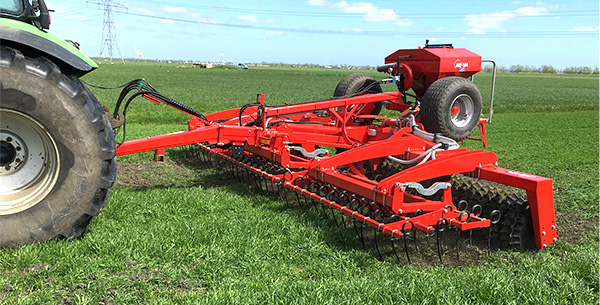

The Grass Rejuvenator is a grassland improvement machine which consists of an aggressive shattaboard with slicing plates, 2 rows of heavy duty harrow tines, a HE-VA Multi-Seeder (or Air 16 Grass Seeder on the 6.3m and 8.2m models, depending on product and rate being spread), and a Star ring roller. The slicing plates and harrow tines break up and level the soil surface in front of the grass seed outlets and the soil is then firmed behind by the Star ring roller.

The aggressive slicing plate and harrow action make the Rejuvenator ideal for use in badly poached fields which require restoration. It can also be used – minus the seeder – for harrowing grassland to remove trash and stimulate grass growth and for molehill levelling.

Furthermore, the action of the new heavy 550/600mm diameter Star ring roller cracks and breaks clods produced by the front equipment to create a fine tilth for grass seed to germinate in. As a result, the machine is ideal for both grassland rejuvenation and reseeding cultivated land.

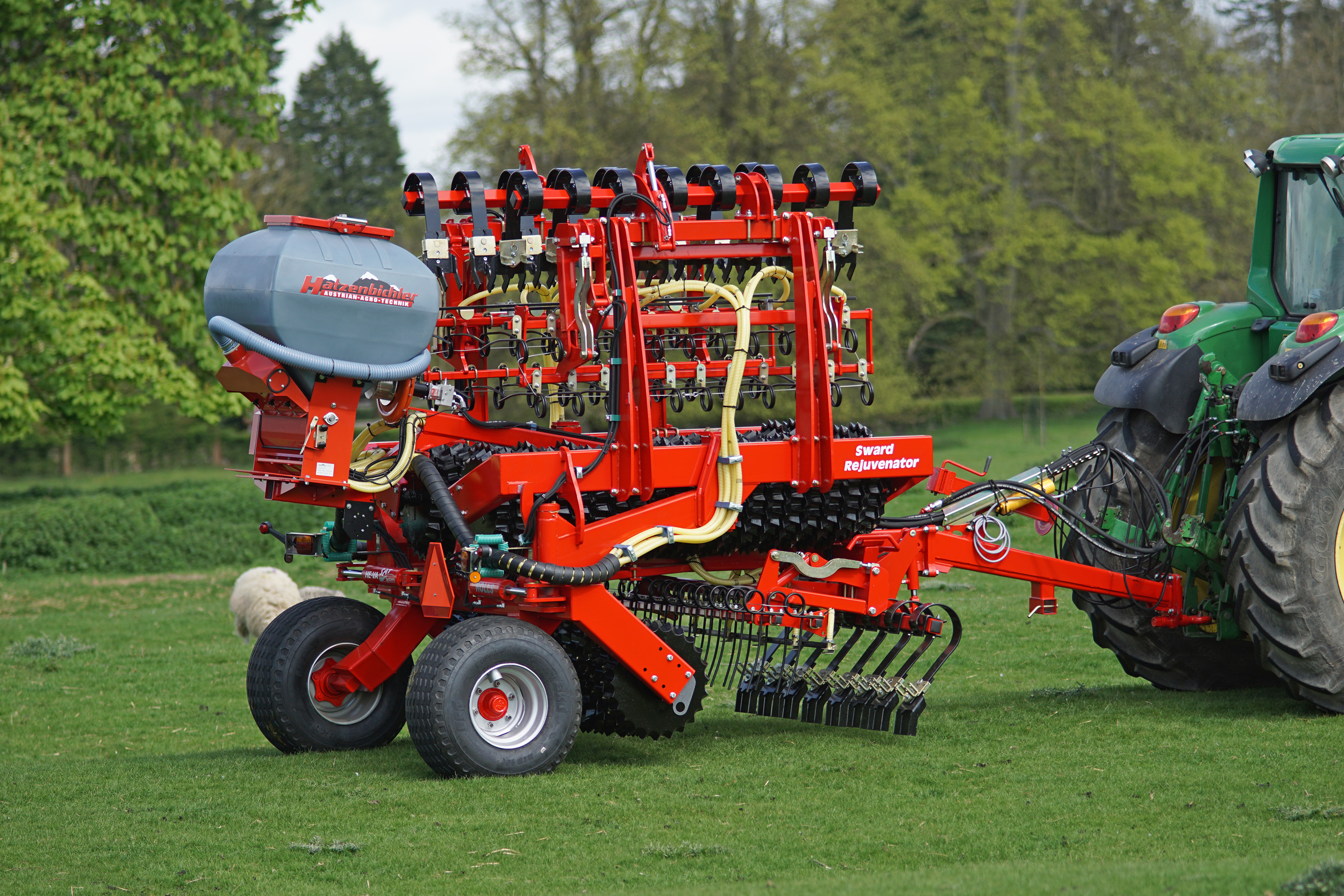

On folding machines, the frame incorporates HE-VA’s SAT weight transfer system and central pivoting of each section to ensure the sections can adapt to the contours.

Features

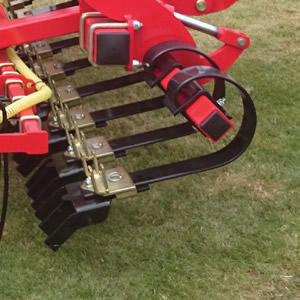

Aggressive Shattaboard with Slicing Plates


The slicing plates constructed of sprung steel, work to break up hard soil and level uneven ground.

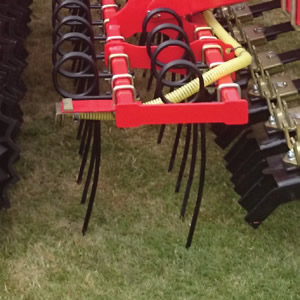

2 Rows of Heavy-Duty Tines


2 rows of heavy-duty tines level and break up the surface to allow oxygen to get to the root zone, also helping to create tilth to help the seed germinate if using a seeder with the Grass Rejuvenator.

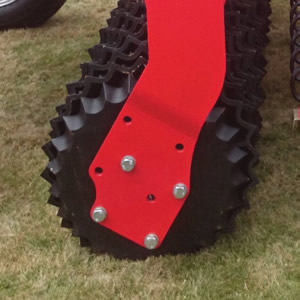

550/600mm Star Ring Roller

The heavy 550/600mm diameter Star ring roller cracks and breaks clods produced by the front equipment to create a fine tilth for the grass seed to germinate in.

The machine is idea for both grassland rejuvenation and reseeding cultivated land.

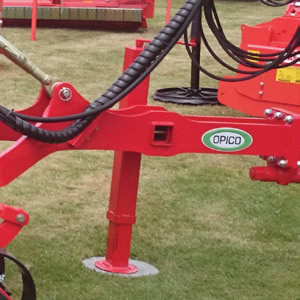

Jack Stand With Turn-Buckle

A jack stand and turn-buckle allow easy and safe attachment and removal from the tractor.

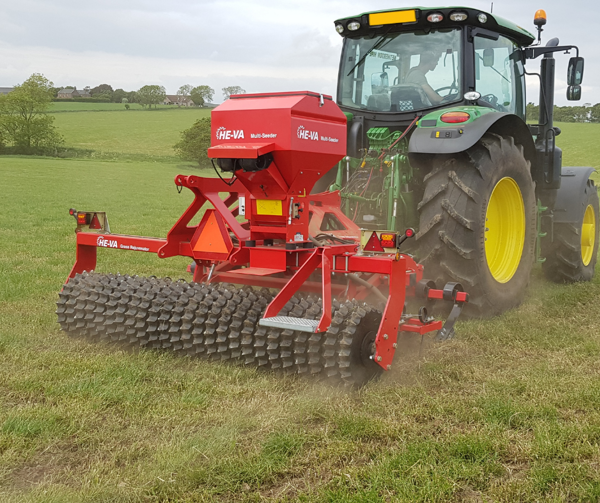

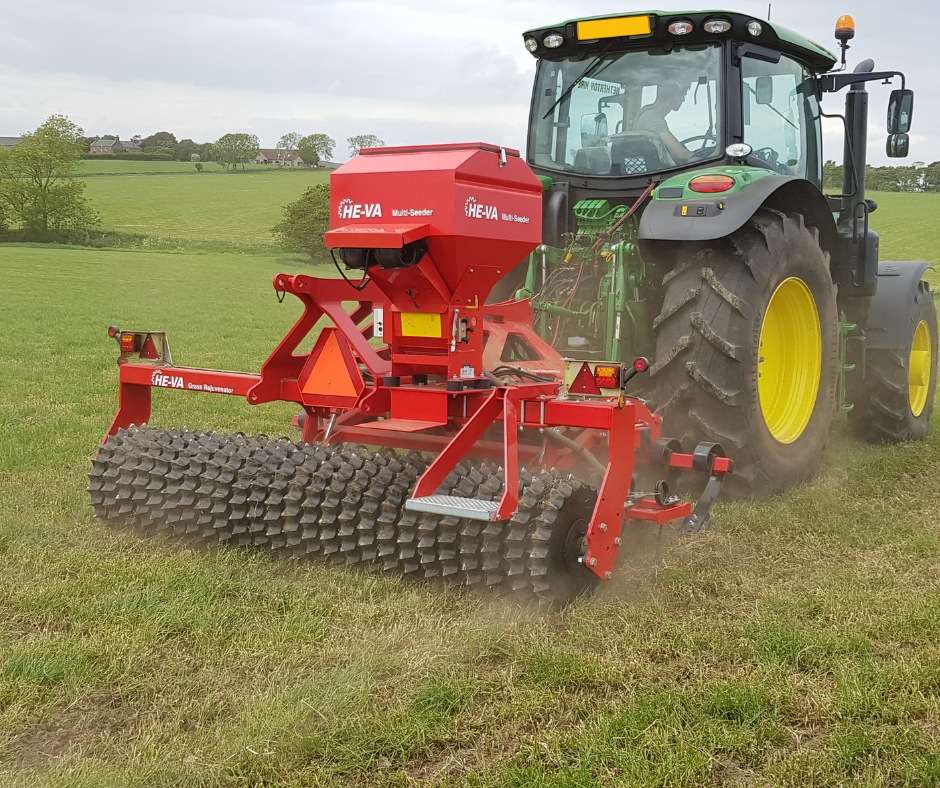

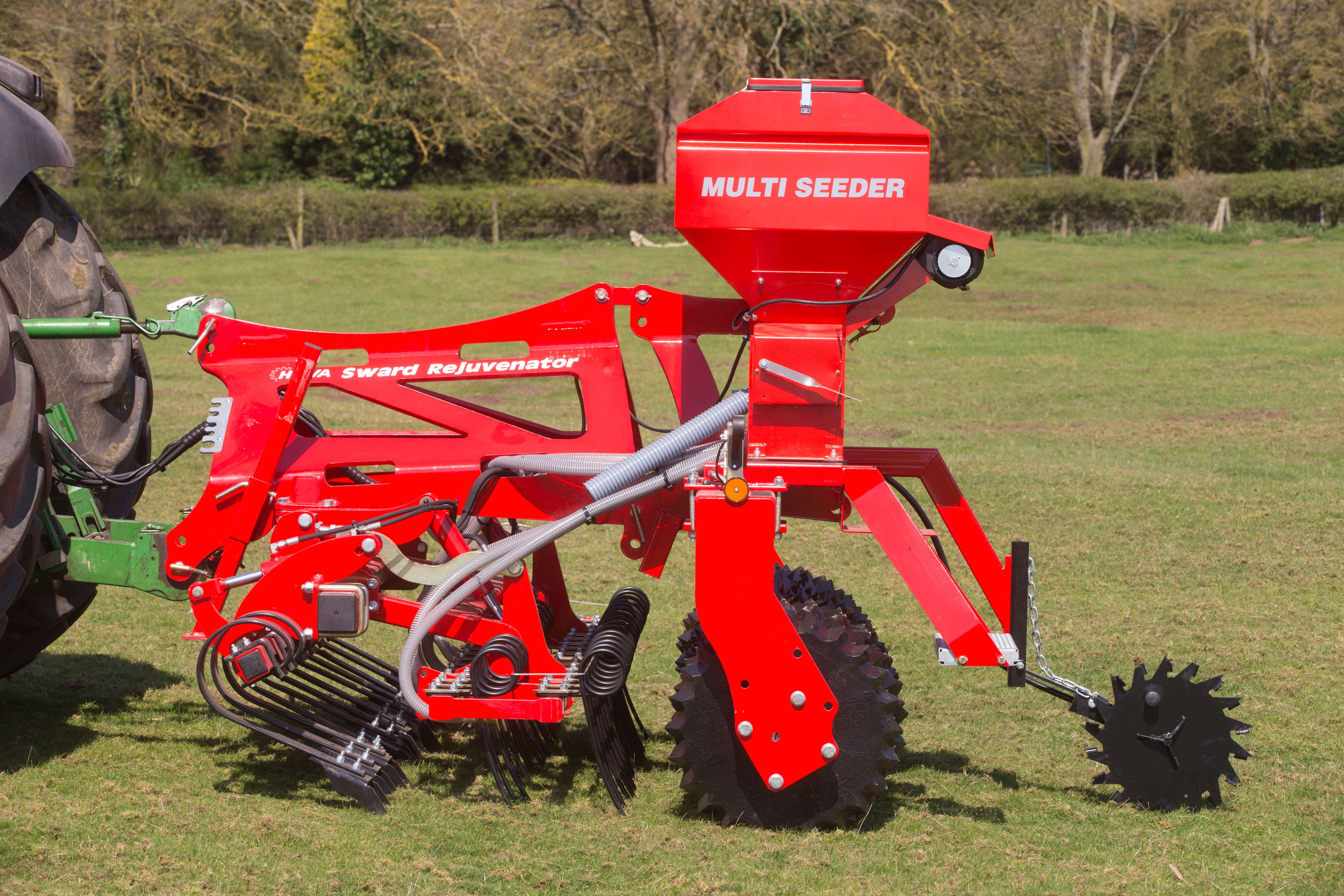

Multi-Seeder

A HE-VA Multi Seeder has been developed to work in combination with HE-VA cultivation and grassland machinery.

Whilst the seeders themselves ensure precise seed rates, simple calibration and simple to use controls, the fitting kits that HE-VA have developed allow easy access and provide for all seed placement requirements.



An OPICO Air Seeder can also be specified in place of the HE-VA Multi-Seeder.



Model

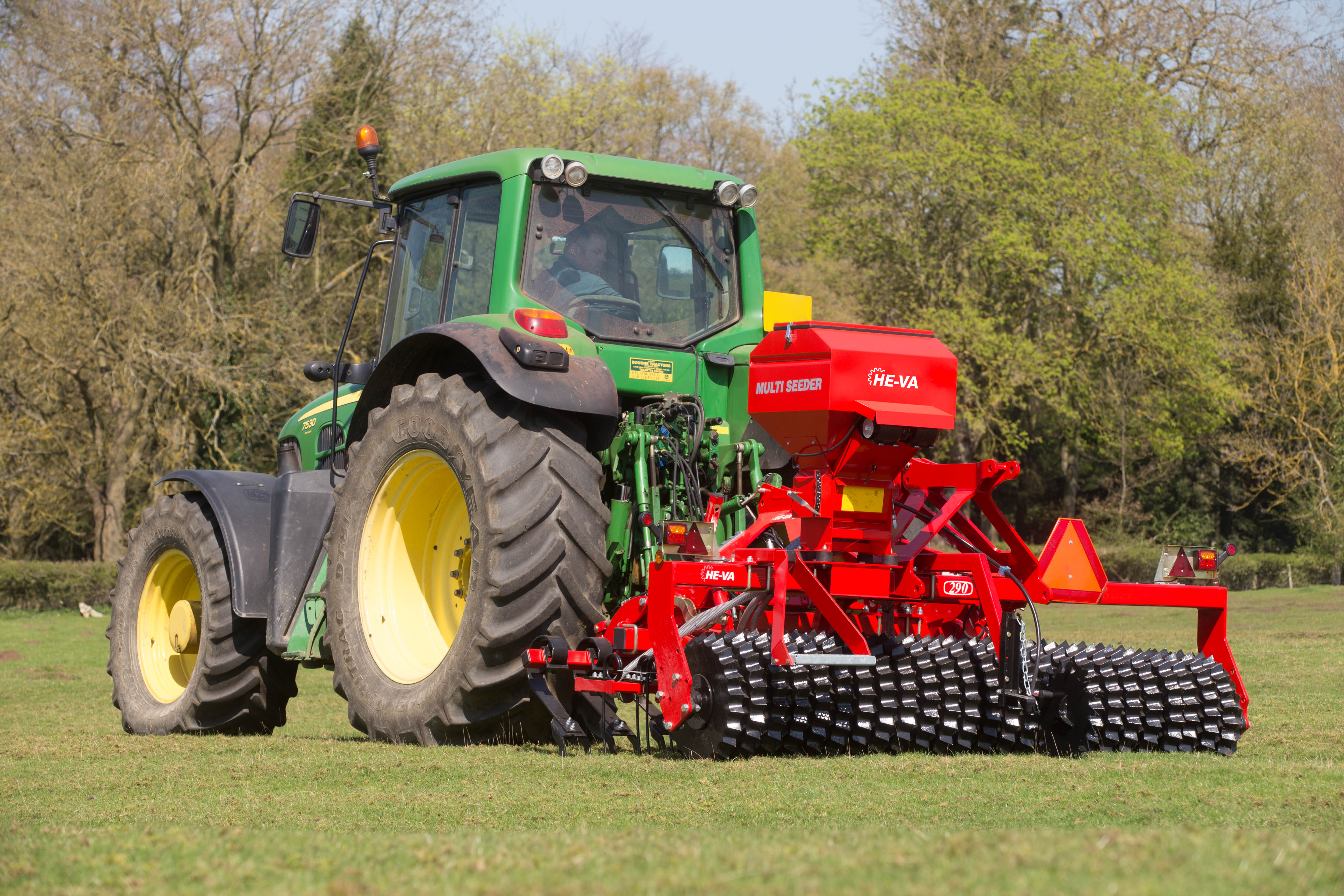

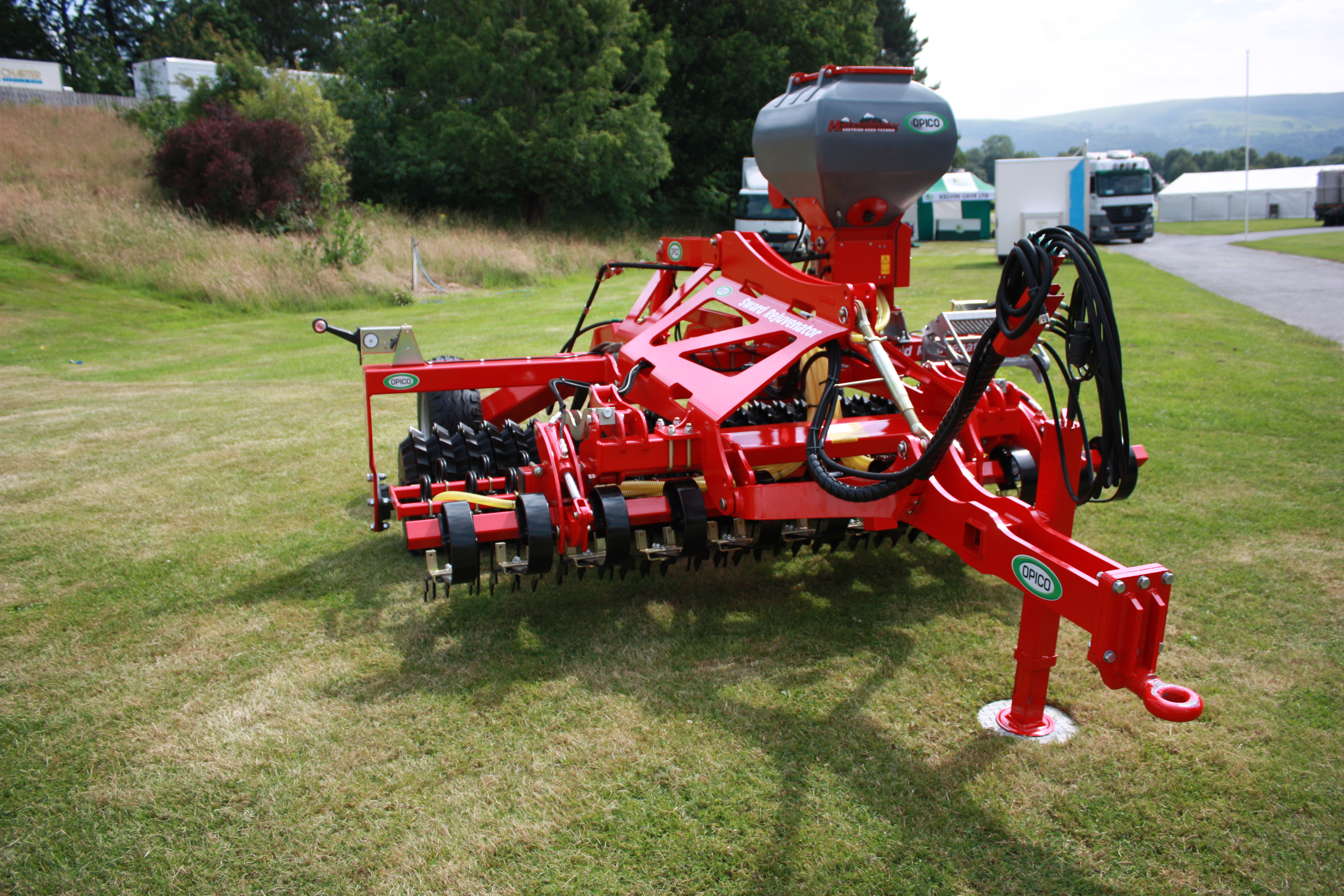

2.9m Grass Rejuvenator

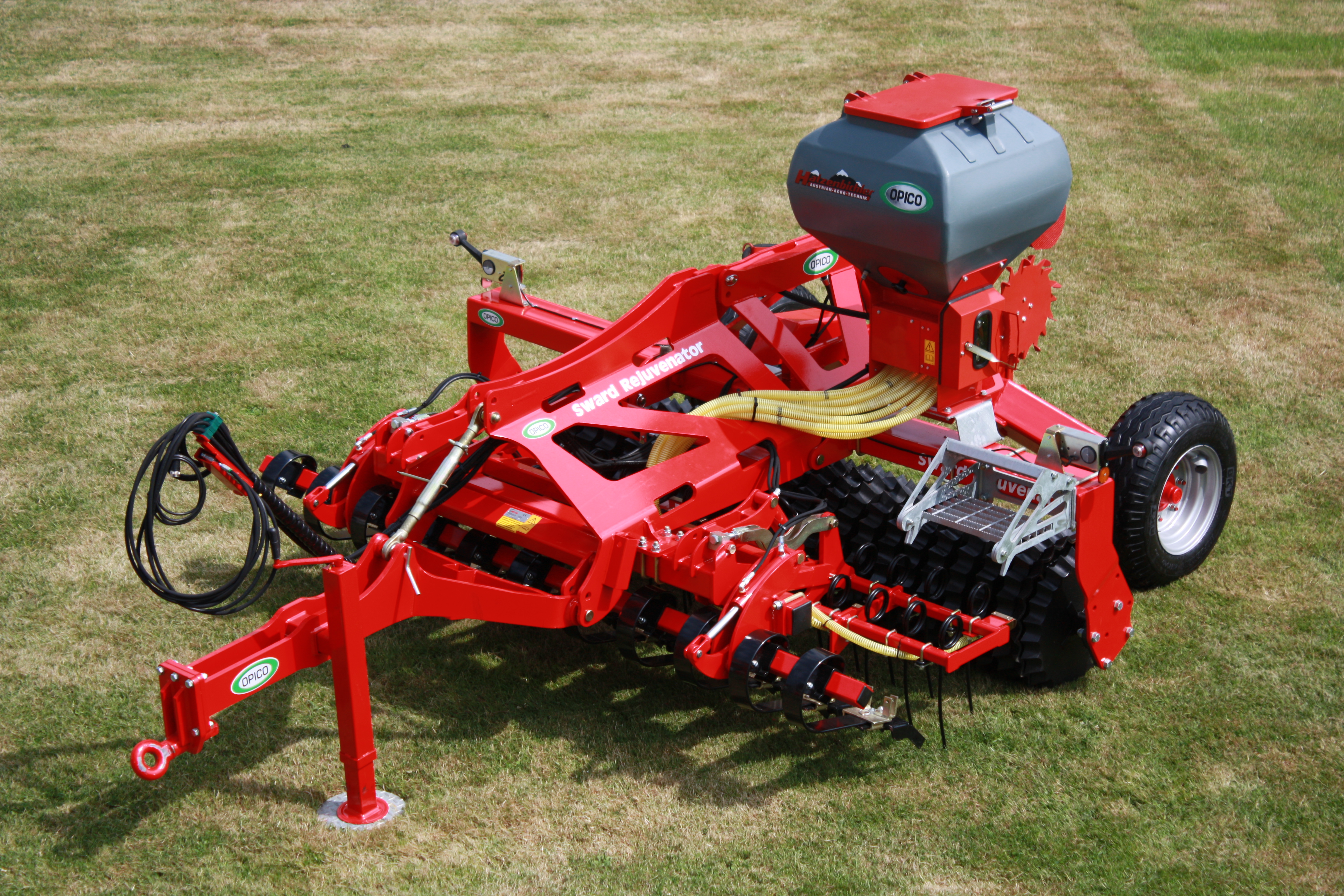

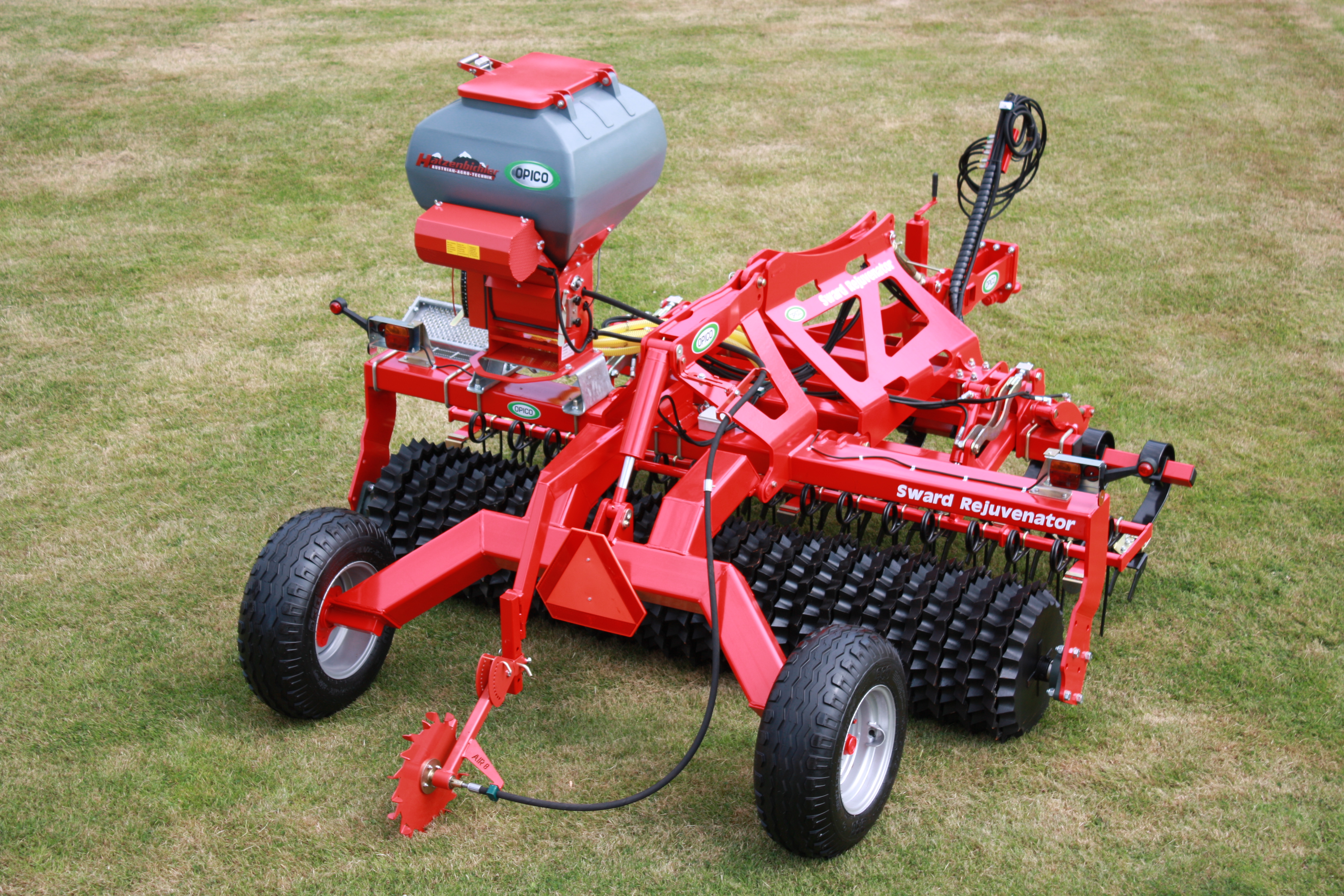

Available in 2.9m working width in mounted and trailed versions.

6.3m Grass Rejuvenator

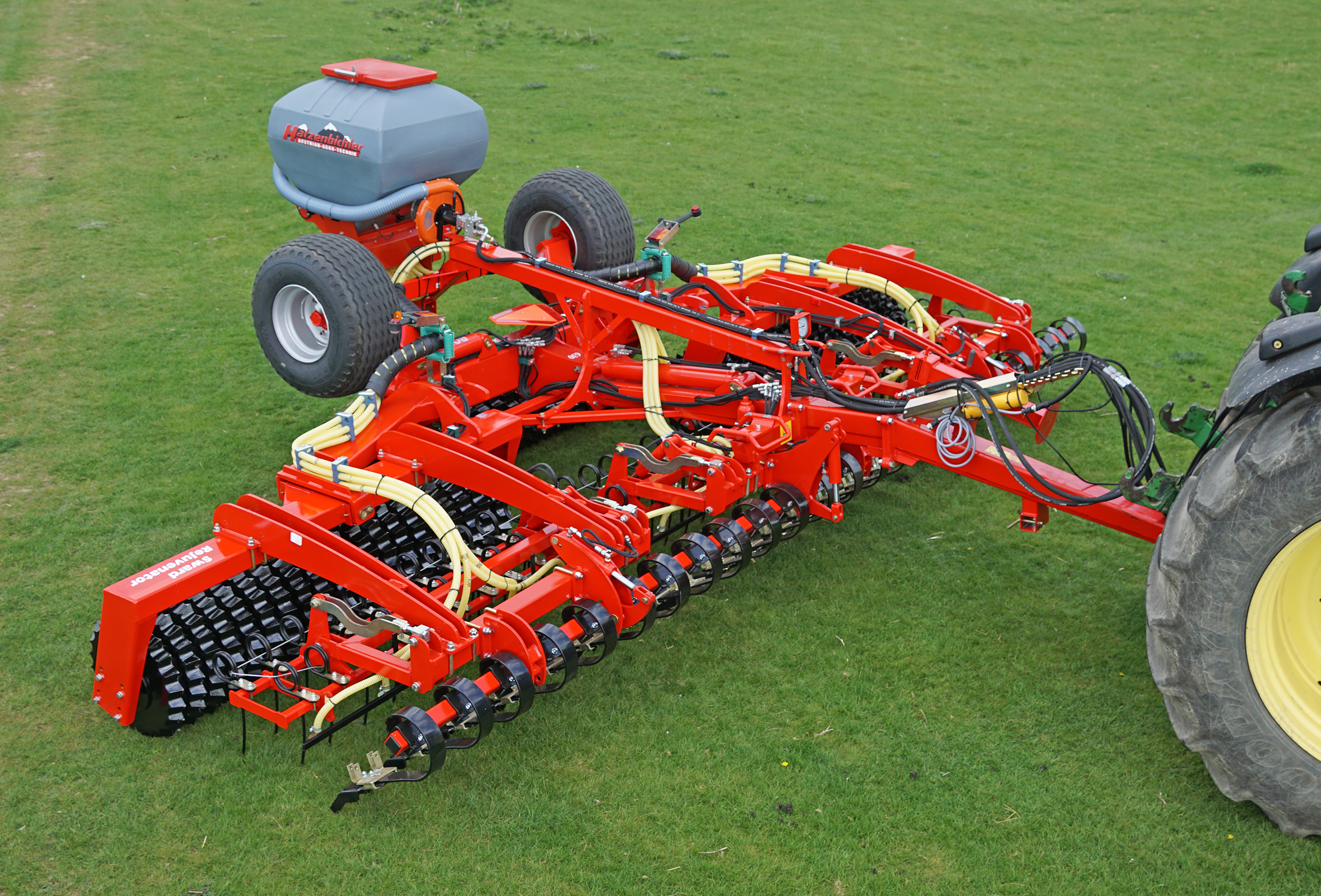

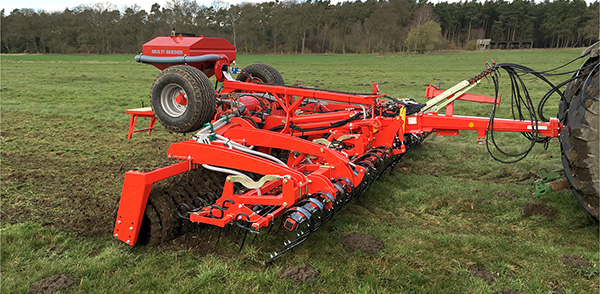

The 6.3m hydraulic folding trailed model has a transport width of 2.45m.

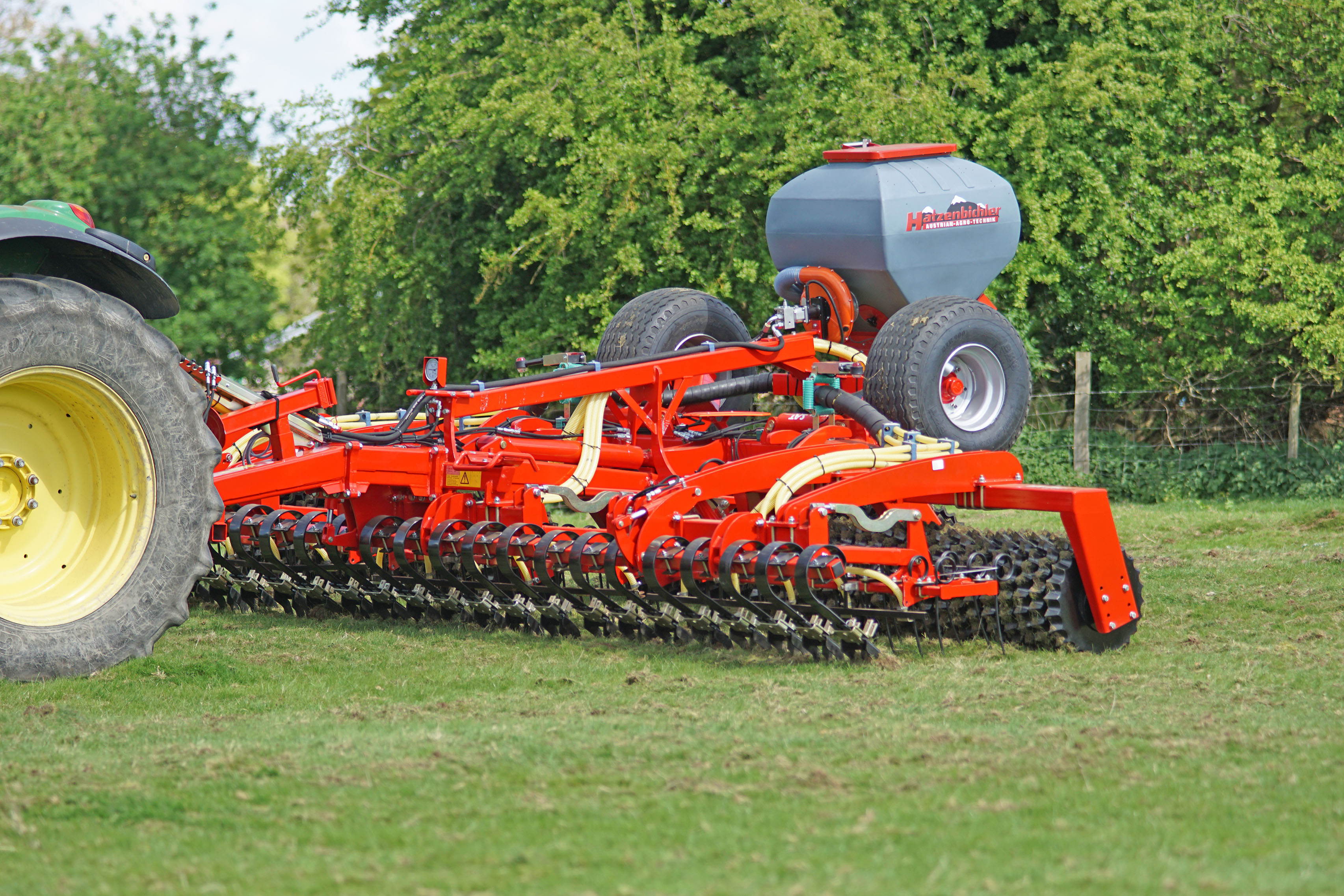

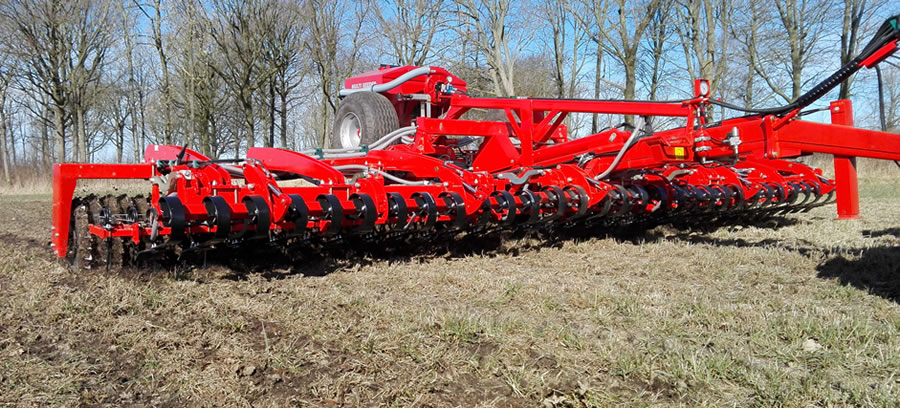

8.2m Grass Rejuvenator

The  8.2 m hydraulic folding trailed model has a transport width of 2.45m.

Technical Information

Technical Information

Model No.

Working Width

Transport Width

Weight kgs

Star Ring Roller

Multi-Seeder

Type

Rigid Mounted



1063021-57OPM

2.9m

3m

2068

550/600mm

Mechanical 8

Mounted

1063021-57OPE

2.9m

3m

2056

550/600mm

Electronic 8

Mounted

Rigid Trailed



1063026-57OPE

2.9m

 3m

 2536

 550/600mm

Electronic 8

 Trailed

Hydraulic Folding Trailed



1063033-57OP16

6.3m

2.45m

5341

550/600mm

Electronic 12

Trailed

1063036-57OP16

8.2m

2.45m

7294

550/600mm

Electronic 12

Trailed

Options & Accessories

Options & Accessories

Model No.

Description

10630555015

6.3m & 8.2m stone trays

1063098_07

Air Brakes (factory fit only)

1063098-08

Hydraulic Brakes (factory fit only)

1063099-56

Platform and steps for 6.3m & 8.2m
