TIP Roller

Introduction

More than just rolls!

HE-VA have one of the largest Rolls ranges on the market and the 3-Section Tip Roller makes up approximately 75% of all HE-VA rolls sold in the UK.

A unique combination of design features and heavy duty construction ensures true contour following and even weight distribution for level seedbeds, moisture retention, uniform germination, better yields and reduced risk of stone damage.

All rolls have the powerful built-in SAT (Special Active Transfer) system to spread the frame weight evenly across the machine width.

Sizes range from 4.5m to 10.2m, each size comes in 3 different variations, HD 510mm (20"), HD Plus 560mm (22") and XHD 620mm (24"). New generation rings (NG) come standard with a 5-year warranty.

A full range of Shattaboards, Slicerboards, Straw Tines and Top Cutter are available to fit all Tip Rollers, turning each set of rolls into a cost effective cultivator.

From shed to field the driver doesn’t need to leave the tractor cab as the rolls can be put to work in seconds simply and safely straight from the tractor seat. Just pull into the field, unfold using the tractor hydraulics and you are ready to go.

Folding is just as simple, each 3-Section machine folds up to 2.5m (2.7m for 9.5 and 10.2m machines) Each wing section locks into a transport cradle once in the fully folded position increasing road transport safety and giving peace of mind that they stay where they should at all times.



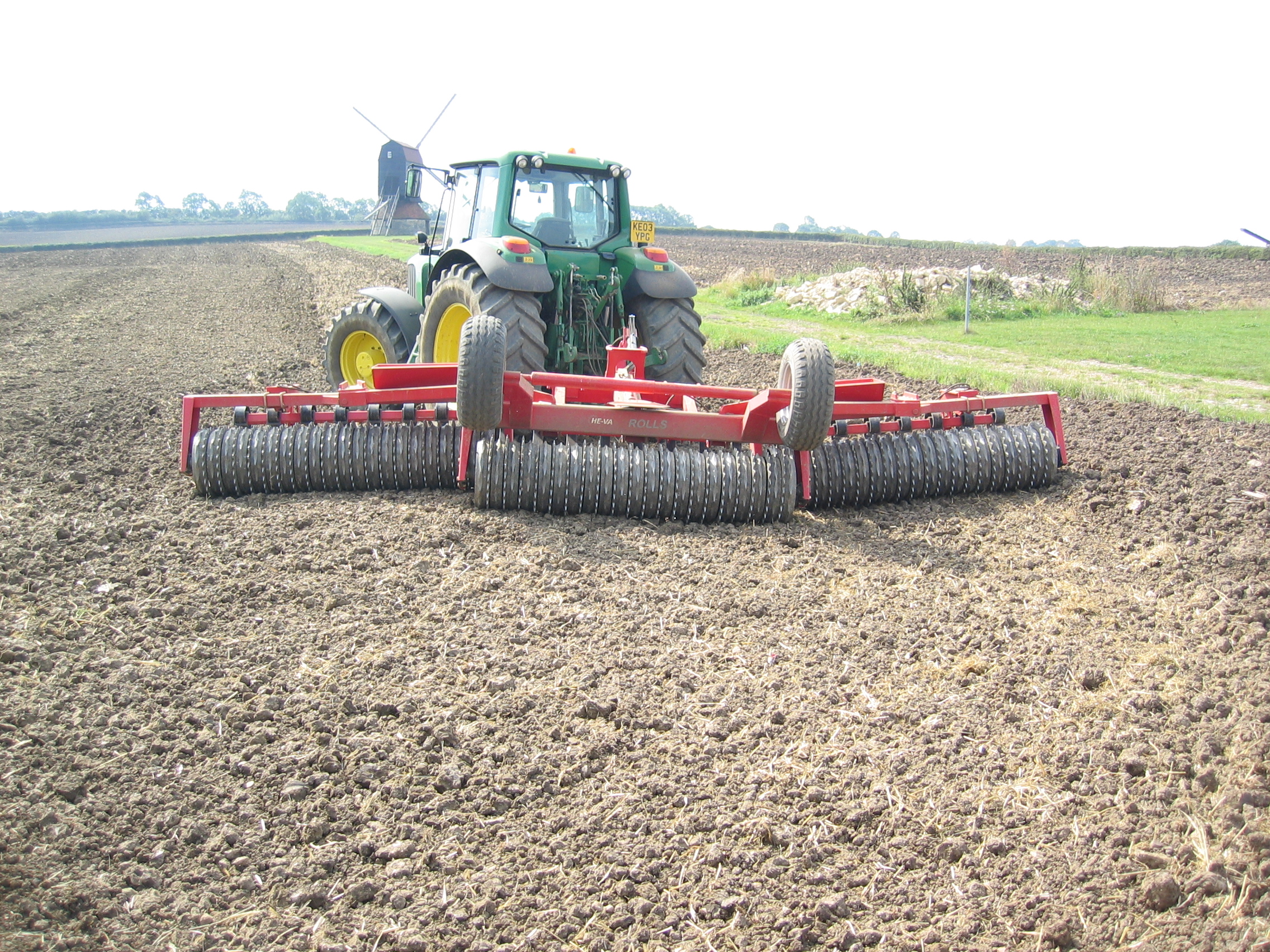

Make your rolls work harder

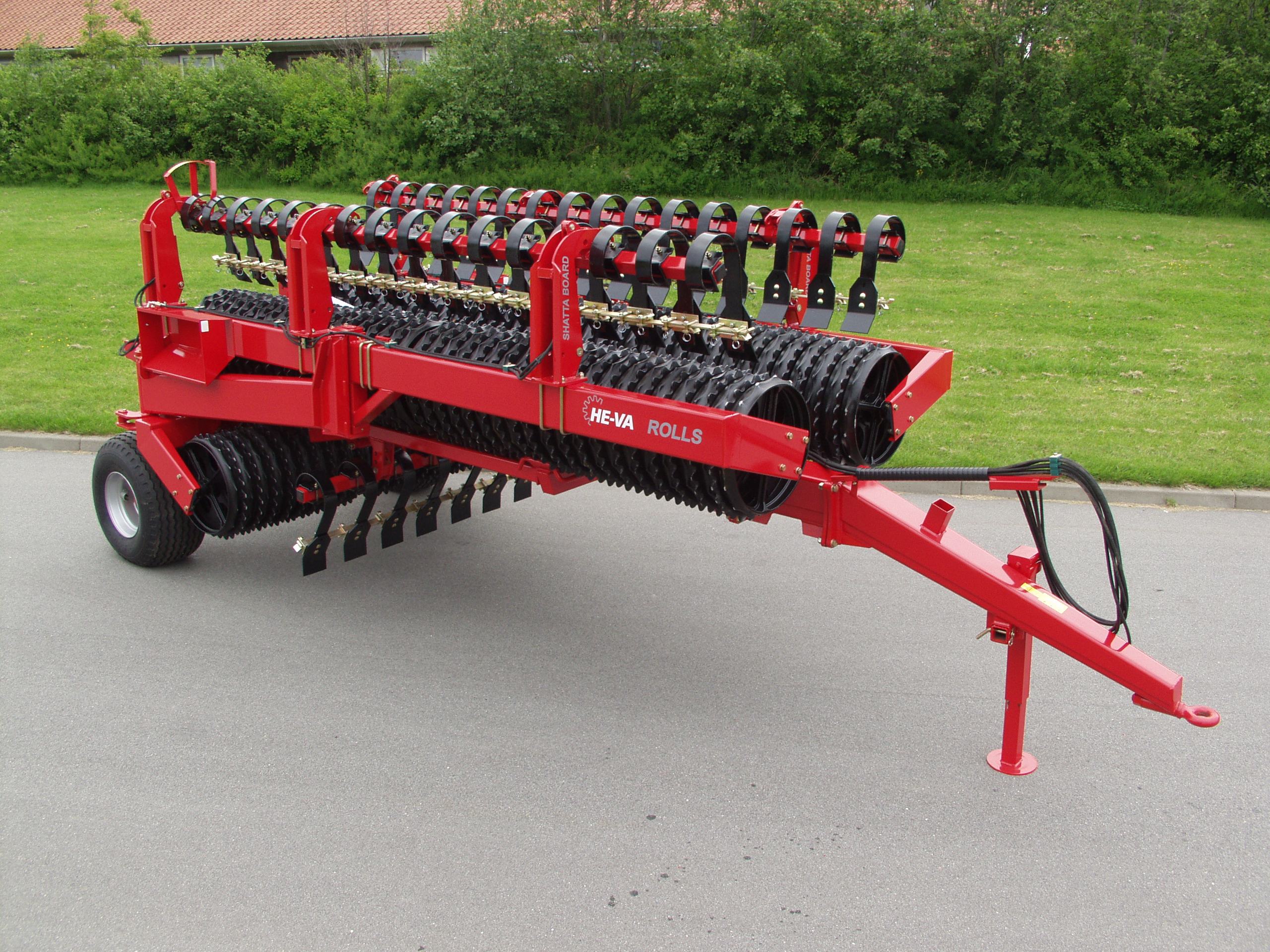

SlicerboardShattaboardShattaboards & Slicerboards

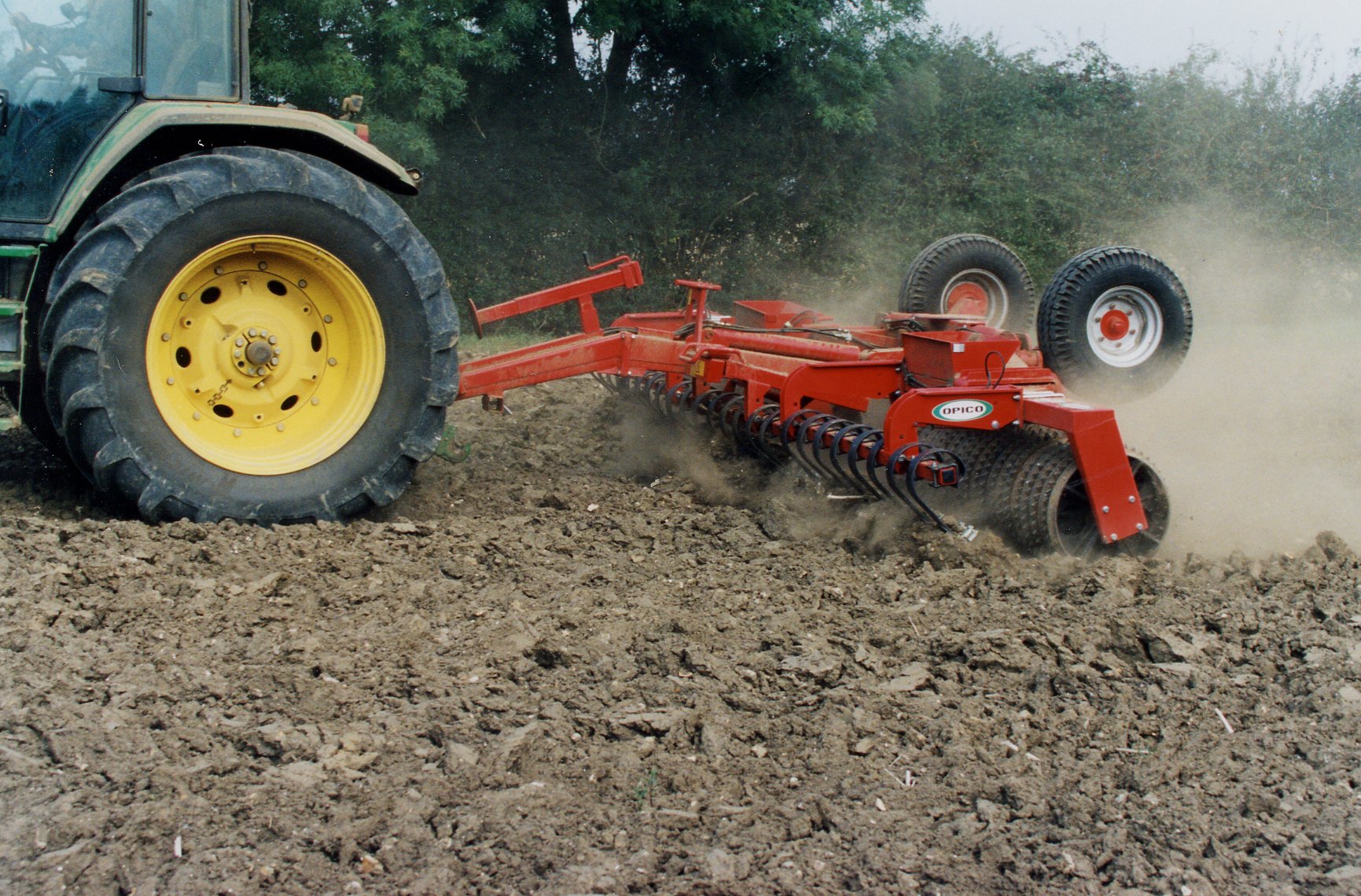

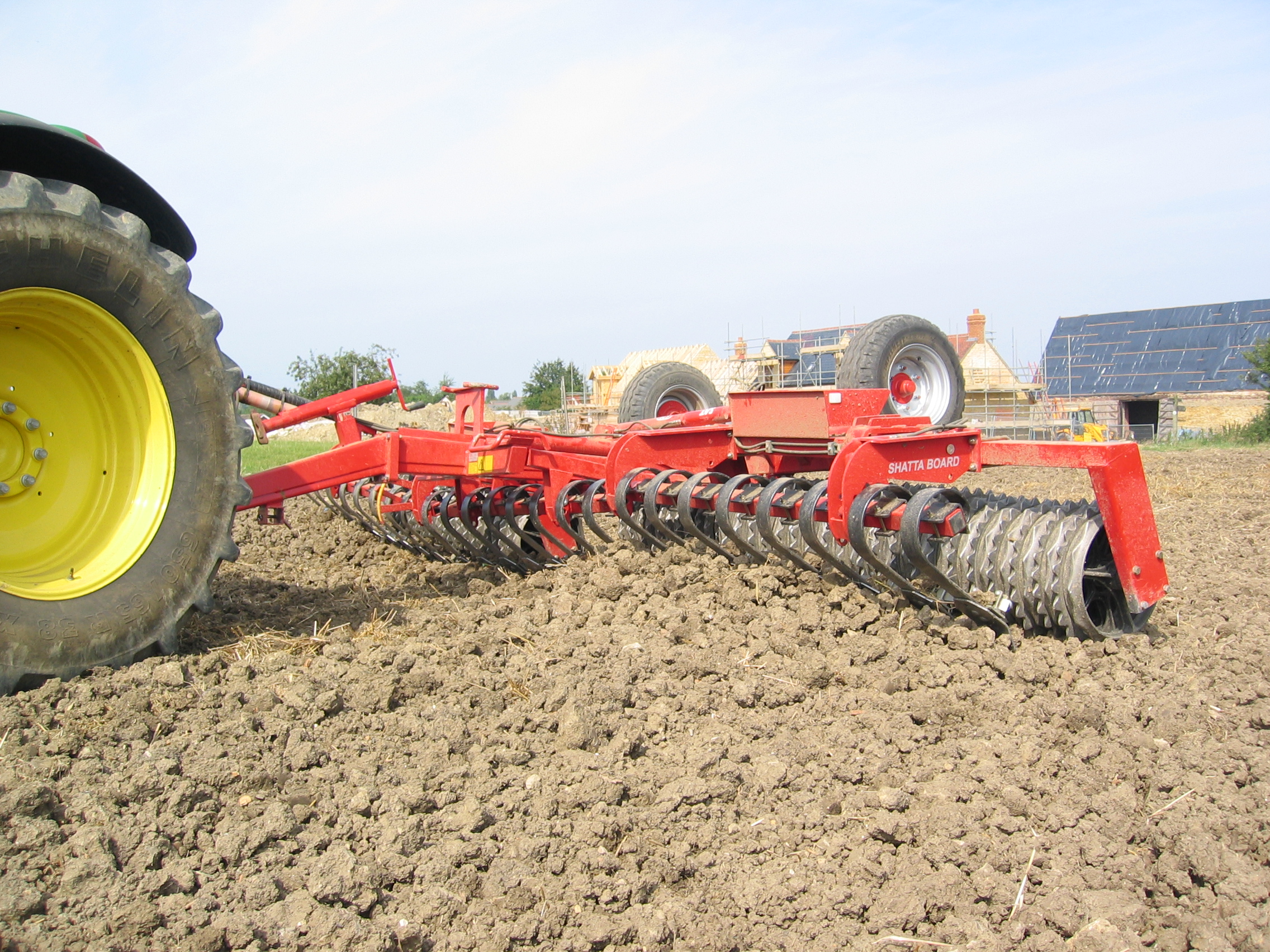

Shattaboards & Slicerboards cultivate, level and consolidate in front of the rolls transforming the rolls into an all round cultivation tool.

Hydraulic operation enables the levelling board to be retracted when necessary and controls the working angle. The locking device links the springboards   together harnessing their combined strength to improve levelling.

The Slicerboard knife edges slice into clods on heavy ground enhancing the tilth created by the board.

• Close coupled - strength and reliability
• Height and angle adjustment
• Adjustable wearing paddles - extend life
• Locking device - enhances

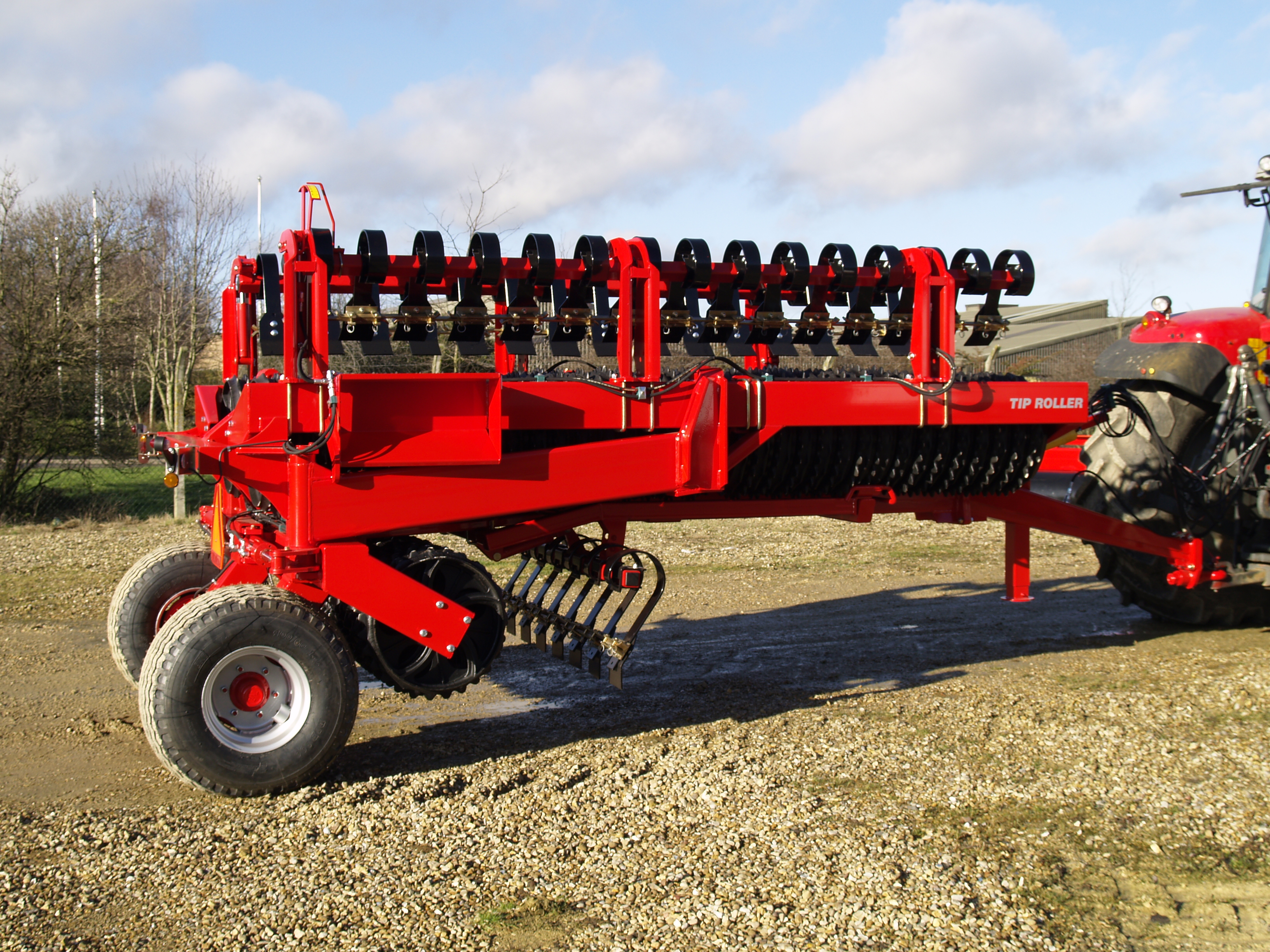

Top-Cutter

The Top-Cutter was designed to assist in cover crop destruction, it can be fitted as an option to HE-VA Tip Rollers. Mounted ahead of the main cultivation element, the roller is equipped with six double-sided blades which span its full working width.
With downforce generated by the Tip Roller, the blades provide a transverse chopping action.

The roller rings on the host machine work at 90 degrees to the knife roller ensuring crop residues are comprehensively dealt with. Blades are arranged in a chevron pattern to evenly load the roller and avoid vibrations being generated when the machine is running at speed


Straw Tines

Two rows of Straw Tines, sprung finger tines that can turn a set of HE-VA Straw TinesTip rolls into a true multi-purpose machine, capable of helping growers reduce their reliance on chemicals in combating pest and weed problems.

Following initial cultivation passes, the heavy-duty Tip Rollers fitted with Straw Tines can be put to work pre-drilling with the tines providing shallow soil movement to generate a surface tilth. Rows of breaker rings then provide a firming action and a corrugated, weather-proof finish ready for the drill. The aggressive stirring action of tines disturbs and disrupts slug activity, destroying clutches of eggs before they hatch.

As well as creating consolidated stale seedbeds ahead of drilling, Tip Rollers equipped with Straw Tines can also be used following the combine to evenly spread and break up crop residues, prompting more rapid breakdown. At the same time the tines’ action can help to generate a fine surface tilth which, when consolidated by the heavy roller rings, produces ideal conditions to get weed seeds to germinate.

Mounted on a hydraulically activated toolbar directly ahead of the roller rings, the twin rows of 16mm diameter straw harrow tines can be lifted out of work for conventional post-drilling seedbed consolidation work.



Features

Weight Transfer System

Unique SAT System - Special Active Transfer

All rolls have the powerful built-in SAT system to spread the frame weight evenly across the machine width.

Cambridge Rolls without HE-VA automatic weight balancing tend to exert the highest ground pressure on the centre roller section. This roller section carries the weight of the drawbar, wheel frame and hydraulics as well as its own weight, far more than the two wing sections.

With a basic roller set up there is no weight transfer and the uneven weight distribution is great as can be seen above.

Even with a basic sprung weight transfer system the hinges at either end of the centre section prevent weight being spread evenly.

The HE-VA SAT system is spring loaded and as the outside roll sections are attached with centre pivot hinges, weight transferred evenly across the full width of the Cambridge Rolls.

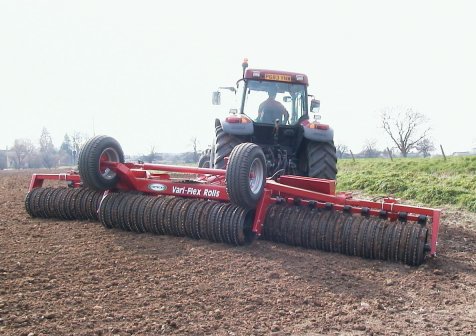

Contour Following

The key to any set of Rolls successfully improving soil consolidation is weight, and getting the weight on to the soil. The Tip-Roller achieves this by featuring five Pivot Points, three centre pivots plus two more where the wings are joined to the main frame. Giving independent floatation on each section; this allows the roller to follow the contours in the most undulating of ground conditions and ensures constant ring to soil contact.



Heavy Duty Design

The Tip Rollers folding mechanism has a deep wing link pivot with Teflon coated steel bushing top and bottom to provide strength for cultivation as well as rolling.

The rings are mounted on 60mm axles for strength and longevity. These axles run on 4 bolt bearings protected inside u-profile steel.

The Cambridge Rolls axle on the wing sections of the 8.2, 9.5 and 10.2m have a centre bearing as an additional support.

Fold in Seconds

Simple, safe folding - what else do you expect from a HE-VA

Folding Sequence 3 Section Tip Roller

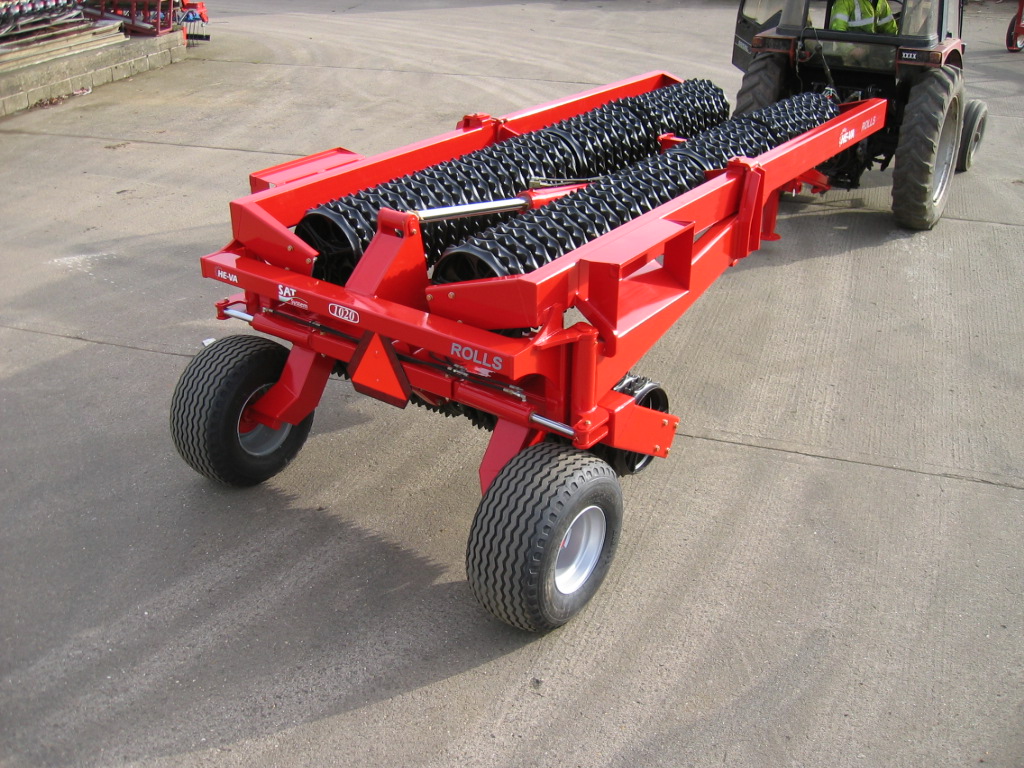

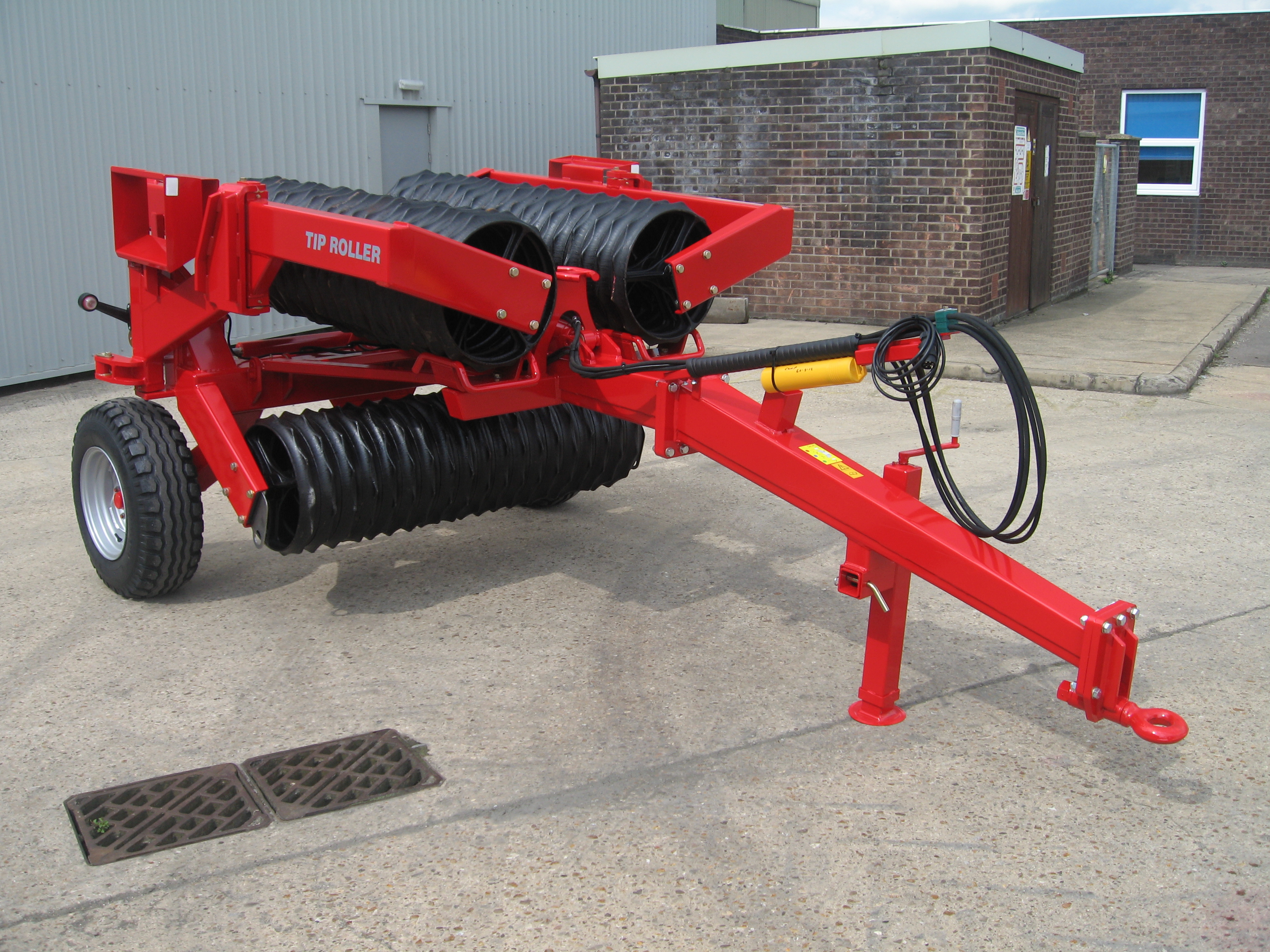

Transport position HE-VA Rolls


Cambridge Rolls in transport position.

Lift wings off cradles HE-VA Rolls




Swinging the side section into working position.
Swing side sections working HE-VA Rolls

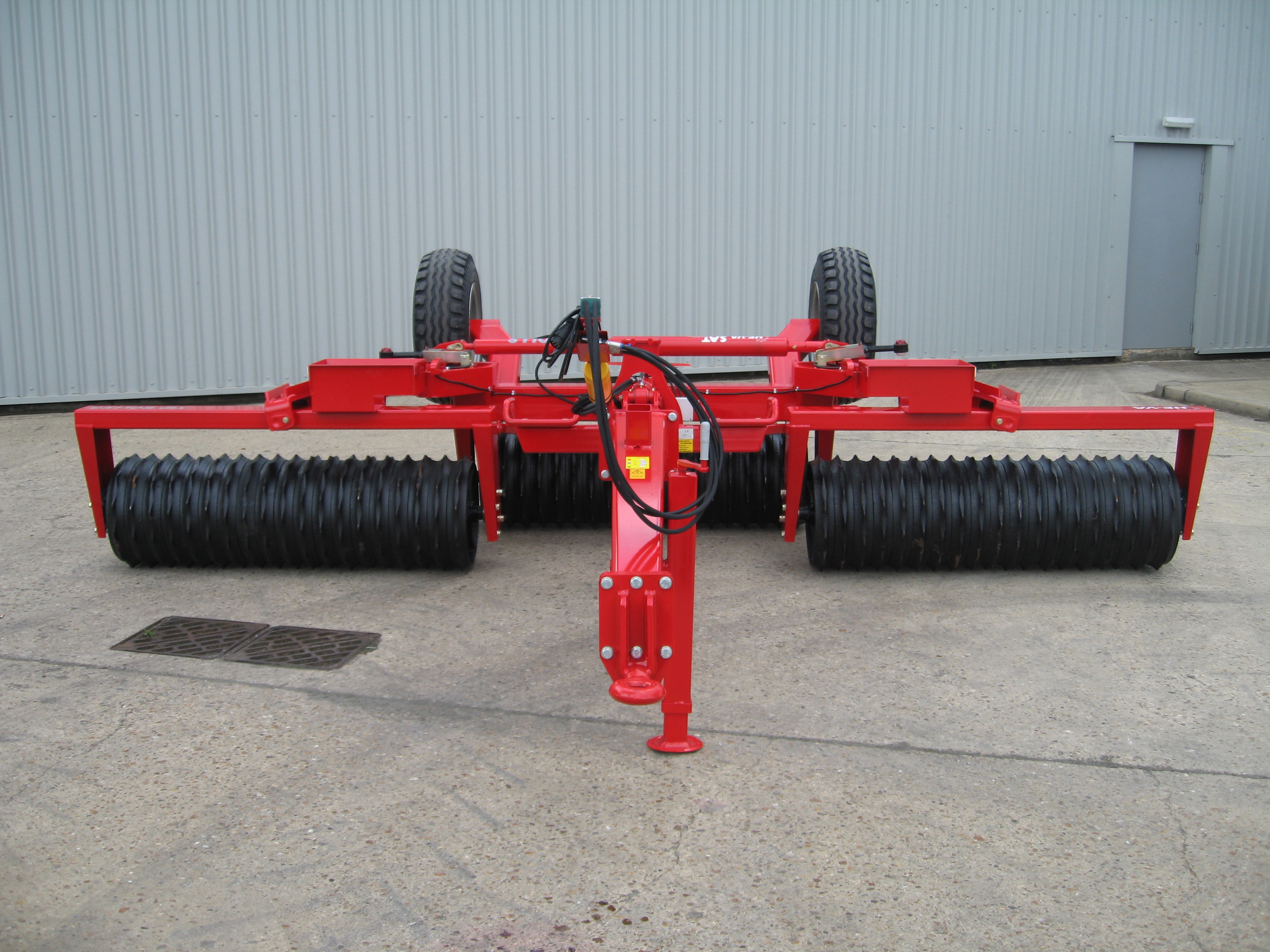

Side section in working position.
 Tip side sections of HE-VA Rolls


Tip the rolls forward until the
cylinder bottoms.
 Tip rolls forward until cylinder bottoms


Tip the rolls forward until the cylinder bottoms.

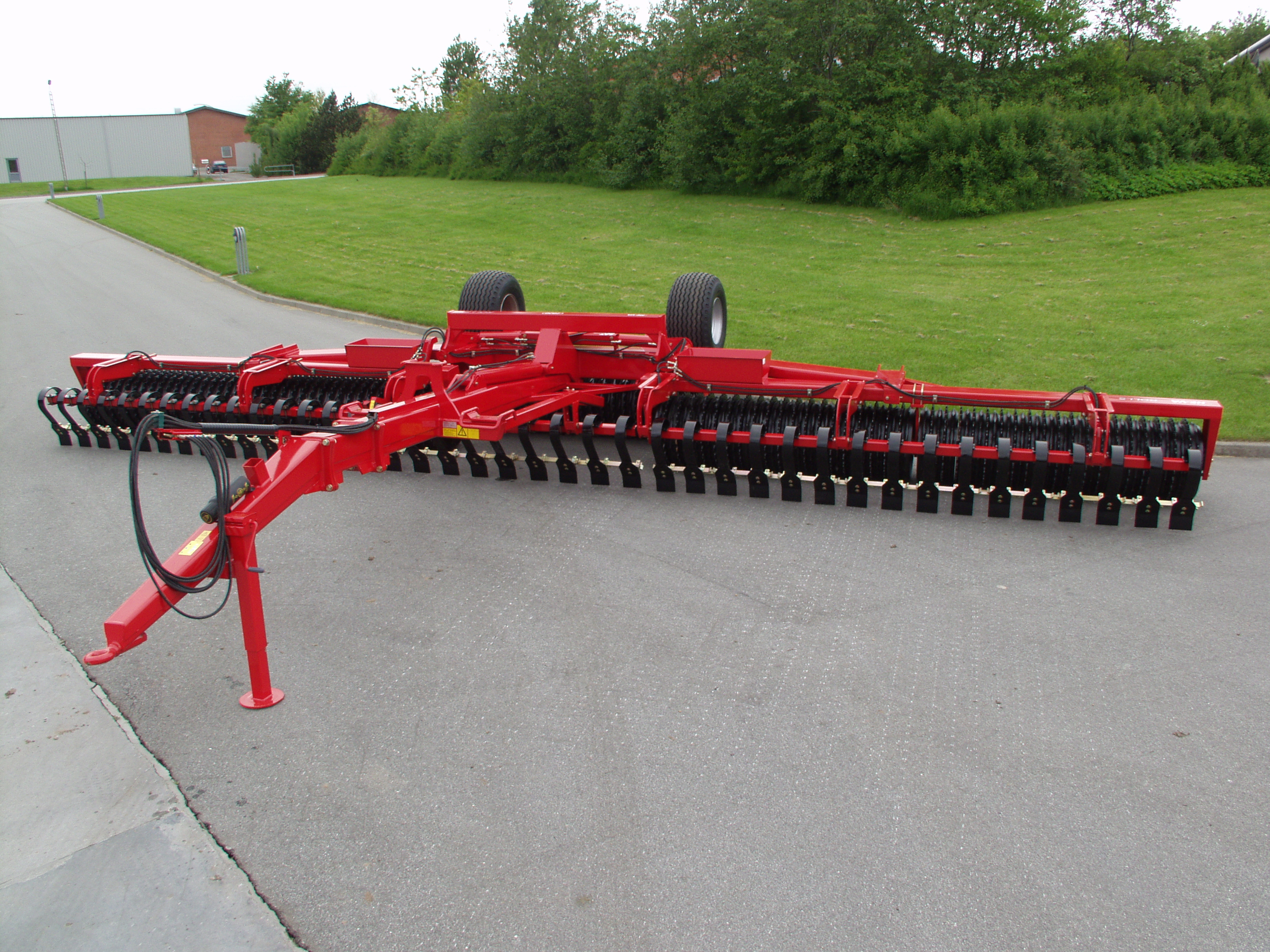

 HE-VA rolls ready to work


The HE-VA rolls are ready to work.





Transport & Storage

HE-VA's 3 section Cambridge Rolls design supports the side section horizontally in a positive locking cradle reducing noise when travelling.

In the completely folded position the weight of the wings is carried between the tractor and transport wheels improving stability.



Ring Profile

Ring Profile

HE-VA rolls are available with a choice of ring types. All carefully designed to cope with today’s higher machine weights but retain the time-proven qualities of traditional ring engineering, the range includes new multi-spoke developments created to meet customer demand and changing farming methods.

New generation rings come standard with a 5-year warranty.



510mm 21" HE-VA Rings 9 Spoke HE-VA Rings 10 spoke HE-VA Rings

8 spoke Cambridge and Breaker
510mm / 20"

9 spoke Cambridge and Breaker
560mm / 22"

10 spoke Cambridge and Breaker
620mm / 24"

8 spoke HE-VA Rings 9 spoke HE-VA Rings 10 spoke HE-VA Rings

8 spoke Cambridge only
500mm / 20"

9 spoke Cambridge only
550mm / 22"

10 spoke Cambridge only
600mm / 24"





Models

Cambridge Rolls 4.5m - 10.2m
RING TYPE                             Cambridge Only (Standard)   Cambridge & Breaker (Standard)
WIDTH   Ring Size 500mm 8 Spoke 550mm 9 Spoke 600mm 10 Spoke 510mm 8 Spoke 560mm 9 Spoke 620mm 10 Spoke
WORKING
4.5m
TRANSPORT
2.46m
WEIGHT KG
RINGS
AXLE (mm
1990
57
60
2230
57
60
2542
57
60
2260
87
60
2540
87
60
2900
87
60
WORKING
5.4m
TRANSPORT
2.46m
WEIGHT KG
RINGS
AXLE (mm)
2430
69
60
2730
69
60
3164
69
60
2690
105
60
3100
105
60
3456
105
60
WORKING
6.3m
TRANSPORT
2.46m
WEIGHT KG
RINGS
AXLE (mm)
2840
78
60
3250
78
60
3617
78
60
3140
123
60

3710
123
60

4442
123
60
WHEELS: 10.0 / 75 X 15.3 - 10 PLY      *WHEELS: 11.5 / 80 x 15.3 - 10 PLY
WORKING
7.3m
TRANSPORT
2.46m
WEIGHT KG
RINGS
AXLE (mm
3520
90
60
3860
90
60
4273
90
60
3840
143
60
4430
143
60
4872
143
60
WORKING
8.2m
TRANSPORT
2.46m
WEIGHT KG
RINGS
AXLE (mm)
3840
102
60
4100
102
60
4645
102
60
4190
157
60
4700
157
60
5528
157
60
WHEELS: 11.5 / 80 X 15.3 - 10 PLY
WORKING
9.5m
TRANSPORT
2.46m
WEIGHT KG
RINGS
AXLE (mm)
4740
118
60
5030
118
60
5662
118
60
5180
180
60
5770
180
60
6730
180
60
WORKING
10.2m
TRANSPORT
2.46m
WEIGHT KG
RINGS
AXLE (mm)
5020
126
60
5310
126
60
5650
126
60
5690
196
60
6220
196
60
6850
196
60
WHEELS: 400 / 60 X 15.3 - 14 PLY

Technical Information

Cambridge Rolls 4.5m - 10.2m

HE-VA HD 3 section Cambridge Rolls - 500mm Roller Rings

Model

Roller Size

Working Width -m

Working Width -ft

Transport Width -m

Weight kg

1063053-50

500mm

4.5m

15'

2.20m

1860

1063054-50

500mm

5.4m

17'8"

2.20m

2300

1063055-50

500mm

6.3m

20'6"

2.46m

2640

1063058-50

500mm

7.3m

24'

2.46m

3370

1063056-50

500mm

8.2m

27'

2.46m

3840

1063059-50

500mm

9.5m

30'10"

2.5m

4740

1063051-50

500mm

10.2m

33'4"

2.5m

5020

HE-VA HD 3 section Cambridge & Breaker Rolls - 510mm Roller Rings

Model

Roller Size

Working Width -m

Working Width -ft

Transport Width -m

Weight kg

1063053-51

510mm

4.5m

15'

2.20m

2040

1063054-51

510mm

5.4m

17'8"

2.20m

2510

1063055-51

510mm

6.3m

20'6"

2.46m

2940

1063058-51

510mm

7.3m

24'

2.46m

3730

1063056-51

510mm

8.2m

27'

2.46m

4180

1063059-51

510mm

9.5m

30'10"

2.5m

5110

1063051-51

510mm

10.2m

33'4"

2.5m

5470

HE-VA XHD 3 section Cambridge Rolls - 600mm Roller Rings

Model

Roller Size

Working Width -m

Working Width -ft

Transport Width -m

Weight kg

1063080-60

600mm

6.3m

20'6"

2.46m

3360

1063082-60

600mm

7.3m

24'

2.46m

3810

1063081-60

600mm

8.2m

27'

2.46m

4350

1063083-60

600mm

9.5m

30'10'

2.5m

5320

1063084-60

600mm

10.2m

33'4"

2.5m

5650

HE-VA XHD 3 section Cambridge & Breaker Rolls - 620mm Roller Rings

Model

Roller Size

Working Width -m

Working Width -ft

Transport Width -m

Weight kg

1063080-62

620mm

6.3m

20'6"

2.46m

4010

1063082-62

620mm

7.3m

24'

2.46m

4580

1063081-62

620mm

8.2m

27'

2.46m

5110

1063083-62

620mm

9.5m

30'10'

2.5m

6170

1063084-62

620mm

10.2m

33'4"

2.5m

6640

NOTE: The 8.2, 9.2 and 9.5 metre wide Cambridge Rolls have a 50mm gap for the support bearing hangers in both wing sections

4.5m - 8.2m Machines fitted with pivoting towing eye Ø50mm - 66630757028

9.5m - 10.2m Machines fitted with pivoting towing eye Ø50mm - 66630757017

Included: Road Lights as Standard

HDplus Cambridge Ring Rolls - 550mm Diameter

Model No.

Roller size

Working width

Transport width

Weight kgs

1063053-59

550mm

4.5m

2.2m

2230

1063054-59

550mm

5.4m

2.2m

2730

1063055-59

550mm

6.3m

2.46m

3250

1063058-59

550mm

7.3m

2.46m

3860

1063056-59

550mm

8.2m

2.46m

4100

1063059-59

550mm

9.5m

2.5m

5030

1063051-59

550mm

10.2m

2.5m

5310

4.5m - 8.2m Machines fitted with pivoting towing eye Ø50mm - 66630757028
9.5m - 10.2m Machines fitted with pivoting towing eye Ø50mm - 66630757017 (drawbar details at rear of booklet).

HDplus Cambridge & Breaker Ring Rolls - 560mm Diameter

Model No.

Roller size

Working width

Transport width

Weight kgs

1063053-54

560mm

4.5m

2.2m

2540

1063054-54

560mm

5.4m

2.2m

3100

1063055-54

560mm

6.3m

2.46m

3710

1063058-54

560mm

7.3m

2.46m

4430

1063056-54

560mm

8.2m

2.46m

4700

1063059-54

560mm

9.5m

2.5m

5770

1063051-54

560mm

10.2m

2.5m

6220

4.5m - 8.2m Machines fitted with pivoting towing eye Ø50mm - 66630757028
9.5m - 10.2m Machines fitted with pivoting towing eye Ø50mm - 66630757017 (drawbar details at rear of booklet).

Options & Accessories

Cambridge Rolls options & accessories

TIP ROLLER OPTIONAL EXTRAS

Model

Description

1063080-11

10.0/75 x 15.3 - 14 ply tyre in lieu for 4.5 - 6.3m HD

1063080-10

11.5/80 x 15.3 - 14 ply tyre in lieu for 6.3m HD

1063080-09

400/60 x 15.5 - 14 ply tyre in lieu for 7.3m + 8.2m**

1063098-08

Hydraulic brakes

1063098-07

Air Brakes

1060801003

Drawbar extension (500mm) 9.5m - 10.2m

1060801001

Drawbar extension (500mm) 4.5m - 8.2m

*NB Maximum carrying capacity including seeder = 200kg

Note: The 8.2, 9.5 and 10.2 metre wide 3-section rolls have a 50mm gap for the support bearing hangers on all three sections.

**Transport width increases to 2.56m

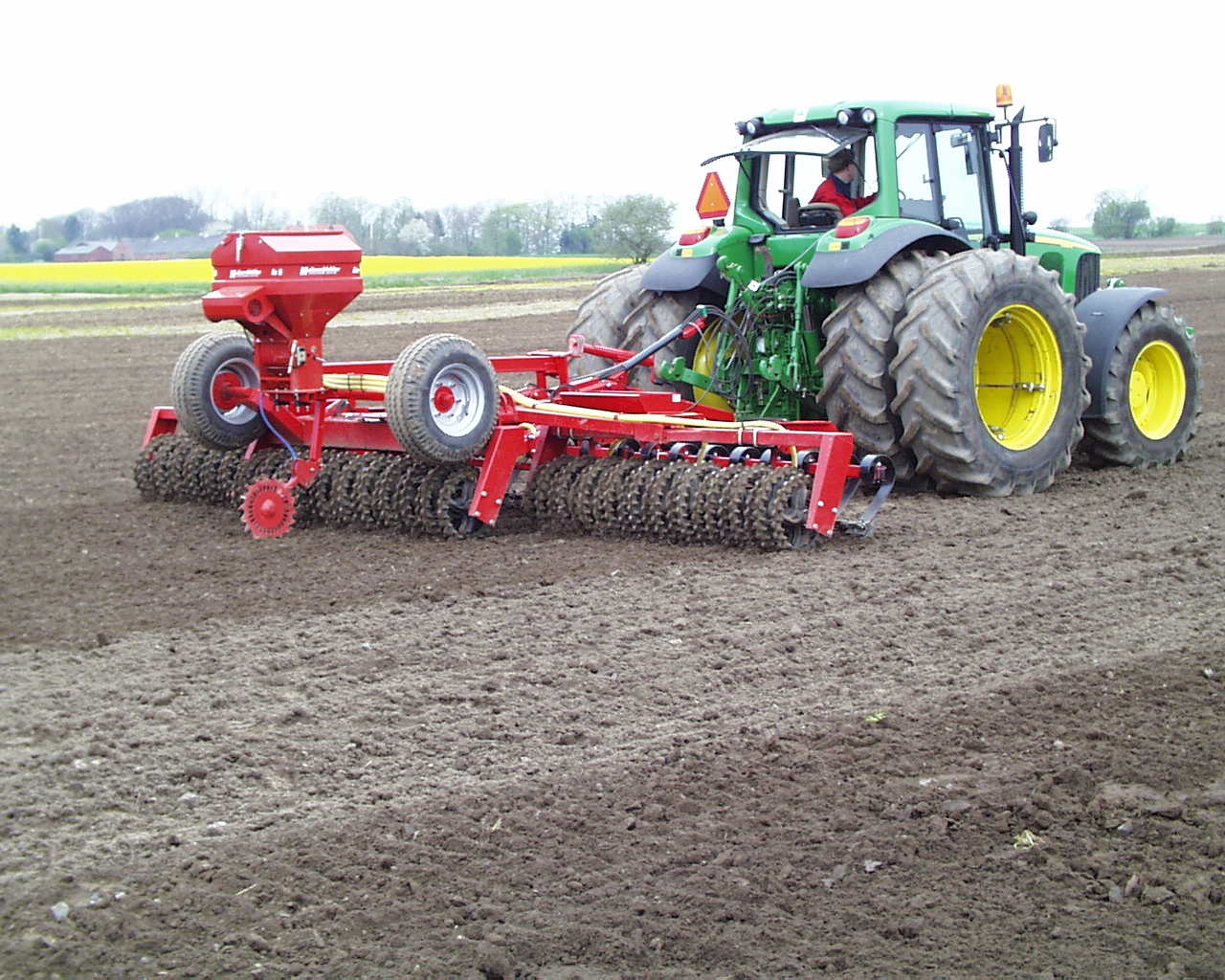

NB: Seeder/applicator fitting kit available on request

Draw Bar Options

Draw Bar Options

Pivoting Towing Eye - Standard



Weight (KG)

Description

Pivoting towing eye - standard

66630757028

13

Pivoting towing eye "Standard" Ø50mm mounted with M16 bolts

Pivoting Towing Eye - Strong



Weight (KG)

Description

66630757017

20

Pivoting towing eye "Strong" Ø50mm mounted with M20 bolts

Pivoting Towing Eye - High Quality



Weight (KG)

Description

66630757046

20

Pivoting towing eye "High Quality" Ø50mm mounted with M20 bolts

Pivoting Towing Eye - Strong 85°



Weight (KG)

Description

66630757041

20

Pivoting towing eye "Strong 85°" Ø50mm mounted with M20 bolts

Ball Hitch



Weight (KG)

Description

66630757023

26

Ball hitch f/Ø80mm ball mounted with M20 bolts

Pivoting Crossbar Cat III



Weight (KG)

Description

66630757034

81

Lower link mounted pivoting crossbar Cat III Ø36.5mm pins mounted with M20 bolts

Pivoting Crossbar Cat IV



Weight (KG)

Description

66630757045

88

Lower link mounted pivoting crossbar Cat IV Ø50mm pins mounted with M20 bolts

Towing Eye Bush



Weight (KG)

Description



660438132

0.3

Bush for towing eye Ø50mm / Ø33.5mm reduces from Ø50mm to Ø33.5mm

NOTE: To upgrade the drawbar on your trailed HE-VA machine, please ensure the change is clearly marked on your order.
