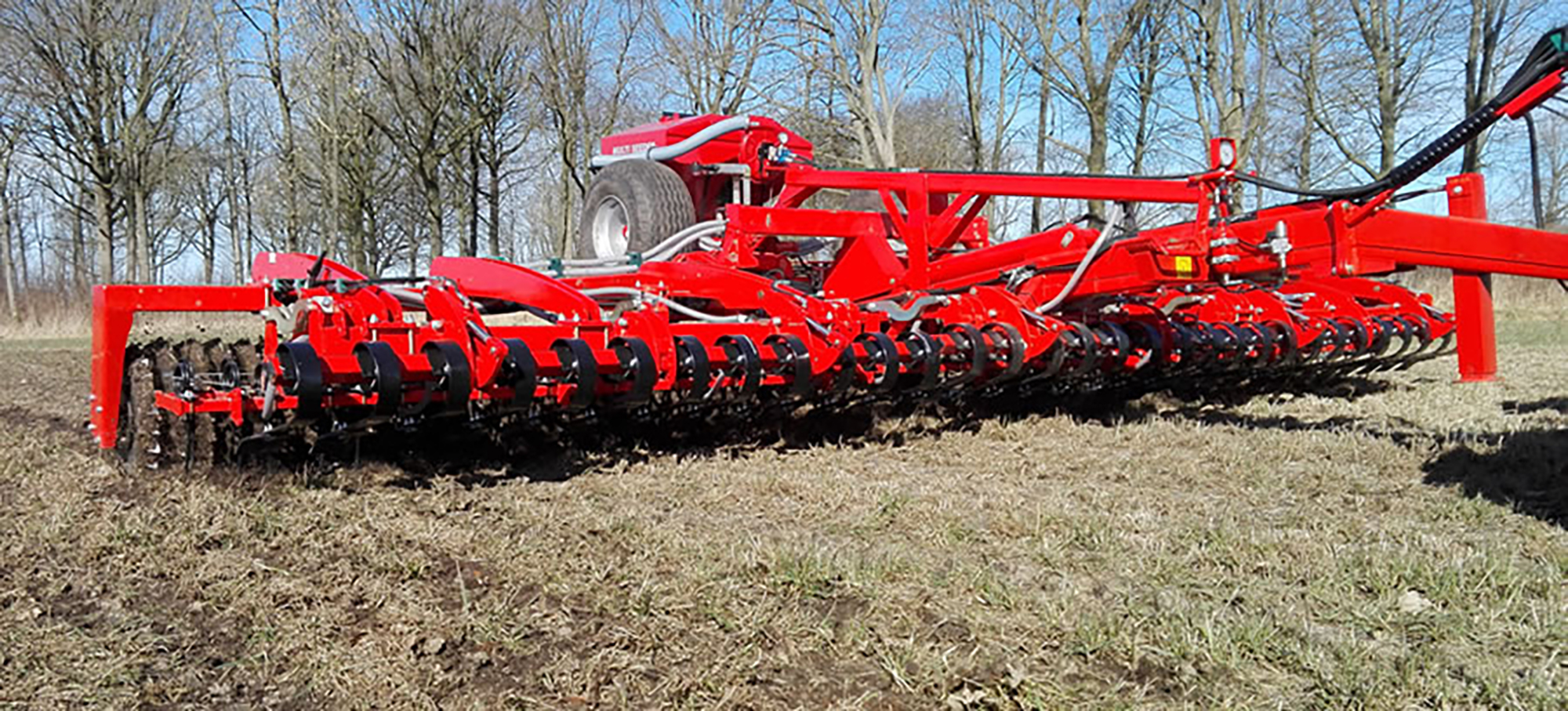

The Grass Rejuvenator is a grassland improvement machine which consists of an aggressive shattaboard with slicing plates, 2 rows of heavy duty harrow tines, a HE-VA Multi-Seeder (or Air 16 Grass Seeder on the 6.3m and 8.2m models, depending on product and rate being spread), and a Star ring roller.
The slicing plates and harrow tines break up and level the soil surface in front of the grass seed outlets and the soil is then firmed behind by the Star ring roller.
Save time and money with the HE-VA Compact Grass Rejuvenator with one-pass seeding of grassland
The aggressive slicing plate and harrow action make the Rejuvenator ideal for use in badly poached fields which require restoration. It can also be used – without the seeder – for harrowing grassland to remove trash and stimulate grass growth and for molehill levelling.
Furthermore, the action of the new heavy 550/600mm diameter Star ring roller cracks and breaks clods produced by the front equipment to create a fine tilth for grass seed to germinate in.
As a result, the machine is ideal for both grassland rejuvenation and reseeding cultivated land.
On folding machines, the frame incorporates HE-VA’s SAT weight transfer system and central pivoting of each section to ensure the sections can adapt to the contours.
FEATURES & BENEFITS
Aggressive Shattaboard with Slicing Plates

The slicing plates constructed of sprung steel, work to break up hard soil and level uneven ground.
2 Rows of Heavy-Duty Tines

2 rows of heavy-duty tines level and break up the surface to allow oxygen to get to the root zone, also helping to create tilth to help the seed germinate if using a seeder with the Grass Rejuvenator.
550/600mm Star Ring Roller

The heavy 550/600mm diameter Star ring roller cracks and breaks clods produced by the front equipment to create a fine tilth for the grass seed to germinate in.
The machine is ideal for both grassland rejuvenation and reseeding cultivated land.
Jack Stand With Turn-Buckle

A jack stand and turn-buckle allow easy and safe attachment and removal from the tractor.

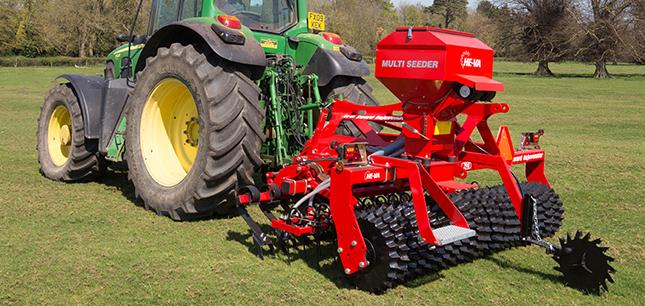

Multi-Seeder
A HE-VA Multi Seeder has been developed to work in combination with HE-VA cultivation and grassland machinery.
Whilst the seeders themselves ensure precise seed rates, simple calibration and simple to use controls, the fitting kits that HE-VA have developed allow easy access and provide for all seed placement requirements.
An OPICO Air Seeder can also be specified in place of the HE-VA Multi-Seeder.

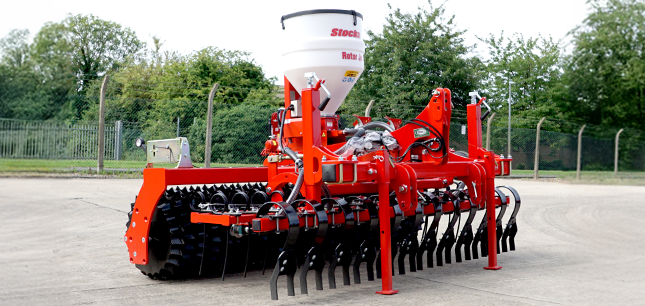

Compact Grass Rejuvenator
The HE-VA Compact Grass Rejuvenator enables reseeding or overseeding into cultivated land or direct into existing pastures.
In addition to the reseeding process, it is also a multifunctional tool. Levelling and freshening up of cultivated ground, aerating and dethatching of existing grassland thus improving nutrient uptake. With fewer passes required than conventional establishment methods, savings on time and fuel costs soon become apparent.
Based on the larger Grass Rejuvenator but 400mm shorter, the compact offers all the benefits of the larger model, simply in a more compact design, allowing tractors of 80-120hp to be used.

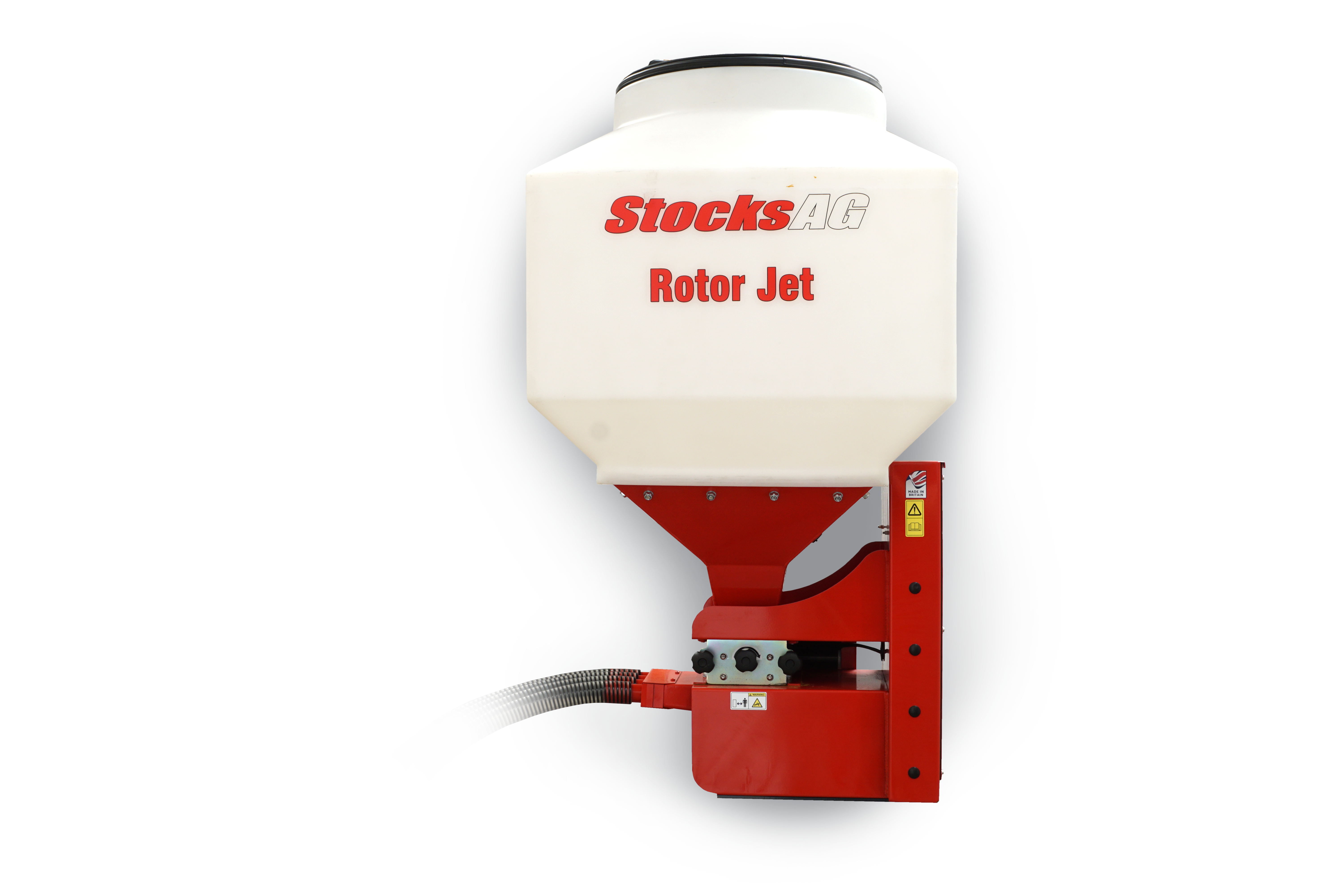

Available in 2.9m working widths, the grassland improvement tool, which consists of an aggressive shattaboard with double finger slicing plates, two rows of Ø12mm heavy-duty harrow tines, Stocks AG Rotor Jet 130 seeder and a 450/500mm Star Ring Roller, the Compact Grass Rejuvenator is the ideal tool for the job.
One-pass seeding of grassland - save time and money with the HE-VA Compact Grass Rejuvenator
“The HE-VA Compact Grass Rejuvenator has been designed with the livestock farmer in mind, and is perfectly designed to overseed tired grassland or establish new leys using medium sized tractors”, - Glenn Bootman, HE-VA Product Manager.

GRASS REJUVENATOR MODELS
