GRASS-COMBI

Levelling

The Grass-Combi offers a choice of either rigid levelling bars or sprung Shattaboard paddles which deal with high spots like mole-hills, by carrying soil to backfill dips and ruts. In a cereal situation the paddles will also carry crop residue to even out chaff and chopped straw across the whole field surface.

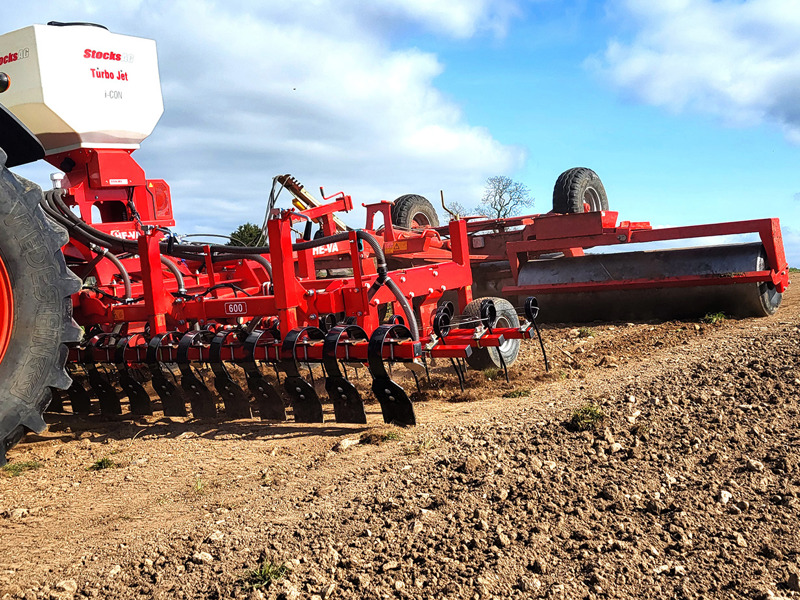

Spring Tines

Three rows of hydraulically-adjustable circular-profile spring tines. 12mm in diameter, which rip out any dead or decaying vegetative matter to open up the sward for fresh growth. The scratch effect also serves to create a micro-tilth for crop establishment at the same time as generating a small amount of nitrogen mineralisation for emerging seedlings.

Depth Control

At the rear of the machine’s frame are four height-adjustable wheels. As well as providing all-important depth control, these also enable the Grass-Combi to further extend its versatility. Fitted with Cat II linkage hooks and a clevis hitch, the unit can tow a roller to reconsolidate the ground behind it and generate maximum seed-to-soil contact.

Seeder

Fitted with access step and loading platform, the Stocks Ag Turbo Jet 8 or 10 seed applicator mounted on the Grass-Combi has a high output electric fan* and sophisticated i-CON controller to ensure precise rate control with even the smallest seeds. An ISOBUS version is also available to utilise the tractors own control screen. * Optional hydraulic fan can be specified.

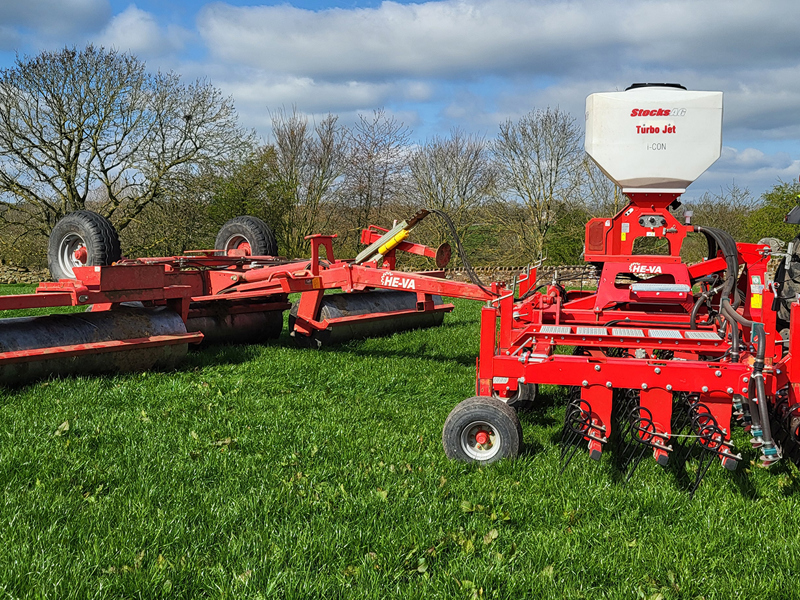

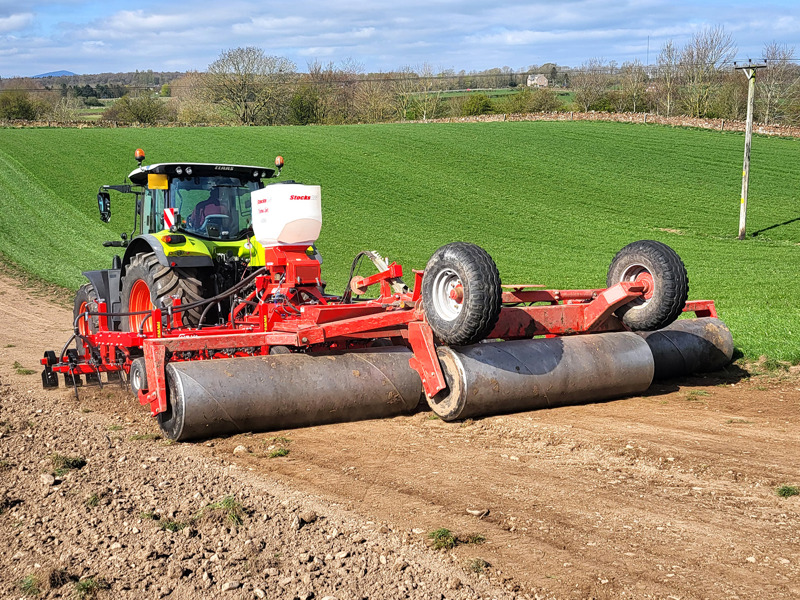

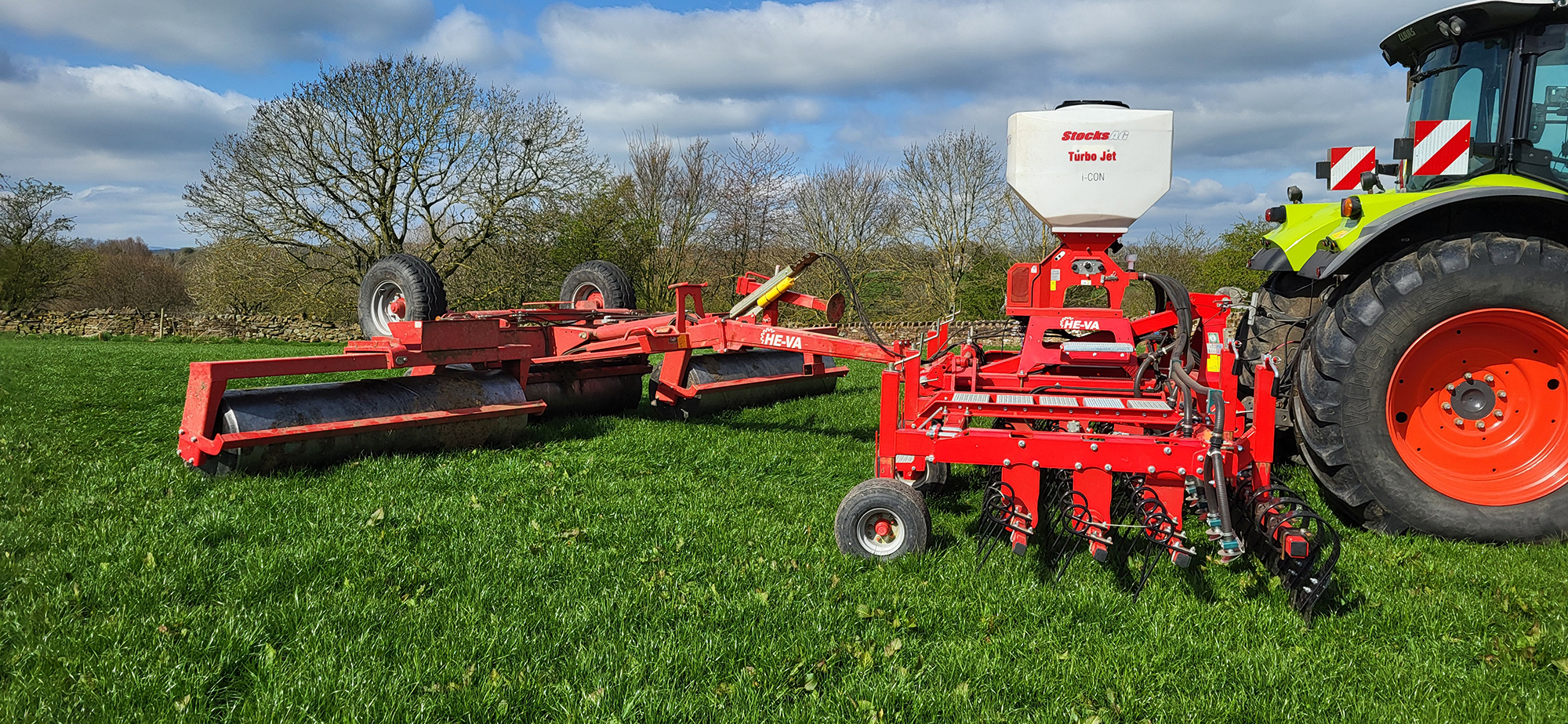

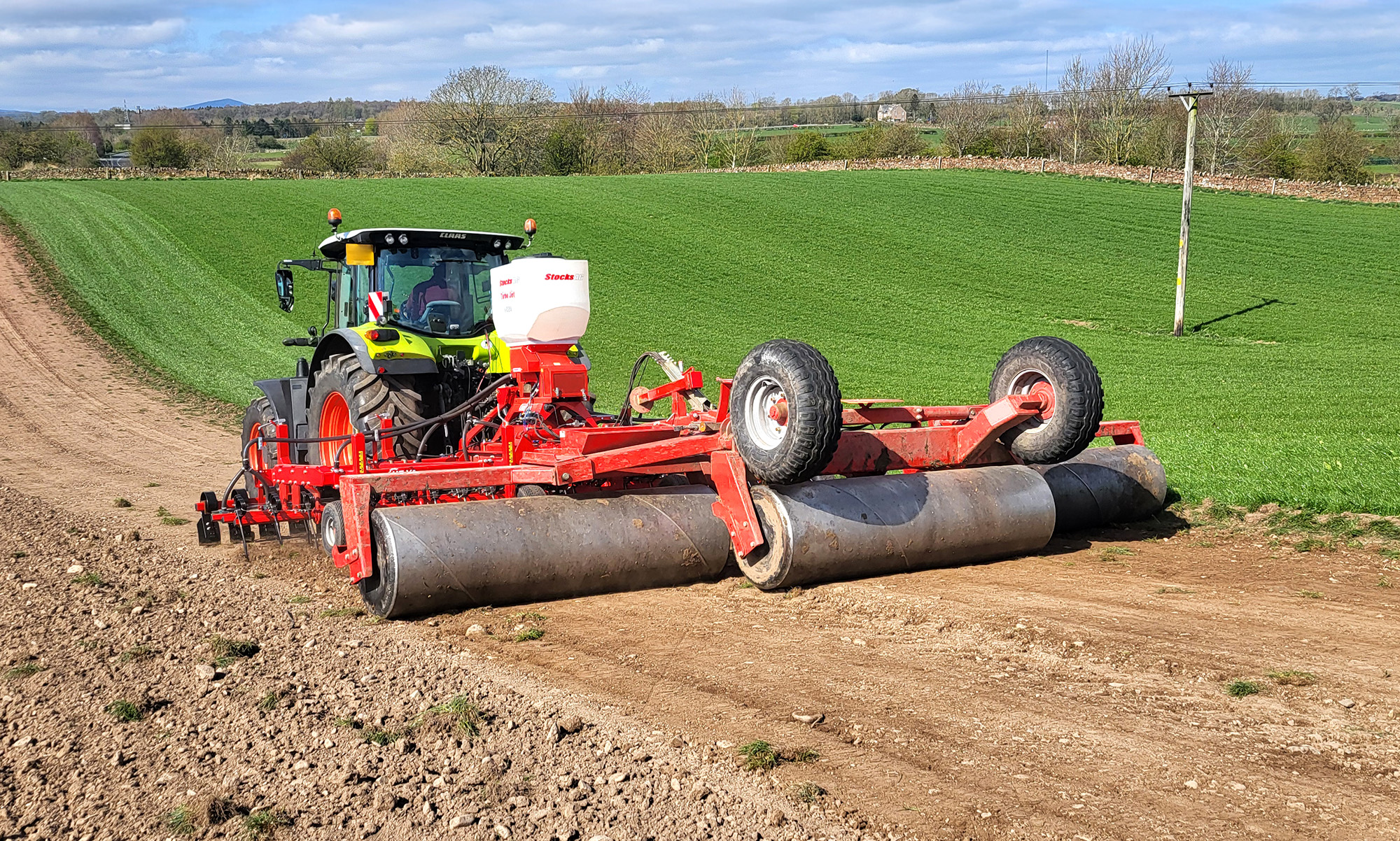

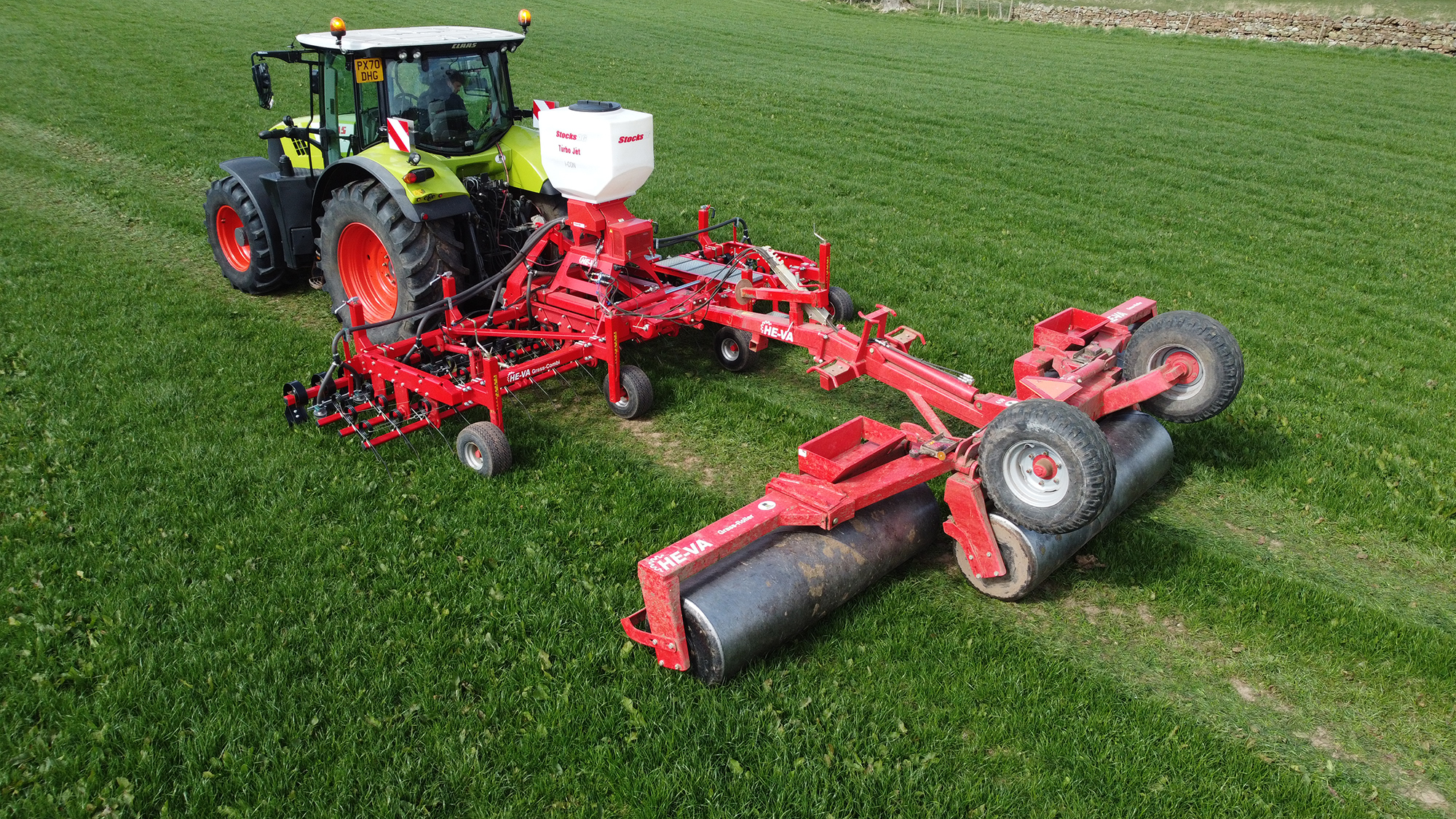

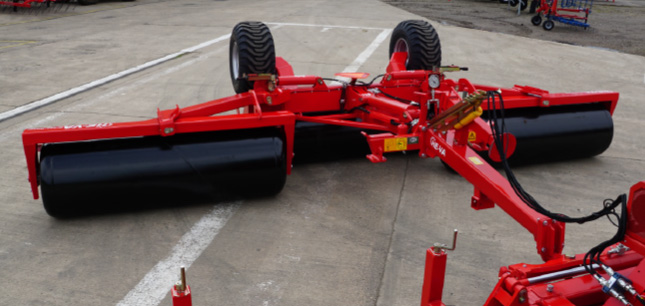

Following Roller

Fitted with CAT III linkage hooks and a pivoting rear clevis drawbar, secondary trailed equipment such as set of HE-VA Grass rolls can be towed, allowing for consolidation directly after seeding,in one pass. Two pairs of double acting hydraulic services and lighting socket are supplied as standard. Additional services are available as an option. The cross bar has a 50mm pin hole diameter.

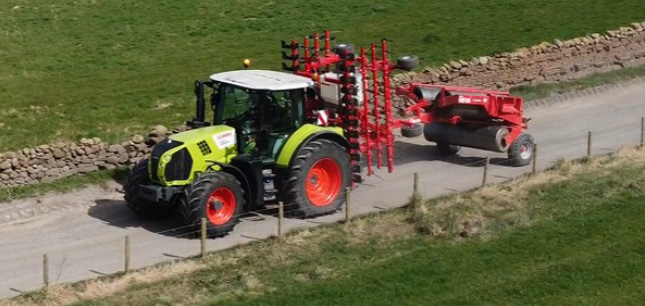

Transport

Available as a 6m model, the Grass-Combi folds to 2.48m for transport.
The hydraulic folding spring tines fold flat ensuring safety during transport.
