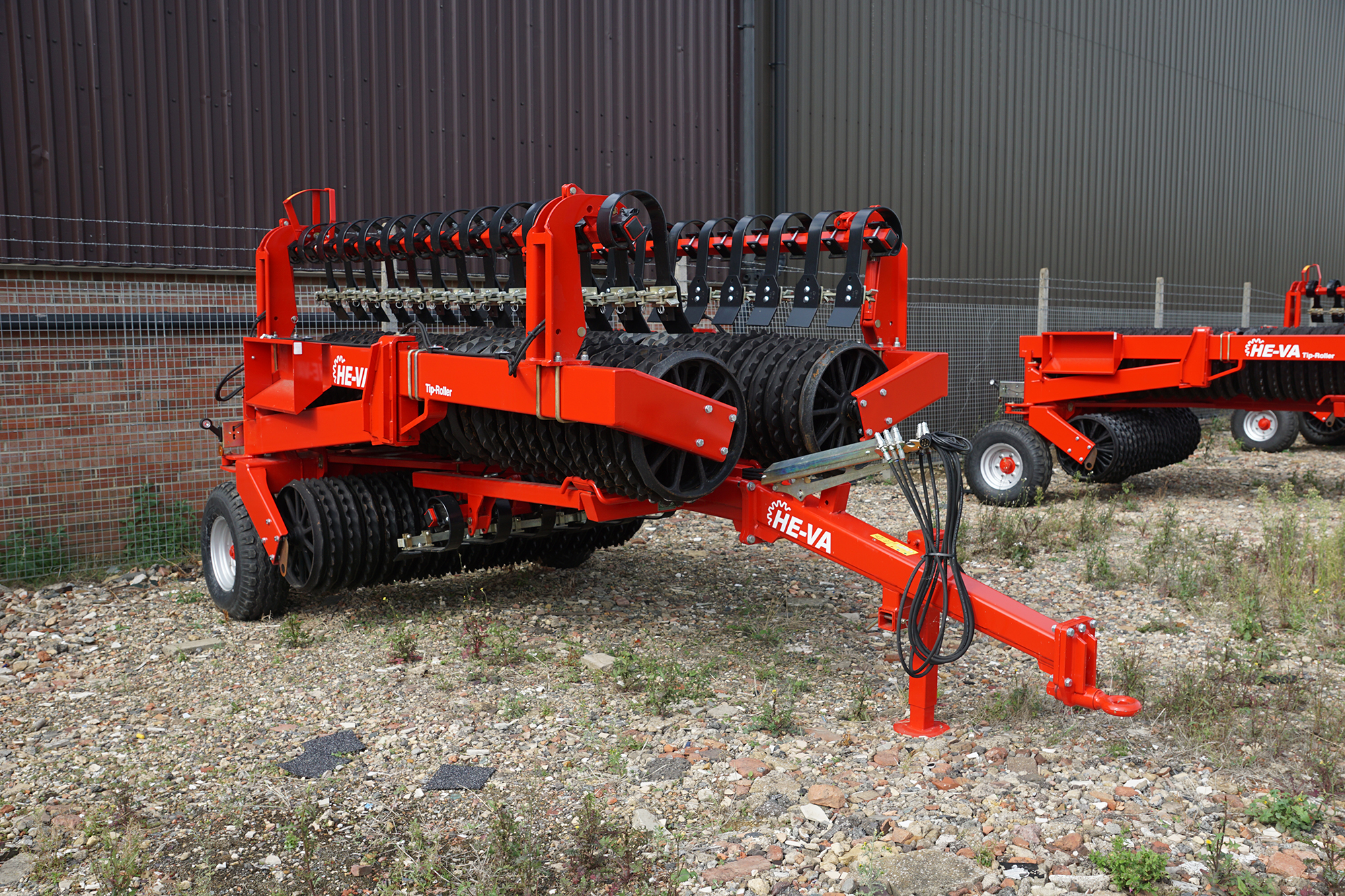

HE-VA have one of the largest Rolls ranges on the market and the 3-Section Tip Roller makes up approximately 75% of all HE-VA rolls sold in the UK.

A unique combination of design features and heavy duty construction ensures true contour following and even weight distribution for level seedbeds, moisture retention, uniform germination, better yields and reduced risk of stone damage.

All rolls have the powerful built-in SAT (Special Active Transfer) system to spread the frame weight evenly across the machine width.

FEATURES & BENEFITS

SAT System - Weight Transfer System

All rolls have the powerful built-in SAT system to spread the frame weight evenly across the machine width.

Cambridge Rolls without HE-VA automatic weight balancing, tend to exert the highest ground pressure on the centre roller section. This roller section carries the weight of the drawbar, wheel frame and hydraulics as well as its own weight, far more than the two wing sections.

The HE-VA SAT system is spring loaded and as the outside roll sections are attached with centre pivot hinges, weight transferred evenly across the full width of the Cambridge Rolls.

Contour Following

The key to any set of Rolls successfully improving soil consolidation is weight, and getting the weight on to the soil.

The Tip-Roller achieves this by featuring five Pivot Points, three centre pivots plus two more where the wings are joined to the main frame. Giving independent floatation on each section; this allows the roller to follow the contours in the most undulating of ground conditions and ensures constant ring to soil contact.




Heavy Duty Design

The Tip Rollers folding mechanism has a deep wing link pivot with Teflon coated steel bushing top and bottom to provide strength for cultivation as well as rolling.

The rings are mounted on 60mm axles for strength and longevity. These axles run on 4 bolt bearings protected inside u-profile steel.

The Cambridge Rolls axle on the wing sections of the 8.2, 9.5 and 10.2m have a centre bearing as an additional support.

Transport & Storage

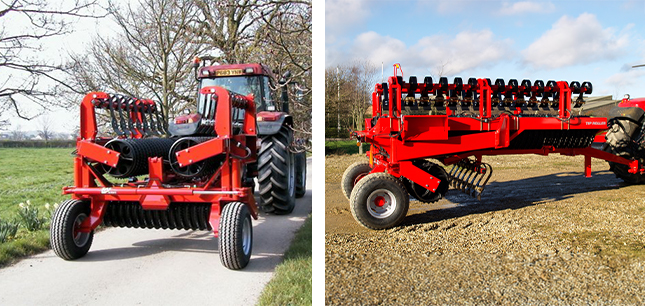

HE-VA's 3 section Cambridge Rolls design supports the side section horizontally in a positive locking cradle reducing noise when travelling.

In the completely folded position the weight of the wings is carried between the tractor and transport wheels improving stability.

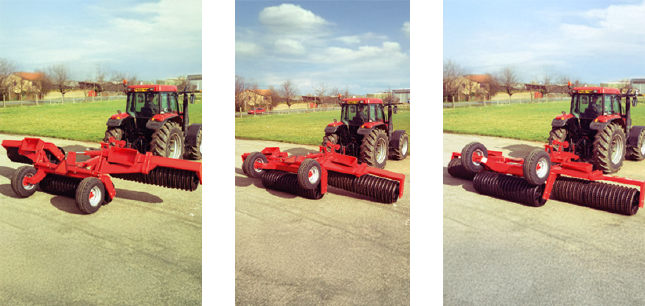

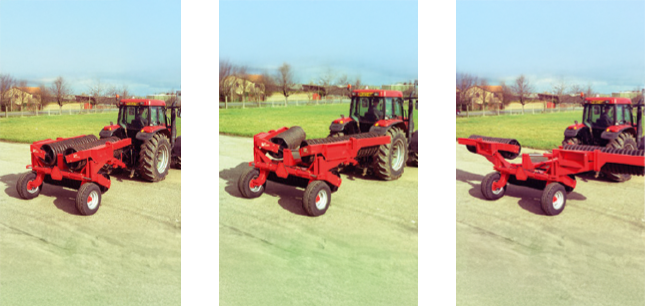

FOLDS IN SECONDS!
  • Rolls in transport position
  • Lift wings off transport cradles
  • Swing the side section into working position
  • Tip the side sections
  • Tip the Rolls forward until the cylinder bottoms
  • The HE-VA Rolls are ready to work



Make Your Rolls Work Harder

Top-Cutter

Shattaboards & Slicerboards

Straw Tines

Multi-Seeder




Ring Profile

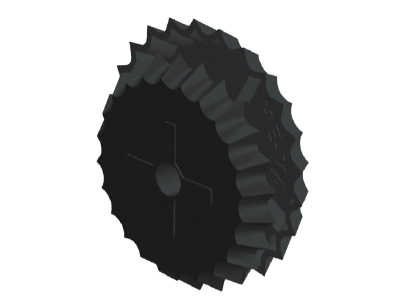

Star Ring

HE-VA rolls are available with a choice of ring types. All carefully designed to cope with today’s higher machine weights but retain the time-proven qualities of traditional ring engineering, the range includes new multi-spoke developments created to meet customer demand and changing farming methods.

A cast ductile steel star, Cambridge, Cambridge and Breaker ring are also available as an option for extreme conditions. These also benefit from an eight year breakage warranty.

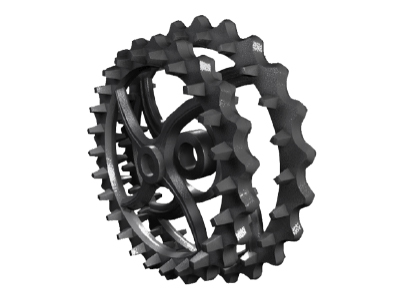

Cross Kill




8 spoke Cambridge and Breaker
510mm / 20"

9 spoke Cambridge and Breaker
560mm / 22"

10 spoke Cambridge and Breaker
620mm / 24"

New generation (NG) rings come standard with a 5-year warranty.




8 spoke Cambridge only
500mm / 20"

9 spoke Cambridge only
550mm / 22"

10 spoke Cambridge only
600mm / 24"




TIP ROLLER MODELS

HE-VA HD 3 section Cambridge Rolls - 500mm Roller Rings

Technical Information

Roller Size Working Width Transport Width Weight
500mm 4.5m 2.2m 1990kg
500mm 5.4m 2.2m 2430kg
500mm 6.3m 2.46m 2840kg
500mm 7.3m 2.46m 3520kg
500mm 8.2m 2.46m 3840kg
500mm 9.5m 2.5m 4740kg
500mm 10.2m 2.5m 5020kg

NOTE: The 8.2, 9.2 and 9.5 metre wide Cambridge Rolls have a 50mm gap for the support bearing hangers in both wing sections

4.5m - 8.2m Machines fitted with pivoting towing eye Ø50mm - 66630757028

9.5m - 10.2m Machines fitted with pivoting towing eye Ø50mm - 66630757017

Included: Road Lights as Standard

HE-VA HD 3 section Cambridge & Breaker Rolls - 510mm Roller Rings

Technical Information

Roller Size Working Width Transport Width Weight
510mm 4.5m 2.2m 2260kg
510mm 5.4m 2.2m 2690kg
510mm 6.3m 2.46m 3140kg
510mm 7.3m 2.46m 3840kg
510mm 8.2m 2.46m 4190kg
510mm 9.5m 2.5m 5180kg
510mm 10.2m 2.5m 5690kg

NOTE: The 8.2, 9.2 and 9.5 metre wide Cambridge Rolls have a 50mm gap for the support bearing hangers in both wing sections

4.5m - 8.2m Machines fitted with pivoting towing eye Ø50mm - 66630757028

9.5m - 10.2m Machines fitted with pivoting towing eye Ø50mm - 66630757017

Included: Road Lights as Standard

HDplus Cambridge Ring Rolls - 550mm Diameter

Technical Information

Roller Size Working Width Transport Width Weight
550mm 4.5m 2.2m 2540kg
550mm 5.4m 2.2m 3100kg
550mm 6.3m 2.46m 3710kg
550mm 7.3m 2.46m 4430kg
550mm 8.2m 2.46m 4700kg
550mm 9.5m 2.5m 5770kg
550mm 10.2m 2.5m 6220kg

4.5m - 8.2m Machines fitted with pivoting towing eye Ø50mm - 66630757028
9.5m - 10.2m Machines fitted with pivoting towing eye Ø50mm - 66630757017 (drawbar details at rear of booklet).

HDplus Cambridge & Breaker Ring Rolls - 560mm Diameter

Technical Information

Roller Size Working Width Transport Width Weight
560mm 4.5m 2.2m 2540
560mm 5.4m 2.2m 3100
560mm 6.3m 2.46m 3710
560mm 7.3m 2.46m 4430
560mm 8.2m 2.46m 4700
560mm 9.5m 2.5m 5770
560mm 10.2m 2.5m 6220

4.5m - 8.2m Machines fitted with pivoting towing eye Ø50mm - 66630757028
9.5m - 10.2m Machines fitted with pivoting towing eye Ø50mm - 66630757017 (drawbar details at rear of booklet).

HE-VA XHD 3 section Cambridge Rolls - 600mm Roller Rings

Technical Information

Roller Size Working Width Transport Width Weight
600mm 4.5m 2.46m 2542
600mm 5.4m 2.46m 3164
600mm 6.3m 2.46m 3617
600mm 7.3m 2.46m 4273
600mm 8.2m 2.46m 4645
600mm 9.5m 2.5m 5662
600mm 10.2 2.5m 6017

NOTE: The 8.2, 9.2 and 9.5 metre wide Cambridge Rolls have a 50mm gap for the support bearing hangers in both wing sections

4.5m - 8.2m Machines fitted with pivoting towing eye Ø50mm - 66630757028

9.5m - 10.2m Machines fitted with pivoting towing eye Ø50mm - 66630757017

Included: Road Lights as Standard

HE-VA XHD 3 section Cambridge & Breaker Rolls - 620mm Roller Rings

Technical Information

Roller Size Working Width Transport Width Weight
620mm 4.5m 2.46m 2990kg
620mm 5.4m 2.46m 3456kg
620mm 6.3m 2.46m 4442kg
620mm 7.3m 2.46m 4872kg
620mm 8.2m 2.46m 5528kg
620mm 9.5m 2.5m 6730kg
620mm 10.2m 2.5m 7258kg

NOTE: The 8.2, 9.2 and 9.5 metre wide Cambridge Rolls have a 50mm gap for the support bearing hangers in both wing sections

4.5m - 8.2m Machines fitted with pivoting towing eye Ø50mm - 66630757028

9.5m - 10.2m Machines fitted with pivoting towing eye Ø50mm - 66630757017

Included: Road Lights as Standard
