HE-VA King Roller behind John Deere tractor

KING ROLLER

Now even wider to cover more acres even faster

Supreme contour following ensures consistent, high quality results across the field. With working widths of 12.3m, 15.3m, 16.3m, 18.3m or 20.3m the new HE-VA King Roller meets the increasing demand for wider and heavier rolls.

A 15.3m set of Rolls travelling at 6km/hr with an operator driving at 90% field efficiency will cover 8.25ha or 21 acres per hour.

New generation rings come standard with a 5-year warranty.

FEATURES & BENEFITS

SAT System - Weight Transfer System

The King Roller's frame incorporates HE-VA's Special Active Transfer (SAT) weight transfer system, a Hydraulic Folding System linked to two accumulators and a hydraulic pressure gauge. The pressure gauge allows the operator to set the amount of weight transfer to ensure even consolidation across the full width. The accumulators act as an oil buffer when the rolls are travelling over uneven ground and the hydraulic cylinders need to extend or shorten to allow the rolls to follow the contours in conjunction with the centre pivot on each roller gang.

The additional central support bearings on each roll support section ensure that the axles are not placed under excessive stress, which is crucial for a large roller.

Contour Following

The five centre pivots, two folding pivots and the pivoting drawbar eye allow individual sections to truly follow the ground contours.

The wing links and centre section frame allow these 5 sections an amount of vertical float independent of the other two sections to ensure contour following on very uneven ground.




Heavy Duty Design

Built to withstand high workloads, the HE-VA King Roller is also heavier than most other like-for-like rollers, ensuring a better finish.

The King Roller's folding mechanism has a deep wing link pivot with Teflon coated steel bushing top and bottom to provide strength for working on cultivated ground as well as rolling after drilling.

The wider gang sections of the King Rolls have a centre bearing as an additional support.

The rings are mounted on 60mm axles for strength and long life. These axles run on 4 bolt multi-sealed bearings protected inside u-profile steel.

Transport & Storage

An automatic hydraulic locking system secures the wings for transport without any need to leave the tractor seat.

In the completely folded position the weight of the wings is carried between the tractor and transport wheels improving stability.






FOLDS IN SECONDS!
  • In transport position, wheels down
  • Open hydraulic transport locks
  • Swing the wing sections outwards
  • Wheel ram cylinder engaged wheels lifted forward and up
  • Outside wing cylinders extending
  • The HE-VA Rolls are ready to work



Ring Profile

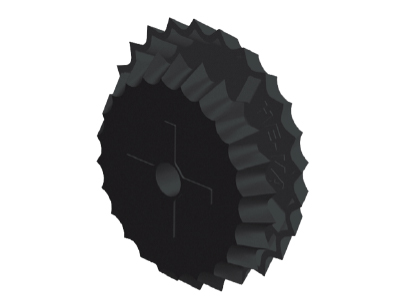

Star Ring

HE-VA rolls are available with a choice of ring types. All carefully designed to cope with today’s higher machine weights but retain the time-proven qualities of traditional ring engineering, the range includes new multi-spoke developments created to meet customer demand and changing farming methods.

A cast ductile steel star, Cambridge, Cambridge and Breaker ring are also available as an option for extreme conditions. These also benefit from an eight year breakage warranty.

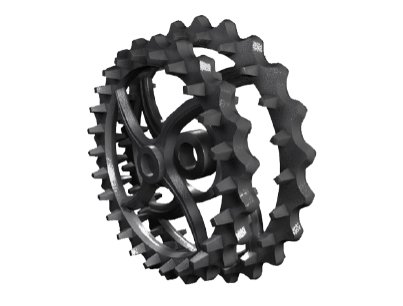

Cross Kill




8 spoke Cambridge and Breaker
510mm / 20"

9 spoke Cambridge and Breaker
560mm / 22"

10 spoke Cambridge and Breaker
620mm / 24"

New generation (NG) rings come standard with a 5-year warranty.




8 spoke Cambridge only
500mm / 20"

9 spoke Cambridge only
550mm / 22"

10 spoke Cambridge only
600mm / 24"




KING ROLLER MODELS

The 12.3m King Roller is available in ring sizes from 500mm to 620mm and weight of 4480kg to 10,512kg. Transport width remains at 3m for all King Rollers.



Technical Specification

Ring Size Working Width Transport Width Weight
500mm (20") NG 12.3m 3m 7480kg
550mm (22") NG 12.3m 3m 8020kg
600mm (24”) NG 12.3m 3m 9003kg
510mm NG 12.3m 3m 8560kg
560mm NG 12.3m 3m 9310kg
620mm NG 12.3m 3m 10,512kg

Fitted with pivoting towing eye Ø50mm - 66630757046 (see drawbar options below).

Options & Accessories

Description
 Pair of stone trays to fit King Roller
Air brakes - add (factory fit)
550/45x22-5 16 ply wheels in lieu for 12.3 and 15.3m rolls

The 15.3 m King Roller is available in ring sizes from 500mm to 620mm and weight of 9070kg to 12,382kg. Transport width remains at 3m for all King Rollers.



Technical Specification

Ring Size Working Width Transport Width Weight
500mm (20") NG 15.3m 3m 9070kg
550mm (22") NG 15.3m 3m 9590kg
600mm (24”) NG 15.3m 3m 10,550kg
510mm NG 15.3m 3m 8990kg
560mm NG 15.3m 3m 10,820kg
620mm NG 15.3m 3m 12,382kg

Fitted with pivoting towing eye Ø50mm - 66630757046 (see drawbar options below).

Options & Accessories

Description
 Pair of stone trays to fit King Roller
Air brakes - add (factory fit)
550/45x22-5 16 ply wheels in lieu for 12.3 and 15.3m rolls

The 16.3m King Roller is available in ring sizes from 500mm to 620mm and weight of 9330kg to 12,942kg. Transport width remains at 3m for all King Rollers..



Technical Specification

Ring Size Working Width Transport Width Weight
500mm (20") NG 16.3m 3m 9330kg
550mm (22") NG 16.3m 3m 9840kg
600mm (24”) NG 16.3m 3m 10,937kg
510mm NG 16.3m 3m 10,270kg
560mm NG 16.3m 3m 11,280kg
620mm NG 16.3m 3m 12,942kg

Fitted with pivoting towing eye Ø50mm - 66630757046 (see drawbar options below).

Options & Accessories

Description
 Pair of stone trays to fit King Roller
Air brakes - add (factory fit)
550/45x22-5 16 ply wheels in lieu for 12.3 and 15.3m rolls

The 18.3m King Roller is available in ring sizes from 500mm to 620mm and weight of 10,340kg to 14,972kg. Transport width remains at 3m for all King Rollers.



Technical Specification

Ring Size Working Width Transport Width Weight
500mm (20") NG 18.3m 3m 10,340kg
550mm (22") NG 18.3m 3m 11,140kg
600mm (24”) NG 18.3m 3m 12,599kg
510mm NG 18.3m 3m 11,680kg
560mm NG 18.3m 3m 12,820kg
620mm NG 18.3m 3m 14,972kg

Fitted with pivoting towing eye Ø50mm - 66630757046 (see drawbar options below).

Options & Accessories

Description
 Pair of stone trays to fit King Roller
Air brakes - add (factory fit)
550/45x22-5 16 ply wheels in lieu for 12.3 and 15.3m rolls

The 20.3m King Roller is available in ring sizes from 500mm to 620mm and weight of 13,090kg to 15,630kg. Transport width remains at 3m for all King Rollers.



Technical Specification

Ring Size Working Width Transport Width Weight
500mm (20") NG 20.3m 3m 13,090kg
550mm (22") NG 20.3m 3m 14,240kg
510mm NG 20.3m 3m 14,360kg
560mm NG 20.3m 3m 15,630kg

Fitted with pivoting towing eye Ø50mm - 66630757046 (see drawbar options below).

Options & Accessories

Description
 Pair of stone trays to fit King Roller
Air brakes - add (factory fit)
550/45x22-5 16 ply wheels in lieu for 12.3 and 15.3m rolls
