HE-VA Accu-Disc

The HE-VA Accu-Disc is a double disc coulter with press wheel, this is the next step in Till-Seeding enabling seed placement to be controlled precisely and consistently to your required depth.

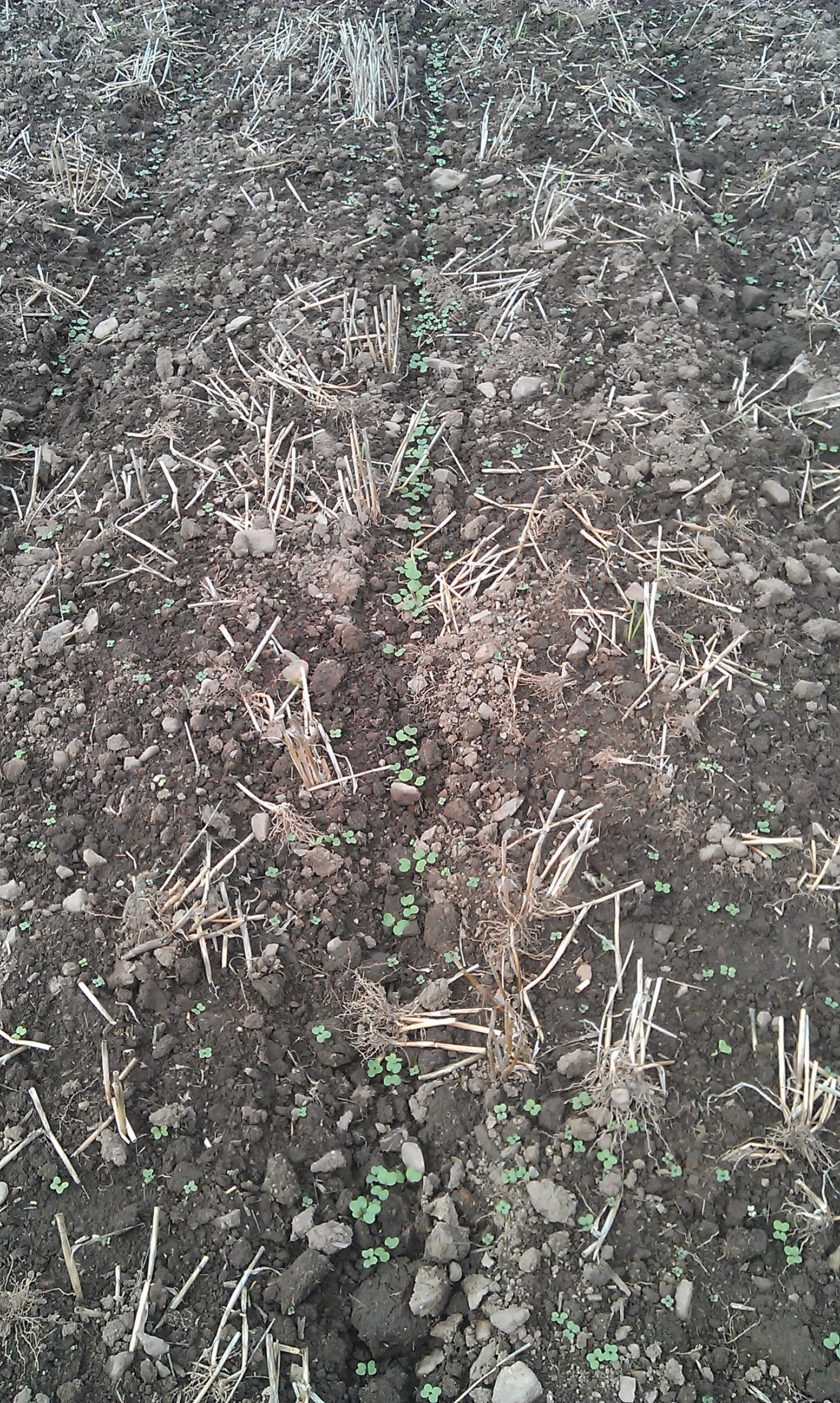

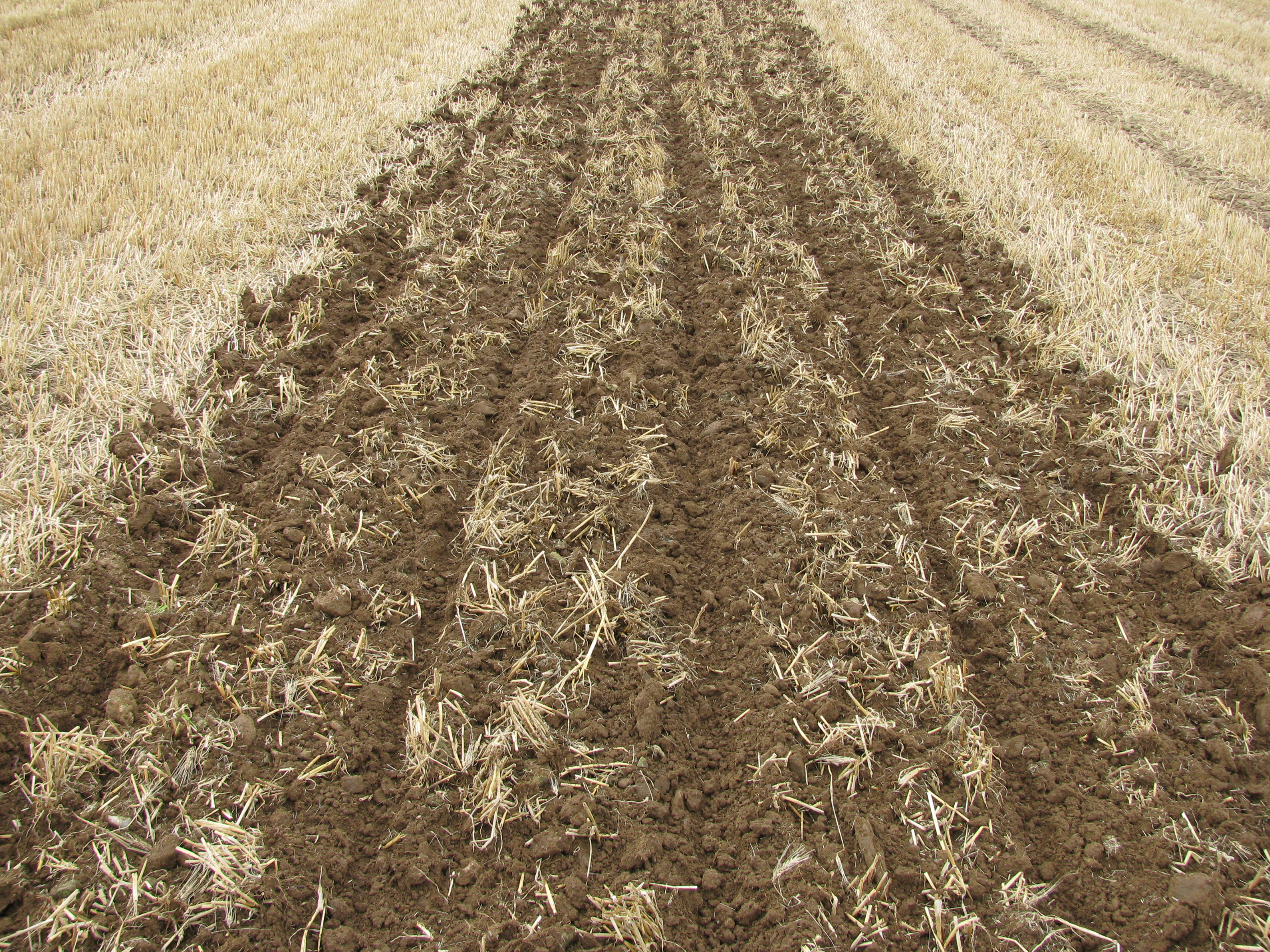

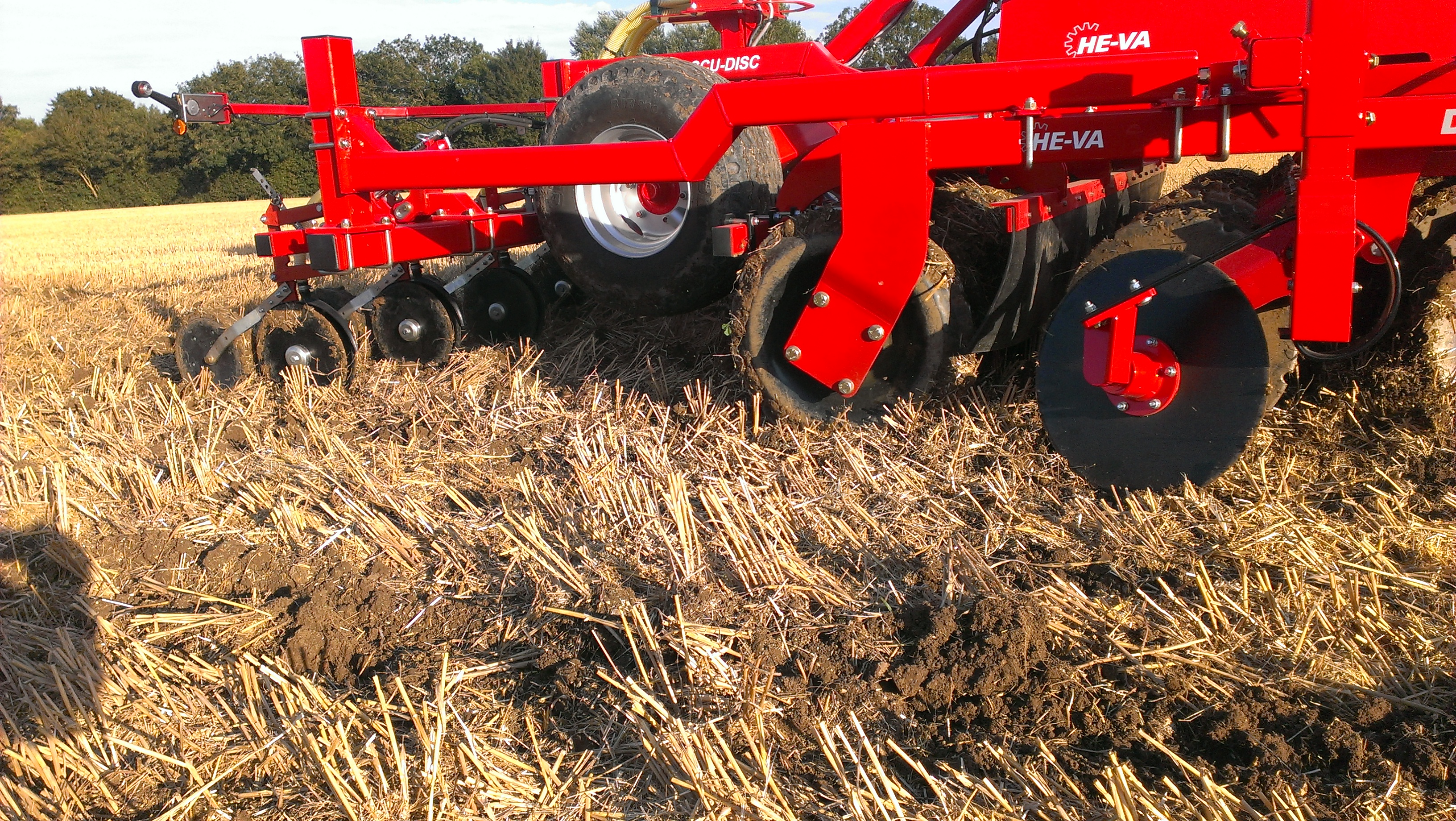

The Accu-Disc coulters are placed in line with the subsoiler legs, once the leg has passed through and created some tilth on the surface and the roller has re-consolidated the soil the Accu Disc coulter opens the soil and places the seed at a constant depth ensuring no seed is visible on the surface then the rear press wheel closes and re-consolidates ensuring good seed to soil contact.

Accu-Disc

Features

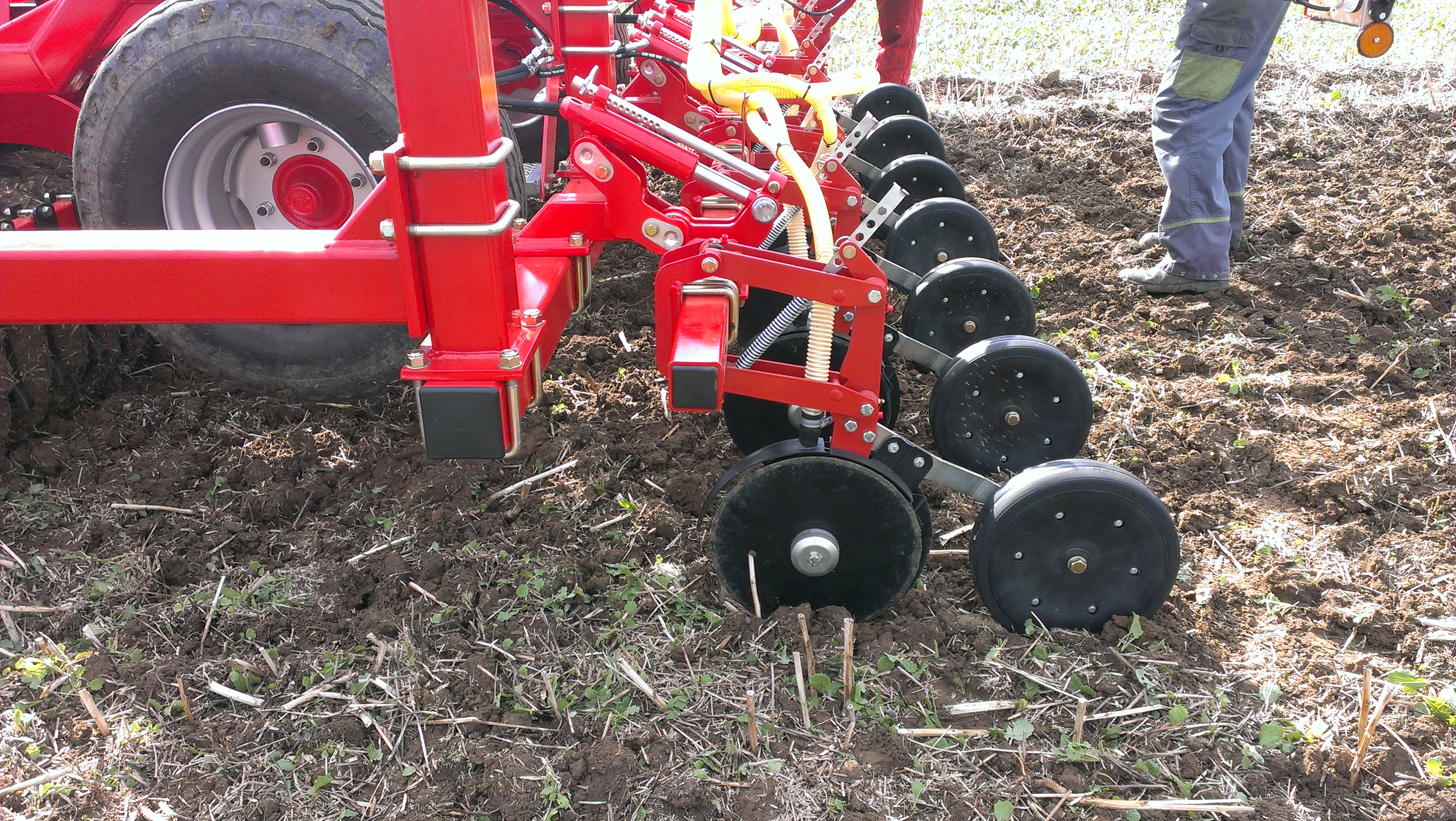

Parallelogram

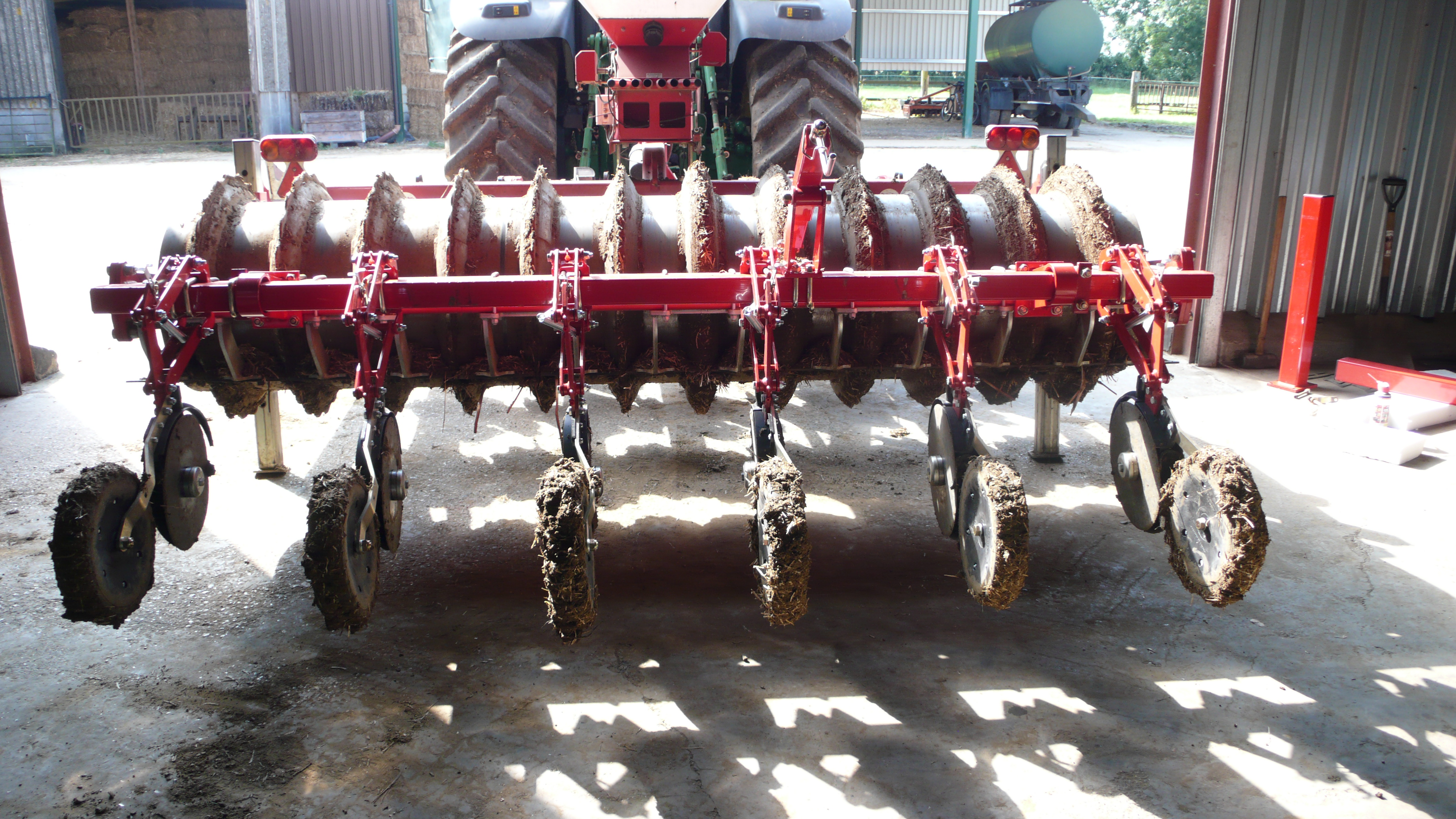

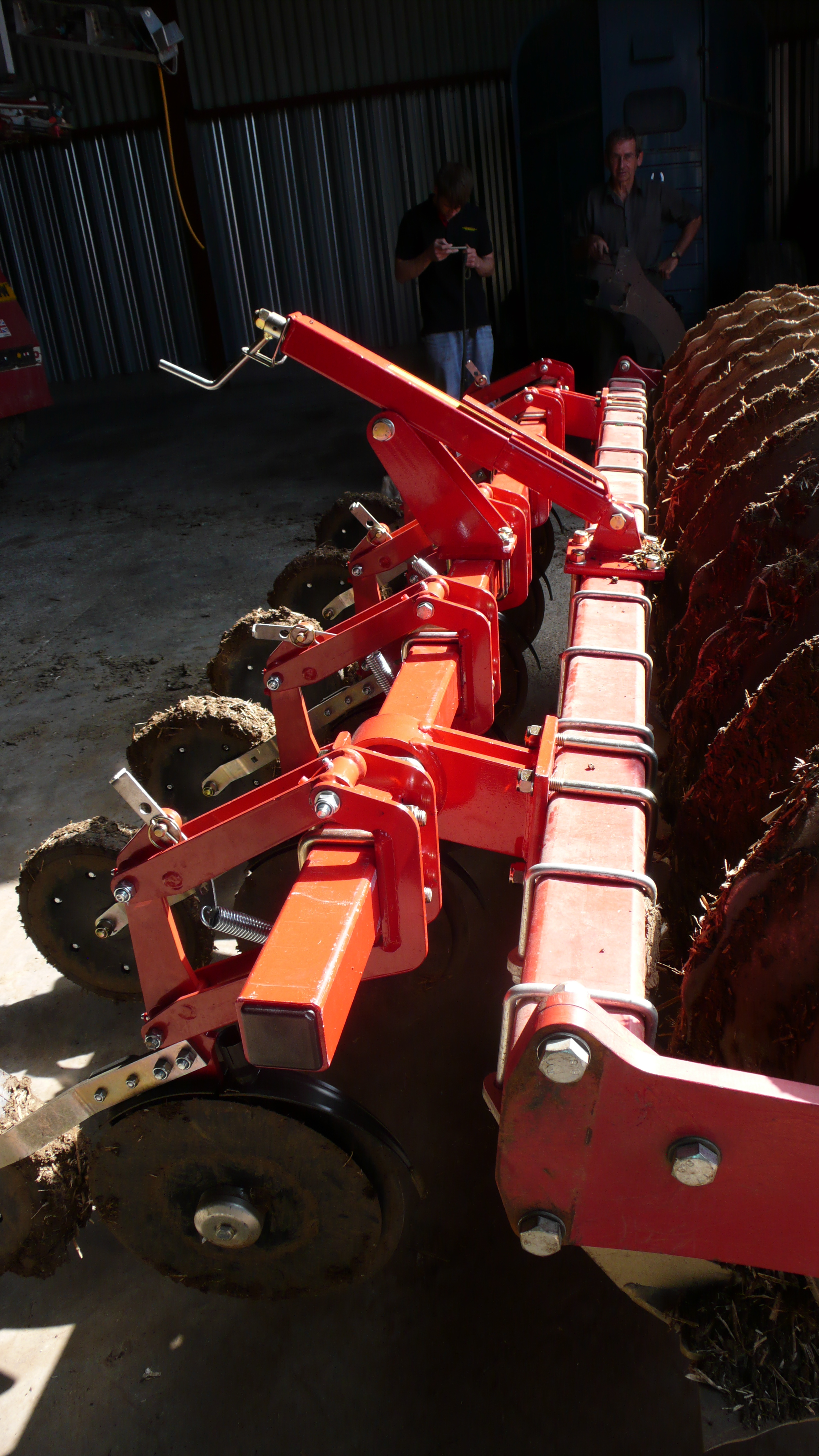

The parallelogram mounting of the coulters maintains constant pressure at an even depth on very uneven seedbeds. Each coulter is mounted on to a parallelogram and the parallelograms are mounted onto a coulter bar.

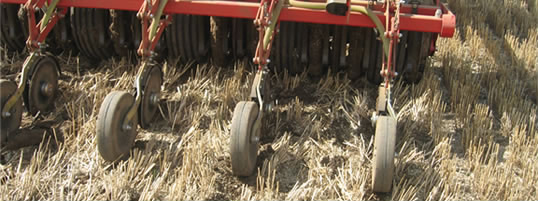

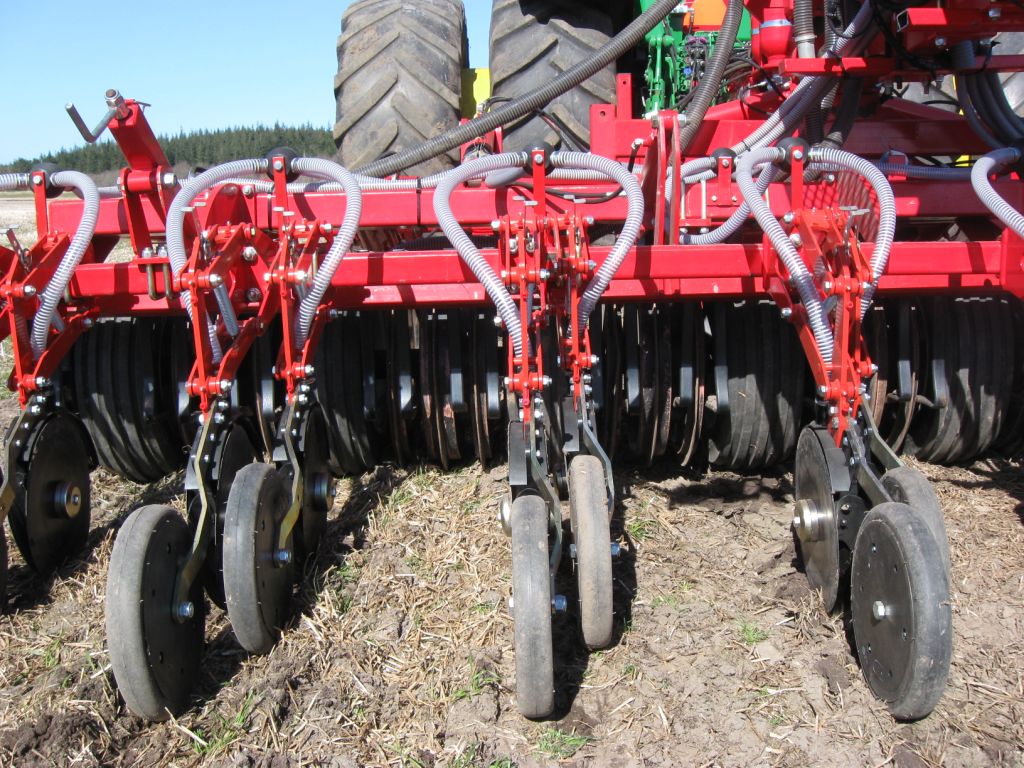

Double Disc

The large double discs ensure the coulters cope well with trash and large clods.

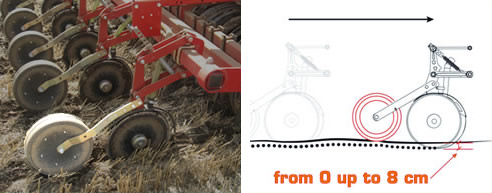

Press Wheels

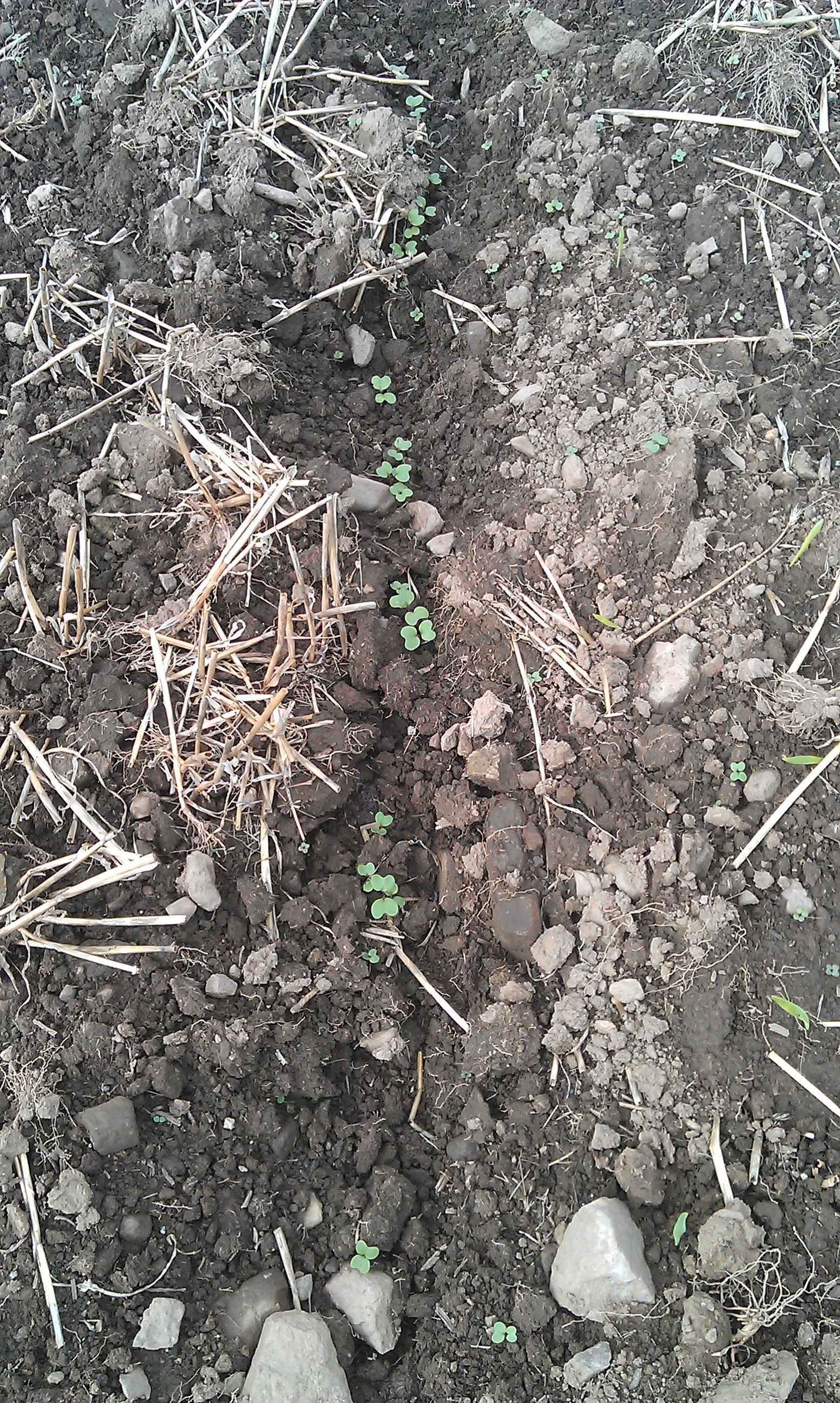

Rear rubber press wheels improve consolidation and seed to soil contact for excellent germination.

Depth Adjustment

Overall depth is controlled by a turn-buckle with a built in depth gauge.

Coulter Pressure

Coulter pressure is provided by a spring and adjusted by a manual push and pull adjuster, allowing the coulter bar to be set to suit the conditions quickly and without the need of tools.

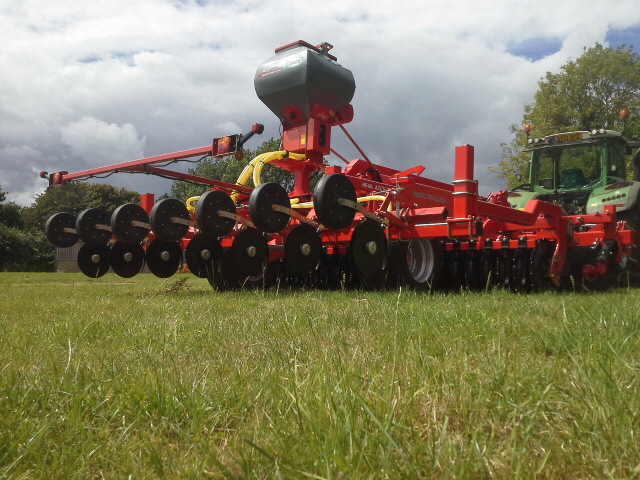

Models

Accu-Disc

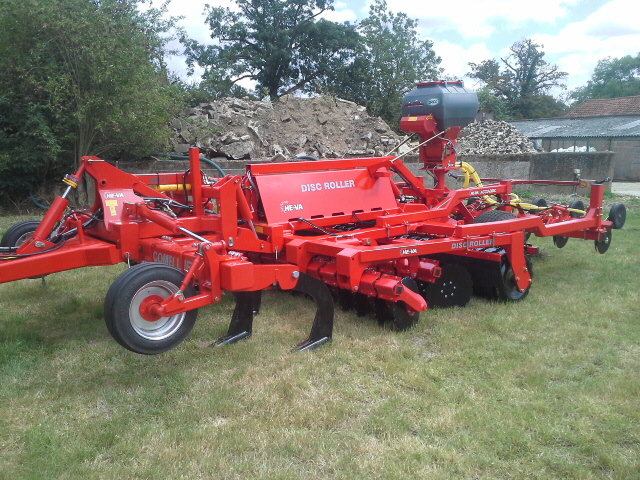

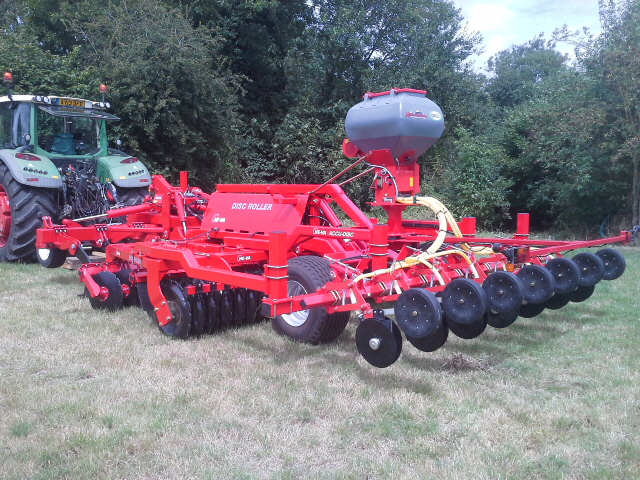

The Accu-Disc Seeding tool bar is available in 3, 3.5, 4, and 5m working width with 5, 7 and 9 disc coulters. Comes as standard ready to bolt on to the HE-VA Subsoiler, but a simple retro fit kit is available for all models to allow fitting on to other makes of subsoilers.

Technical Information

Accu-Disc

Accu Disc

Model No.

No. of Rows

Working width

Description

Weight kgs

1064508-13

5

3m

Rigid

260

1064508-15

7

3.5m

Rigid

327

1064508-22

7

4m

Folding

394

1064508-23

9

5m

Folding

487

1064508-24

9

5m

Trailed

487

1064508-25

11

6m

Trailed

581



Accu Disc Twin

Model No.

No. of Rows

Working width

Description

Weight kgs

1064510-13

5

3m

Rigid Twin Disc

378

1064510-15

7

3.5m

Rigid Twin Disc

493

1064510-19

7

4m

Folding Twin Disc

559

1064510-21

9

5m

Folding Twin Disc

700

1064510-22

9

5m

Trailed Twin Disc

700

1064510-23

11

6m

Trailed Twin Disc

841

Options & Accessories

Options & Accessories

Optional Extras

Model No.

Description

1064508-60

Extra Disc with depth wheel, short clamp

1064508-65

Extra Disc with depth wheel, long clamp

1064508-01

Mechanical Seeder Drive Modification kit - when fitting
Accu Disc to HE-VA Mounted Subsoiler with a New Seeder

1064508-02

Mechanical Seeder Drive modification kit - when fitting
Accu Disc to HE-VA mounted Subsoiler with a Existing Seeder

1064509-58

Slug pellet applicator kit - per row
