TIP Roller

Introduction

Don't just roll!

HE-VA have one of the largest Rolls ranges on the market and the 3-Section Tip Roller makes up approximately 75% of all HE-VA Rolls sold in the UK.

Sizes range from 4.5m to 15.3m, each size comes in 2 different variations, HD (Heavy Duty) and a XHD (Extra Heavy Duty), the HD has 510mm rings and the XHD 620mm rings.

A full range of Shattaboards are available to fit all Tip Rollers and Tip Roller XL models, turning each set of rolls into a cost effective cultivator.

From shed to field the driver doesn’t need to leave the tractor cab as the Rolls can be put to work in seconds simply and safely straight from the tractor seat. Just pull into the field, unfold using the tractor hydraulics and you are ready to go.

Folding is just as simple, each 3-Section machine folds up to 2.5m (2.7m for 9.5 and 10.2m machines) and 5-Section XL models fold up to 2.7m, each wing section locks into a transport cradle once in the fully folded position increasing road transport safety and giving peace of mind that they stay where they should at all times.

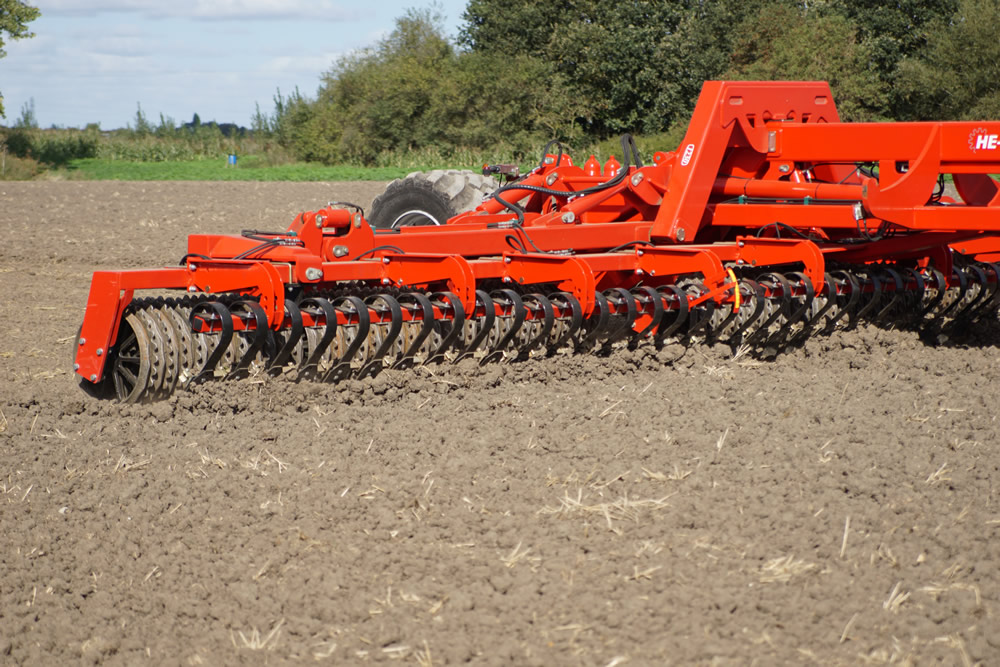

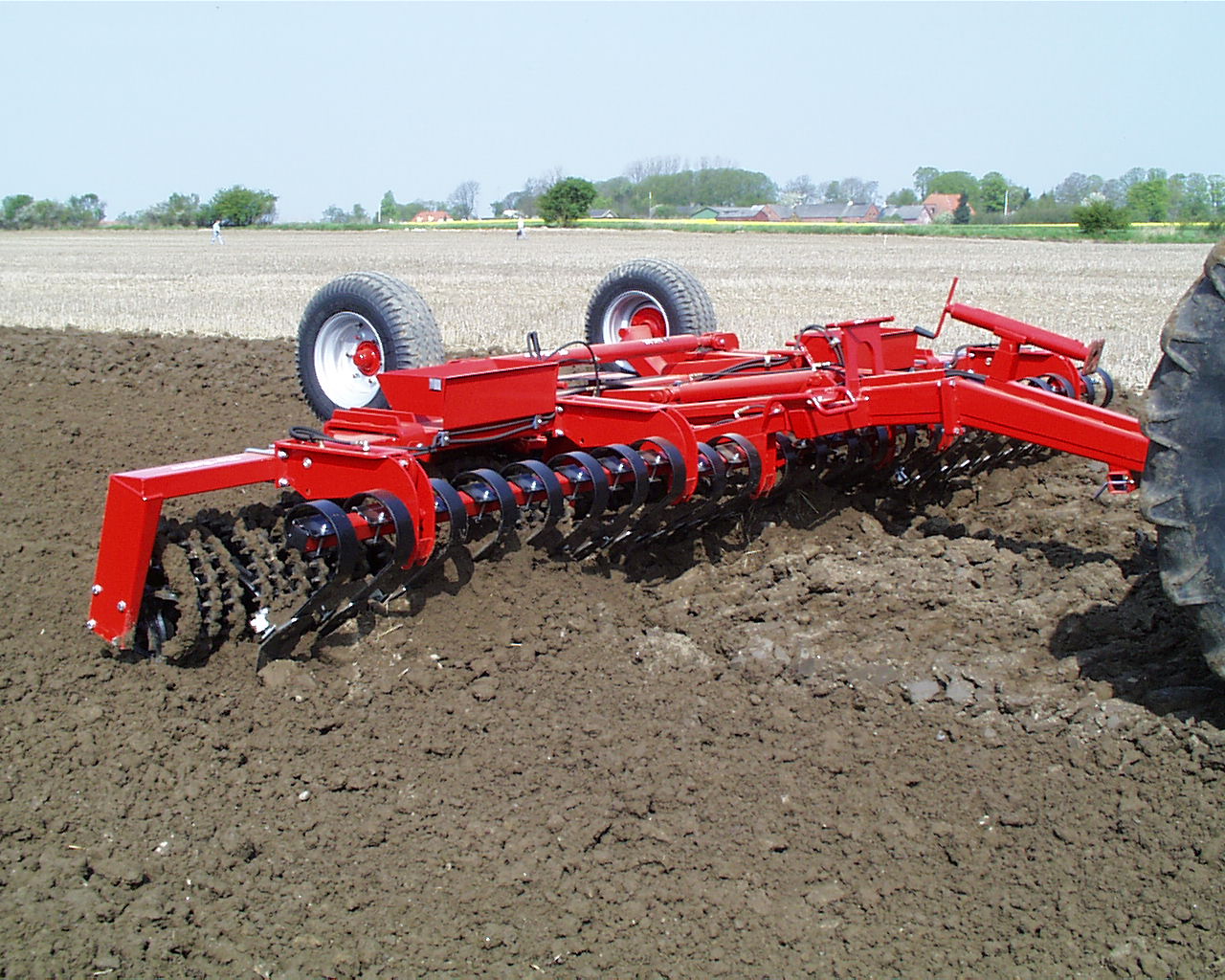

Why a Shattaboard?

Cambridge Rolls Shattaboard

The diagram left shows the consolidation pattern under the soil profile using rolls working straight on to ploughed land without a Shattaboard. What you can clearly see is, the plough ridge and furrow causes an uneven consolidated seedbed.

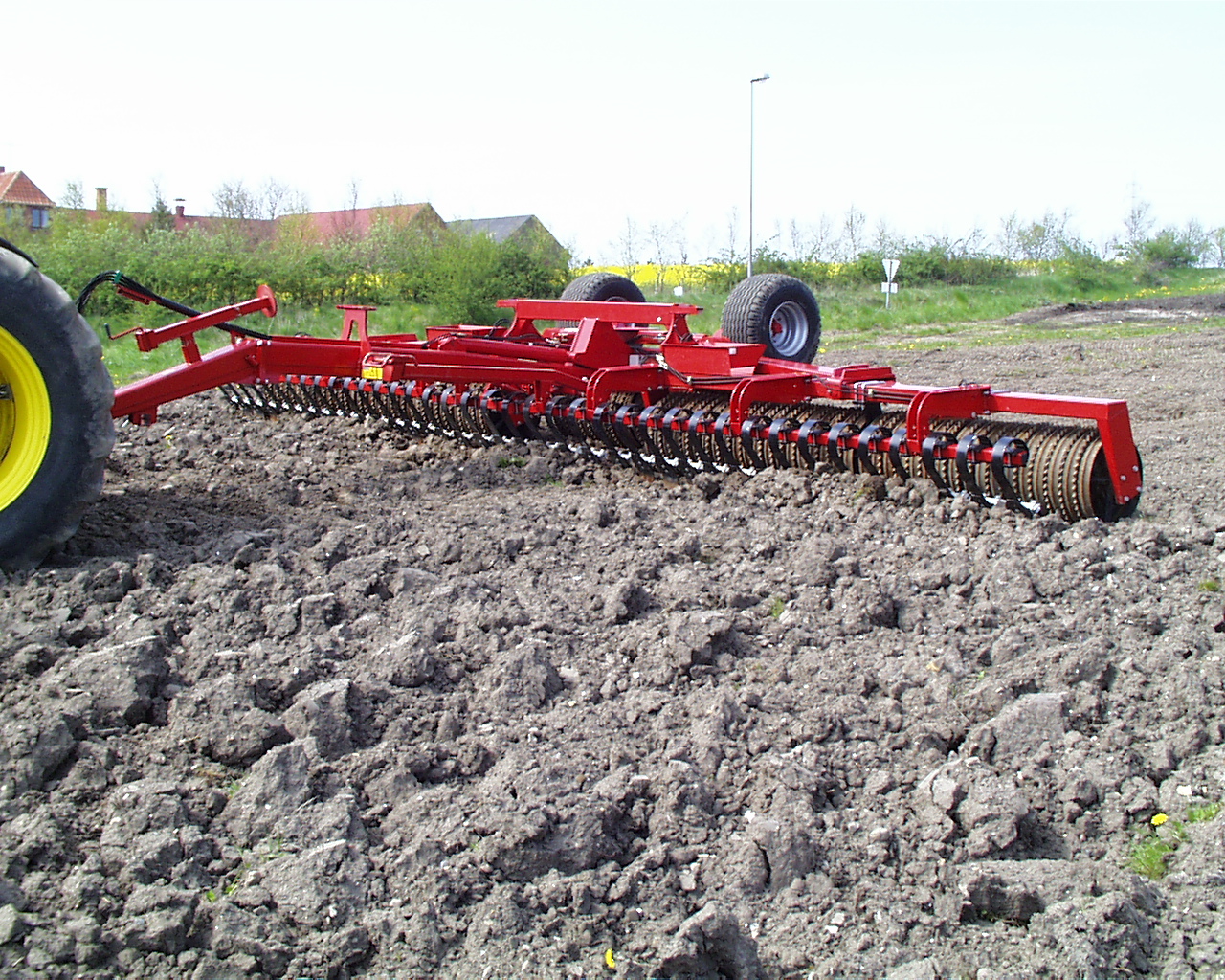

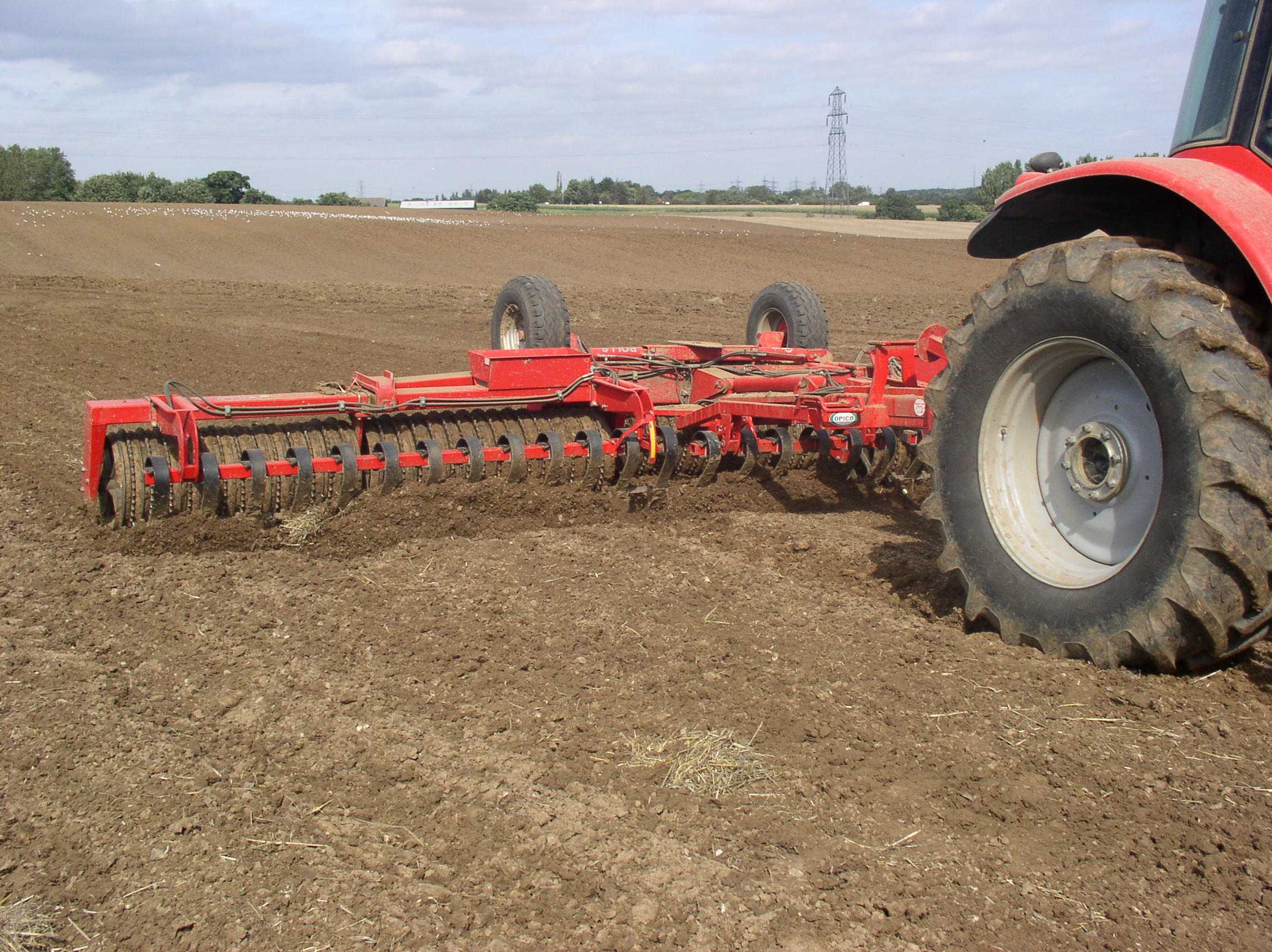

Using a set of Rolls with a Shattaboard on ploughed ground will allow you to create an evenly consolidated seedbed ready for drilling. The diagram right shows the effect to the soil structure, the Shattaboard levels and helps the breakdown of plough ridges whist filling in furrows in front of the roller. The resulting even surface is then evenly consolidated.

Features

Weight Transfer System

Unique weight transfer system

Cambridge Rolls without HE-VA automatic weight balancing tend to exert the highest ground pressure on the centre roller section. This roller section carries the weight of the drawbar, wheel frame and hydraulics as well as its own weight, far more than the two wing sections.

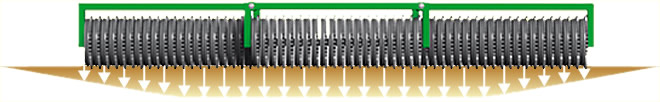

With a basic roller set up there is no weight transfer and the uneven weight distribution is great as can be seen above.

Even with a basic sprung weight transfer system the hinges at either end of the centre section prevent weight being spread evenly.

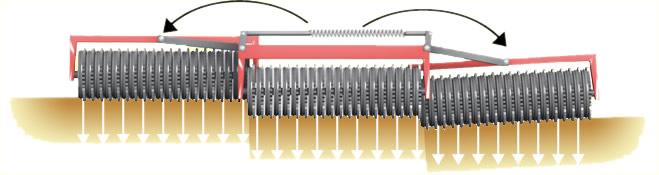

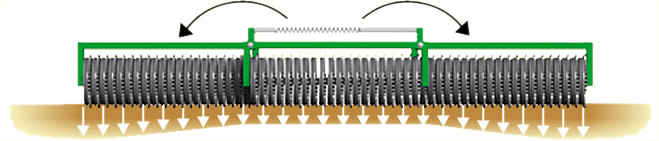

The HE-VA SAT system is spring loaded and as the outside roll sections are attached with centre pivot hinges, weight transferred evenly across the full width of the Cambridge Rolls.

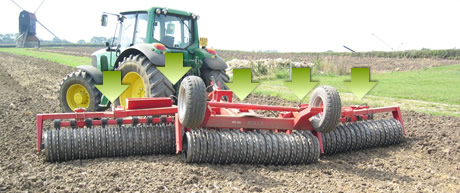

Contour Following

The key to any set of Rolls successfully improving soil consolidation is weight, and getting the weight on to the soil. The Tip-Roller achieves this by featuring five Pivot Points, three centre pivots plus two more where the wings are joined to the main frame. Giving independent floatation on each section; this allows the roller to follow the contours in the most undulating of ground conditions and ensures constant ring to soil contact. The Tip Roller XL achieves the same contour following as its smaller sibling the Tip Roller via five centre pivots points.

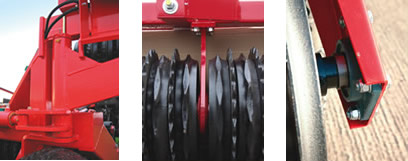

Heavy Duty Design

The Tip Rollers folding mechanism has a deep wing link pivot with Teflon coated steel bushing top and bottom to provide strength for cultivation as well as rolling.

The rings are mounted on 60mm axles for strength and longevity. These axles run on 4 bolt bearings protected inside u-profile steel.



The Cambridge Rolls axle on the wing sections of the 8.2, 9.5, 10.2m and 15.3m Tip rollers have a centre bearing as an additional support.

Fold in Seconds

Simple, safe folding - what else do you expect from a HE-VA

Folding Sequence 3 Section Tip Roller

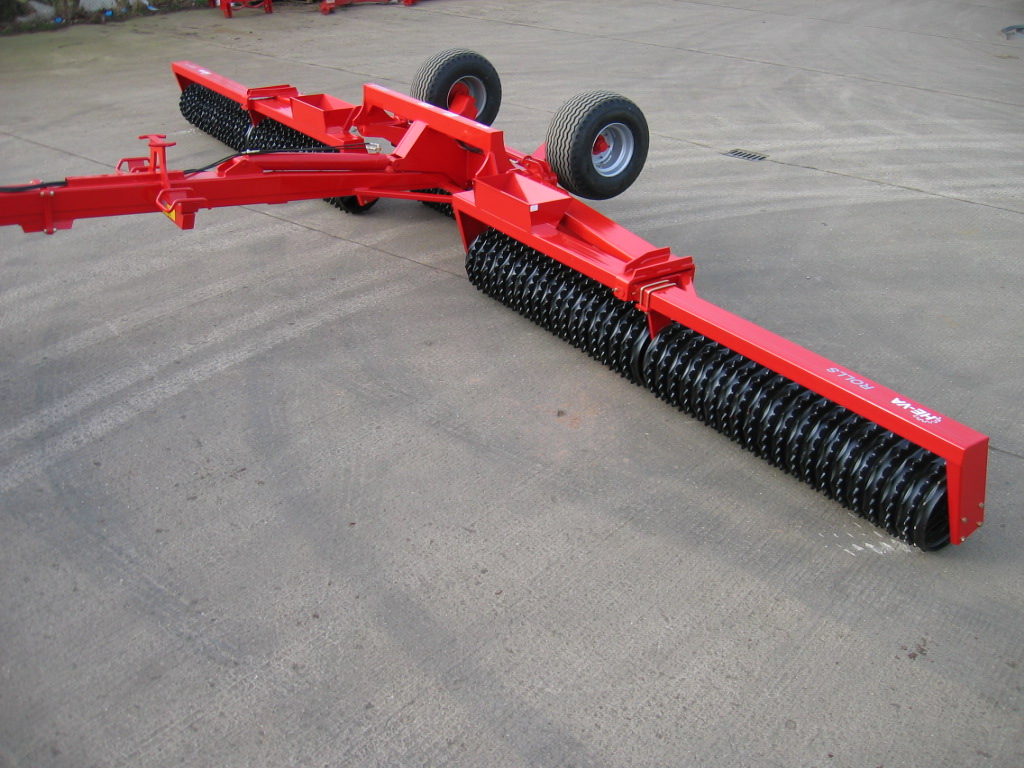

Transport position HE-VA Rolls


Cambridge Rolls in transport position.

Lift wings off cradles HE-VA Rolls




Swinging the side section into working position.

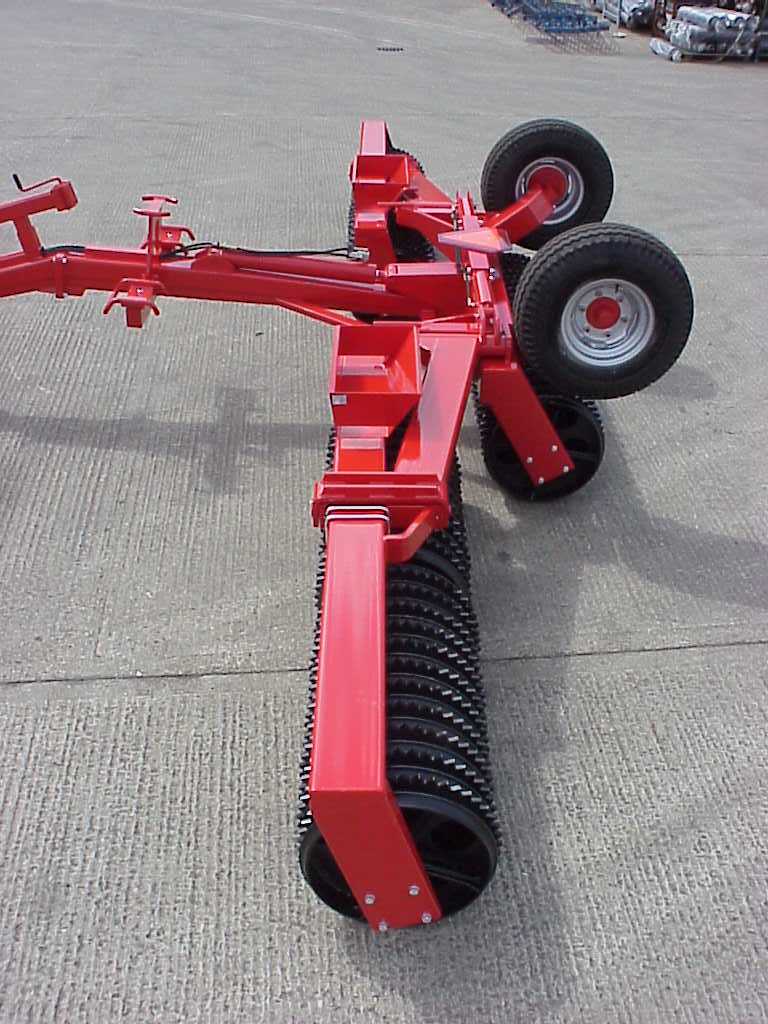

Swing side sections working HE-VA Rolls


Side section in working position.
 Tip side sections of HE-VA Rolls


Tip the rolls forward until the
cylinder bottoms.
 Tip rolls forward until cylinder bottoms


Tip the rolls forward until the cylinder bottoms.
 HE-VA rolls ready to work


The HE-VA rolls are ready to work.

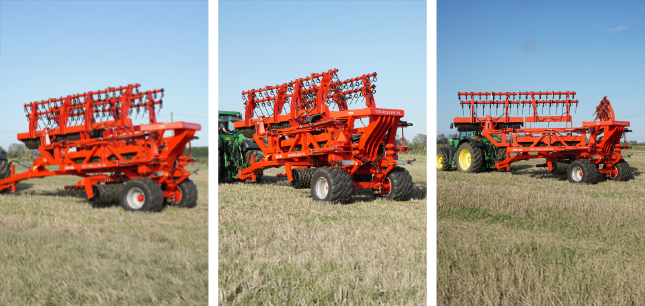

Folding Sequence 5 Section Tip Roller XL

Rolls in transport


Rolls in transport position

Unlock wings




Unlock the wings
Swing the wing sections out


Swing wing sections out
Wheel ram cylinder engaged - wheels lifted


Wheel ram cylinder engaged - wheels lifted
back and up
Wing sections tipped forward


Wing sections now tipped forward
HE-VA rolls ready to work


The HE-VA Tip XL rolls are ready to work.
Transport & Storage

HE-VA's 3 section Cambridge Rolls design supports the side section horizontally in a positive locking cradle reducing noise when travelling.

In the completely folded position the weight of the wings is carried between the tractor and transport wheels improving stability.

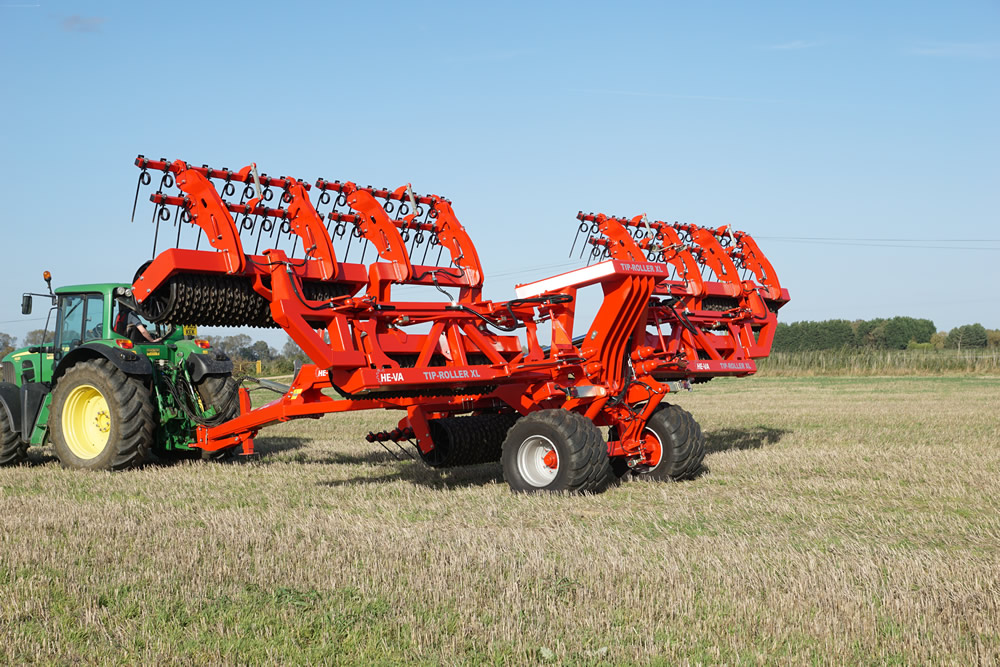

The 5 section Tip Roller XL folds up to 2.7m, the wing sections lock into place during transport with heavy duty wheels and 710 / 40 R22.5 tyres ensuring safe road use.

Models

4.5 - 10.2m 3 section TIP Roller
RING TYPE                             Cambridge Only (Standard)   Cambridge & Breaker (Standard)
WIDTH   Ring Size 500mm 8 Spoke 550mm 9 Spoke 600mm 10 Spoke 510mm 8 Spoke 560mm 9 Spoke 620mm 10 Spoke
WORKING
4.5m
TRANSPORT
2.46m
WEIGHT KG
RINGS
AXLE (mm
1990
57
60
2230
57
60
2542
57
60
2260
87
60
2540
87
60
2900
87
60
WORKING
5.4m
TRANSPORT
2.46m
WEIGHT KG
RINGS
AXLE (mm)
2430
69
60
2730
69
60
3164
69
60
2690
105
60
3100
105
60
3456
105
60
WORKING
6.3m
TRANSPORT
2.46m
WEIGHT KG
RINGS
AXLE (mm)
2840
78
60
3250
78
60
3617
78
60
3140
123
60

3710
123
60

4442
123
60
WHEELS: 10.0 / 75 X 15.3 - 10 PLY      *WHEELS: 11.5 / 80 x 15.3 - 10 PLY
WORKING
7.3m
TRANSPORT
2.46m
WEIGHT KG
RINGS
AXLE (mm
3520
90
60
3860
90
60
4273
90
60
3840
143
60
4430
143
60
4872
143
60
WORKING
8.2m
TRANSPORT
2.46m
WEIGHT KG
RINGS
AXLE (mm)
3840
102
60
4100
102
60
4645
102
60
4190
157
60
4700
157
60
5528
157
60
WHEELS: 11.5 / 80 X 15.3 - 10 PLY
WORKING
9.5m
TRANSPORT
2.46m
WEIGHT KG
RINGS
AXLE (mm)
4740
118
60
5030
118
60
5662
118
60
5180
180
60
5770
180
60
6730
180
60
WORKING
10.2m
TRANSPORT
2.46m
WEIGHT KG
RINGS
AXLE (mm)
5020
126
60
5310
126
60
5650
126
60
5690
196
60
6220
196
60
6850
196
60
WHEELS: 400 / 60 X 15.3 - 14 PLY

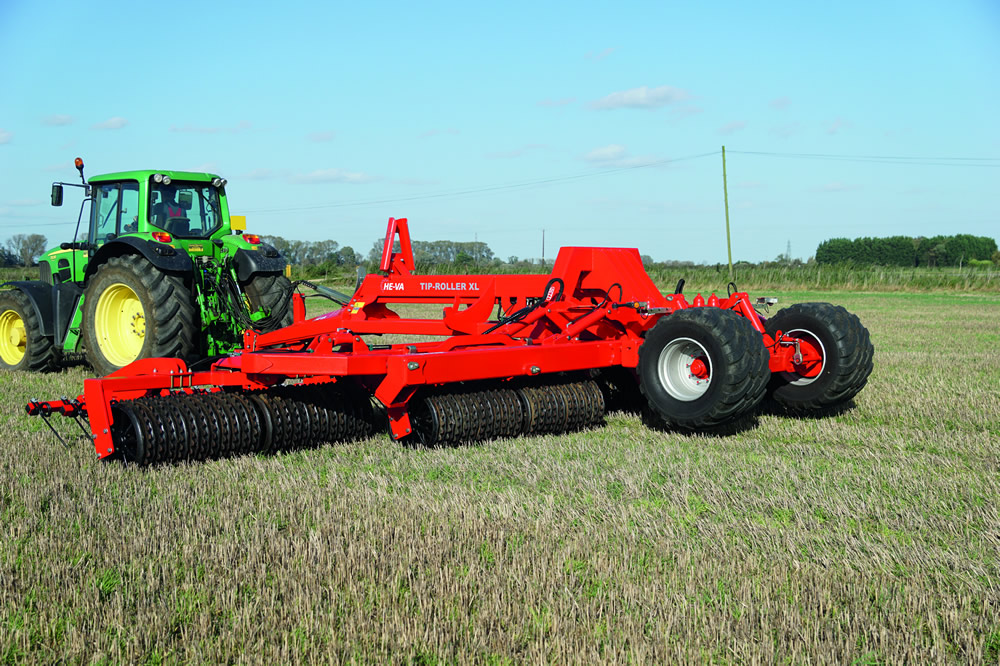

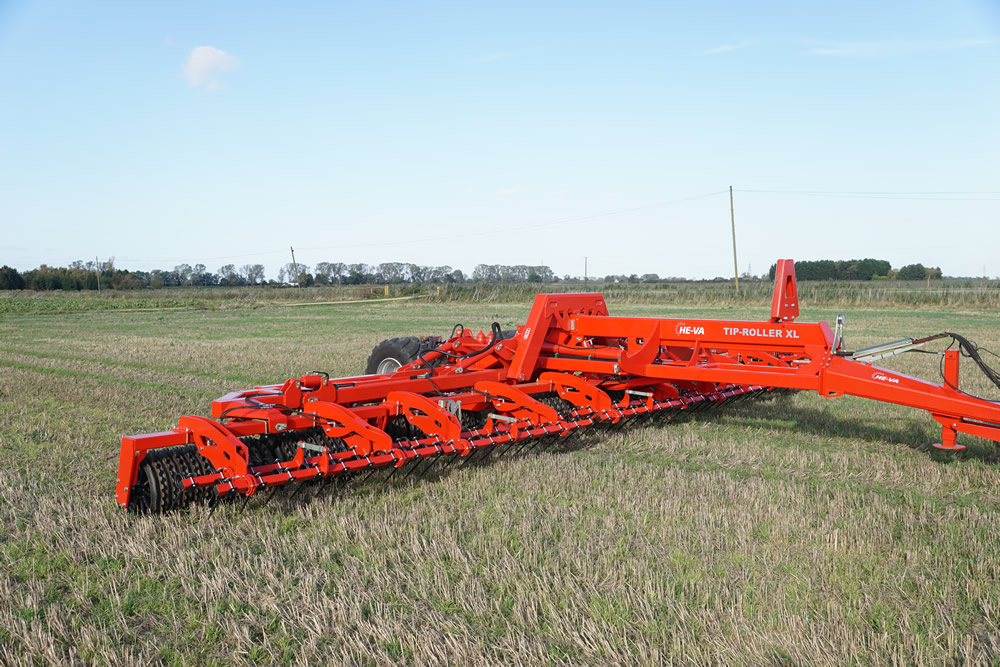

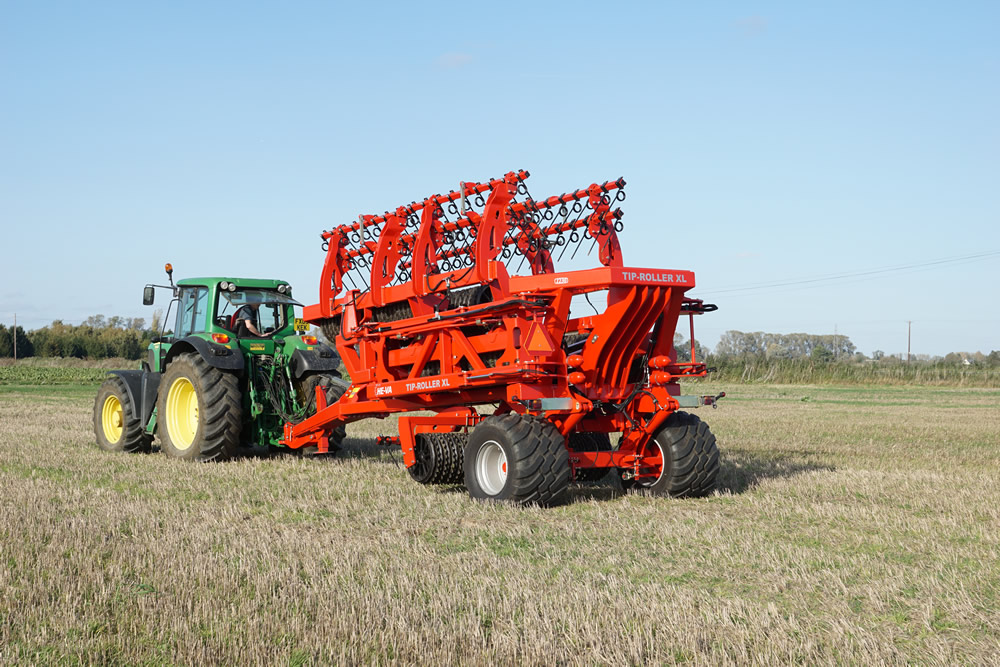

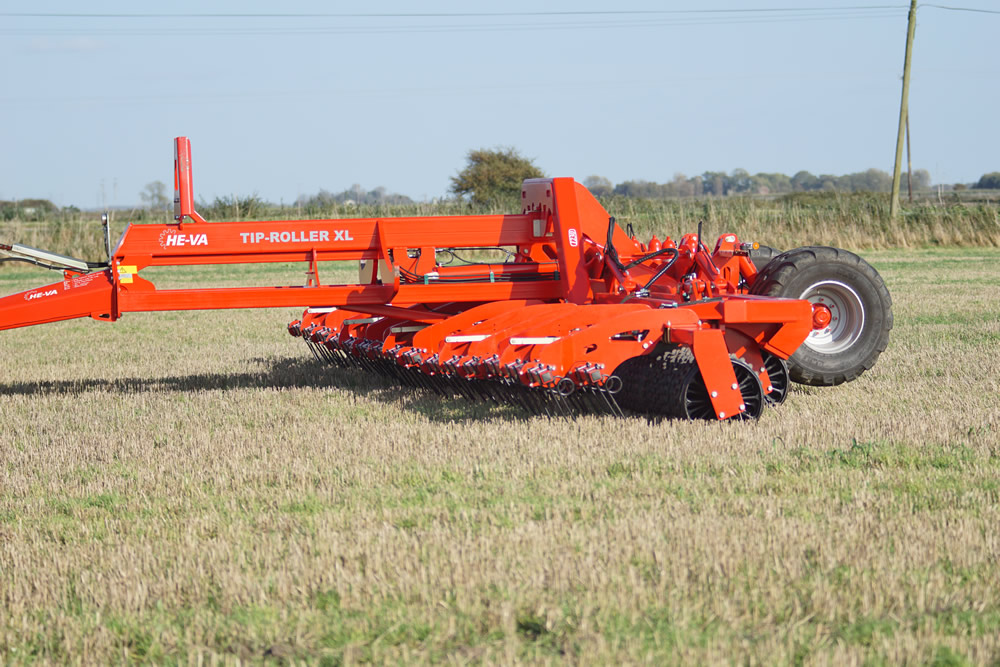

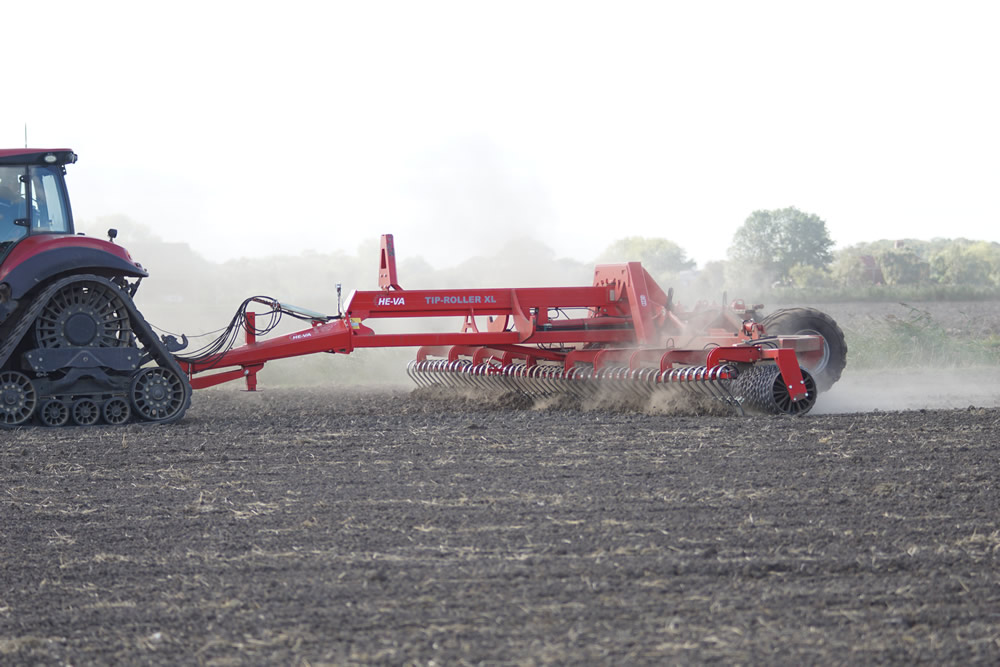

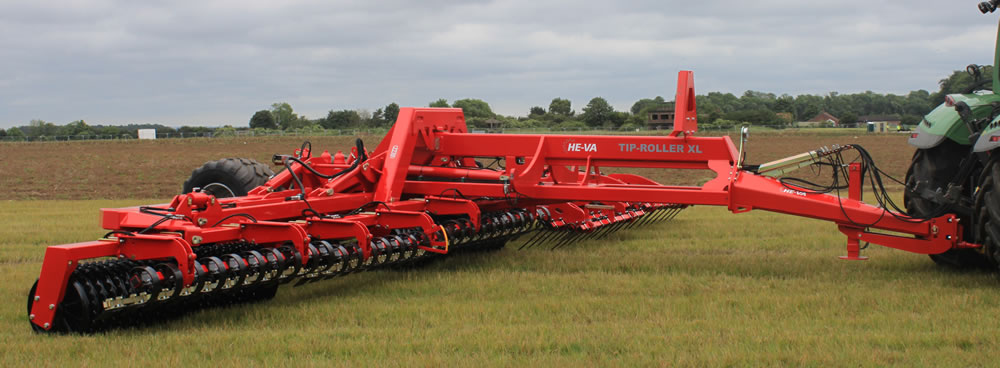

12.3m - 15.3m TIP Roller XL

The new HE-VA Tip Roller XL has a strengthened double frame which allows shattaboards, or harrow tines to be fitted on 12.3m and 15.3m working widths.

The machine employs a similar ‘TIP’ folding system to the smaller machines, but the stronger, double frame allows 5 contour following sections.

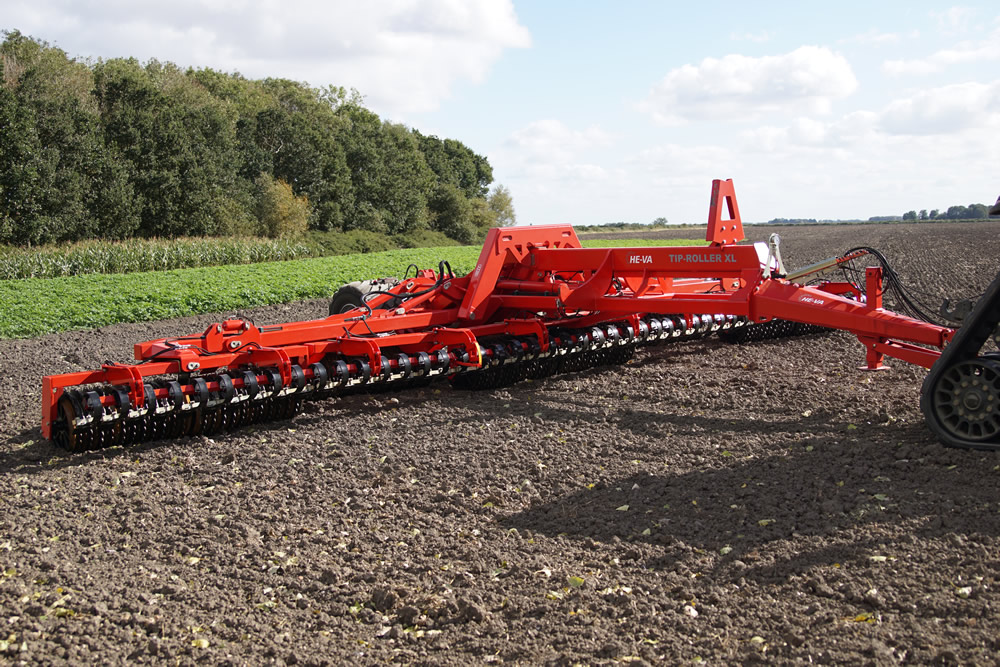

The optional shattaboards or harrow tines are hydraulically adjustable to allow precise setting on the move or to lift them out of work so that the Tip Roller XL can be used for rolling.

WORKING
12.3m
TRANSPORT
2.7m
WEIGHT KG
RINGS
AXLE (mm)
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
11900
236
12600
236
WORKING
15.3m
TRANSPORT
2.7m
WEIGHT KG
RINGS
AXLE (mm)
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
14250
292
N/A
N/A
WHEELS 710 / 40 R22.5


HE-VA TIP Roller XL



Technical Information

Tip Roller - Cambridge Rolls 4.5m - 10.2m

HE-VA HD 3 section Cambridge Rolls - 500mm Roller Rings

Model

Roller Size

Working Width -m

Working Width -ft

Transport Width -m

Weight kg

1063053-50

500mm

4.5m

15'

2.20m

1860

1063054-50

500mm

5.4m

17'8"

2.20m

2300

1063055-50

500mm

6.3m

20'6"

2.46m

2640

1063058-50

500mm

7.3m

24'

2.46m

3370

1063056-50

500mm

8.2m

27'

2.46m

3840

1063059-50

500mm

9.5m

30'10"

2.5m

4740

1063051-50

500mm

10.2m

33'4"

2.5m

5020

HE-VA HD 3 section Cambridge Rolls - 510mm Roller Rings

Model

Roller Size

Working Width -m

Working Width -ft

Transport Width -m

Weight kg

1063053-51

510mm

4.5m

15'

2.20m

2040

1063054-51

510mm

5.4m

17'8"

2.20m

2510

1063055-51

510mm

6.3m

20'6"

2.46m

2940

1063058-51

510mm

7.3m

24'

2.46m

3730

1063056-51

510mm

8.2m

27'

2.46m

4180

1063059-51

510mm

9.5m

30'10"

2.5m

5110

1063051-51

510mm

10.2m

33'4"

2.5m

5470

HE-VA XHD 3 section Cambridge Rolls - 600mm Roller Rings

Model

Roller Size

Working Width -m

Working Width -ft

Transport Width -m

Weight kg

1063080-60

600mm

6.3m

20'6"

2.46m

3360

1063082-60

600mm

7.3m

24'

2.46m

3810

1063081-60

600mm

8.2m

27'

2.46m

4350

1063083-60

600mm

9.5m

30'10'

2.5m

5320

1063084-60

600mm

10.2m

33'4"

2.5m

5650

HE-VA XHD 3 section Cambridge Rolls - 620mm Roller Rings

Model

Roller Size

Working Width -m

Working Width -ft

Transport Width -m

Weight kg

1063080-62

620mm

6.3m

20'6"

2.46m

4010

1063082-62

620mm

7.3m

24'

2.46m

4580

1063081-62

620mm

8.2m

27'

2.46m

5110

1063083-62

620mm

9.5m

30'10'

2.5m

6170

1063084-62

620mm

10.2m

33'4"

2.5m

6640

NOTE: The 8.2, 9.2 and 9.5 metre wide Cambridge Rolls have a 50mm gap for the support bearing hangers in both wing sections

4.5m - 8.2m Machines fitted with pivoting towing eye Ø50mm - 66630757028

9.5m - 10.2m Machines fitted with pivoting towing eye Ø50mm - 66630757017

Included: Road Lights as Standard

HDplus Cambridge Ring Rolls - 550mm Diameter

Model No.

Roller size

Working width

Transport width

Weight kgs

1063053-59

550mm

4.5m

2.2m

2230

1063054-59

550mm

5.4m

2.2m

2730

1063055-59

550mm

6.3m

2.46m

3250

1063058-59

550mm

7.3m

2.46m

3860

1063056-59

550mm

8.2m

2.46m

4100

1063059-59

550mm

9.5m

2.5m

5030

1063051-59

550mm

10.2m

2.5m

5310

4.5m - 8.2m Machines fitted with pivoting towing eye Ø50mm - 66630757028
9.5m - 10.2m Machines fitted with pivoting towing eye Ø50mm - 66630757017 (drawbar details at rear of booklet).

HDplus Cambridge and Breaker Ring Rolls - 560mm Diameter

Model No.

Roller size

Working width

Transport width

Weight kgs

1063053-54

560mm

4.5m

2.2m

2540

1063054-54

560mm

5.4m

2.2m

3100

1063055-54

560mm

6.3m

2.46m

3710

1063058-54

560mm

7.3m

2.46m

4430

1063056-54

560mm

8.2m

2.46m

4700

1063059-54

560mm

9.5m

2.5m

5770

1063051-54

560mm

10.2m

2.5m

6220

4.5m - 8.2m Machines fitted with pivoting towing eye Ø50mm - 66630757028
9.5m - 10.2m Machines fitted with pivoting towing eye Ø50mm - 66630757017 (drawbar details at rear of booklet).

Tip Roller XL - Cambridge Rolls 12.3m - 15.3m

TIP ROLLER XL - Cambridge and Breaker Ring Rolls - 560mm, 620mm Diameter

Model No.

Roller size

Working width

Transport width

Weight kgs

1063086-54NG

560mm

12.3m

3m

11900

1063088-54NG

560mm

15.3m

3m

14250

1063086-62NG

620mm

12.3

3m

12600

Options & Accessories

Cambridge Rolls options & accessories

TIP ROLLER OPTIONAL EXTRAS

Model

Description

1063080-11

10.0/75 x 15.3 - 14 ply tyre in lieu for 4.5 - 6.3m HD

1063080-10

11.5/80 x 15.3 - 14 ply tyre in lieu for 6.3m HD

1063080-09

400/60 x 15.5 - 14 ply tyre in lieu for 7.3m + 8.2m**

1063098-08

Hydraulic brakes

1063098-07

Air Brakes

1060801003

Drawbar extension (500mm) 9.5m - 10.2m

1060801001

Drawbar extension (500mm) 4.5m - 8.2m

1063053-18

Variocast Mounting kit 4.5 (including hydraulic landwheel lift)*

1063054-18

Variocast Mounting kit 5.4 (including hydraulic landwheel lift)*

1063055-18

Variocast Mounting kit 6.3 (including hydraulic landwheel lift)*

1063058-18

Variocast Mounting kit 7.3 (including hydraulic landwheel lift)*

1063056-18

Variocast Mounting kit 8.2 (including hydraulic landwheel lift)*

1063059-18

Variocast Mounting kit 9.5 (including hydraulic landwheel lift)*

1063051-18

Variocast Mounting kit 10.2 (including hydraulic landwheel lift)*

*NB Maximum carrying capacity including seeder = 200kg

Note: The 8.2, 9.5 and 10.2 metre wide 3-section rolls have a 50mm gap for the support bearing hangers on all three sections.

**Transport width increases to 2.56m

TIP ROLLER XL OPTIONAL EXTRAS

Model

Description

1063086-70

12.3m 1 row of shattaboards including locks

1063086-72

12.3m 2 rows of Shattaboards including locks

1063088-70

15.3m 1 row of Shattaboards including locks

1063088-72

15.3m 2 rows of shattaboards including locks

1063086-76

Upgrade to slicer boards 12.3m (per row)

1063088-76

Upgrade to slicer boards 15.3m (per row)

1063086-78

Deduct price for locks 12.3m (per row)

1063088-78

Deduct price for locks 15.3m (per row)

1063086-73

2 rows 16mm straw tines for 12.3m

1063088-73

2 rows 16mm straw tines for 15.3m

1063086-91

Air brake upgrade (factory fit only)

NB: Seeder/applicator fitting kit available on request

Pricing

HE-VA October 2017 Product Price List

To download the HE-VA product price list click the image above



To download and view our Product Price List you will need the free Adobe Reader
If you don't already have this Click Here to download the Adobe Reader

Ring Profile

Ring Profile

HE-VA rolls are available with a choice of ring types. All carefully designed to cope with today’s higher machine weights but retain the time-proven qualities of traditional ring engineering, the range includes new multi-spoke developments created to meet customer demand and changing farming methods.

New generation rings come standard with a 3-year warranty.

510mm 21" HE-VA Rings 9 Spoke HE-VA Rings 10 spoke HE-VA Rings

8 spoke Cambridge and Breaker
510mm / 21"

8 spoke Cambridge and Breaker
550mm 22"

10 spoke Cambridge and Breaker
620mm / 20"

8 spoke HE-VA Rings 9 spoke HE-VA Rings 10 spoke HE-VA Rings

8 spoke Cambridge only
560mm / 20"

9 spoke Cambridge only
550mm / 21.6"

10 spoke Cambridge only
600mm / 23"

Draw Bar Options

Draw Bar Options

Pivoting Towing Eye - Standard



Weight (KG)

Description

Pivoting towing eye - standard

66630757028

13

Pivoting towing eye "Standard" Ø50mm mounted with M16 bolts

Pivoting Towing Eye - Strong



Weight (KG)

Description

66630757017

20

Pivoting towing eye "Strong" Ø50mm mounted with M20 bolts

Pivoting Towing Eye - High Quality



Weight (KG)

Description

66630757046

20

Pivoting towing eye "High Quality" Ø50mm mounted with M20 bolts

Pivoting Towing Eye - Strong 85°



Weight (KG)

Description

66630757041

20

Pivoting towing eye "Strong 85°" Ø50mm mounted with M20 bolts

Ball Hitch



Weight (KG)

Description

66630757023

26

Ball hitch f/Ø80mm ball mounted with M20 bolts

Pivoting Crossbar Cat III



Weight (KG)

Description

66630757034

81

Lower link mounted pivoting crossbar Cat III Ø36.5mm pins mounted with M20 bolts

Pivoting Crossbar Cat IV



Weight (KG)

Description

66630757045

88

Lower link mounted pivoting crossbar Cat IV Ø50mm pins mounted with M20 bolts

Towing Eye Bush



Weight (KG)

Description



660438132

0.3

Bush for towing eye Ø50mm / Ø33.5mm reduces from Ø50mm to Ø33.5mm

NOTE: To upgrade the drawbar on your trailed HE-VA machine, please ensure the change is clearly marked on your order.

Downloads

Gallery

Would you like some more information?
