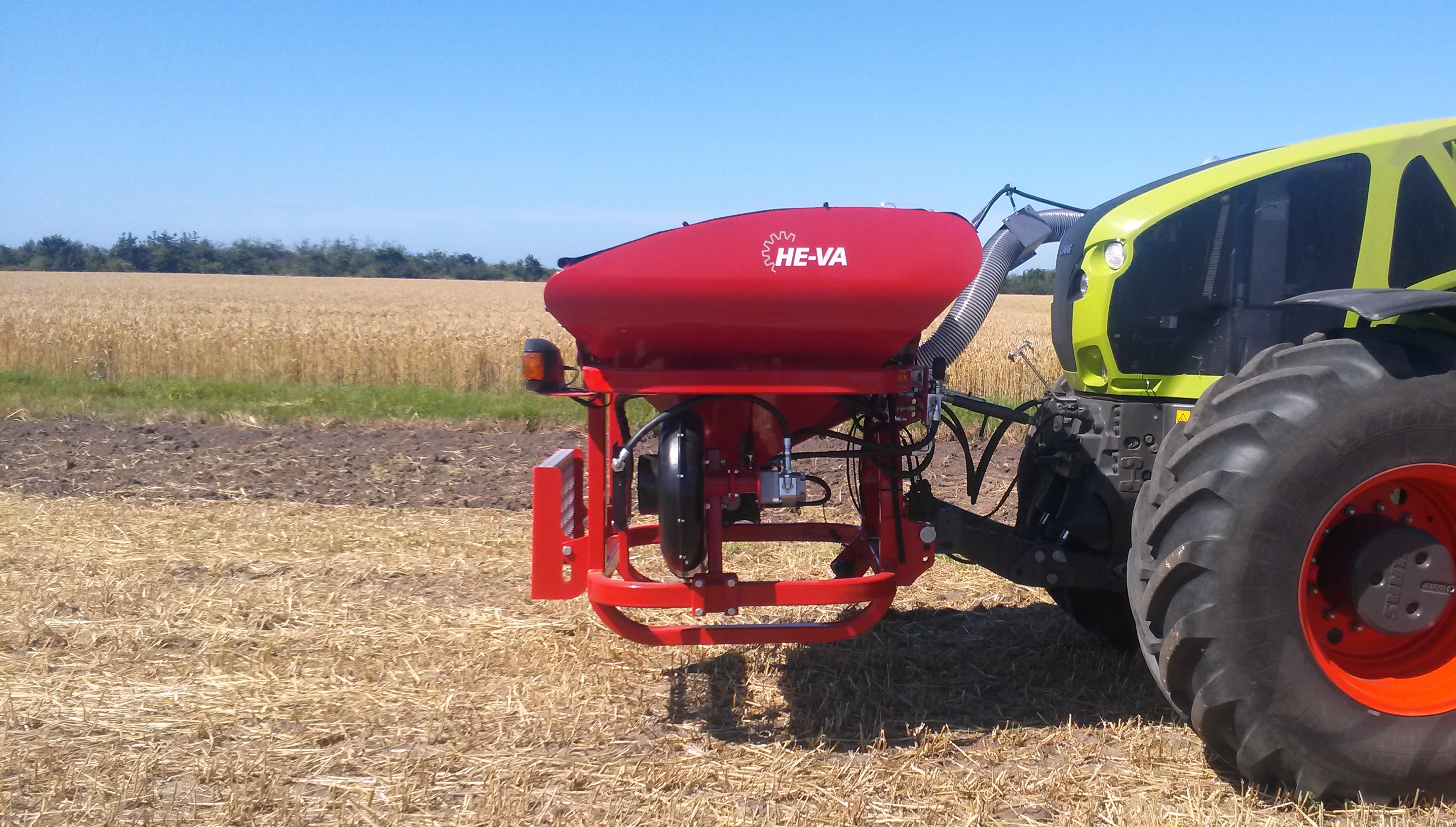

HE-VA's Front-Tank is mounted to the front linkage of the tractor, and used to hold fertilizer, cover crop seeds as well as cereal crop seeds. The Front-Tank is offered in three different capacity sizes - 1,100L, 1,600l and 2,000L.

Although the Front-Tank can be used as a hopper in combination with a range of HE-VA cultivation machinery such as the; Disc Roller Contour, Disc Roller XL ContourStealth, Subsoiler, Grass Rejuvenator and the Euro Tiller, it can also be integrated to work in conjunction with cultivation machinery of other cultivation brands.

The HE-VA Front-Tank is the perfect solution if you're looking for a hopper that will turn your cultivator into a cultivator drill for cover crop drilling.

The design of the hopper guarantees easy filling due to the oversized width of the top. The cover can also be completely folded back to make loading easier.

On a standard front tank the drive is via a mechanical land wheel giving forward speed related metering, whilst the ISOBUS option still allows forward speed related metering but with greater control and versatility via its electronic metering.

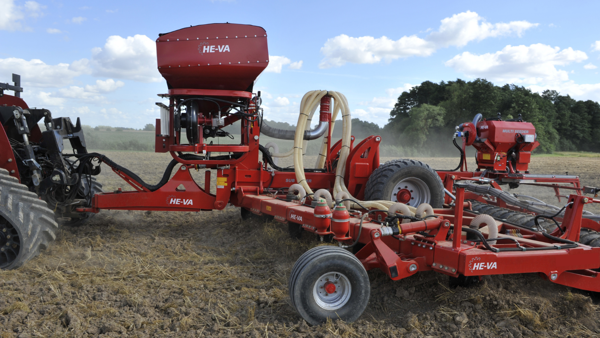

The HE-VA Front-Tank can be integrated onto rear implements where suitable if larger volumes of seed or fertiliser are required.

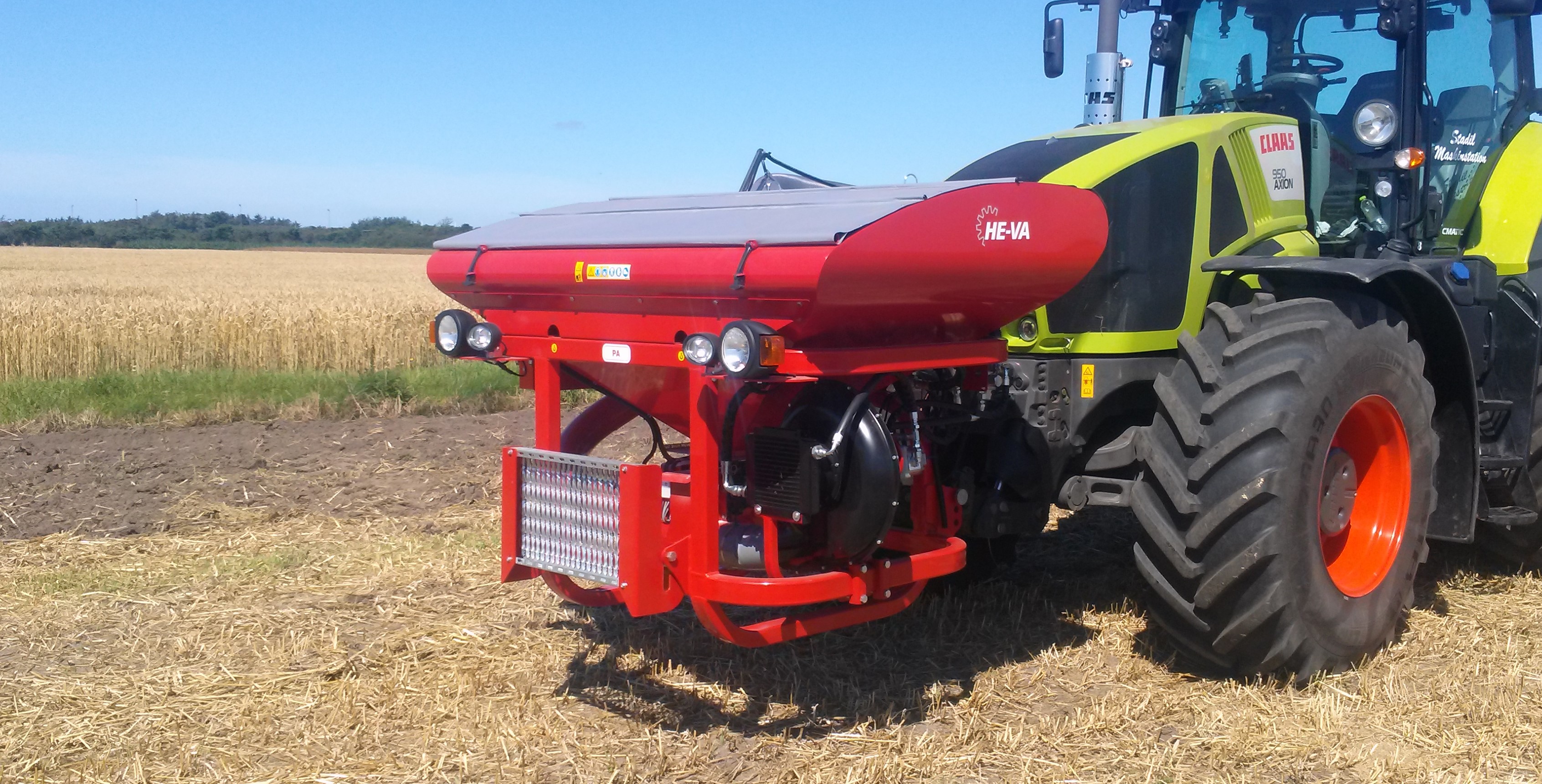

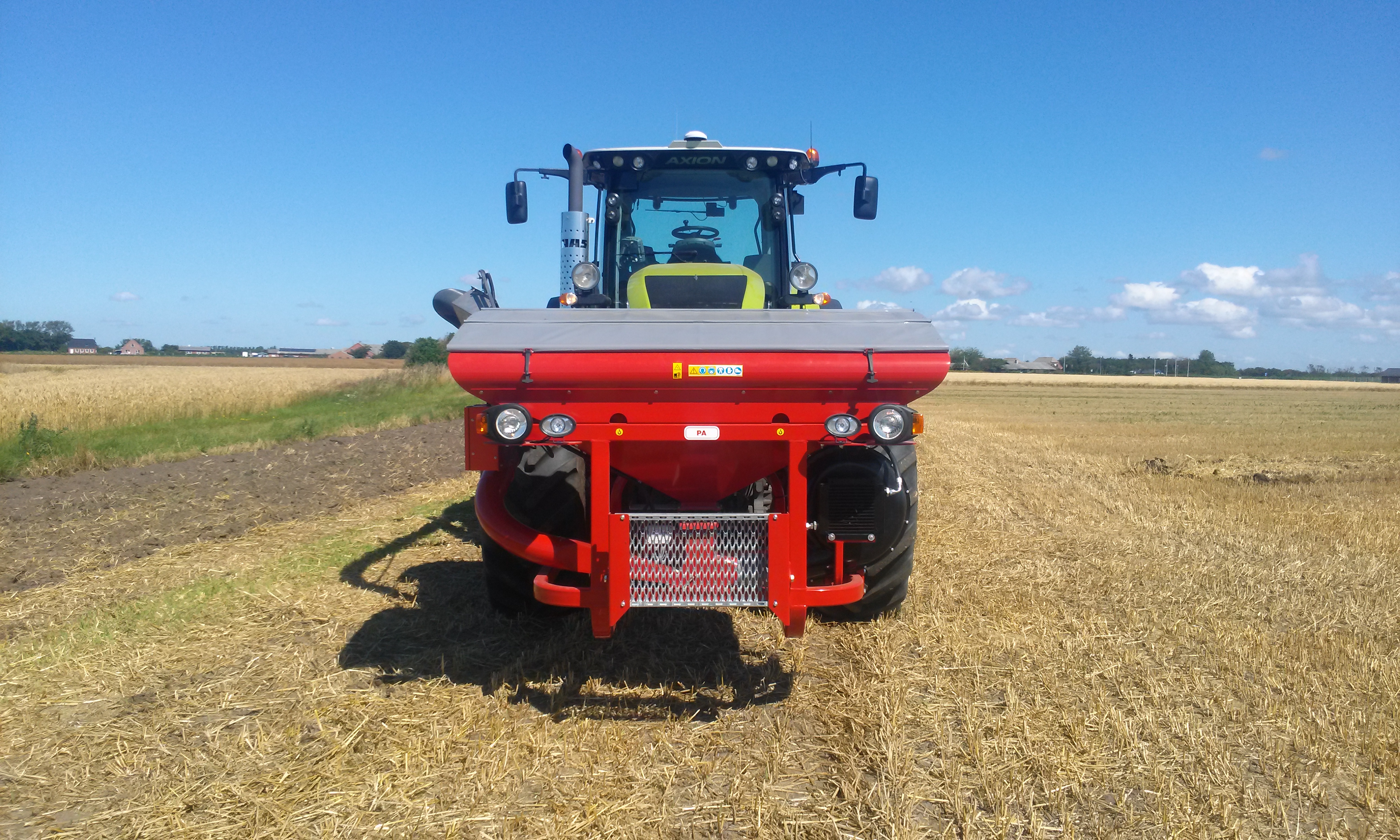

As standard, the Front-Tank comes with working lights, a tank light and a direction indicator. It also includes a hydraulic fan with a 5m firm tube and a 10m flexible tube for tractor mounting. The Front-Tank also comes with an inspection window and tarpaulin as standard.

Technical Information

Front Tank
Model No   Description Hopper Capacity Outlets Control Fan Length/Width/Height (mm)
100537500  Front-Tank Mechanical 1,100L On Application Mechanical Hydraulic* 1,440 / 2,210 / 1,900
100537610  Front-Tank ISOBUS 1,100L On Application Electronic Hydraulic* 1,440 / 2,210 / 1,900
100537581  Front-Tank Mechanical 1,600L  On Application Mechanical  Hydraulic*  1,440 / 2,210 / 2,100
100537582  Front-Tank ISOBUS 1,600L  On Application Electronic  Hydraulic*  1,440 / 2,210 / 2,100
100537611  Front-Tank Mechanical 2,000L On Application Mechanical   Hydraulic*  1,440 / 2,210 / 2,200
100537612  Front-Tank ISOBUS 2,000L On Application Electronic   Hydraulic*  1,440 / 2,210 / 2,200


*Requires 35 l/min from oil outlet with flow control and return to sump without pressure.

Main seed transfer pipe is 150mm diameter.

Options & Accessories

Options & Accessories
 Optional Extras
Model No Description
100520373 Separate terminal for ISOBUS system on HE-VA Front-Tank
