Grass Roller

Introduction

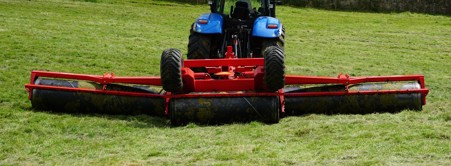

HE-VA Grass Roller

Farms and fields are spread over larger distances and yet need the same attention from a heavy ballast roll in the spring that they have had in the past.

The Grass Roller uses existing HE-VA Rolls technology to solve this increasing problem for today's grassland farmer and contractor.

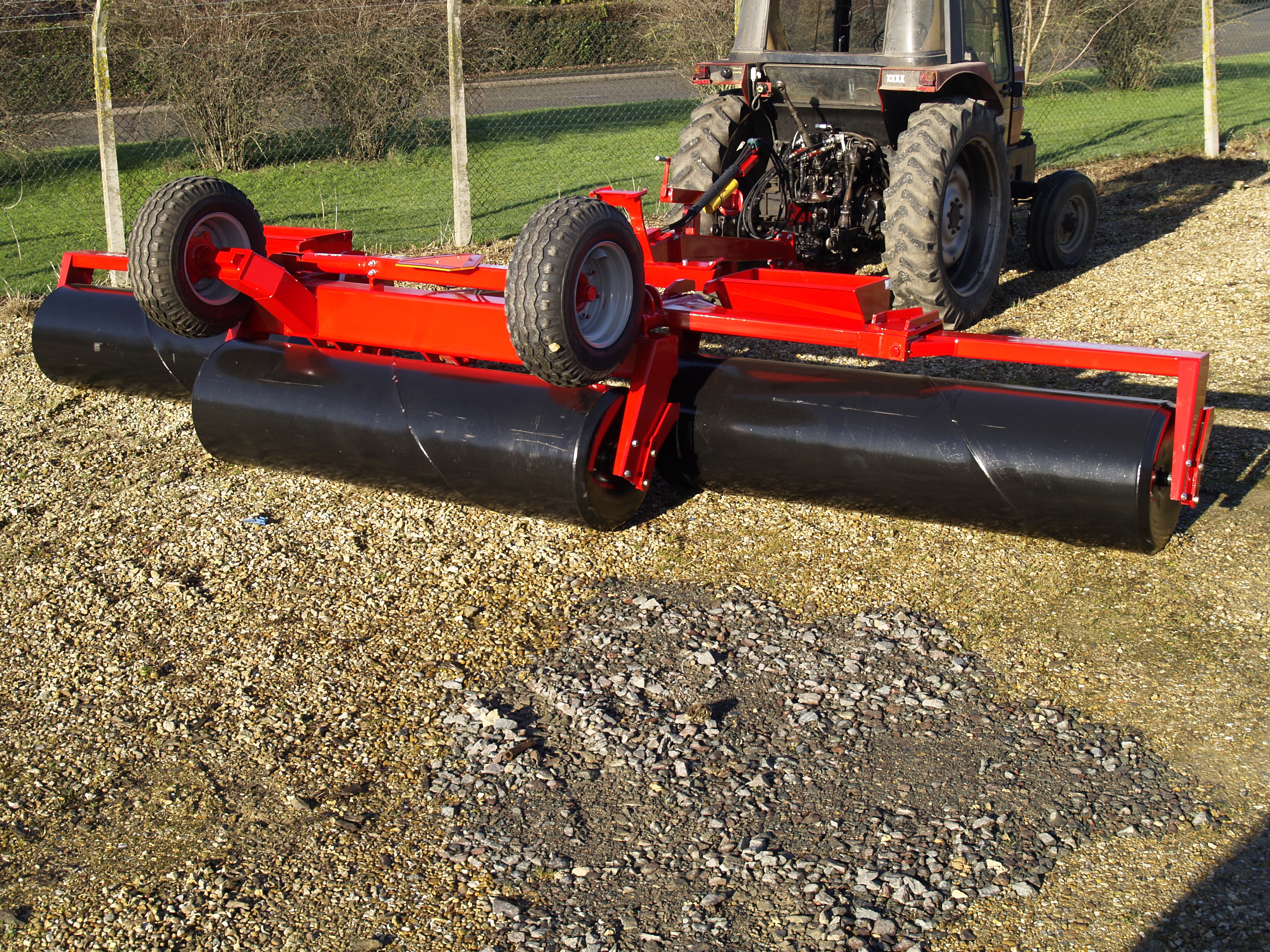

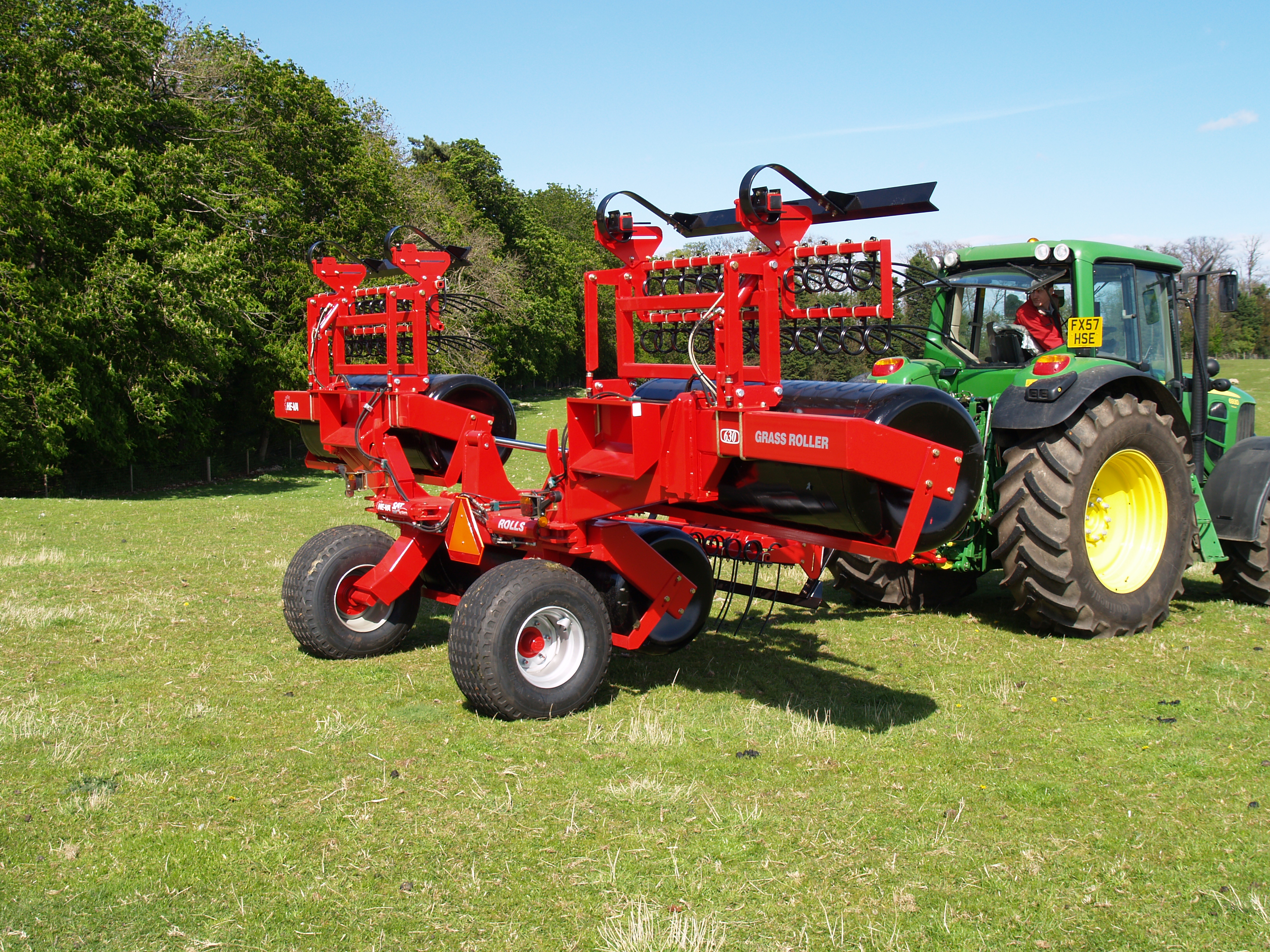

HE-VA Grass Roller

Cultivated Ground

Not only can you use the Grass Roller to consolidate grassland, it is also ideal for work on cultivated ground.

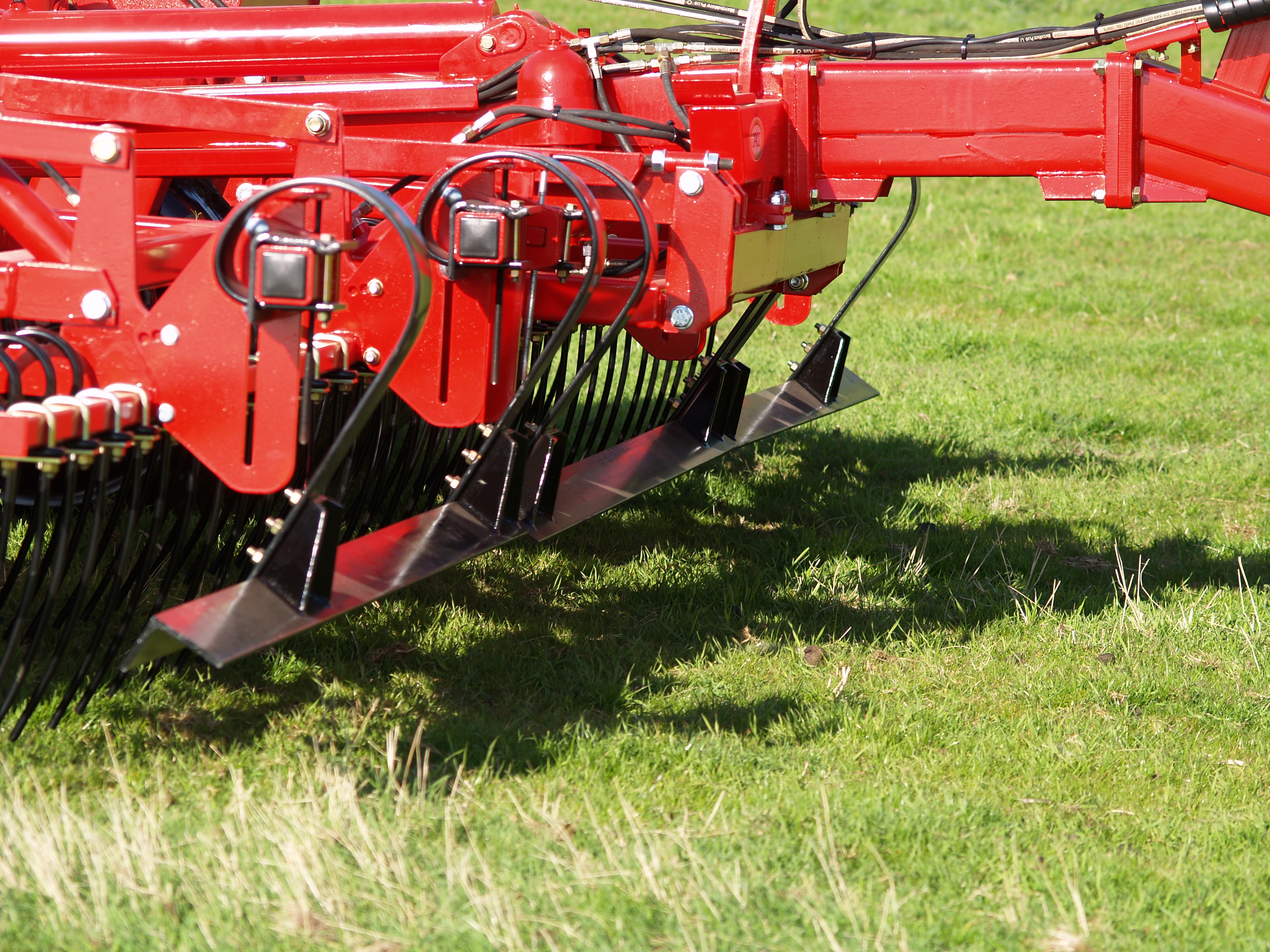

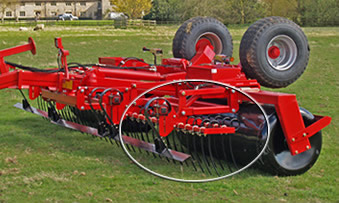

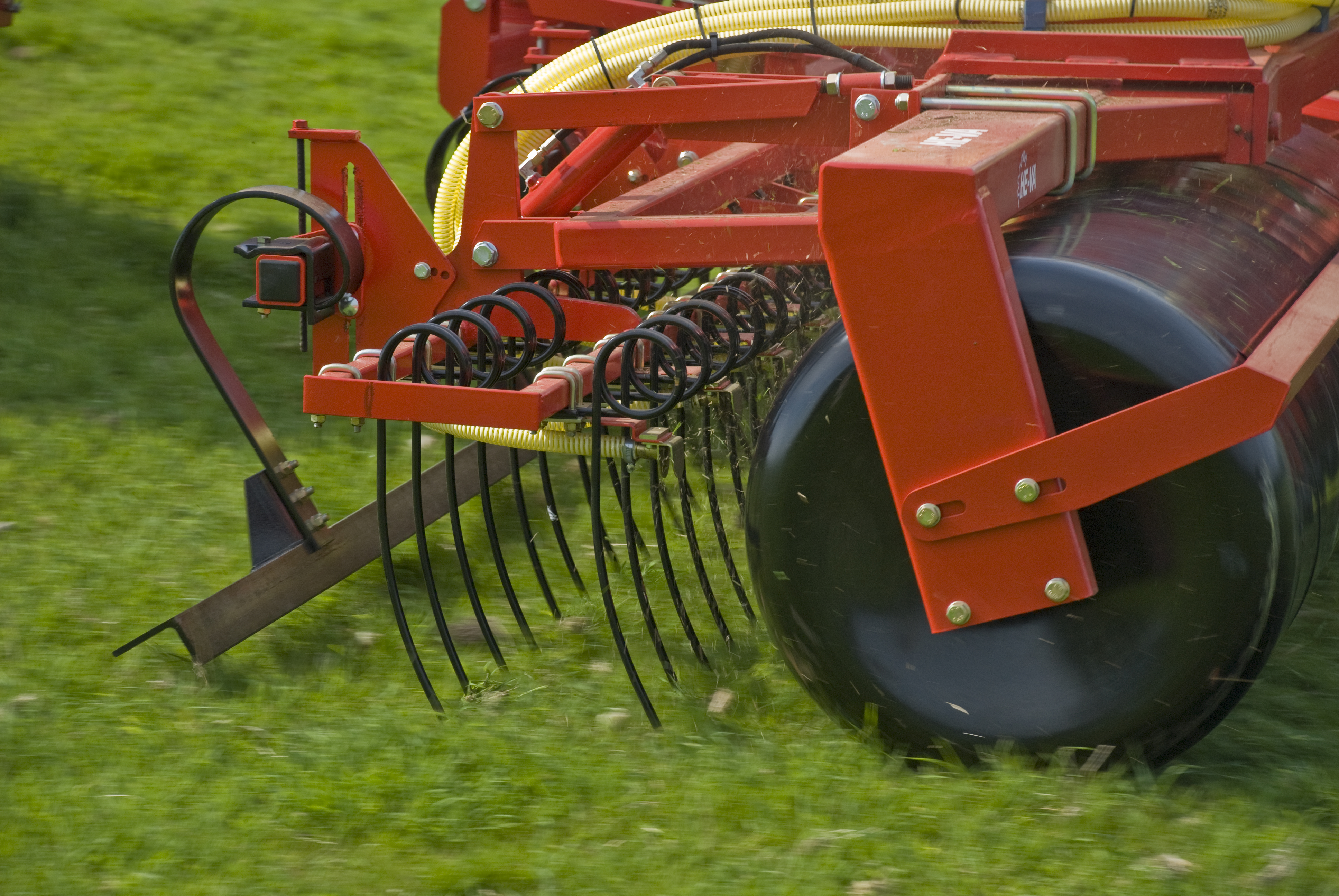

With the addition of the harrowing tines and levelling board, you have a very useful tool on existing grassland or for seedbed preparation.

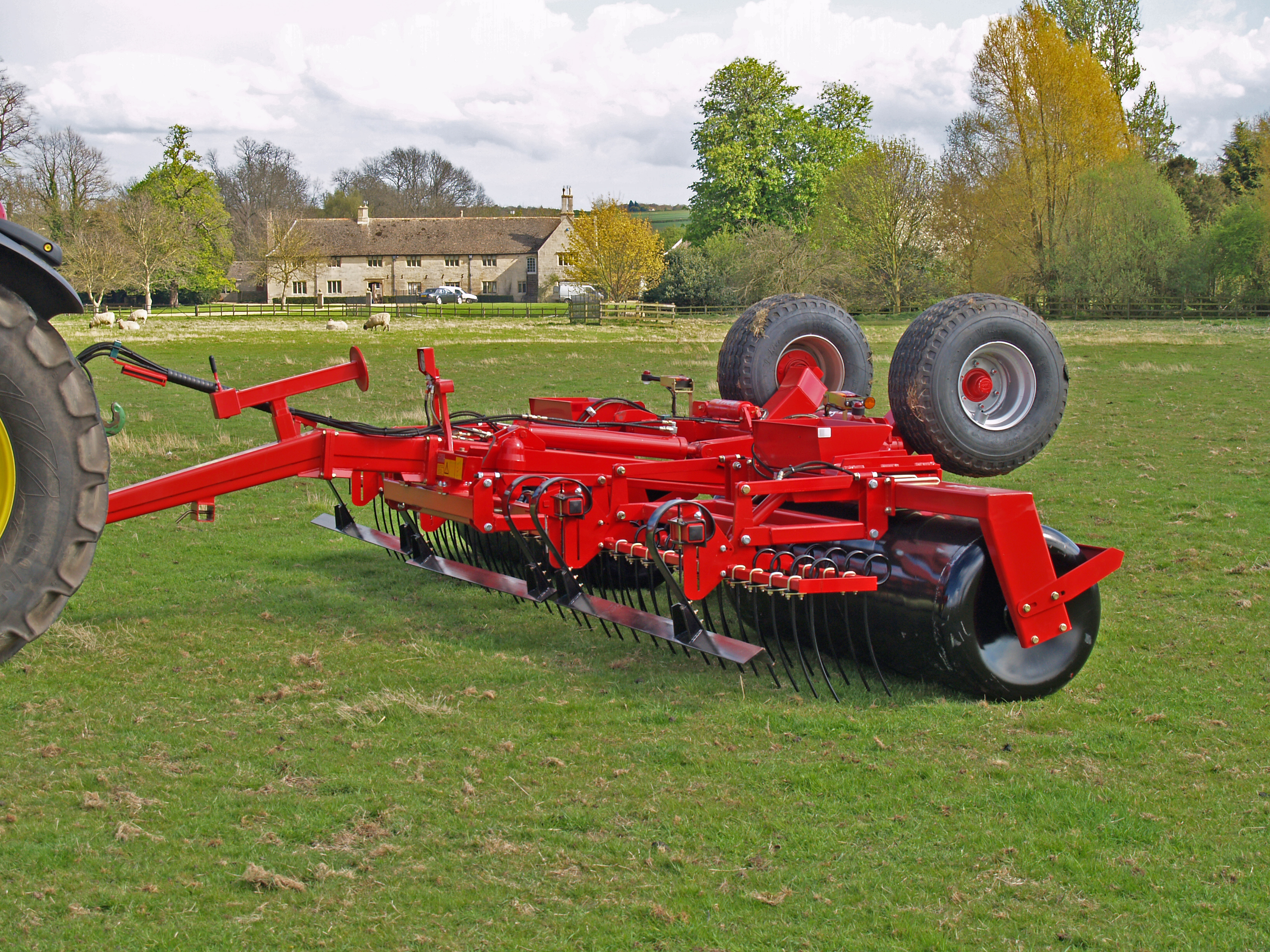

Grass Roller reseeding

Features

Weight Transfer System

The Grass Roller's hydraulic folding system is linked into two accumulators and a hydraulic pressure gauge. The gauge allows the operator to set the amount of weight transfer from the central section to the wings, dependant on ground conditions and how much water ballast is in the Roller sections.

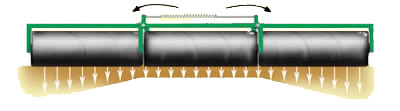

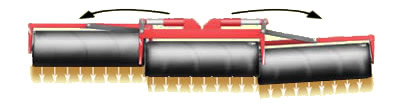

Grass Roller SAT System

Rolls without a weight transfer system tend to exert the highest ground pressure in the centre as the chassis of the rolls, drawbar and wheels are above the middle roll section.

Even with a basic sprung weight transfer system the hinges at the end of the centre roller section negate much of the transfer effect.



FREE FLOATING ROLLER SECTIONS - HE-VA Rolls have free floating roller sections and the SAT weight transfer system which uses hydraulic accumulators and a setting gauge to allow the operator to redistribute additional frame weight from the centre section to the wings ensuring even weight distribution across the full width of the rolls!

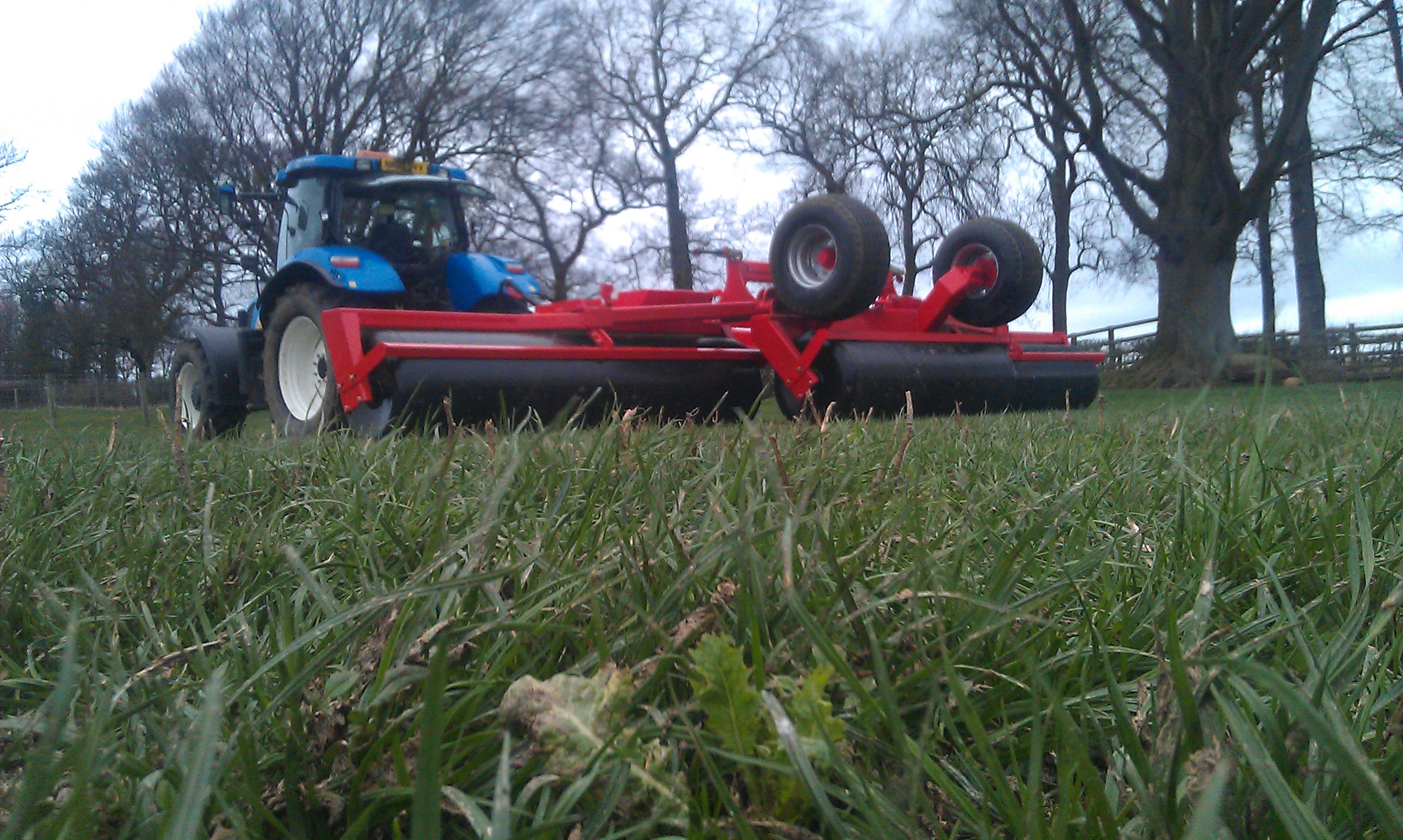

Contour Following

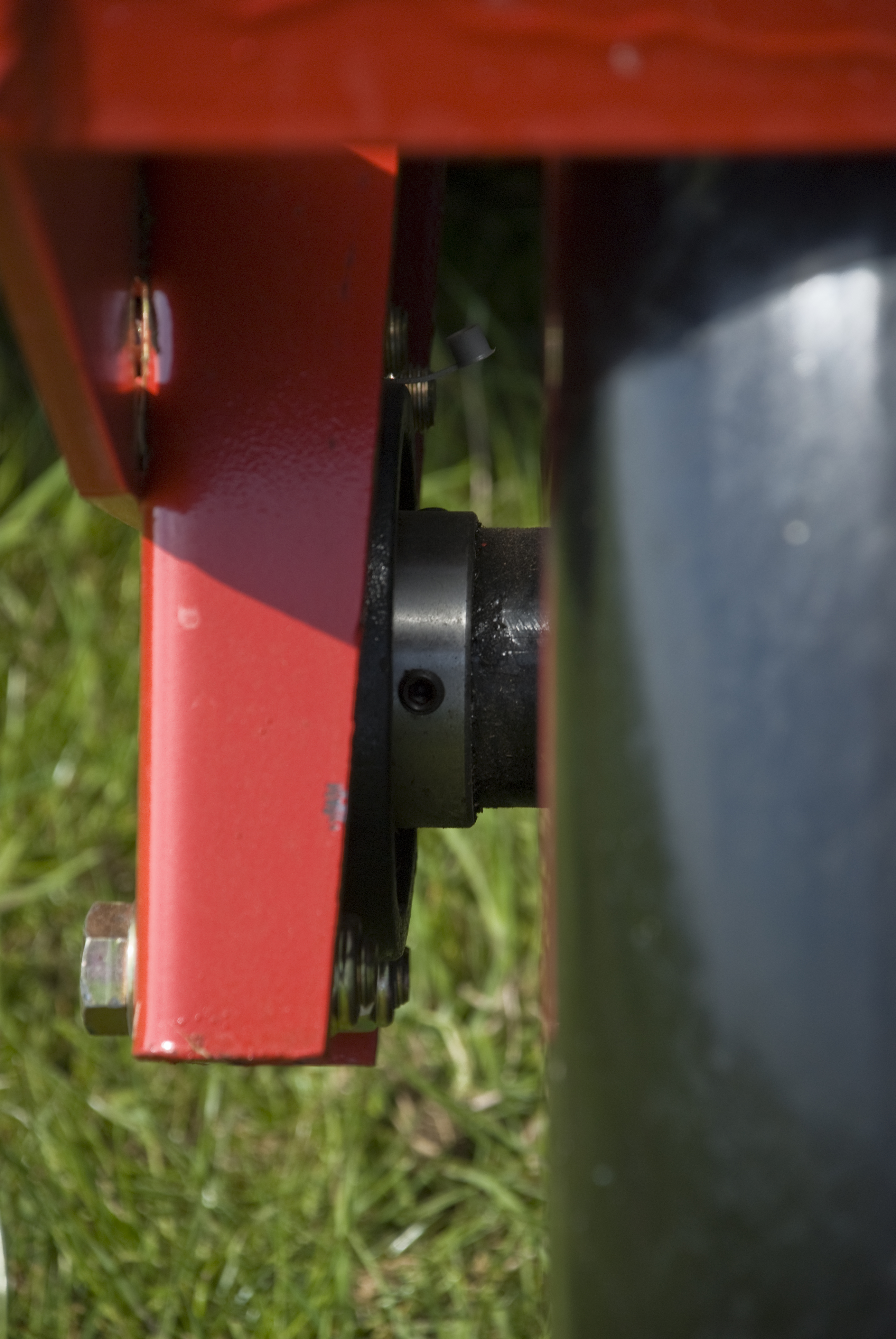

Independent Flotation and 5 Pivot Points
Centre pivoting on the two wing sections, two folding pivots and the pivoting drawbar eye allow individual sections to follow the contours. Add to this the floating inner links which join the wing sections to the centre rolls section allowing all three sections to float completely independently and you have the best possible contour adaption.

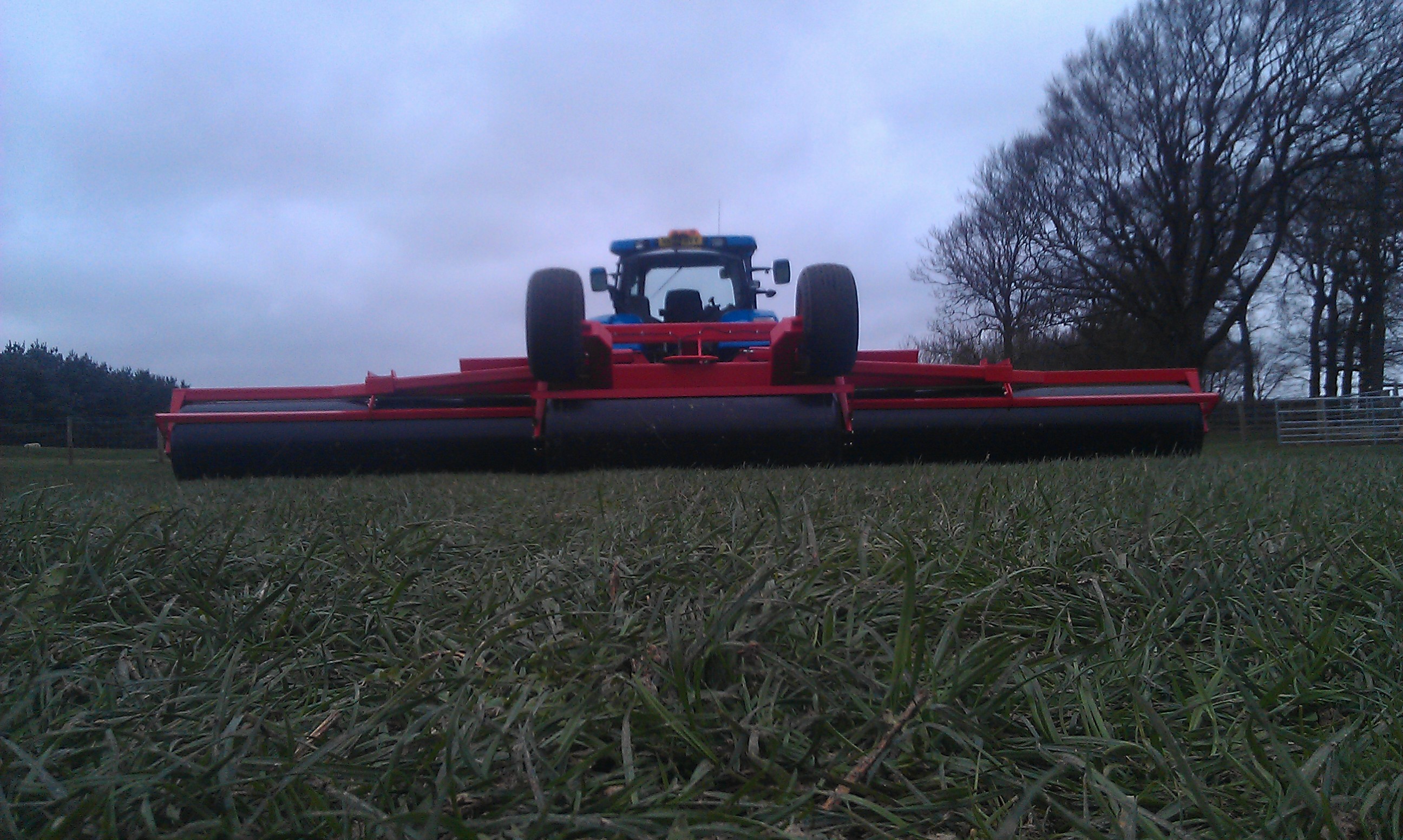

Grass Roller contour following

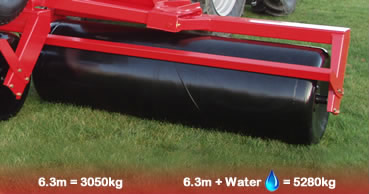

Water Ballastable Rolls

The weight of the Grass Roller can be increased by over 70% by filling the Roller Tubes with water as ballast if required, this provides for very effective consolidation on spring grassland or before reseeding cultivated land.

Water ballastable rolls

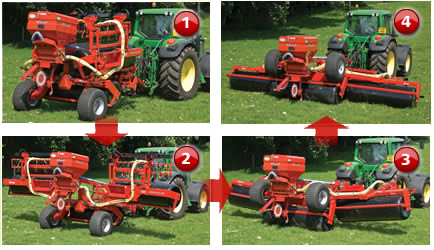

Ready to Work in Seconds

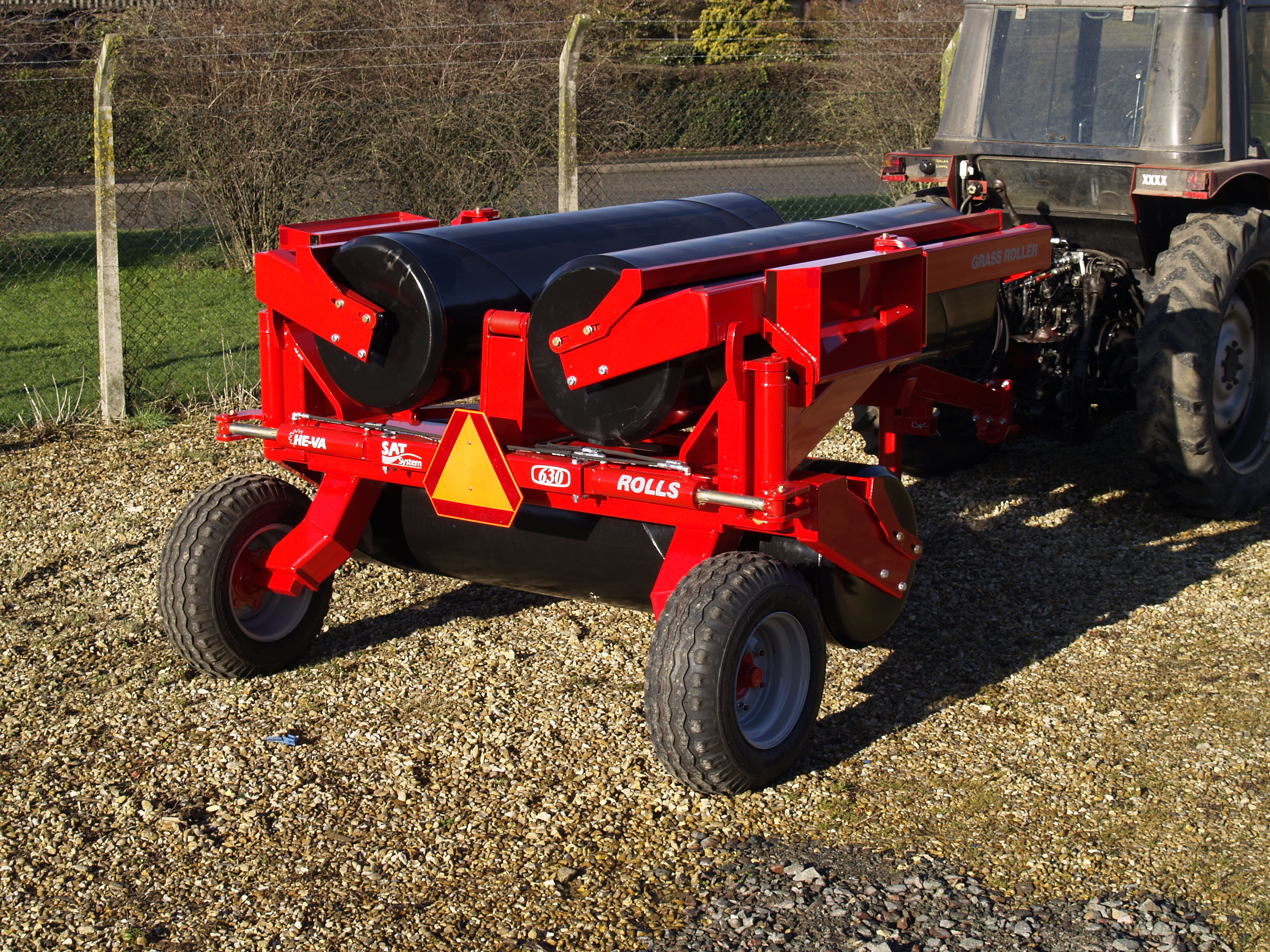

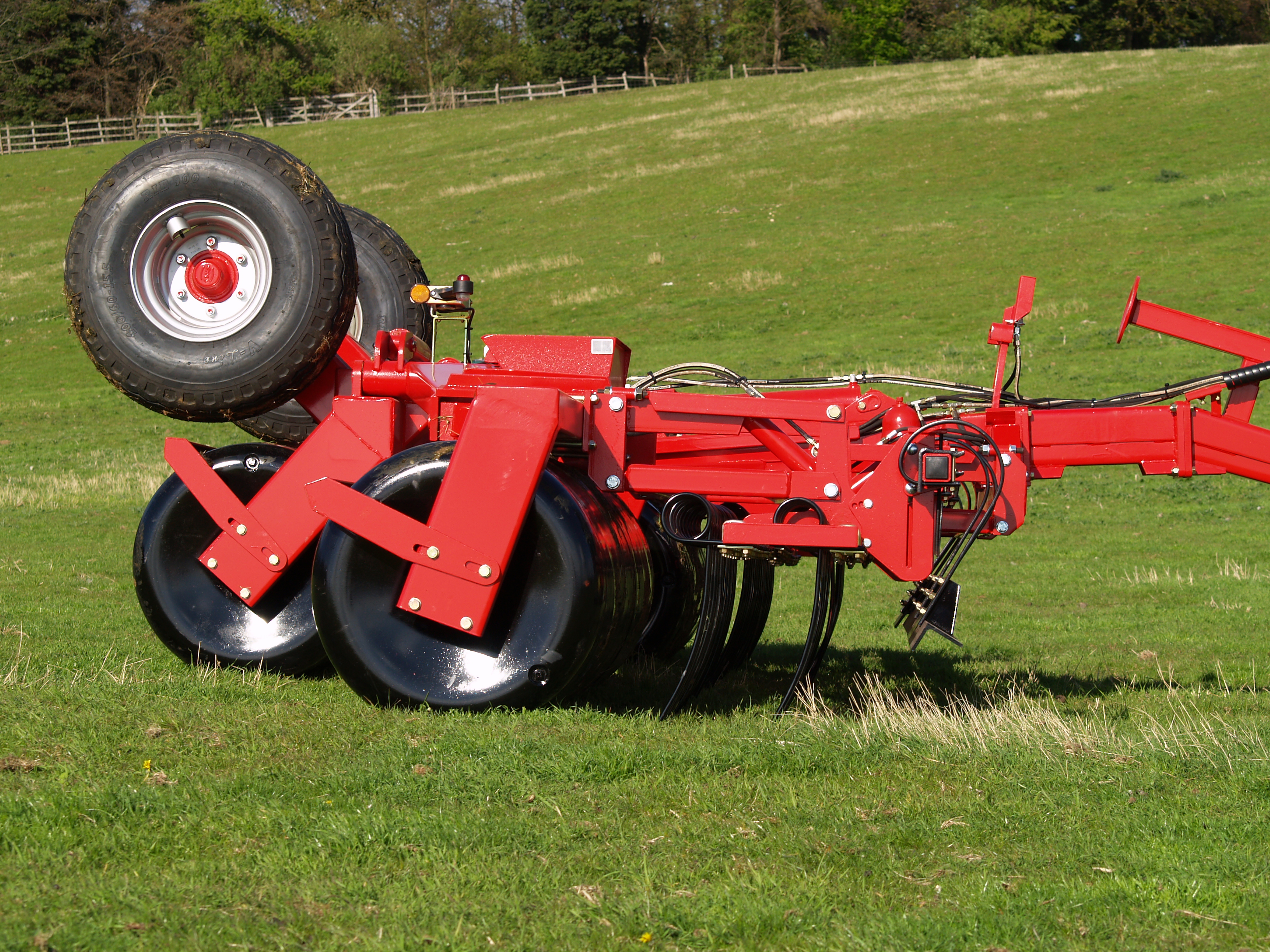

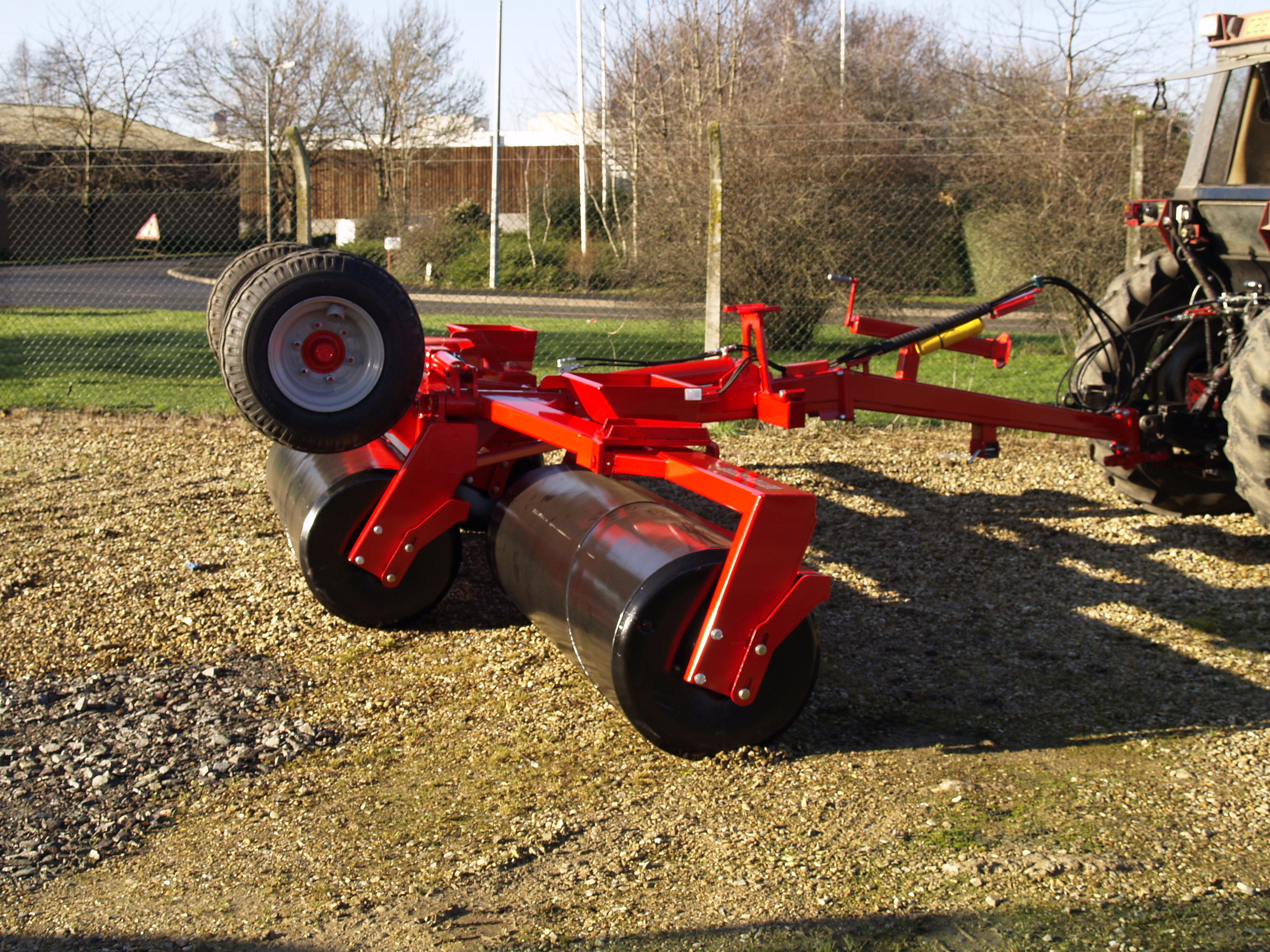

HE-VA's clever folding system allows the operator to fold or unfold the Grass Roller from the tractor seat in seconds using only two spool valves, when folded the wings are effectively locked automatically for road transport.

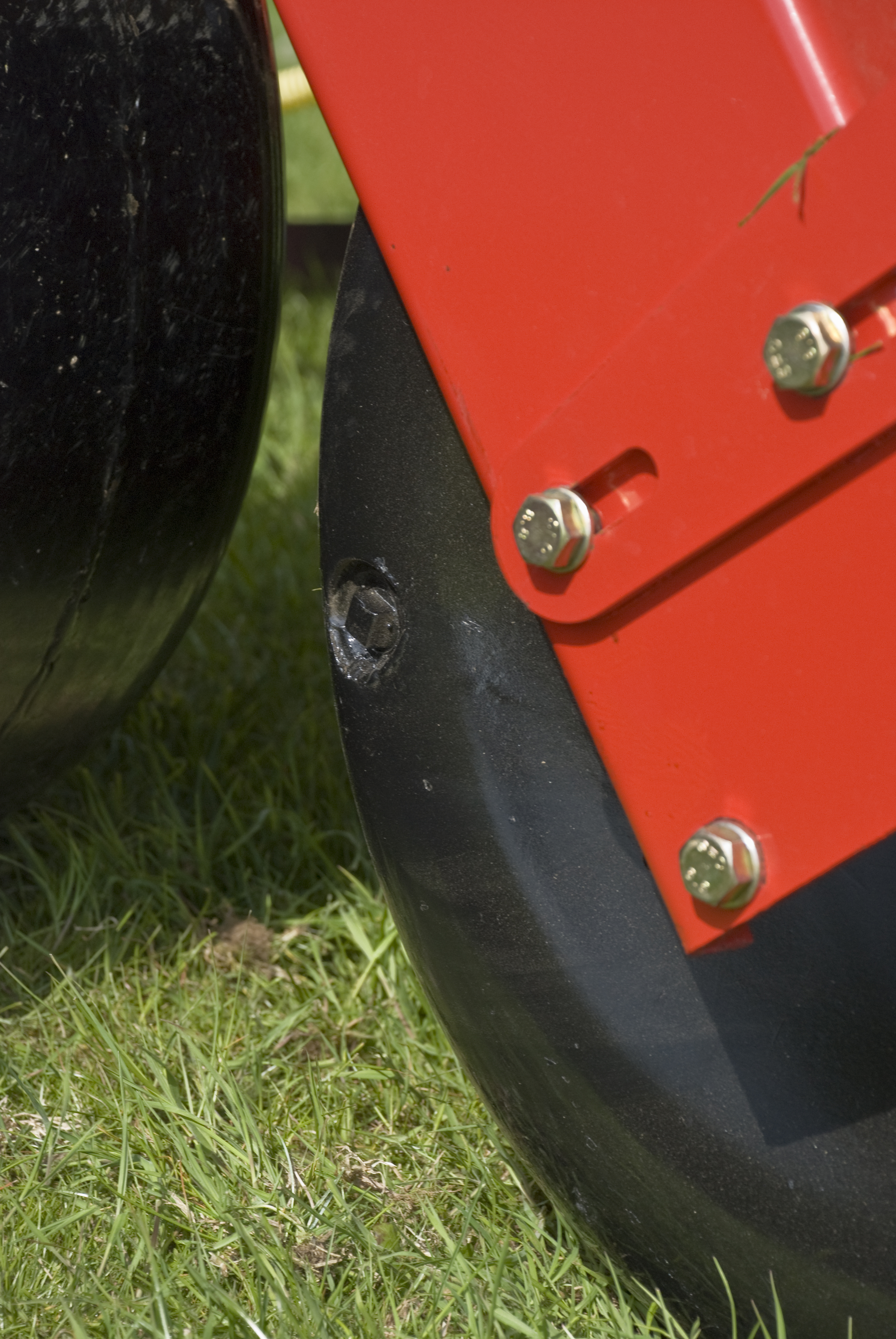

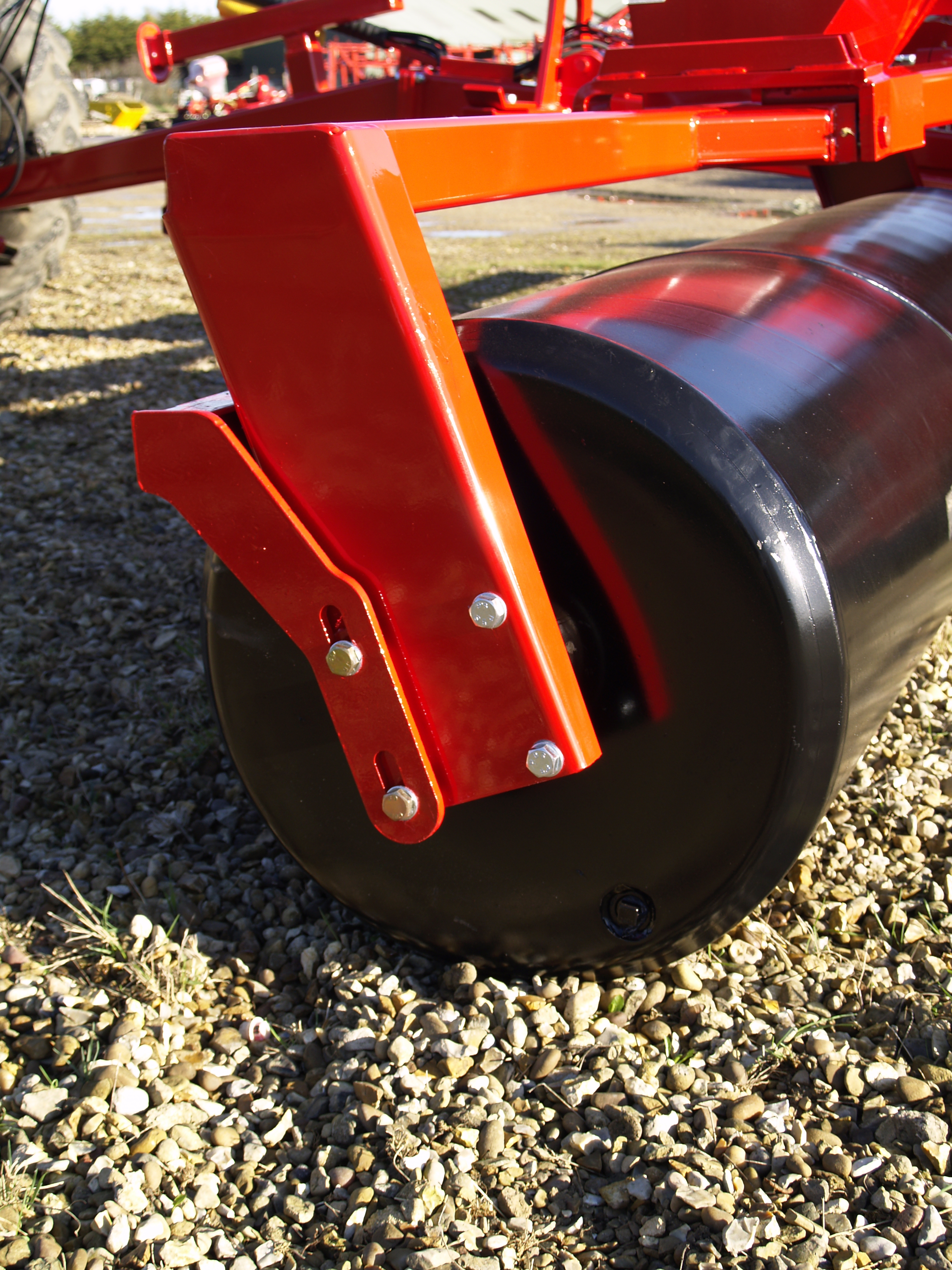

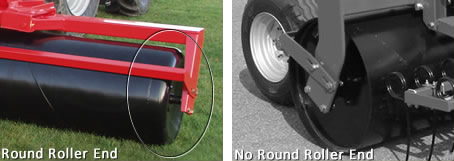

Rounded Roller Ends

The Grass Roller is made with spun steel ends on each section, these ensure that there is no damage done to the grass when turning sharply on the headlands.

Models

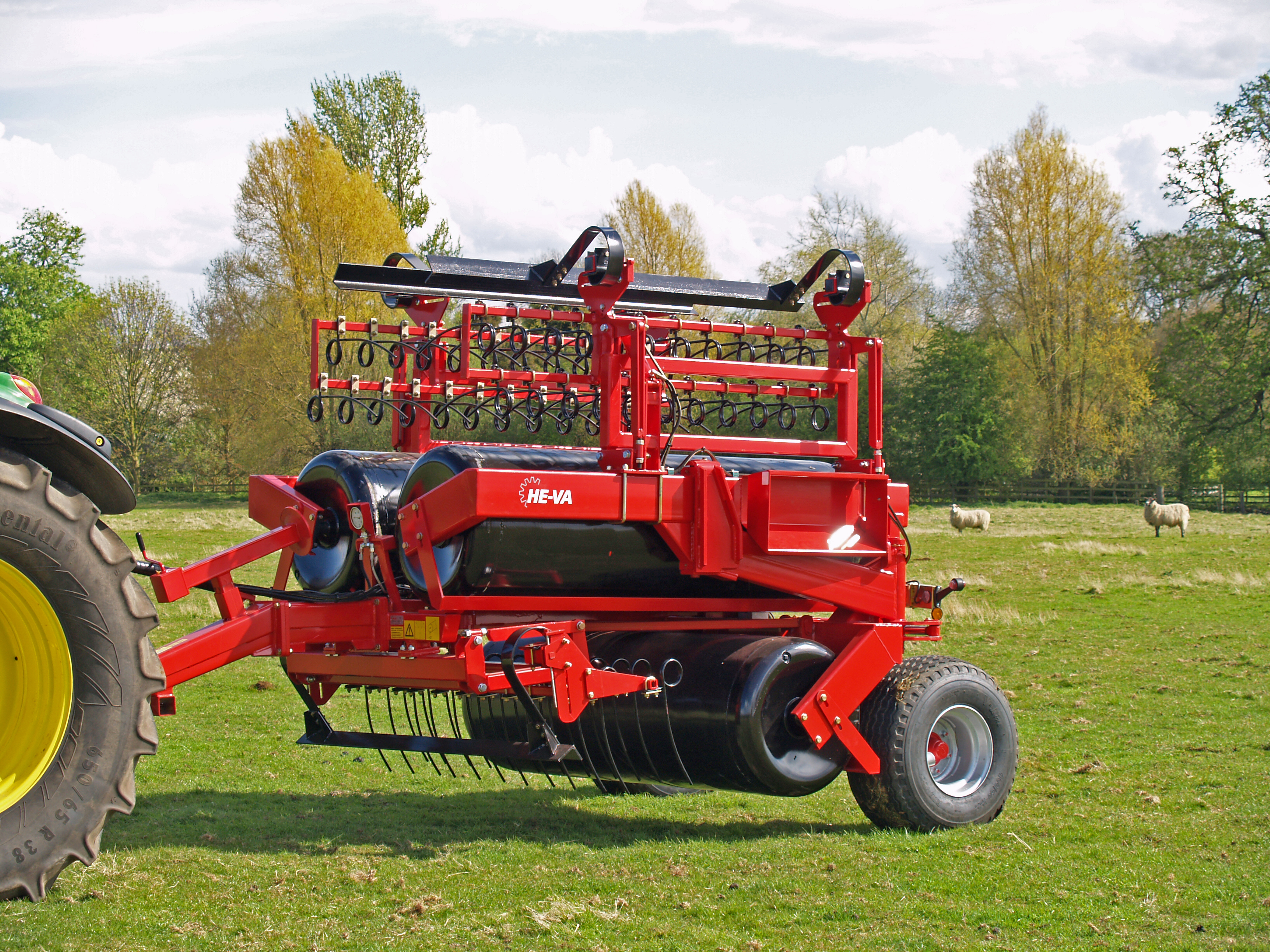

6.3m & 8.2m Contractors Grass Roller

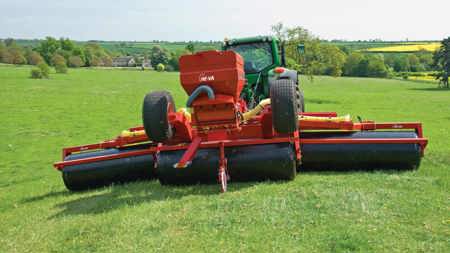

The 6.3m & 8.2m Contractors Grass Roller provides effective consolidation for existing grassland or cultivated land ready for seeding, add the optional Levelling board and tines and you have a useful scarifier and light cultivator. For the complete solution, a seeder mounting bracket and air seeder can be mounted onto the Grass Roller giving you the option to reseed or overseed grassland, undersow crops and apply other small seeds where required.

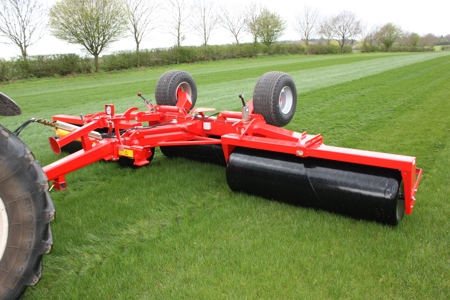

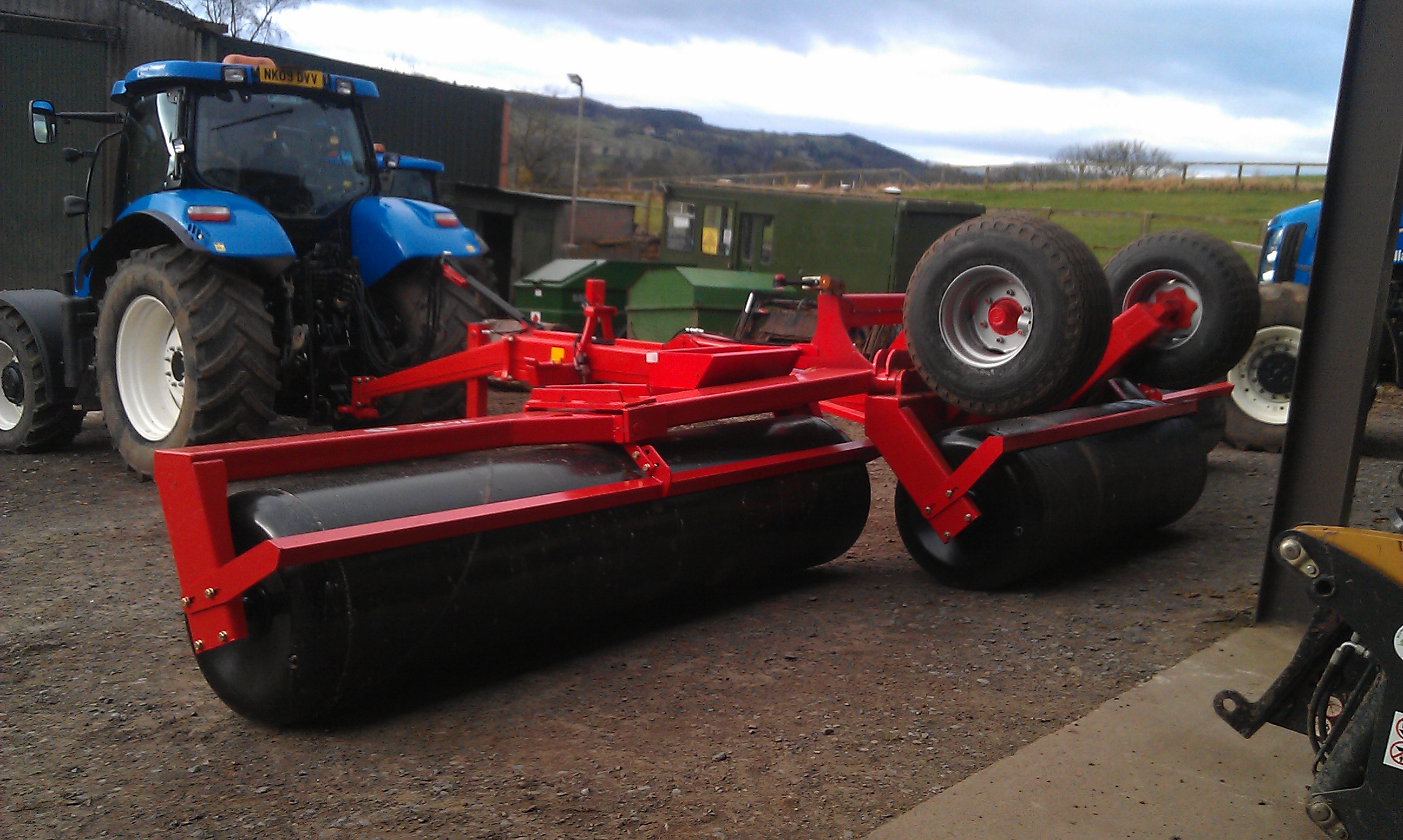

6.3m Farmers Grass Roller

The HE-VA Farmers Grass Roller has a working width of 6.3m (20ft) and incorporates HE-VA's tried and tested Special Active Transfer (SAT) weight distribution system. This ensures even pressure accross the working width when rolling. A three section tip folding design allows each section to float independantly, while centre pivots on each section ensure ground contours are followed.

The ability to water ballast the Grass Roller significantly increases the machines working weight and yet large bearings and a 600mm diameter roller ensure it is relatively easy to pull. The chamfered edges on each roll section also ensure that there is no damage done to the grass surface by scrubbing when turning on the headlands.

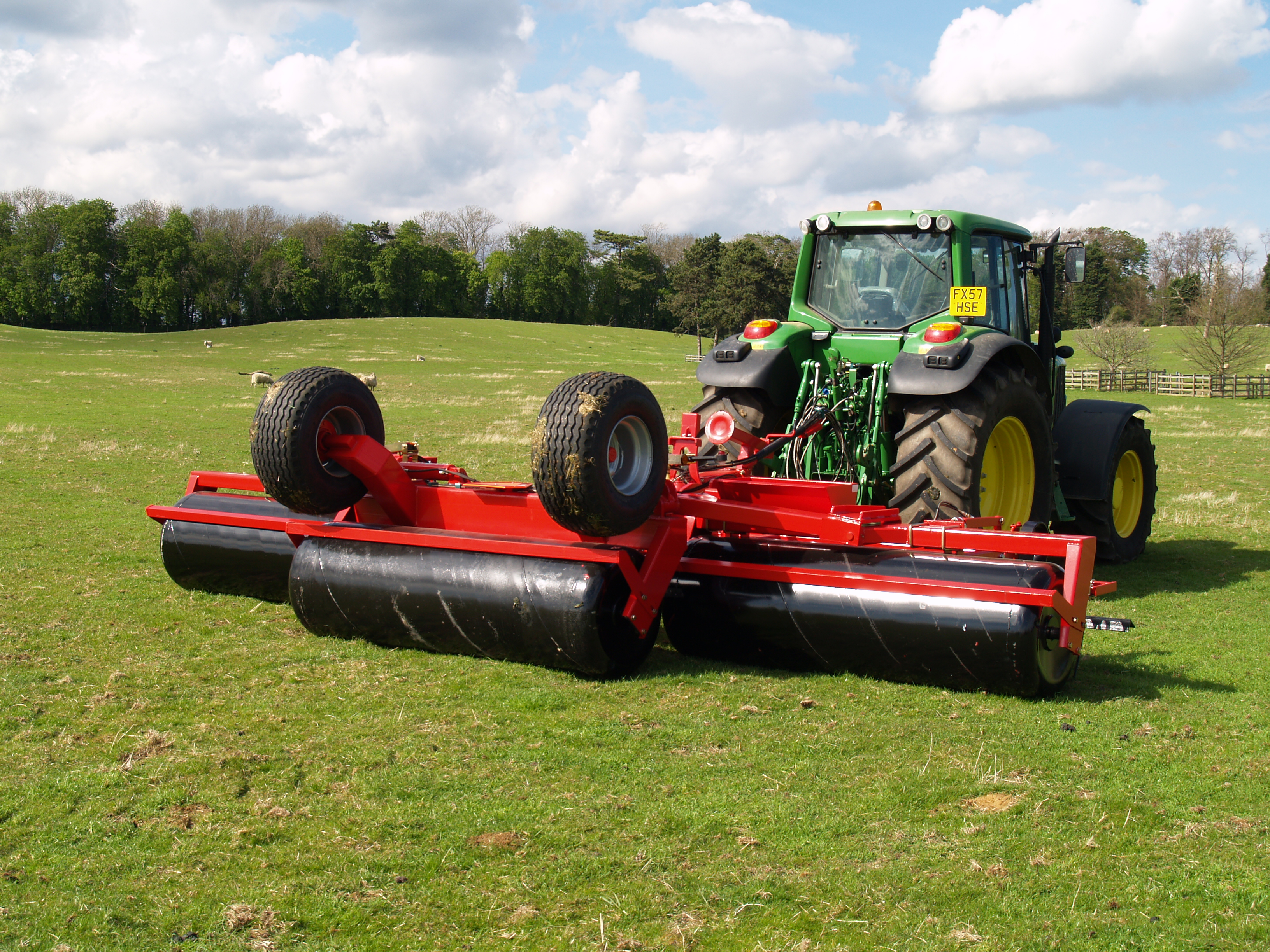

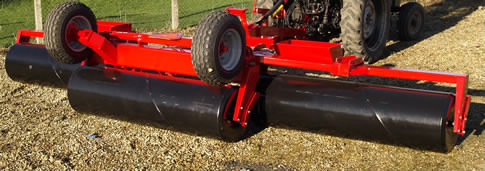

HE-VA Farmers Grass Roller

The Farmers Grass Roller is a simpler version of the Contractors Grass Roller which was launched 3 years ago but is not available with the accessories for seeding and scarifying the grass.

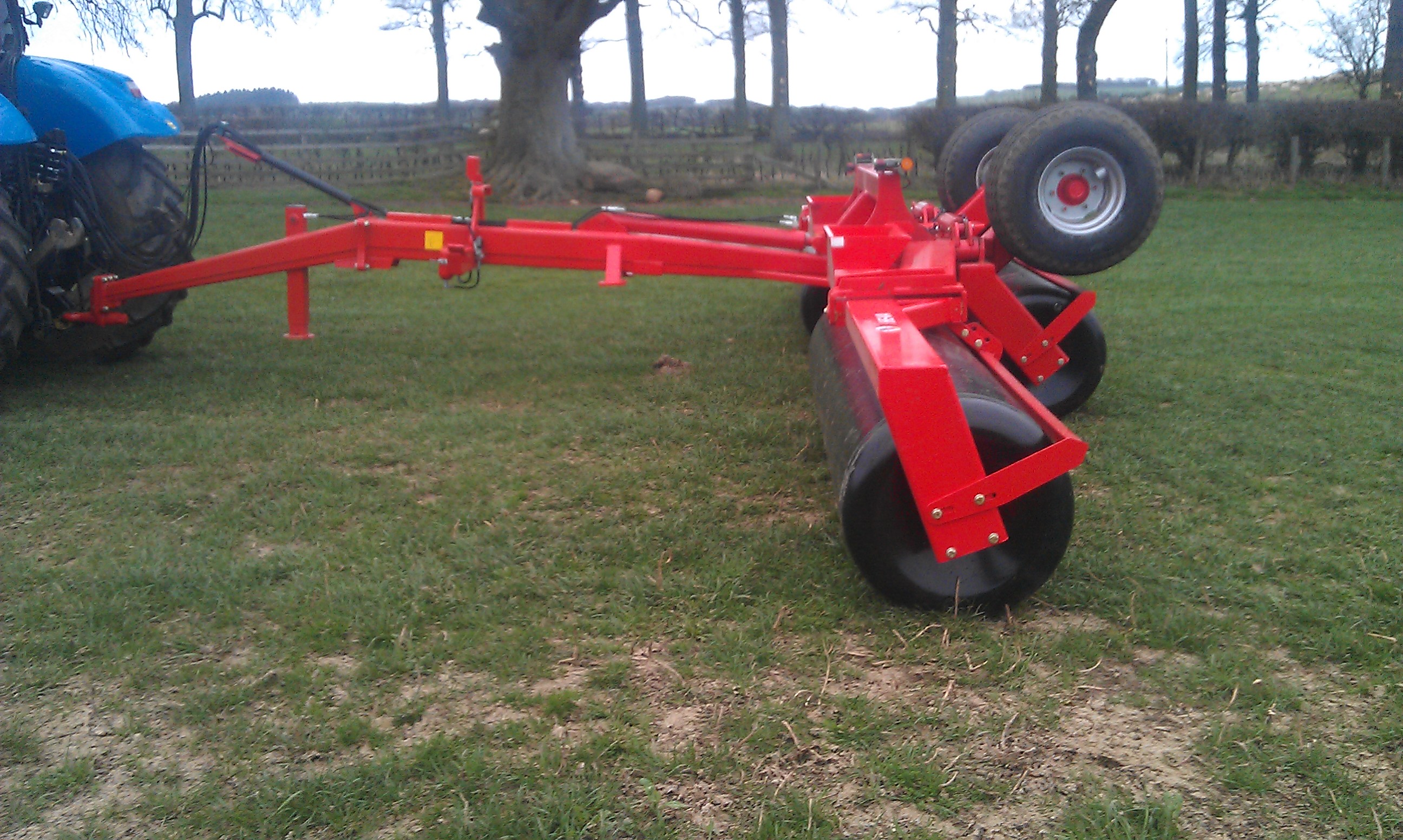

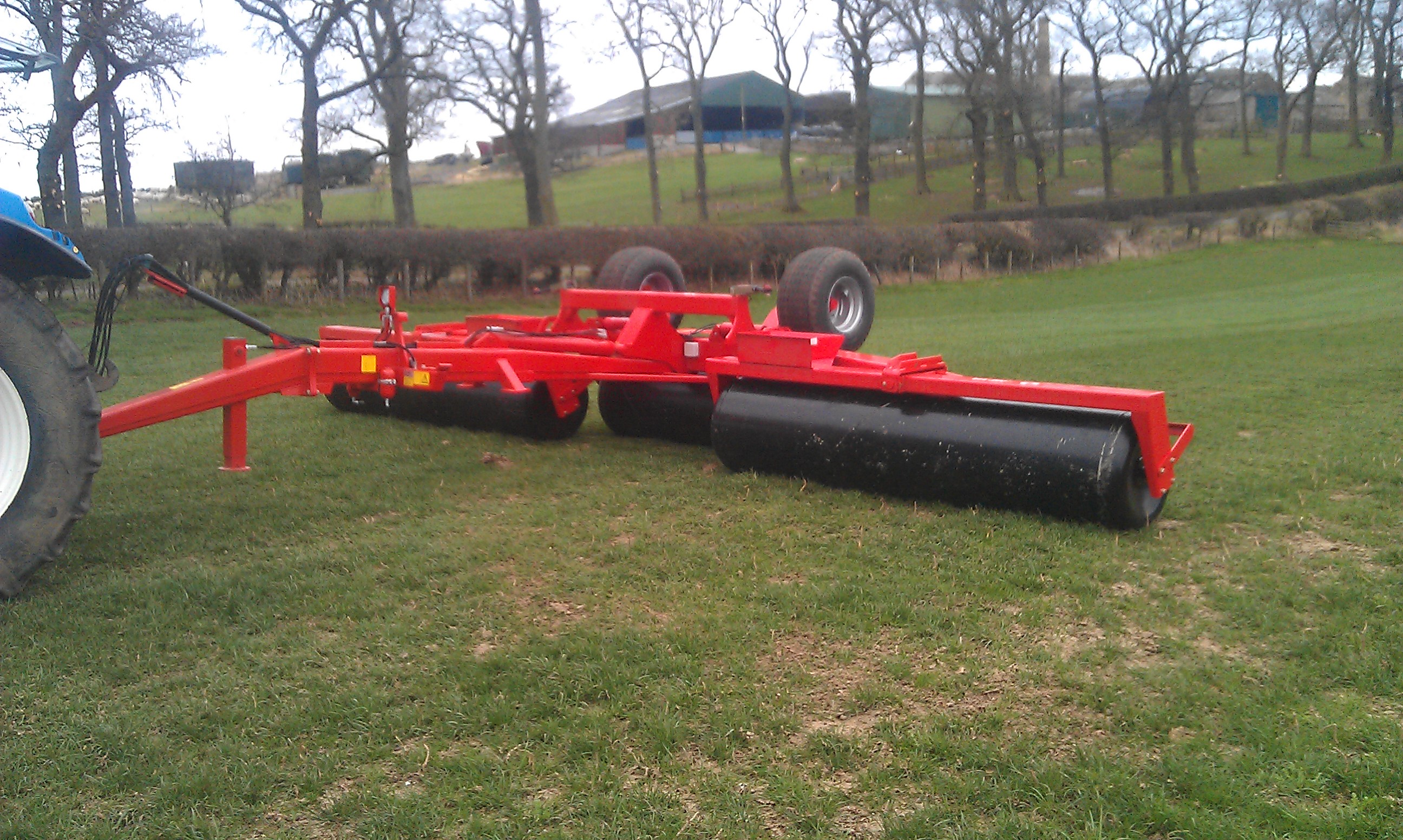

3m Rigid Grass Roller

The 3m Rigid Grass Roller comes as either mounted or trailed machines, plus also offers the option of 2 rows of tines and levelling bar that can be seen on the larger Contractors Grass Roller.

Technical Information

6.3m & 8.2m Contractors Grass Roller

Hydraulic Folding Contractors’ Grass Roller

Model No.

Working width

Transport width

Weight kgs
(exc. water)

Weight kgs
(inc. water)

Type

1063033-71

6.3m

2.7m

3050

5280

Trailed

1063036-71

8.2m

2.7m

3880

6790

Trailed

3m Rigid Grass Roller

Rigid Grass Roller

Model No.

Working width

Transport width

Weight kgs
(exc. water)

Weight kgs
(inc. water)

Type

1063021-71

2.9m

3m

1035

1495

Mounted

1063026-71

2.9m

3m

1515

2475

Trailed

6.3m Farmers Grass Roller

Hydraulic Folding Farmers’ Grass Roller

Model No.

Working width

Transport width

Weight kgs
(exc. water)

Weight kgs
(inc. water)

Type

1063032-61

6.3m

2.7m

2240

3860

Trailed

Options & Accessories

Grass Roller Options & Accessories

Optional Extras

Model No.

Working width

Description

Weight kgs

1063025-51

3m

2 Rows Harrow Tines

95

1063025-52

3m

Levelling Bar (for mounting + Harrow Tines)

50

1063020-53

3m

Seeder Mount Kit Mounted

40

1063025-53

3m

Seeder Mount Kit Trailed (Electronic Seeder only)

40

1063032-51

6.3m

2 Rows Harrow Tines

230

1063032-52

6.3m

Levelling Bar (for mounting + Harrow Tines)

140

1063032-53

6.3m

Seeder Mount Kit (for OPICO Air 8 electronic or Air 16)

75

1063034-51

8.2m

2 Rows Harrow Tines

280

1063034-52

8.2m

Levelling Bar (for mounting with Harrow Tines)

170

1063034-53

8.2m

Seeder Mount Kit (for OPICO Air 16)

85

1063098-07



Air Brakes



1063098-08



Hydraulic Brakes



Pricing

HE-VA October 2016 Product Price List

To download the HE-VA product price list click the image above



To download and view our Product Price List you will need the free Adobe Reader
If you don't already have this Click Here to download the Adobe Reader

Draw Bar Options

Draw Bar Options

Pivoting Towing Eye - Standard



Weight (KG)

Description

Pivoting towing eye - standard

66630757028

13

Pivoting towing eye "Standard" Ø50mm mounted with M16 bolts

Pivoting Towing Eye - Strong



Weight (KG)

Description

66630757017

20

Pivoting towing eye "Strong" Ø50mm mounted with M20 bolts

Pivoting Towing Eye - High Quality



Weight (KG)

Description

66630757046

20

Pivoting towing eye "High Quality" Ø50mm mounted with M20 bolts

Pivoting Towing Eye - Strong 85°



Weight (KG)

Description

66630757041

20

Pivoting towing eye "Strong 85°" Ø50mm mounted with M20 bolts

Ball Hitch



Weight (KG)

Description

66630757023

26

Ball hitch f/Ø80mm ball mounted with M20 bolts

Pivoting Crossbar Cat III



Weight (KG)

Description

66630757034

81

Lower link mounted pivoting crossbar Cat III Ø36.5mm pins mounted with M20 bolts

Pivoting Crossbar Cat IV



Weight (KG)

Description

66630757045

88

Lower link mounted pivoting crossbar Cat IV Ø50mm pins mounted with M20 bolts

Towing Eye Bush



Weight (KG)

Description



660438132

0.3

Bush for towing eye Ø50mm / Ø33.5mm reduces from Ø50mm to Ø33.5mm

NOTE: To upgrade the drawbar on your trailed HE-VA machine, please ensure the change is clearly marked on your order.
