Triple Tiller

Introduction

HE-VA Triple Tiller

Cultivation for all conditions

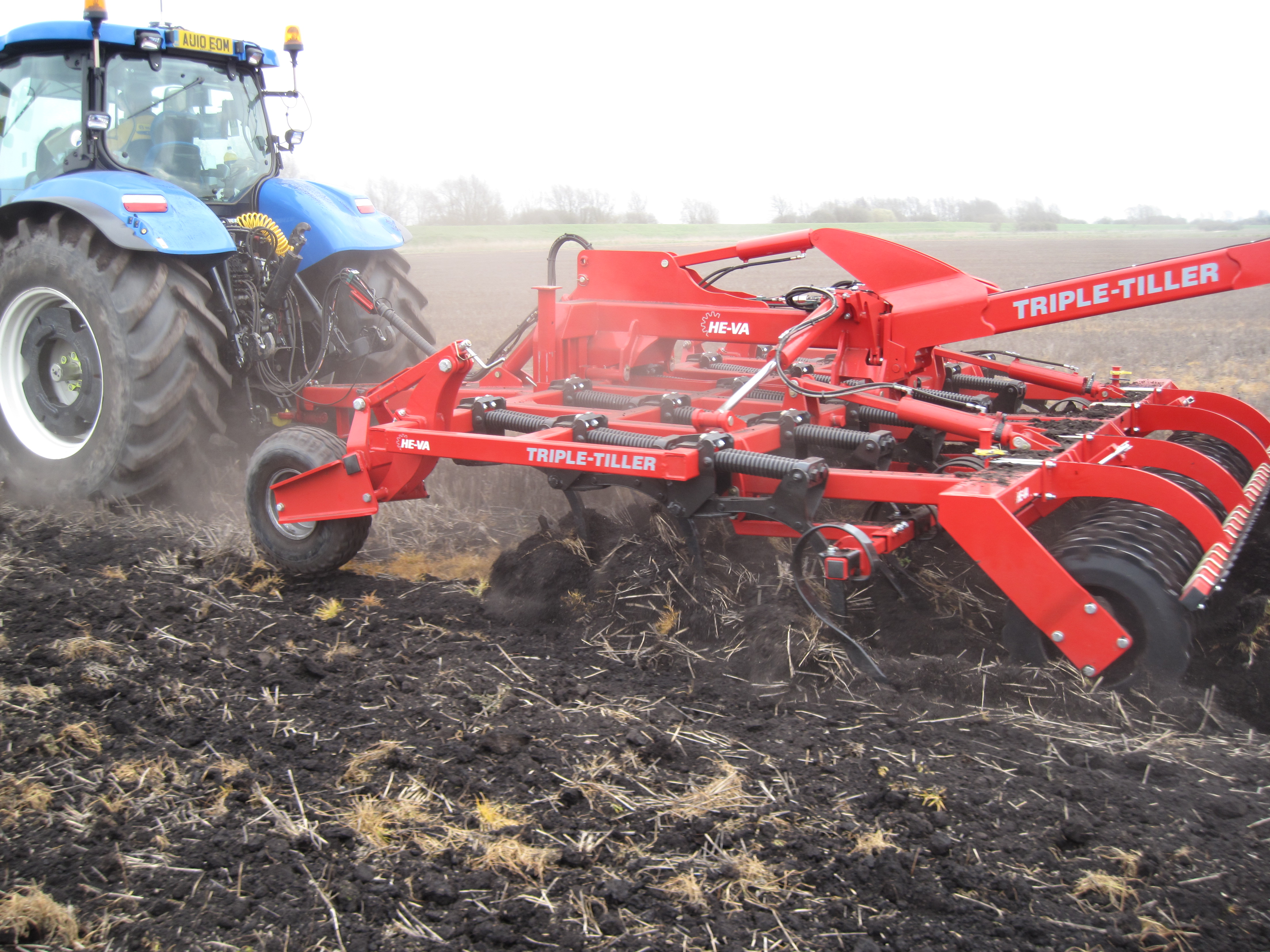

The Triple Tiller is a high speed Stubble Cultivator designed to work down to 300mm (12") deep depending on conditions and the point option used.

The machine can be used with wide duck foot shares fitted to cultivate shallow, moving all the ground in a min-till or stale seedbed situation.

With its chisel point fitted it can just as easily be used for deep cultivation and residue incorporation. The Levelling disc's and V-Profile roller fitted to the back of the Triple Tiller ensures that whichever uses the machine is put to a level consolidated finish is left.

Features

25cm Row Spacing

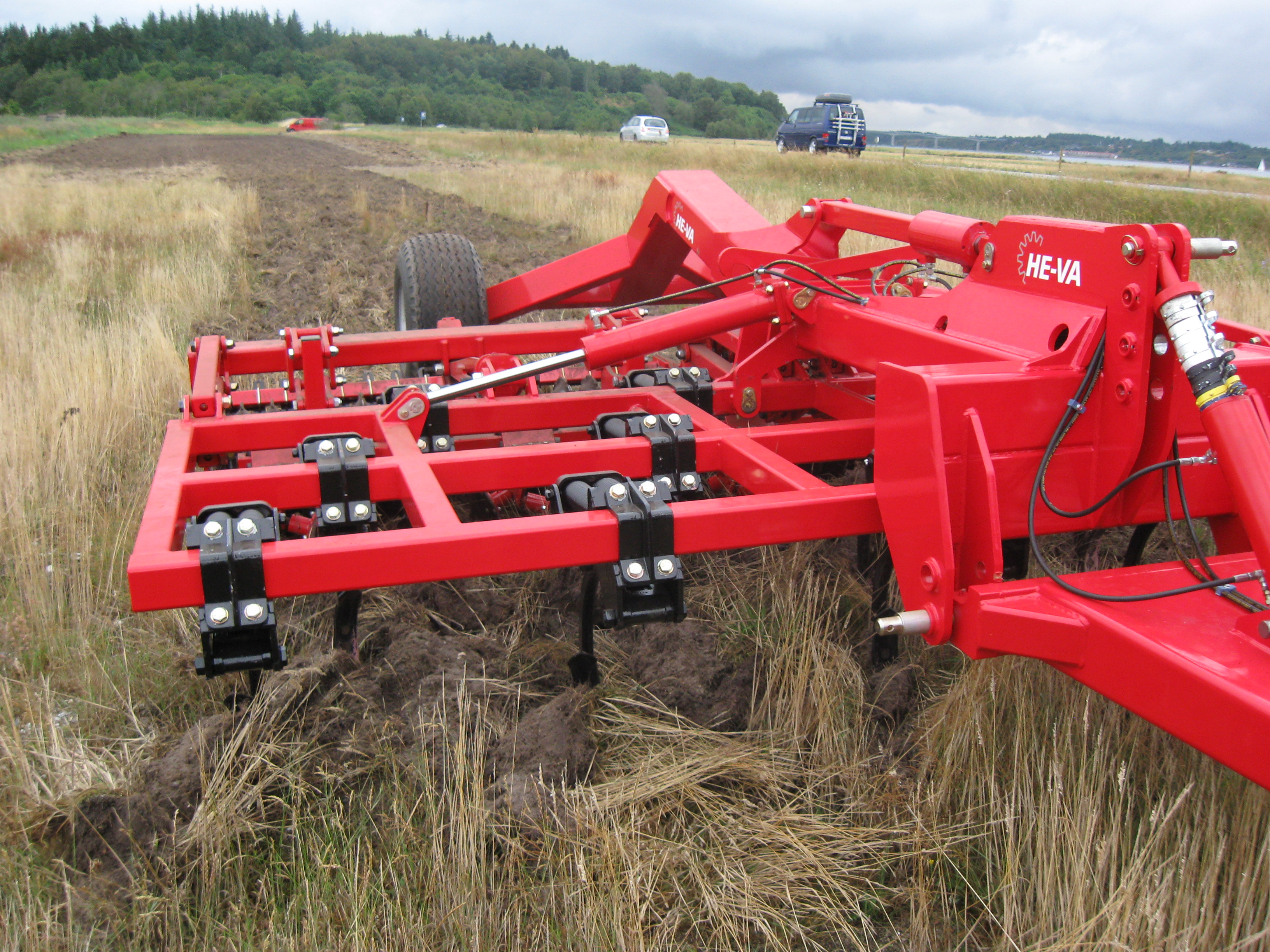

All Triple-Tiller models have 3 rows of tines and a solid frame of 100x100x8mm sectional tube with a frame height of 85 cm.

A unique feature of the Triple-Tiller is the 25 cm row spacing, ensuring perfect cultivation and soil loosening in all conditions. Available as trailed and three-point mounted with working widths from 3.0  to 5.0 m, the Triple Tiller is suitable for tractors from 100 HP.

25cm-row-spacing-triple-tiller  Trilpe Tiller

V-Profile Roller

Like many of the machines in the HE-VA range the Triple Tiller Stubble Cultivator uses the pressed steel V profile ring. However, all the rings are mounted on a 300mm tube so that each section of the roller turns as one ensuring the machine can continue to work in very wet sticky conditions.

Each ring section is castellated ensuring the roller turns in light soils and the aggressive rib and shoulder profile combines with the 125mm spacing to leave an excellent consolidated weatherproof finish.

Triple Tiller Stubble CultivatorStubble Cultivator Roller





Levelling

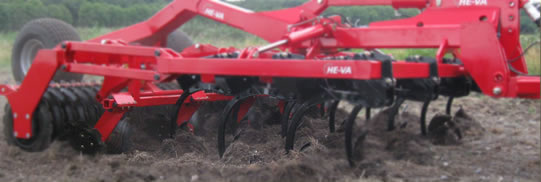

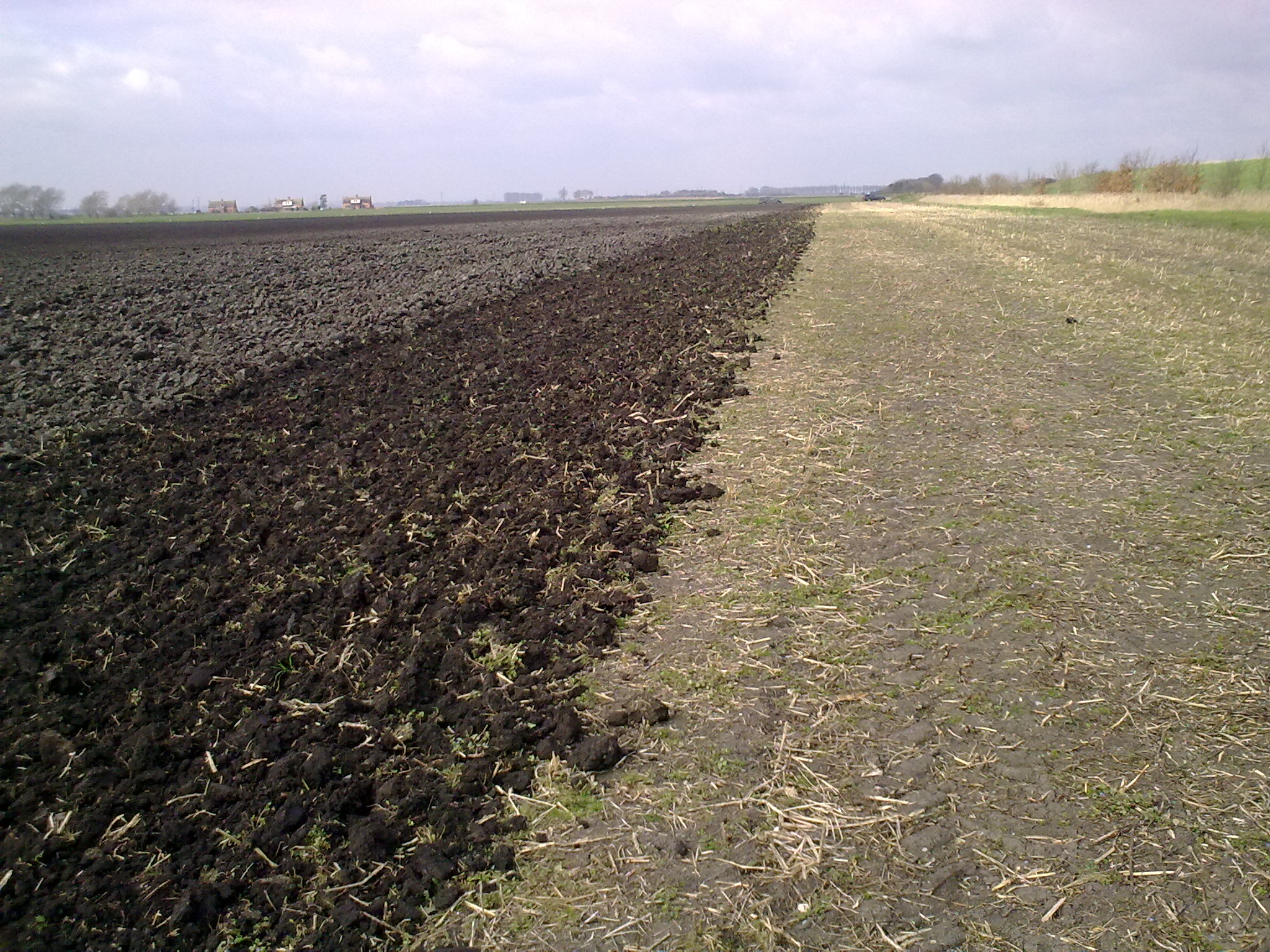

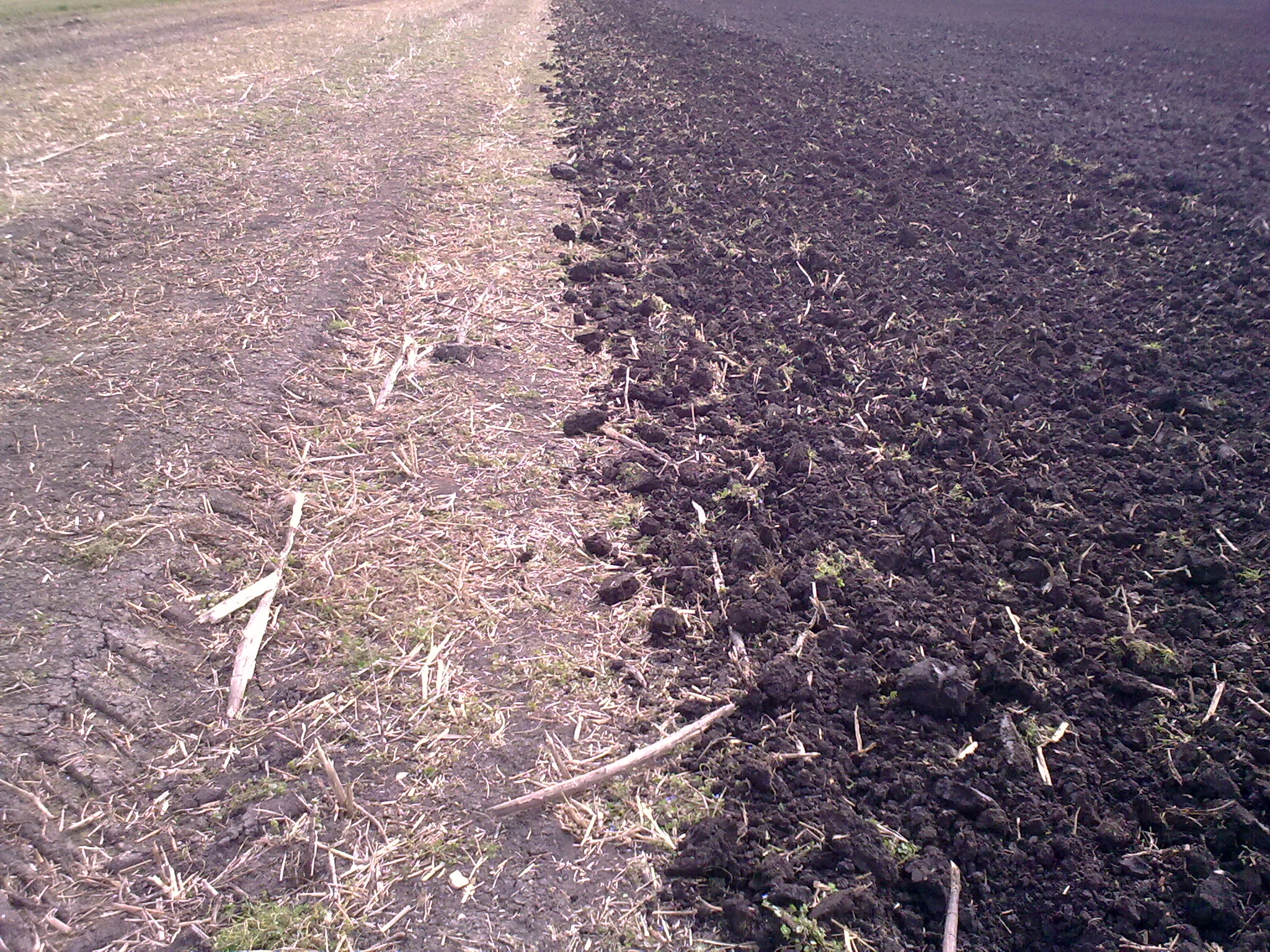

The Triple Tiller Stubble Cultivator Levelling disc's level the soil in front of the V-Profile roller to ensure the roller leaves a level consolidated finish what ever the conditions and soil type the Triple Tiller stubble cultivator is put into. The main levelling bar is mounted on the roller, making the levelling tool independent of the cultivation tine working depth.

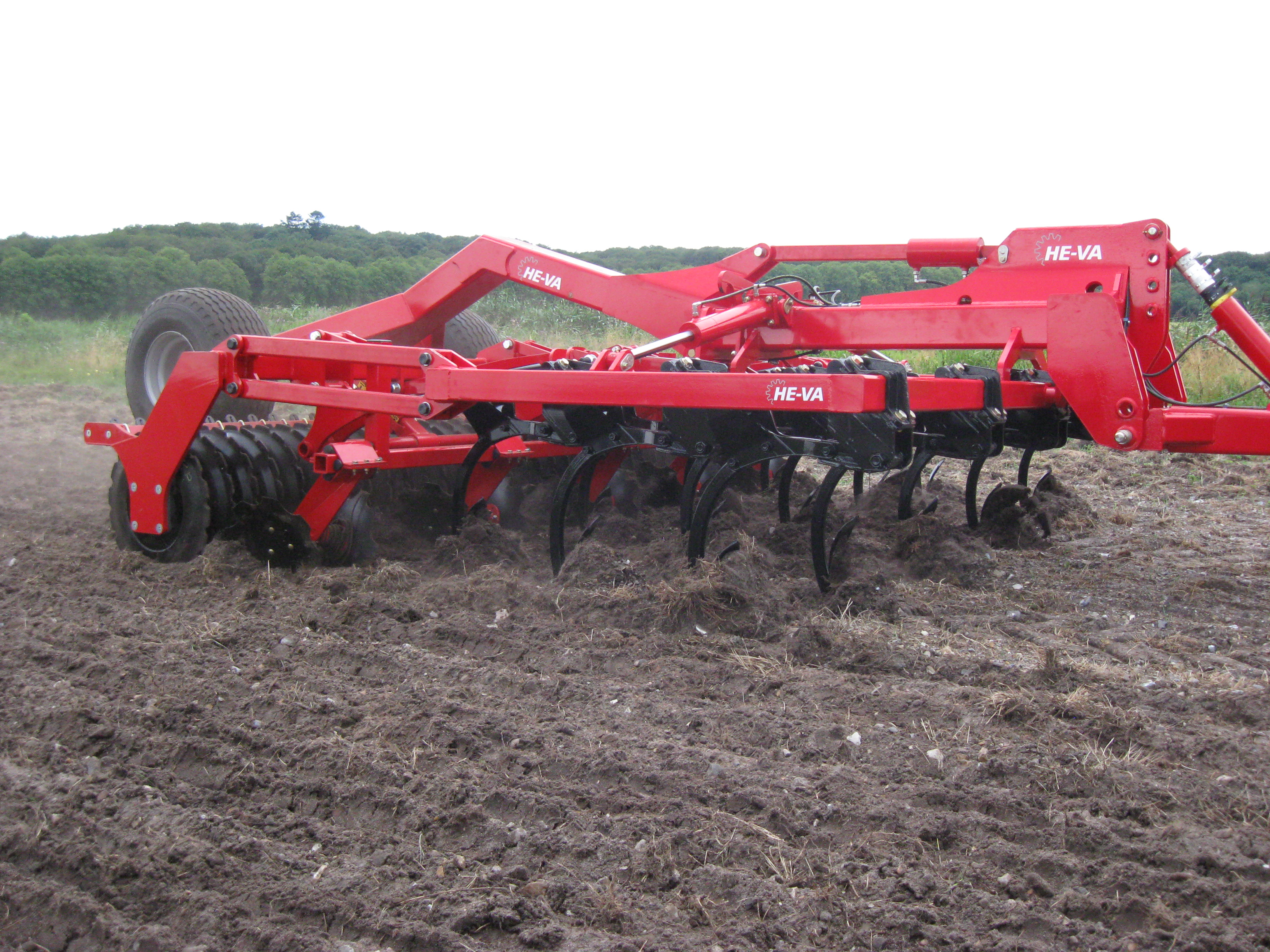

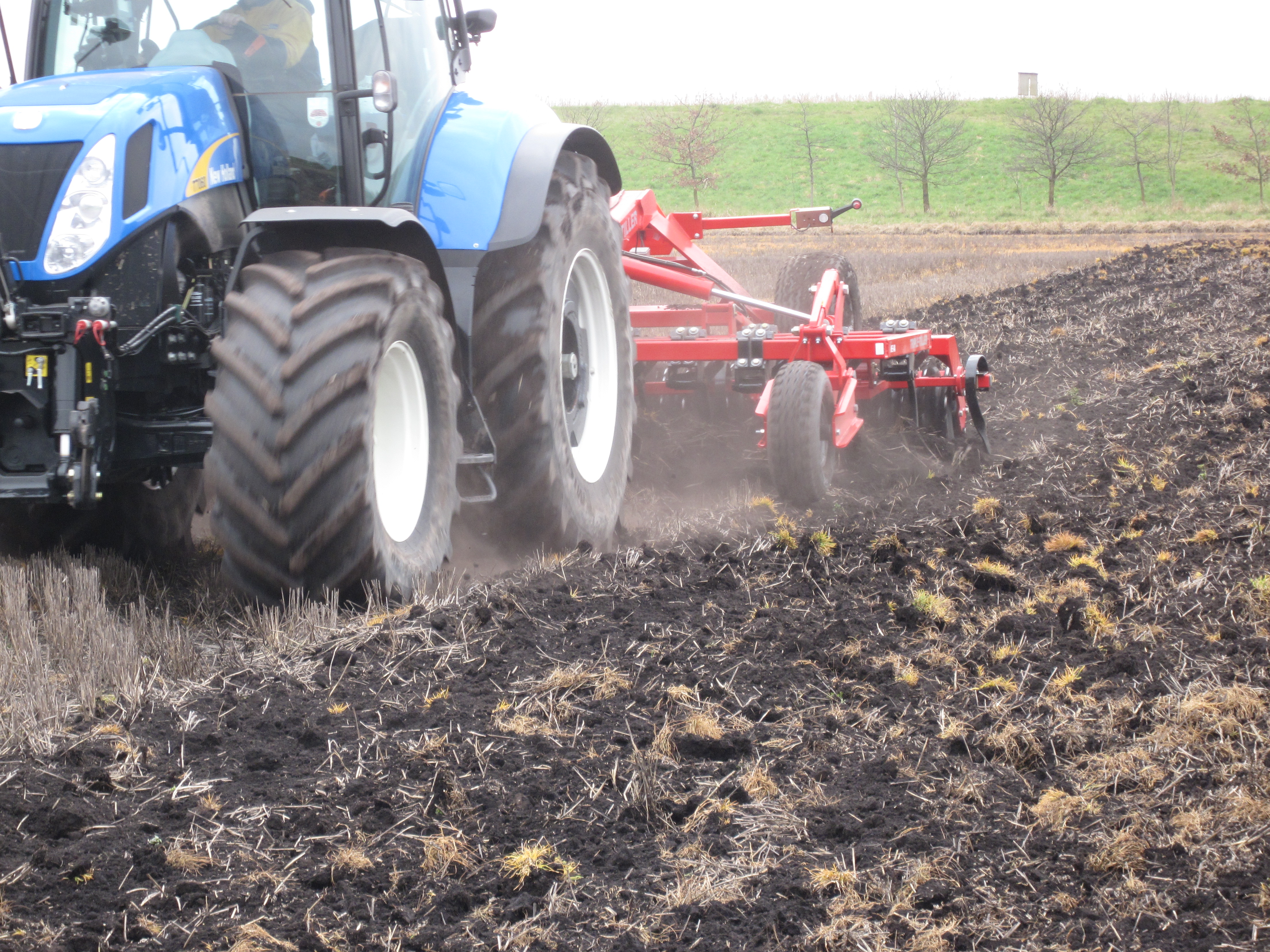

Stubble Cultivator working

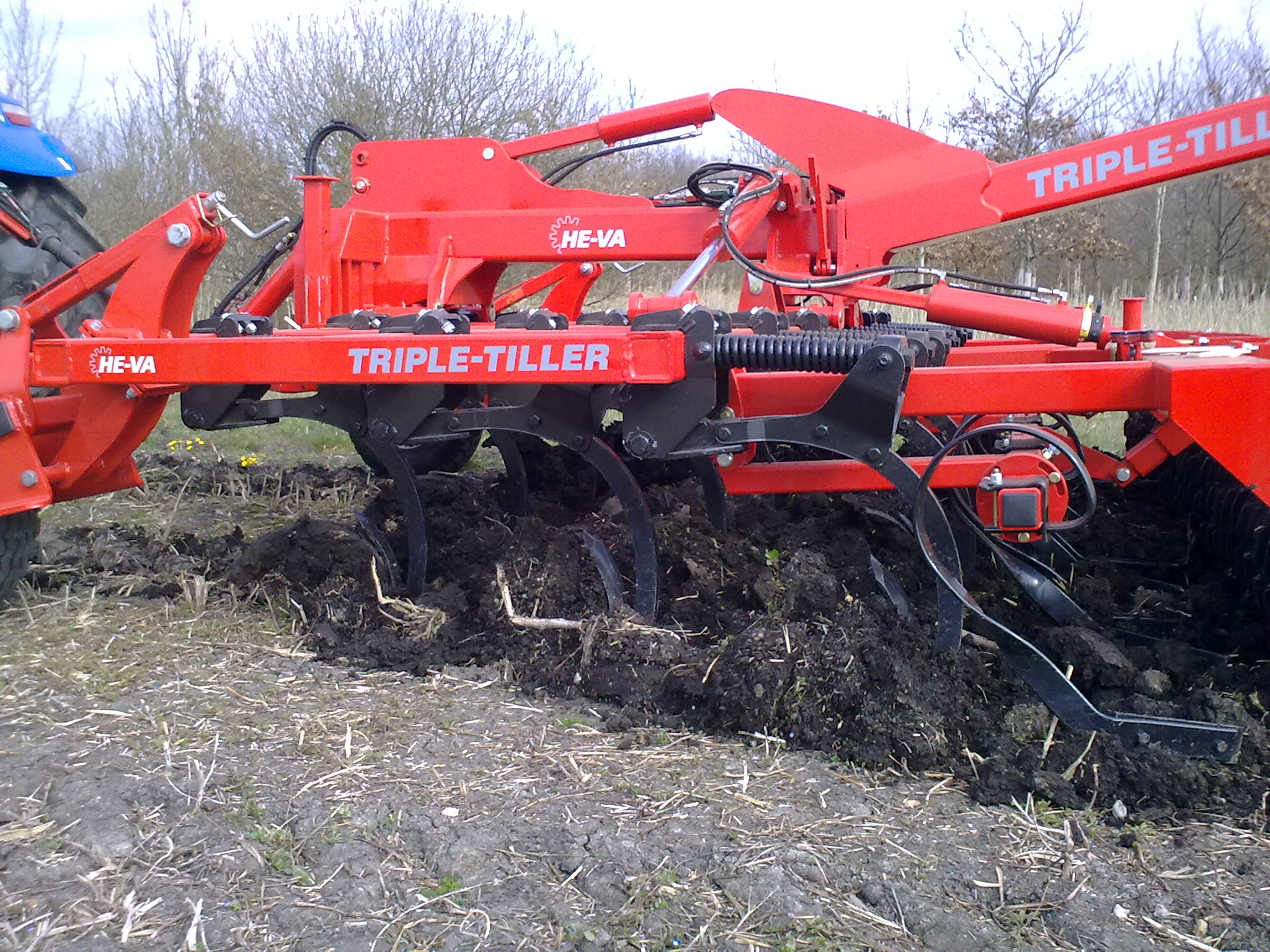

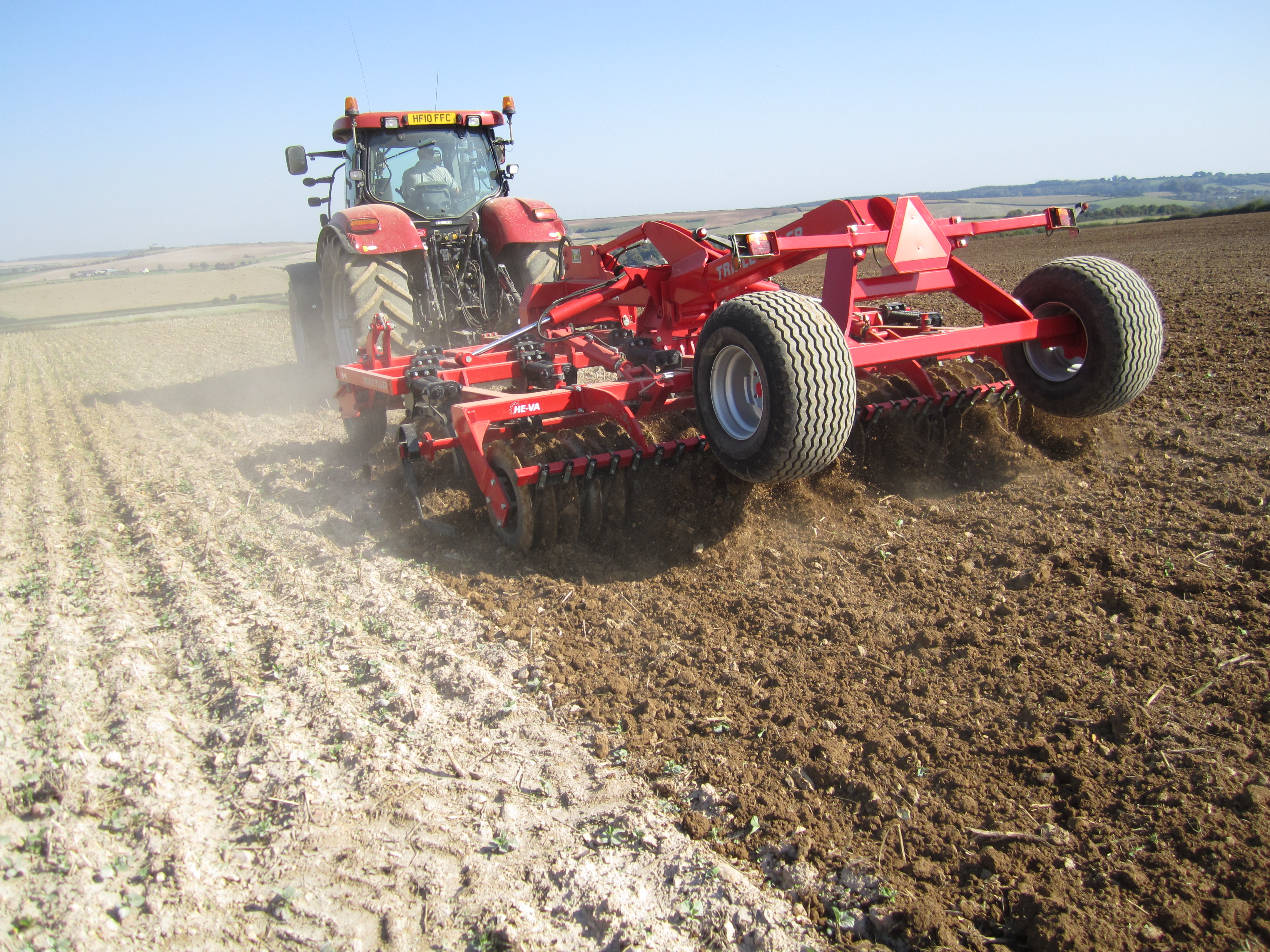

The Triple-Tiller is equipped with ø410mm serrated eradicator discs complete with automatic release system. These eradicator discs are easily adjusted by means of central spindles ensuring a level finish.

Triple Tiller disc

Points & Protection

Point Options

DUROX Point

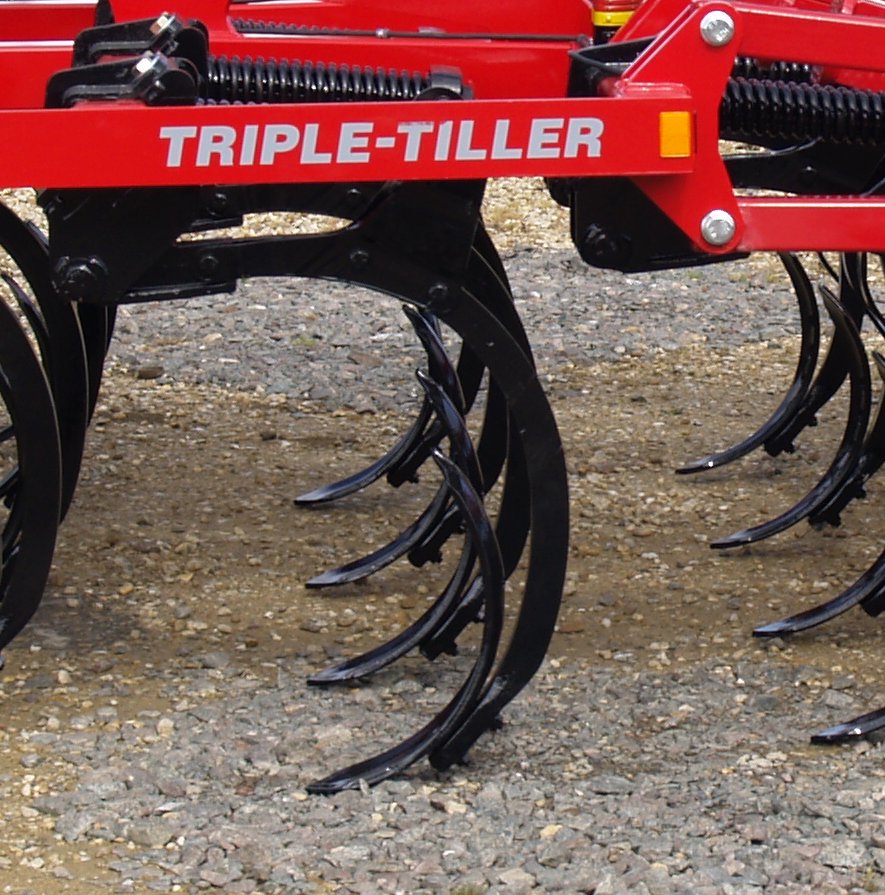

The standard "Durox" wearing point for all Triple Tiller Stubble  Cultivators have a unique concave design, ensuring complete ”mixing” of soil and plant residues. The 75 x 12 mm reversible and height adjustable wearing point enables the Triple Tiller points to cultivate many hectares before they needs replacing.







Chisel & Duckfoot Point

Two other point options are available using a 'Quick change' adapter, one option is a 75mm wide chisel point and the other is the 260mm wide duckfoot share, these can be fitted for shallow cultivation enabling full soil movement in a min-till or stale seedbed situation.





Stone Protection Options

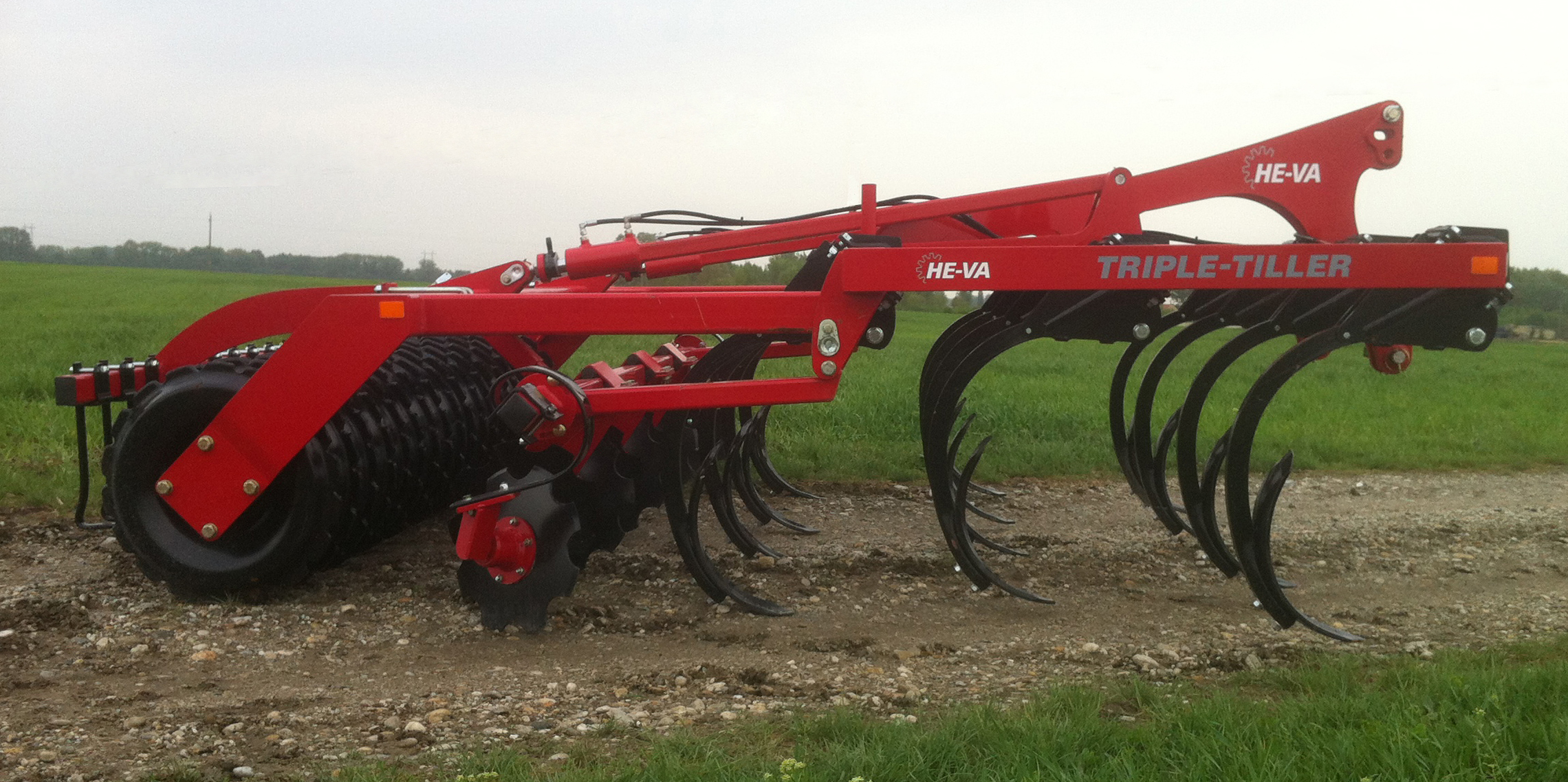

Stone Protection - Shearbolt

The shearbolt stone protection ensures an effective 0 – 300mm cultivation of even the heaviest soil types.

Stone Protection - Double Spring Reset

The unique double-spring tine, preloaded for 455 kg, ensures an effective 0 – 300mm cultivation of even the heaviest soil types.

Depth Control

On the 3m and 3.5m Triple Tiller Stubble Cultivator the working depth is controlled by the roller. The working depth can be adjusted by using spacing clips on the depth rods. Simply lift up the machine and insert the spacing clips to adjust the machine to the desired depth.

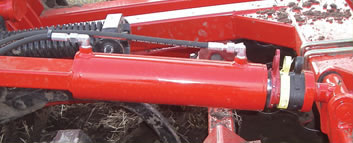

On 4m & 5m models the working depth is adjusted hydraulically from the tractor cab, these models work a similar system as the 3m & 3.5m using fixed stops and distance clips. Different sizes of clips are included, allowing the user to reach just the right depth.

Models

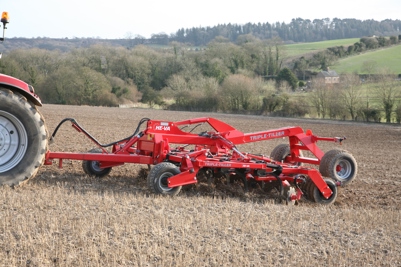

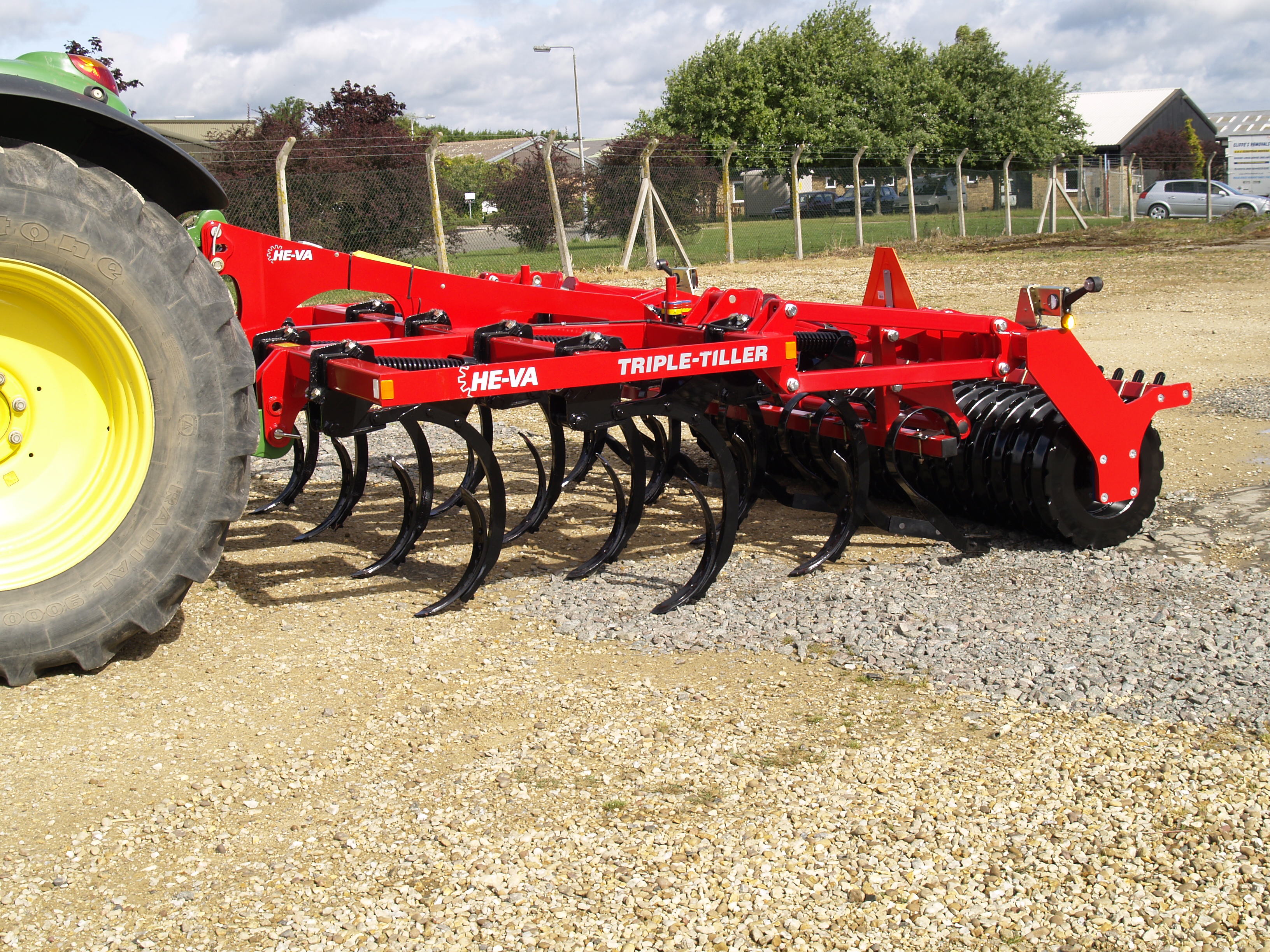

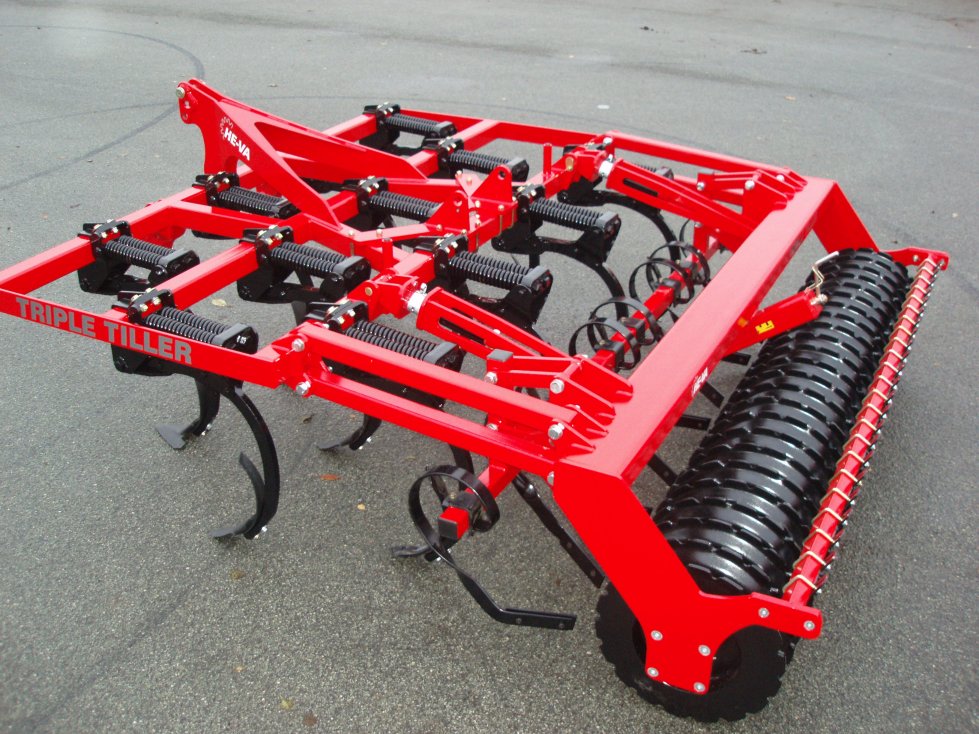

Mounted Triple Tiller

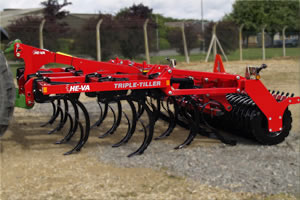

The 3m Triple Tiller Stubble Cultivator comes as a three point linkage mounted machine.

Mounted Triple Tiller

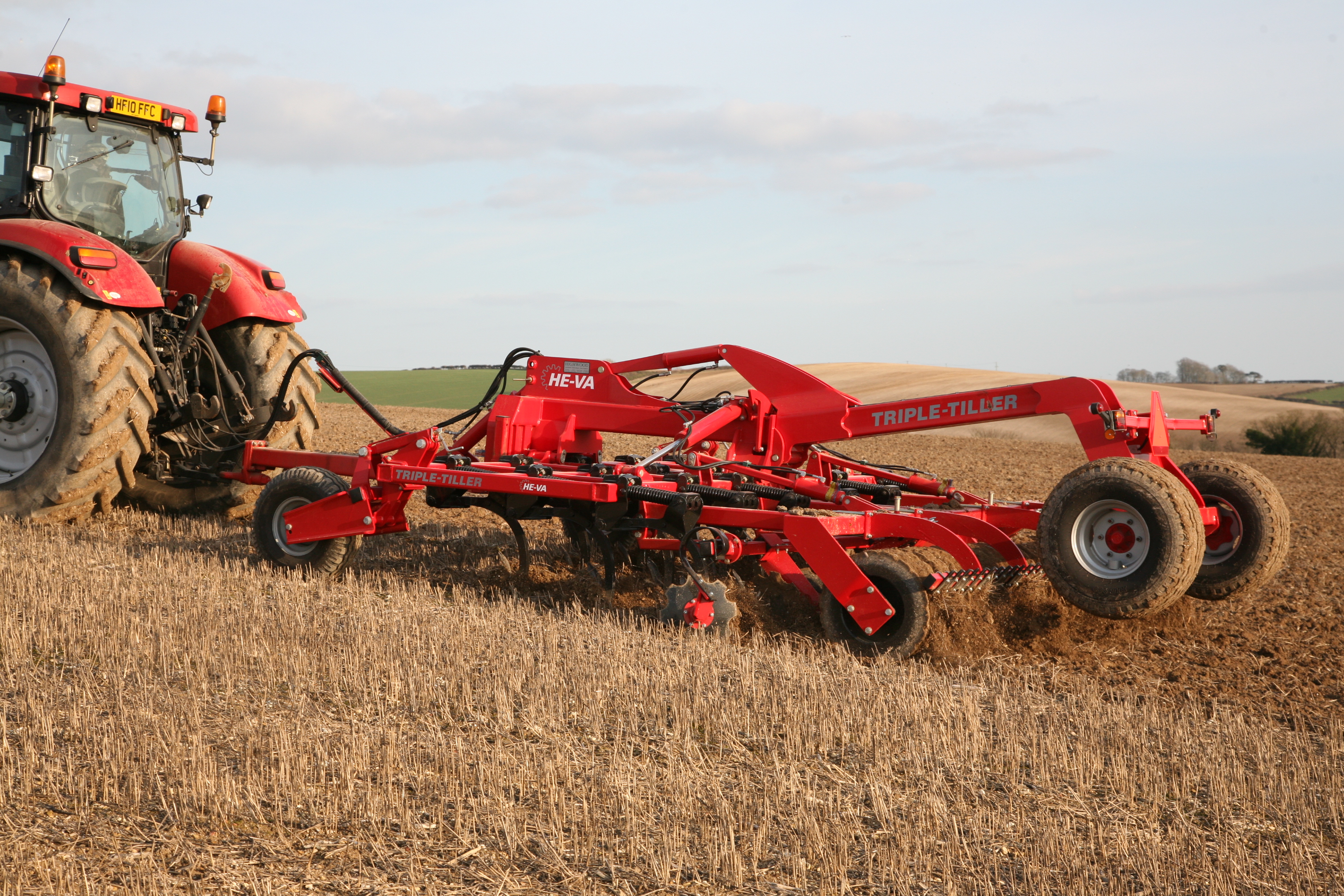

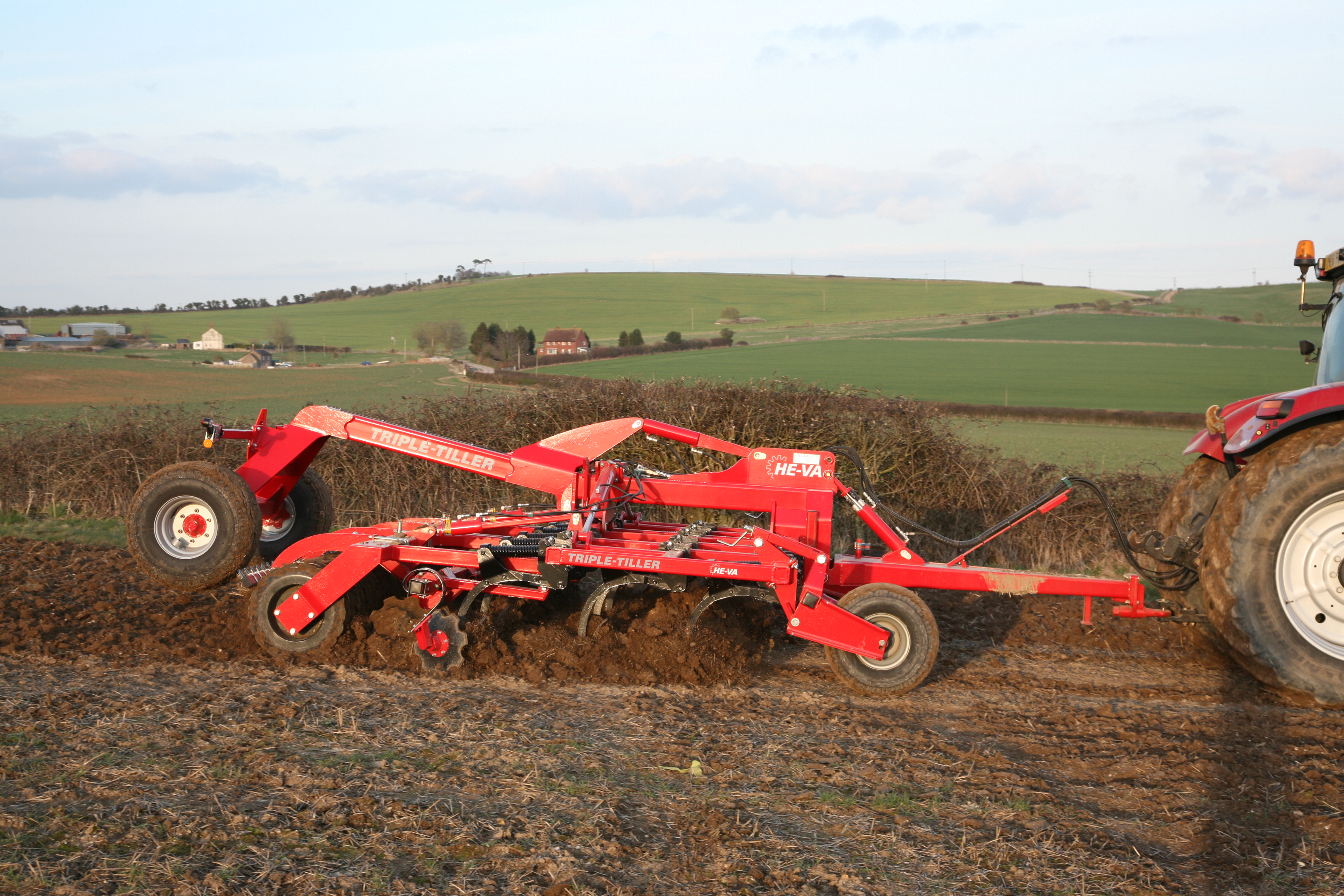

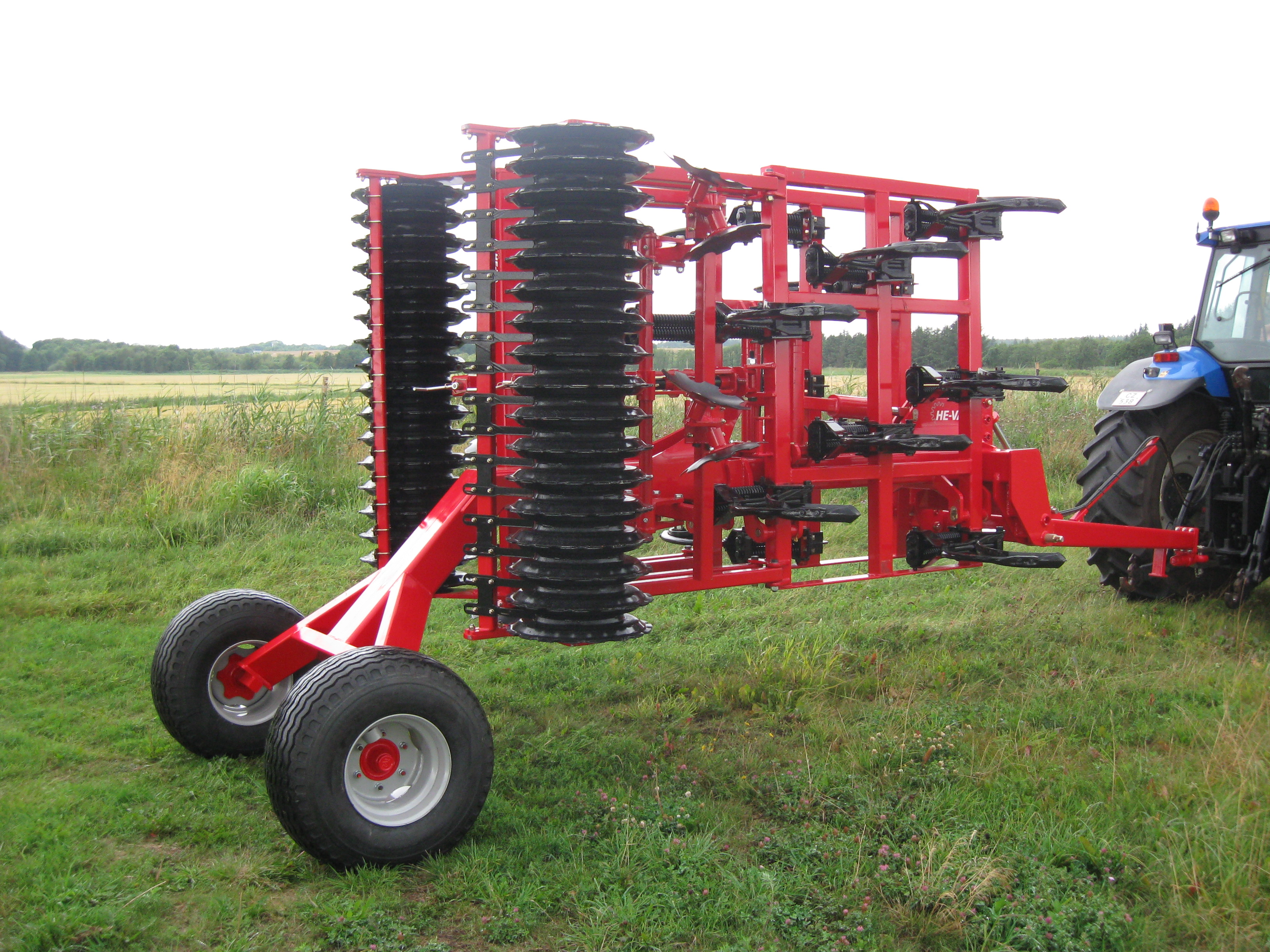

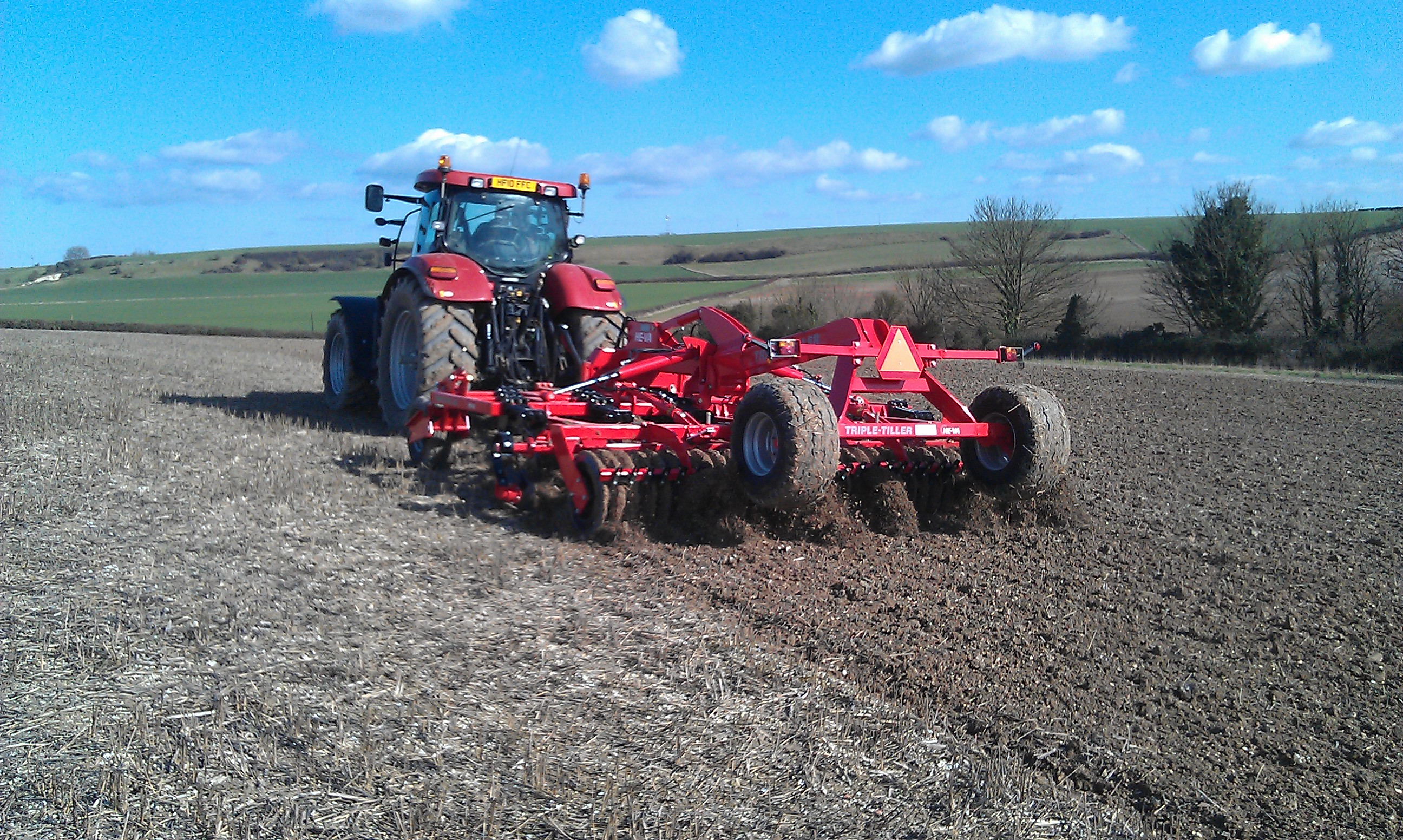

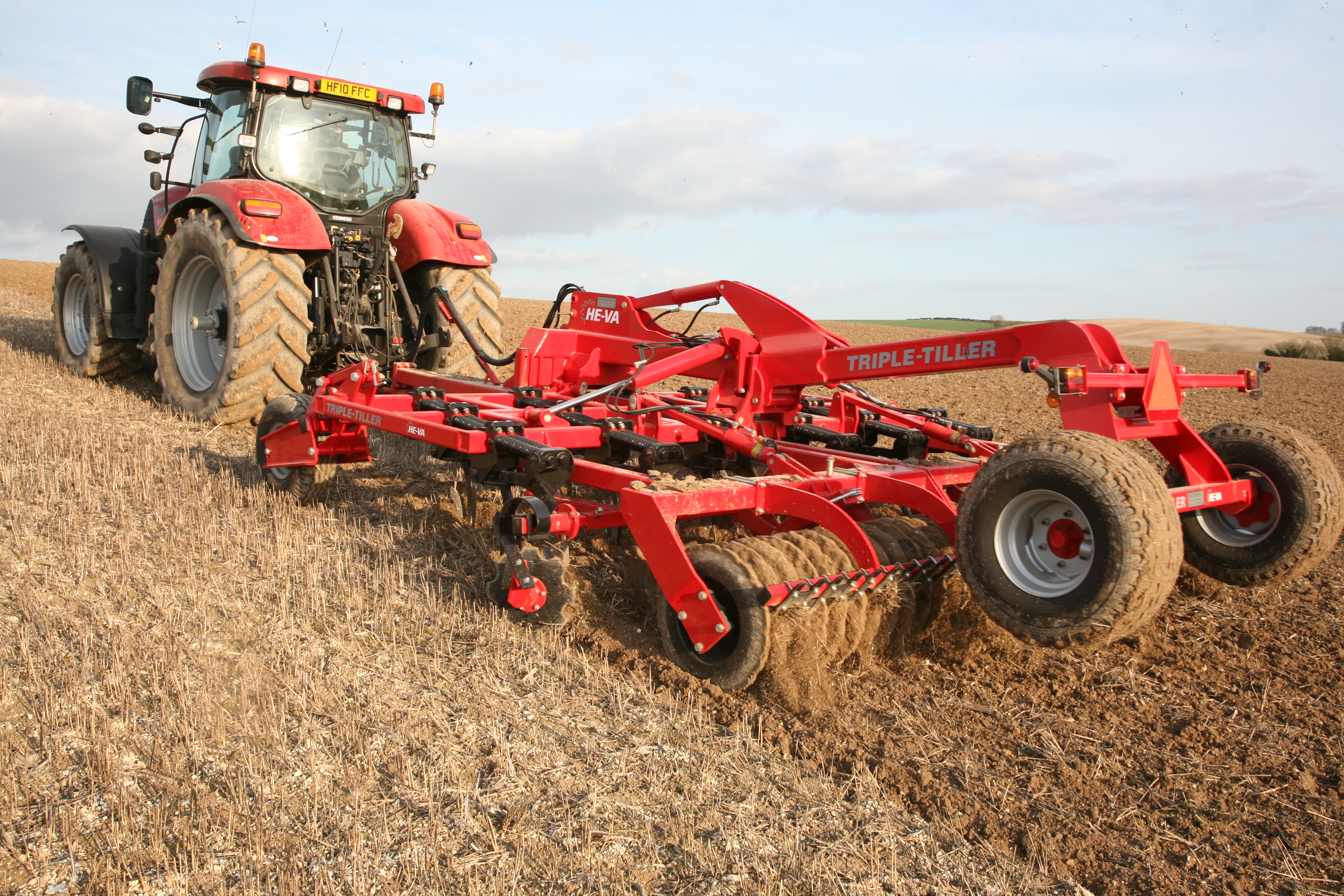

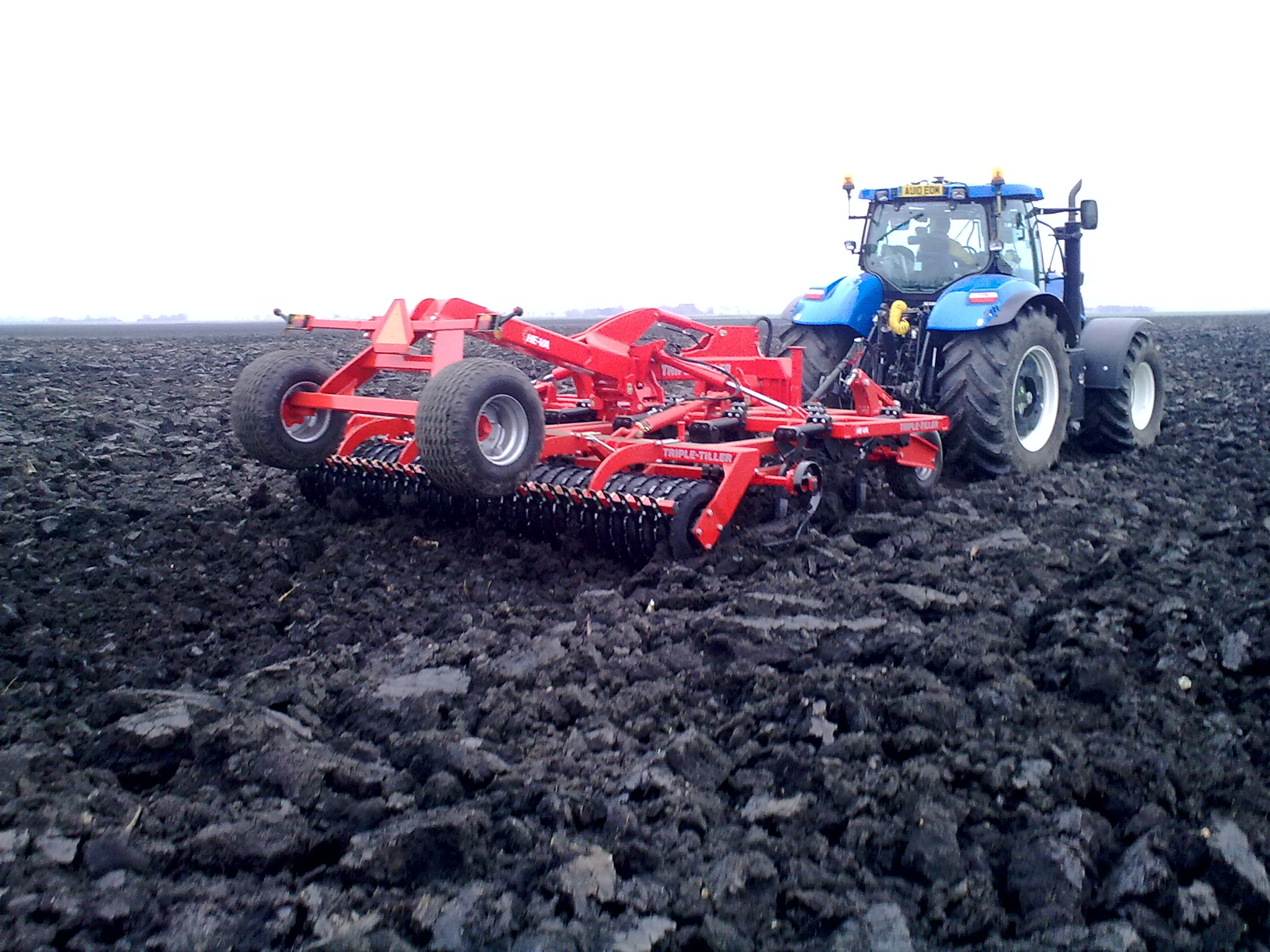

Trailed Triple Tiller

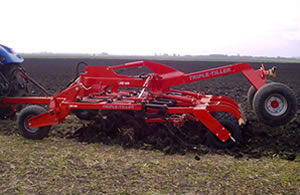

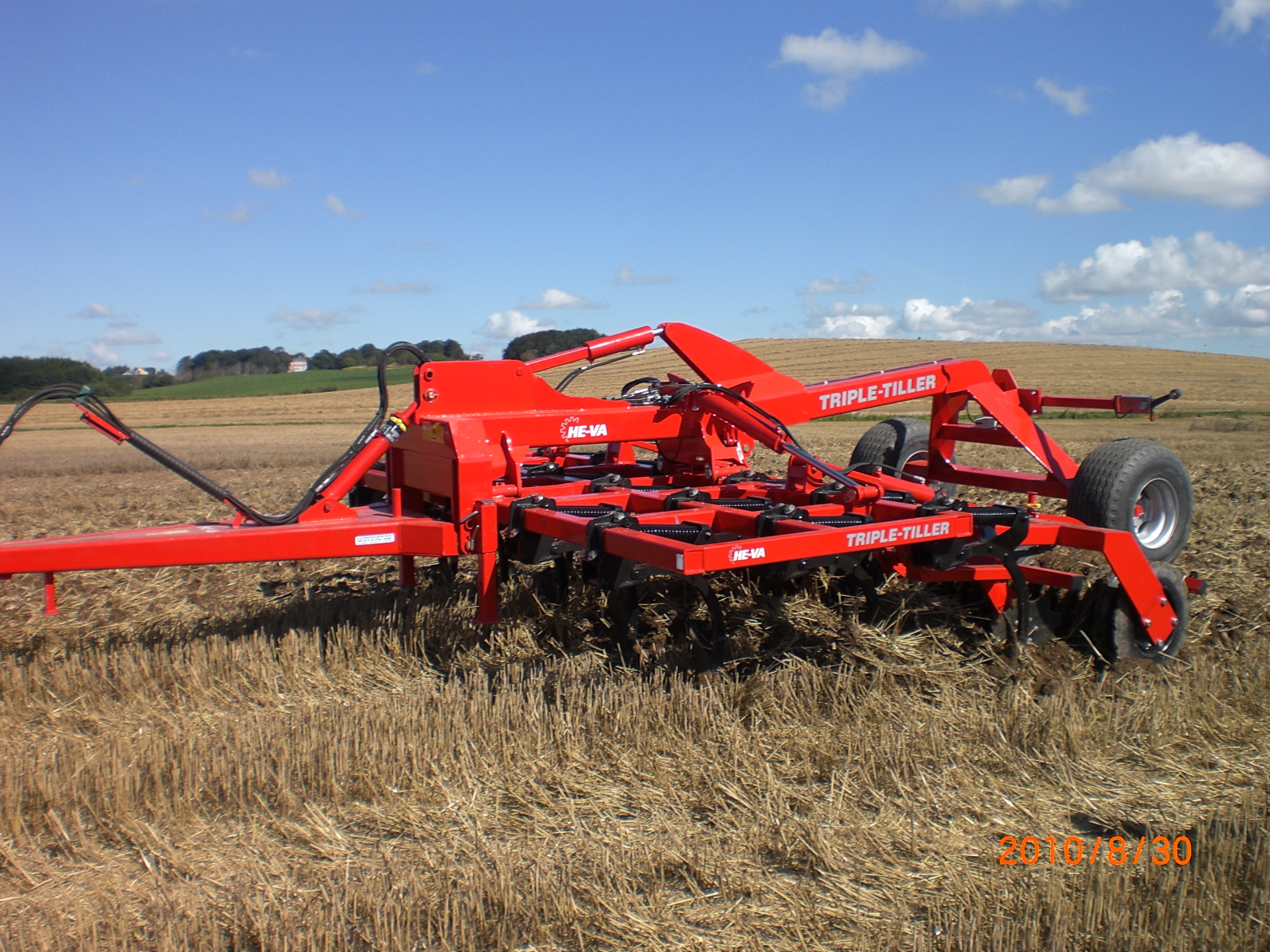

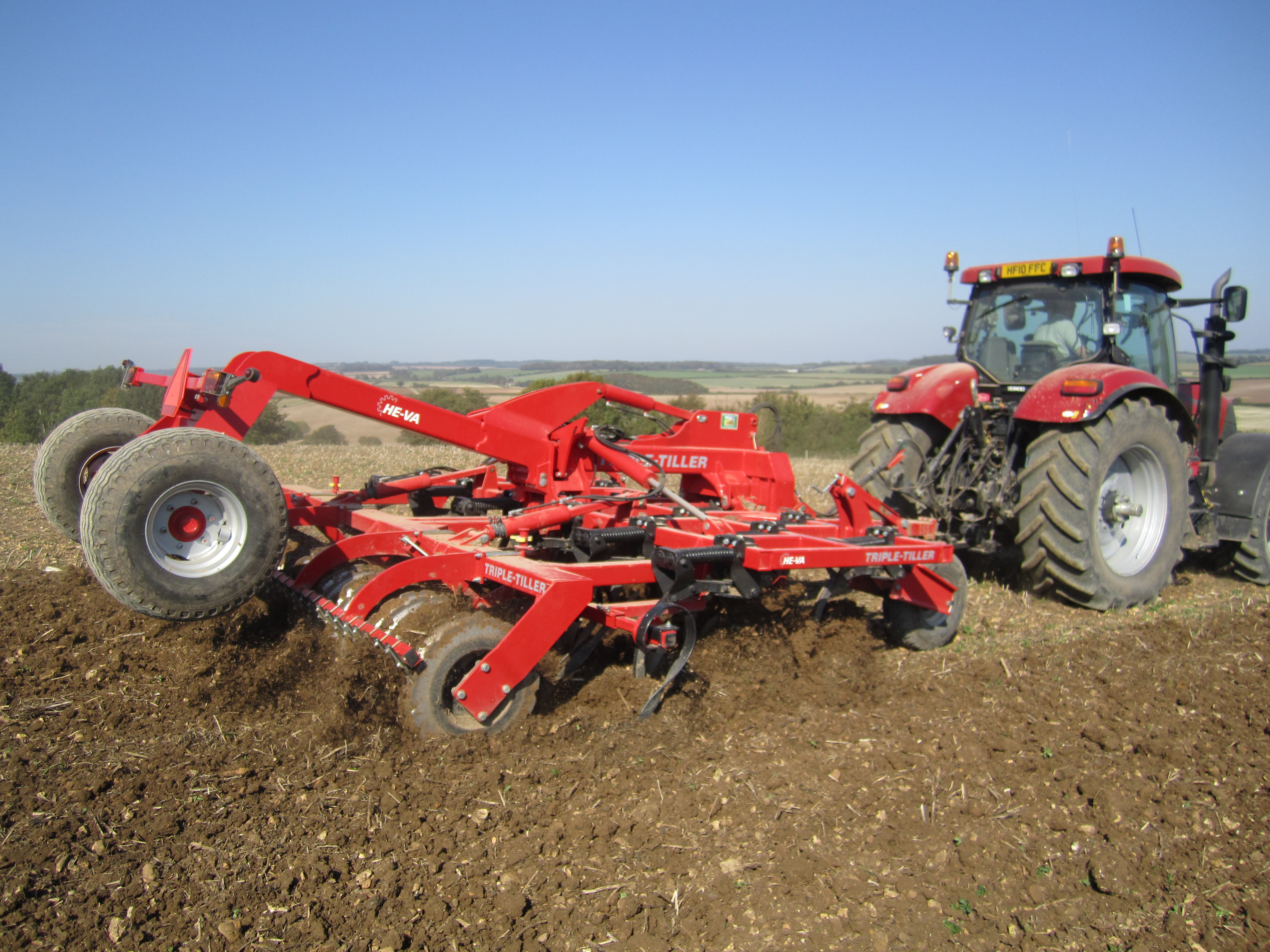

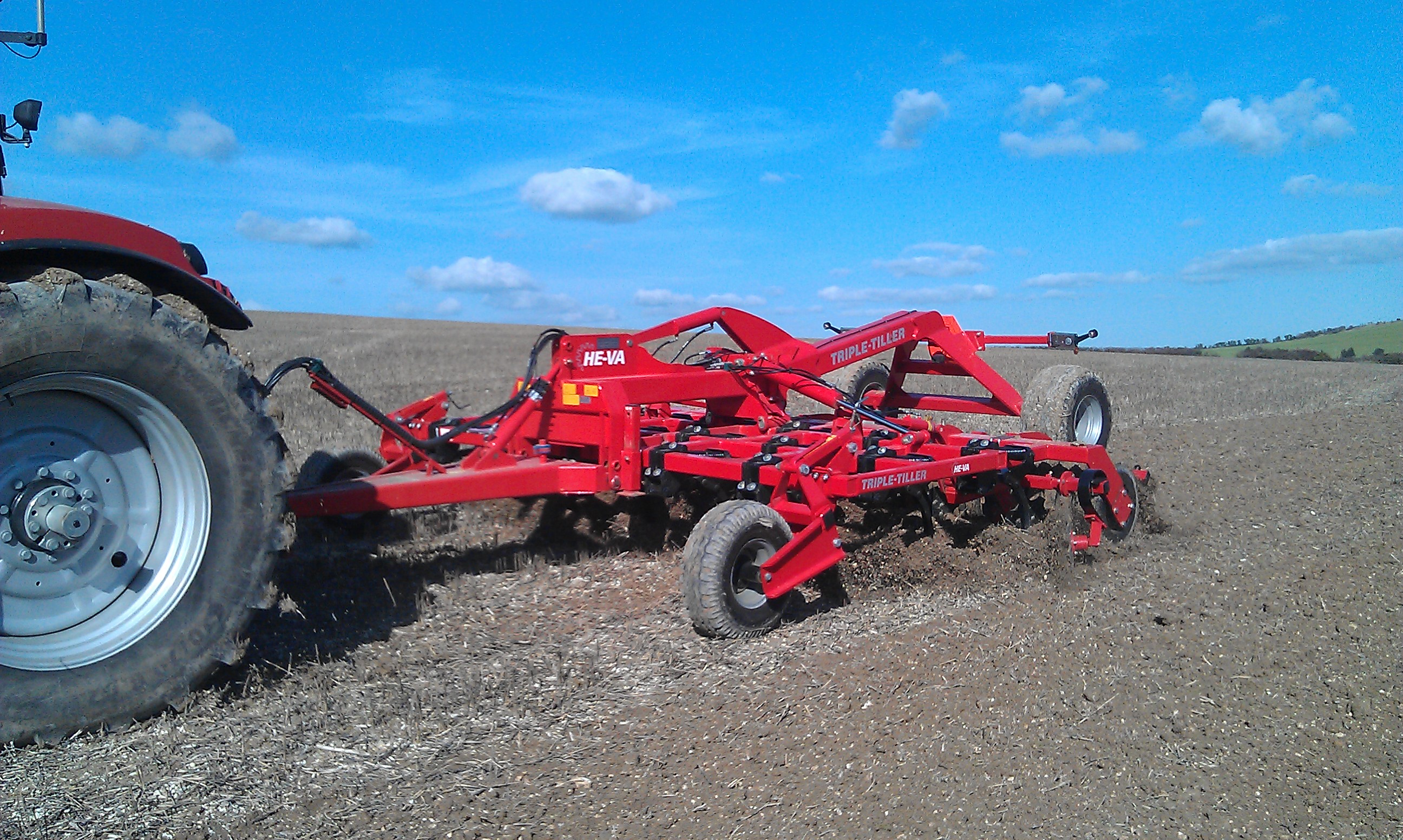

The Trailed Triple Tillers come as a 3m, 4m and 5m machines with the 4m and 5m being hydraulic folding.

Technical Information

Mounted Triple Tiller

HE-VA Stubble Cultivator - Mounted

Model No.

Stone Protection

Working Width

Transport Width

No of Tines

HP

Weight (Kgs)

10450-3064

Shearbolt

3m

3m

12

100-200

2208

10450-3060

Spring Reset

3m

3m

12

100-200

2470

Trailed Triple Tiller

HE-VA Stubble Cultivator - Trailed

Model No.

Stone Protection

Working Width

Transport Width

No of Tines

HP

Weight (Kgs)

10451-3064

Shearbolt

3m

3m

12

100-200

2838

10451-3060

Spring Rest

3m

3m

12

100-200

3100

10451-4064

Shearbolt

4m

2.48m

16

140-250

4151

10451-4060

Spring Rest

4m

2.48m

16

140-250

4500

10451-5064

Shearbolt

5m

2.48m

20

160-280

4844

10451-5060

Spring Rest

5m

2.48m

20

160-280

5280

NOTE: Machines fitted with pivoting towing eye Ø50mm - 66630757017 (See Drawbar Options Tab for more details)

4m & 5m Machines come as standard with front depth wheels.

Options & Accessories

Triple Tiller Options & Accessories

Optional Extras

Model No.

Description

10450-9030

Quick change Adapter with points for 3m in lieu*

10450-9040

Quick change Adapter with points for 4m in lieu*

10450-9050

Quick change Adapter with points for 5m in lieu*

10450-9930

Variocast Mounting Kit for 3m Mounted (electronic only)

10450-9940

Variocast Mounting Kit for 3m, 4m and 5m Trailed (electronic only)

10451-9451

Edge Disc (pair)

Pricing

HE-VA October 2016 Product Price List

To download the HE-VA product price list click the image above



To download and view our Product Price List you will need the free Adobe Reader
If you don't already have this Click Here to download the Adobe Reader

Draw Bar Options

Draw Bar Options

Pivoting Towing Eye - Standard



Weight (KG)

Description

Pivoting towing eye - standard

66630757028

13

Pivoting towing eye "Standard" Ø50mm mounted with M16 bolts

Pivoting Towing Eye - Strong



Weight (KG)

Description

66630757017

20

Pivoting towing eye "Strong" Ø50mm mounted with M20 bolts

Pivoting Towing Eye - High Quality



Weight (KG)

Description

66630757046

20

Pivoting towing eye "Hugh Quality" Ø50mm mounted with M20 bolts

Pivoting Towing Eye - Strong 85°



Weight (KG)

Description

66630757041

20

Pivoting towing eye "Strong 85°" Ø50mm mounted with M20 bolts

Ball Hitch



Weight (KG)

Description

66630757023

26

Ball hitch f/Ø80mm ball mounted with M20 bolts

Pivoting Crossbar Cat III



Weight (KG)

Description

66630757034

81

Lower link mounted pivoting crossbar Cat III Ø36.5mm pins mounted with M20 bolts

Pivoting Crossbar Cat IV



Weight (KG)

Description

66630757045

88

Lower link mounted pivoting crossbar Cat IV Ø50mm pins mounted with M20 bolts

Towing Eye Bush



Weight (KG)

Description



660438132

0.3

Bush for towing eye Ø50mm / Ø33.5mm reduces from Ø50mm to Ø33.5mm

NOTE: To upgrade the drawbar on your trailed HE-VA machine, please ensure the change is clearly marked on your order.
