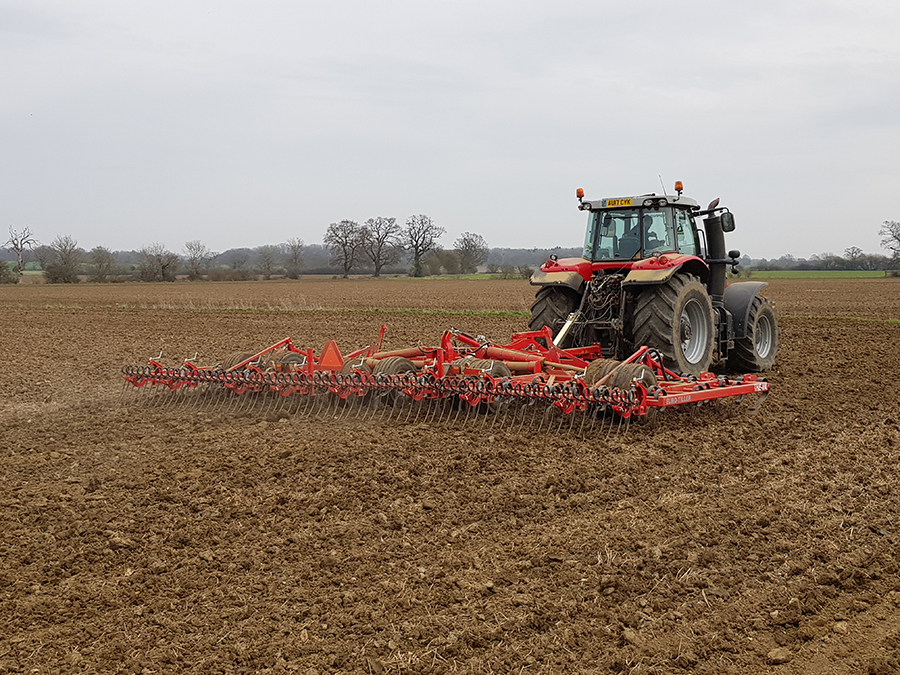

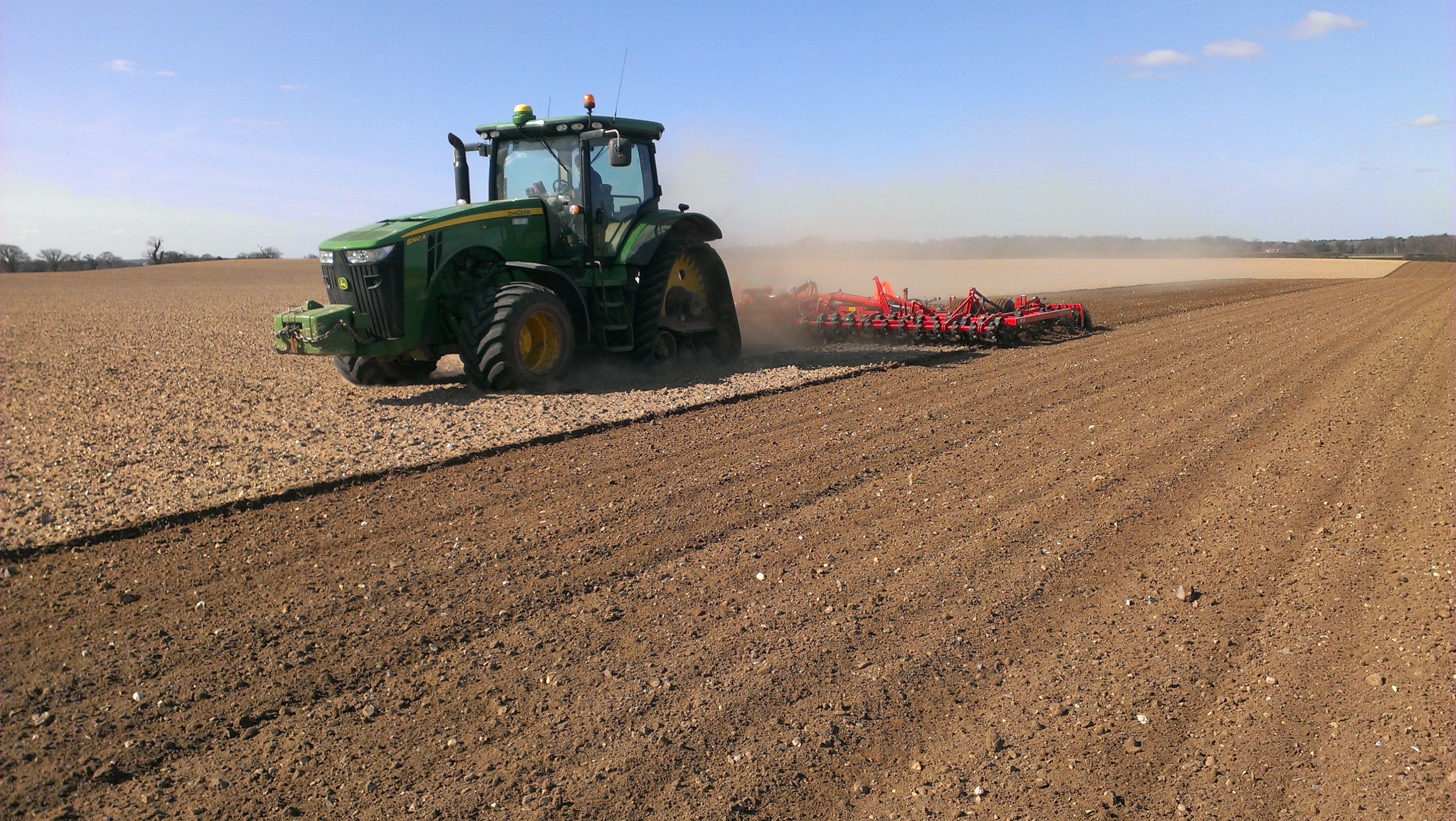

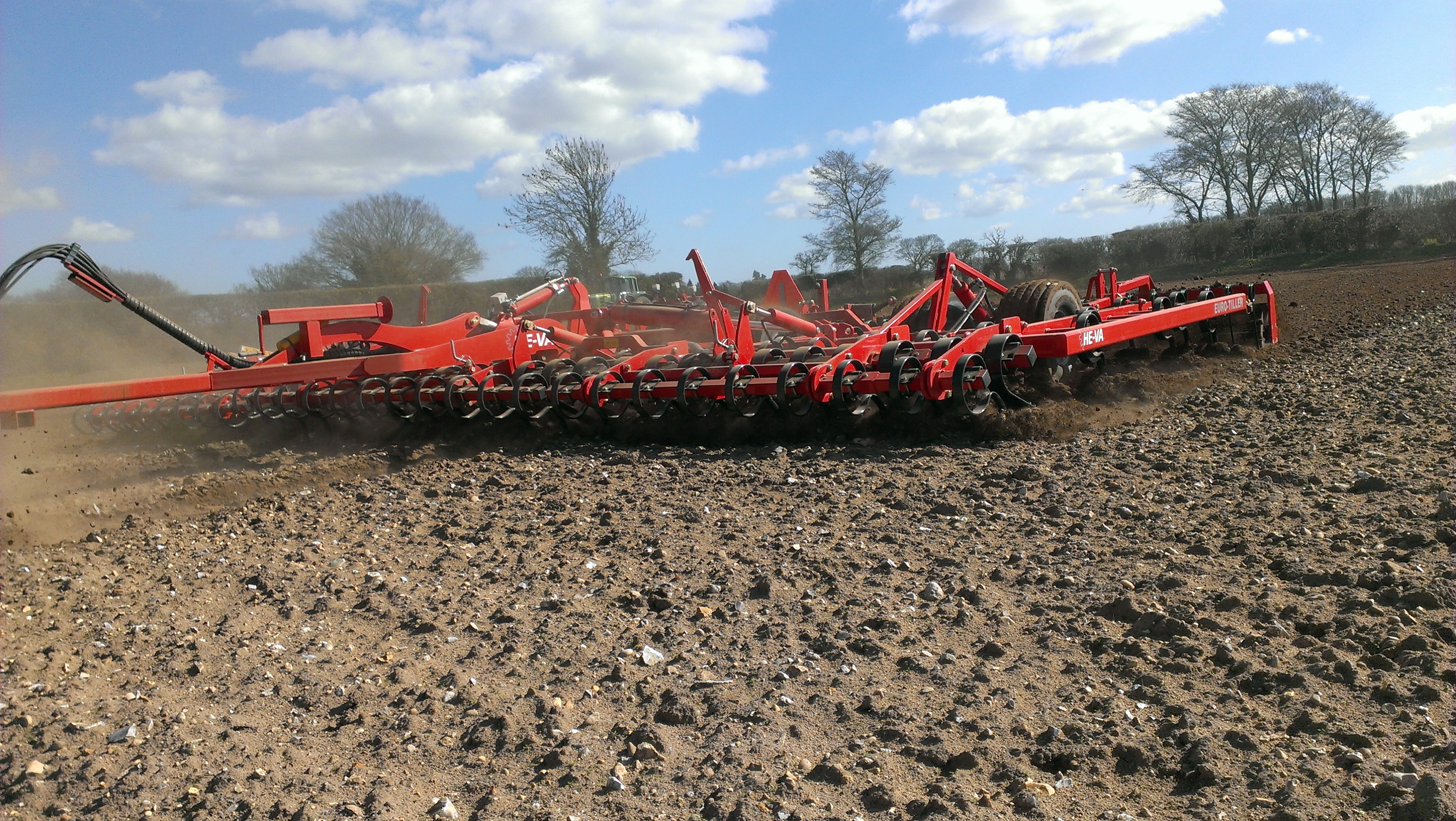

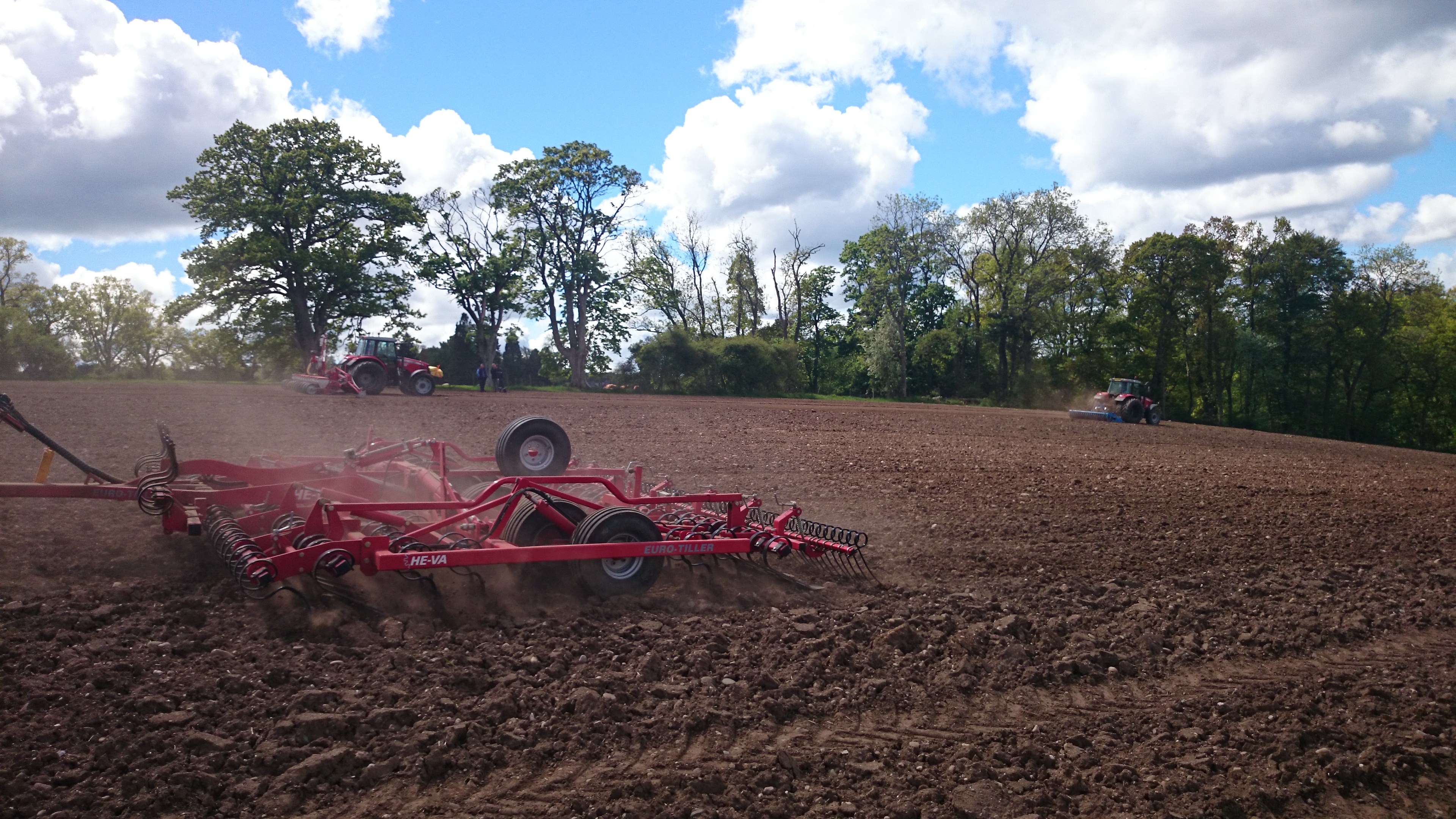

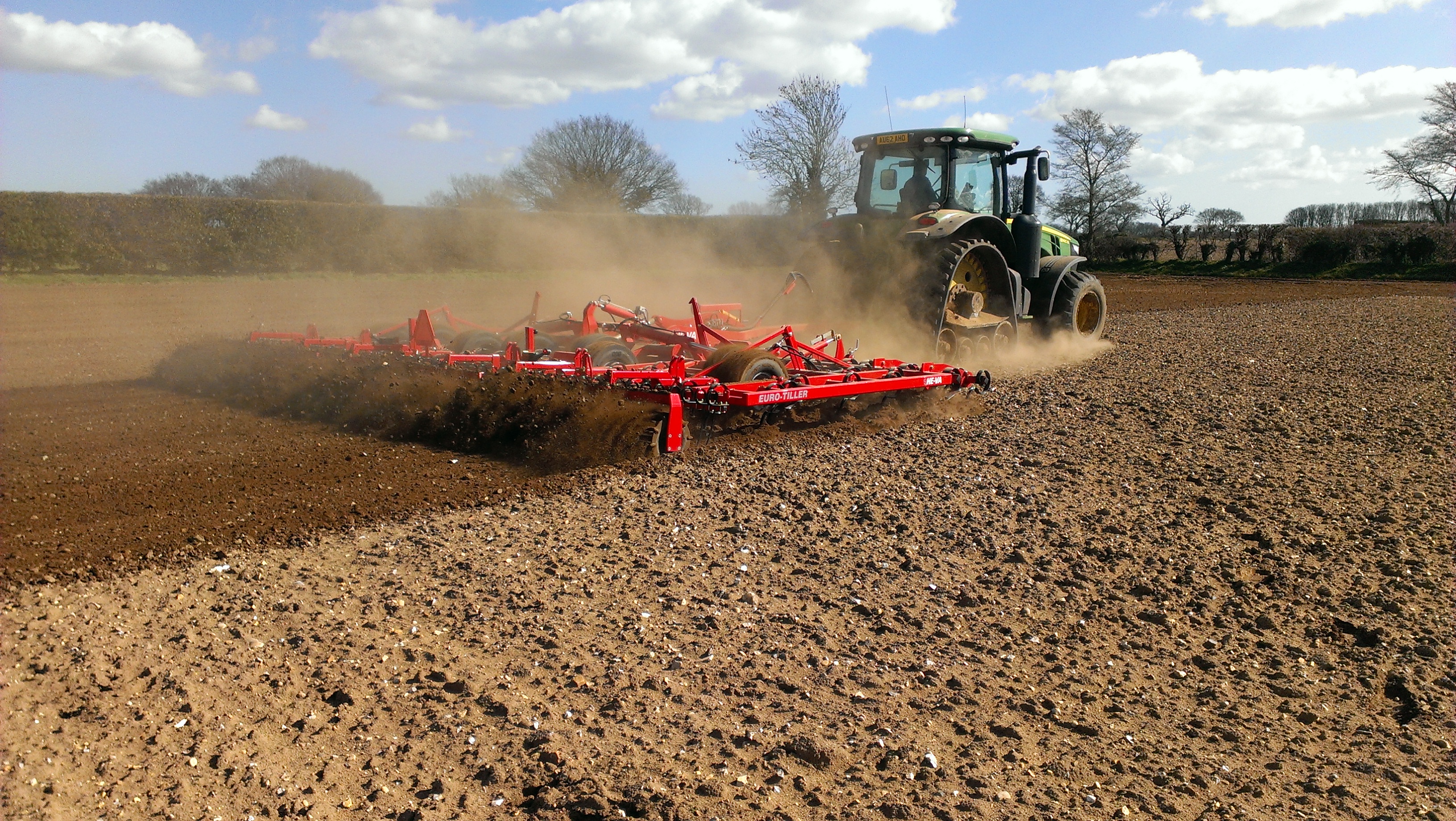

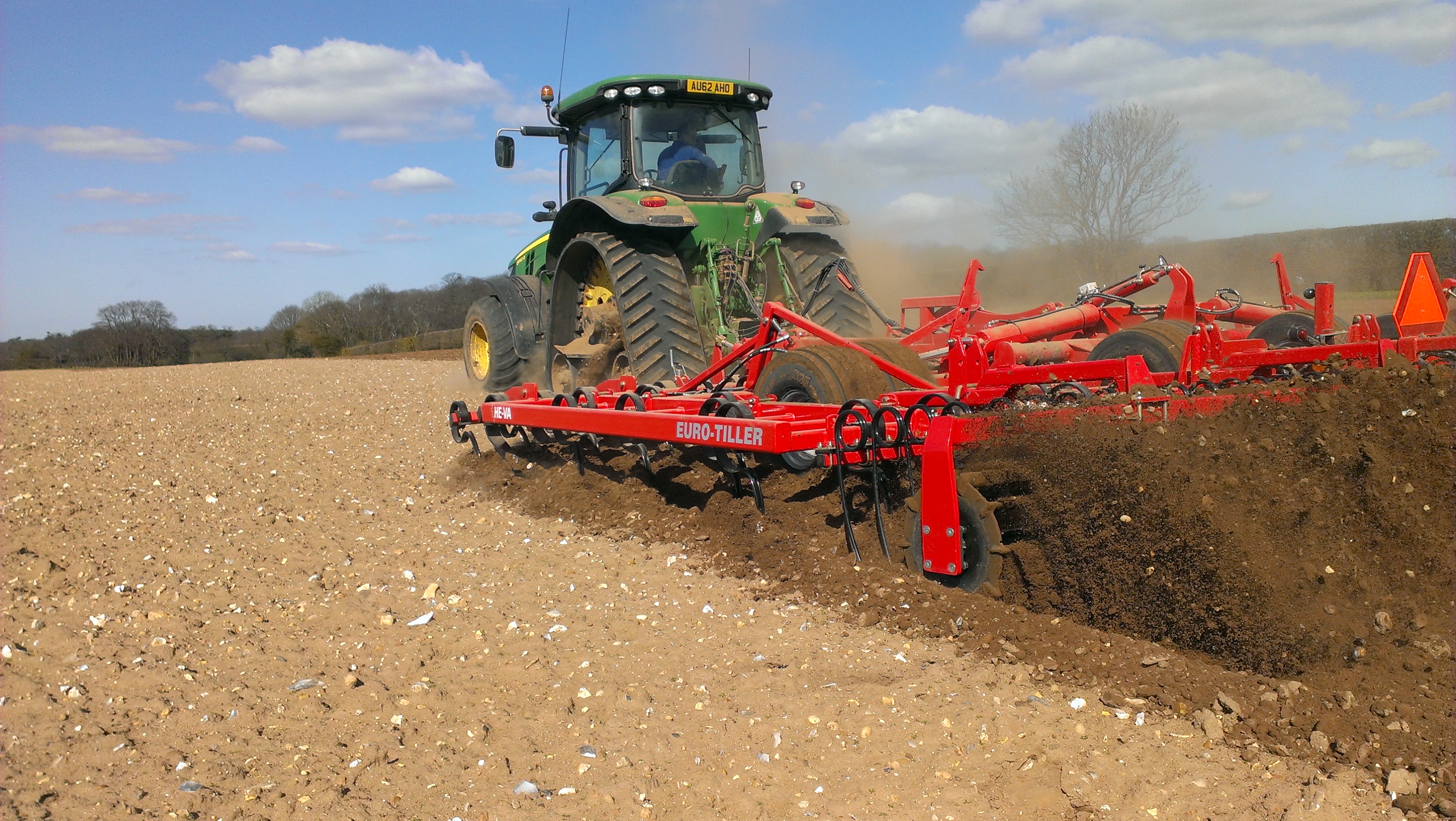

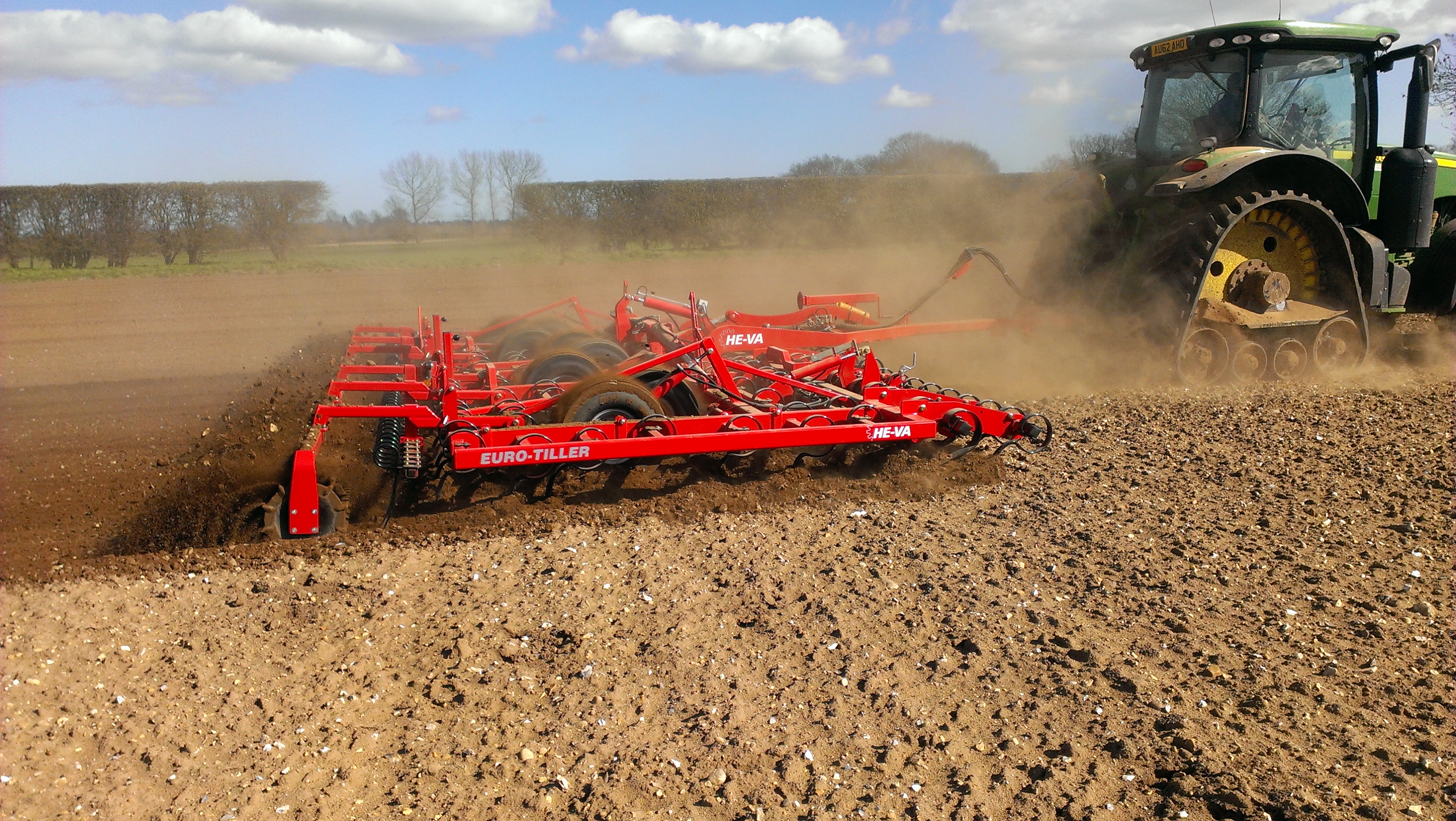

HE-VA Euro-Tiller creating dust in a spring seedbed

EURO-TILLER

HE-VA’s Euro-Tiller is a heavy duty secondary tine cultivator designed for working down ploughing and/or stale seedbeds. It’s robust frame can be equipped with the necessary optional tools to obtain the perfect seedbed for most soil types.

Its heavy duty frame is designed to work behind low and high hp tractors and strong 10mm x 45mm harrow tines ensure optimal harrowing of all soil types. The standard harrow has a tine spacing of 8.5 cm and solid 7 row ladder type frame made from 60 x 60 x 5 cm sectional box section.

Standard Specification:

 • 6m, 7m, 8m and 9m models
 • 7 staggered rows of 10 x 45 mm tines
 • Multiple, large tandem depth wheels
 • Simple in cab depth adjustment
 • Hydraulic folding with automatic transport lock
 • Spare wheel
 • Heavy duty ladder style frame
 • LED lights

HE-VA’s Euro-Tiller comes in a range of sizes, upwards from 6m working width, requiring 120hp, to the largest model at 9m working width, requiring 200hp and all within 3m transport width.




FEATURES & BENEFITS

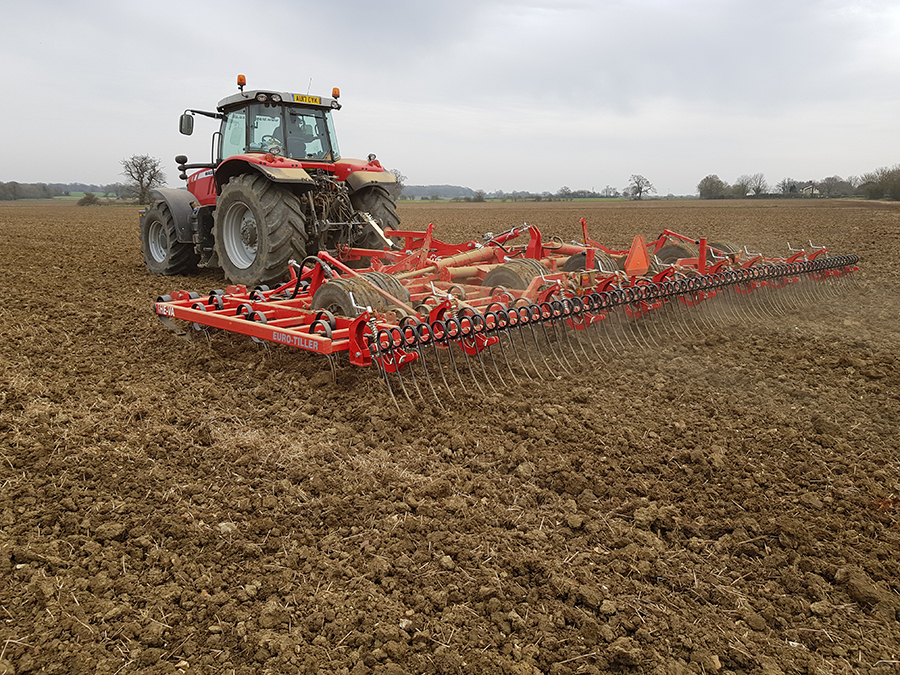

7 Rows of Tines

The strong 10 x 45 mm harrow tines ensure optimal harrowing of all soil types. The standard harrow has a tine spacing of 8.5 cm. Equipped with a front harrow, the average tine spacing is 6.4 cm.

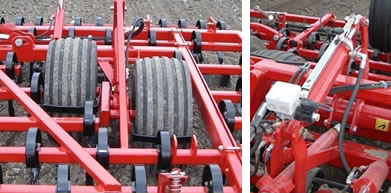

Depth Control

Depth of the tines is controlled hydraulically and can be governed by an electric depth stop ensuring that the set depth is the same each time the Euro Tiller is lifted & lowered on the headland. An override in cab switch allows the operator to work more aggressively on certain areas like the headlands if required.

Eight large boogie wheels (300/65x12) with a master slave hydraulic system ensure a precise and uniform working depth in all conditions.

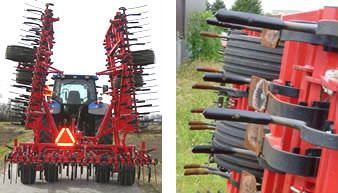

Transport

During transport the side sections are folded over into vertical position, the automatic locking system ensures safe and stable transport at all times.

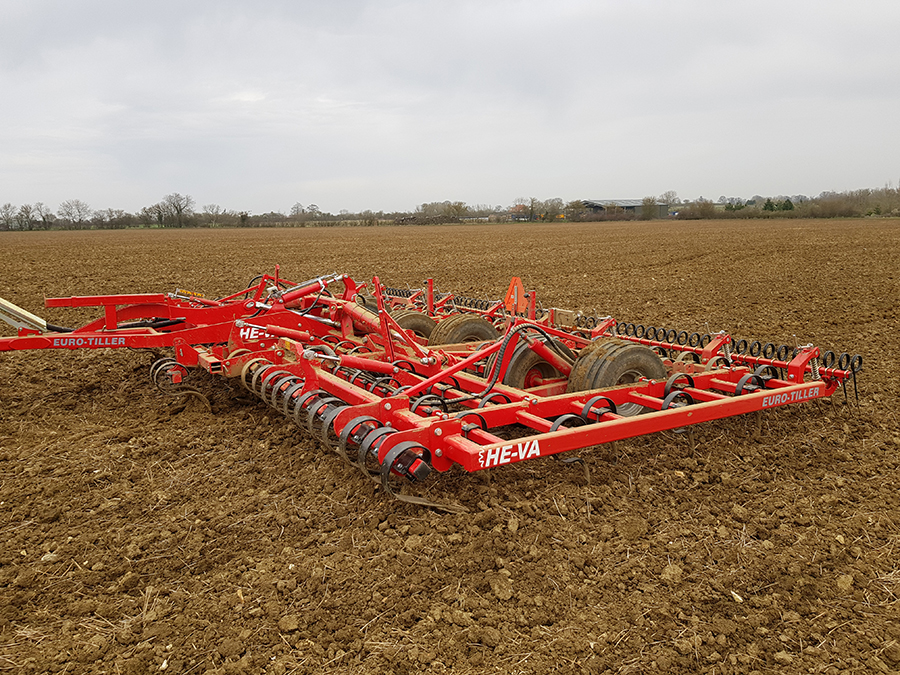

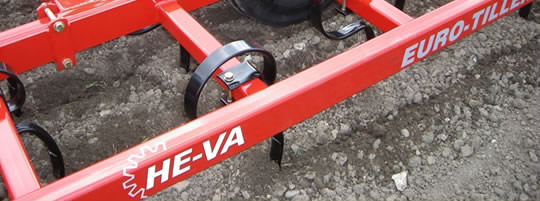

Strong Frame

The Euro Tiller has a heavy duty ladder type frame, made from 60x60x5 cm sectional box section.




SPECIFICATION

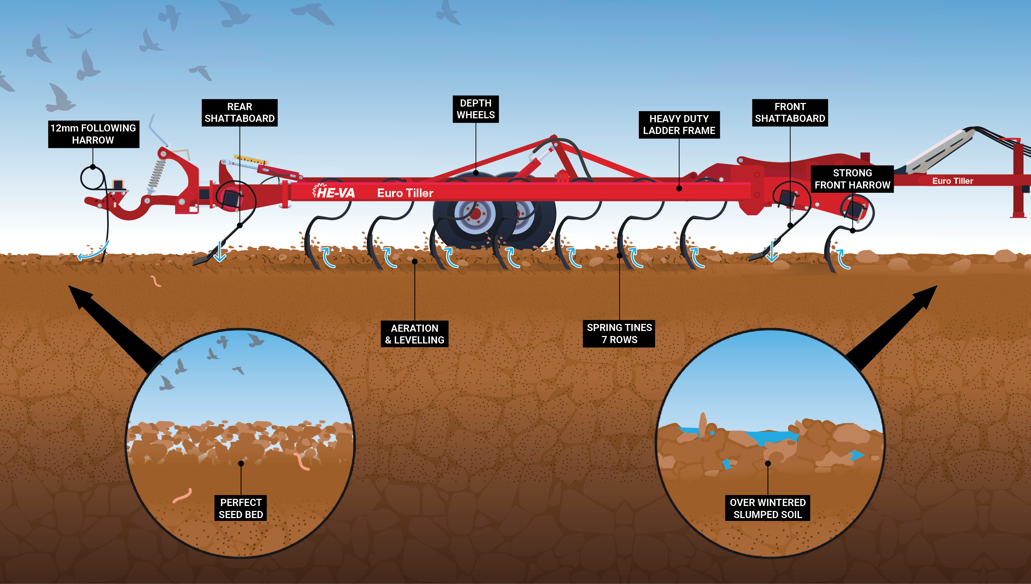

The Euro Tiller boasts a large variety of configuration option so the machine can be tailored to suit individual farm requirements.

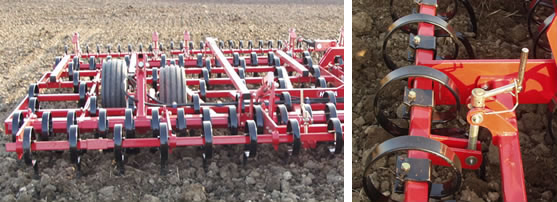

Strong Front Harrow

The strong front harrow mounted before the front Shattaboard breaks the crust, and wheel tracks, compressed soil is loosened so that the levelling bar performs a more precise levelling of the soil plus reducing energy consumption. When the strong front harrow is attached to the Euro-Tiller Euro-Tiller the average tine spacing is 6.4 cm.

The aggressiveness (tine row angle) on the strong front harrow is adjusted via manual turnbuckles.

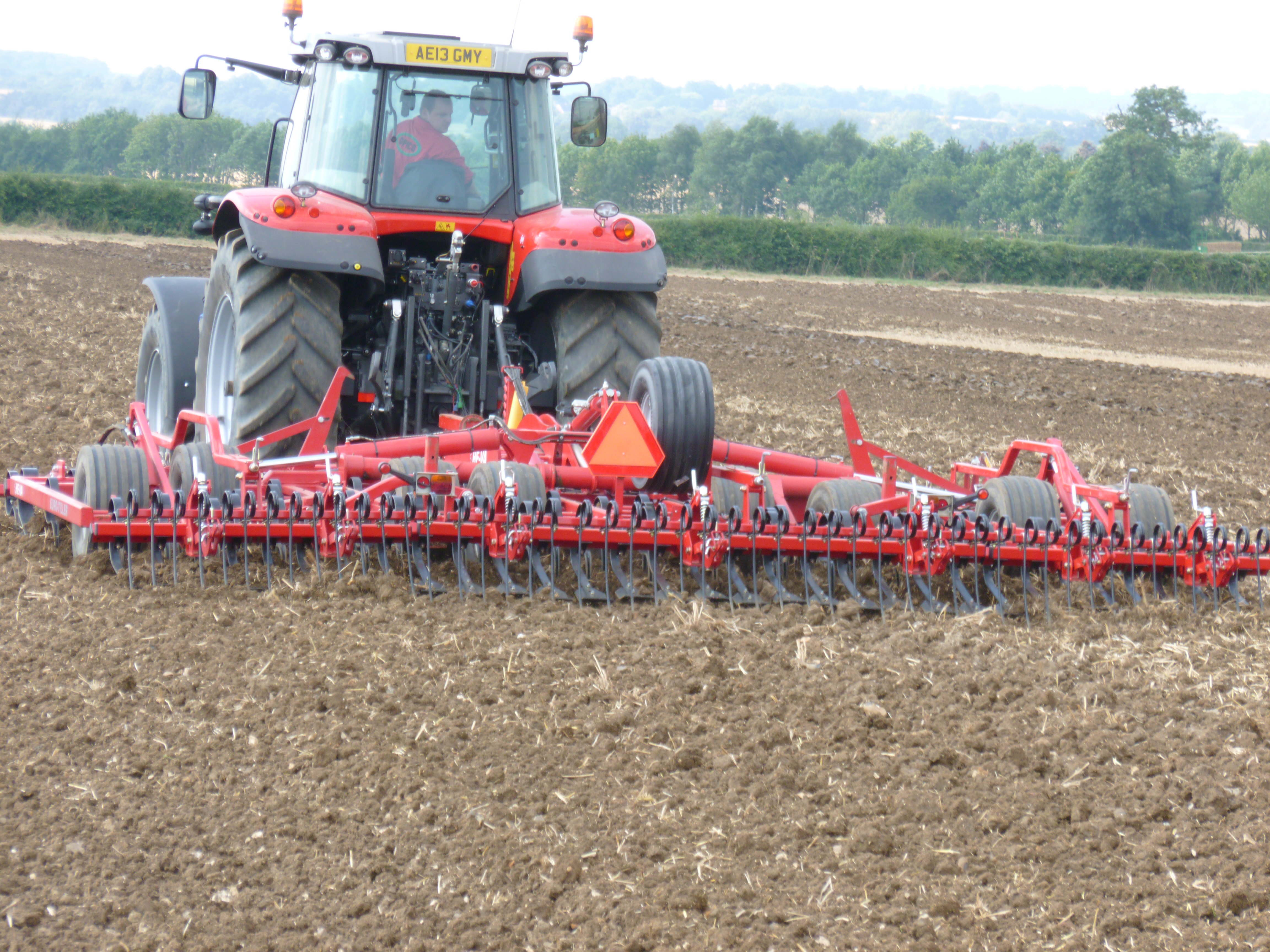

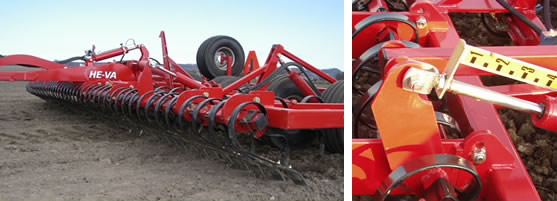

Front Levelling Shattaboard

By mounting a Shattaboard in front of the Euro-Tiller the field is perfectly levelled and the major clods are broken. The Shattaboard tine is a strong 10 x 80 mm spring tine, standard mounted with 8 x 150 mm point. The Shattaboard comes standard with hydraulic adjustment of the working depth / aggressiveness, which can be adjusted during operation. This requires a double-acting oil outlet.

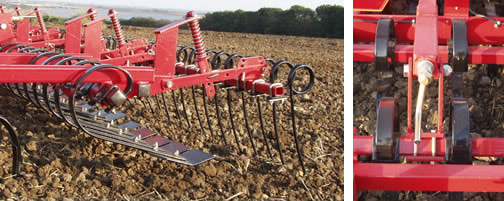

Rear Levelling Shattaboard

The Rear Levelling Shattaboard is mounted behind the harrow section ensuring an effective levelling of the harrow tine tracks and a light consolidation. The vibrating tines break the last clods efficiently. The Rear Levelling Shattaboard can be mounted together with the Following Harrow.

The Rear Levelling Shattaboard is connected to the front levelling bar and is hydraulically adjusted. The front and rear bars are independently adjustable by the connecting bar.

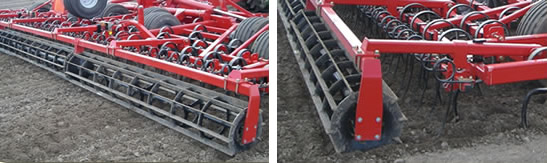

Flat Bar Roller

Flat Bar Roller ø400 mm mounted with the long finger harrow in front leaves a fine and light consolidated surface. With its construction of 8 x 40 mm flat steel, this type of roller ensures a perfect seedbed.

The Following Harrow is mounted on the roller support arms, the angle and working depth of the tines is adjustable in relation to the roller.

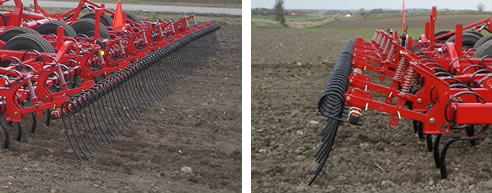

Following Harrow

The Following Harrow consists of a single row of strong 12mm coiled tines, these erase any tracks left by the tines.

Both the pressure and the working angles are easily adjustable on the Following Harrow to suit the individual soil conditions.




EURO-TILLER MODELS

Available with a wide range of optional equipment, HE-VA’s Euro-Tiller can be specifically configured for individual farm requirements.

A strong front harrow with average tine spacing at 6.4 cm can be mounted in front of a Shattaboard to loosen and break the crust, wheel tracks or compressed soil so that the levelling bar performs a more precise levelling of the soil ahead of the harrow tines.

The aggressiveness (tine row angle) on the strong front harrow can be adjusted independently of the main harrow section. A following flat bar roller can ensure a fine and light consolidated surface or a following harrow erases any tracks left by the tines.

Technical Information

Model Width No of Tines HP Weight
105860000 6m 69 120+ 3150kg

66630757034 - Fitted as standard with pivoting crossbar cat III (see Draw Bar Options).

Options & Accessories

Model No. Description
105896600 Strong front harrow in front of shattaboard
105897600 Shattaboard with wide wear points
105895600 Rear shattaboard
105860900 Following harrow
105898906 Flat bar roller and following harrow
105895015 Spring tine eradicator
105895150 Drawbar hitch to rear of Euro-Tiller inc 2 ext services pipes - short
105895170 Drawbar hitch to rear of Euro-Tiller inc 2 ext services pipes - long
105895300 Dolly with 11.5 / 80 x 15.3 wheels for towed press
103409400 HPV - Controller for rolls and tiller
105895305 Additional set hyd hoses on dolly

Available with a wide range of optional equipment, HE-VA’s Euro-Tiller can be specifically configured for individual farm requirements.

A strong front harrow with average tine spacing at 6.4 cm can be mounted in front of a Shattaboard to loosen and break the crust, wheel tracks or compressed soil so that the levelling bar performs a more precise levelling of the soil ahead of the harrow tines.

The aggressiveness (tine row angle) on the strong front harrow can be adjusted independently of the main harrow section. A following flat bar roller can ensure a fine and light consolidated surface or a following harrow erases any tracks left by the tines.

Technical Information

Model Width No of Tines HP Weight
105870000 7m 82 150+ 3400kg

66630757034 - Fitted as standard with pivoting crossbar cat III (see Draw Bar Options).

Options & Accessories

Model No. Description
105896700 Strong front harrow in front of shattaboard
105897700 Shattaboard with wide wear points
105895700 Rear shattaboard
105870900 Following harrow
105898907 Flat bar roller and following harrow
105895015 Spring tine eradicator
105895150 Drawbar hitch to rear of Euro-Tiller inc 2 ext services pipes - short
105895170 Drawbar hitch to rear of Euro-Tiller inc 2 ext services pipes - long
105895300 Dolly with 11.5 / 80 x 15.3 wheels for towed press
103409400 HPV - Controller for rolls and tiller
105895305 Additional set hyd hoses on dolly

Available with a wide range of optional equipment, HE-VA’s Euro-Tiller can be specifically configured for individual farm requirements.

A strong front harrow with average tine spacing at 6.4 cm can be mounted in front of a Shattaboard to loosen and break the crust, wheel tracks or compressed soil so that the levelling bar performs a more precise levelling of the soil ahead of the harrow tines.

The aggressiveness (tine row angle) on the strong front harrow can be adjusted independently of the main harrow section. A following flat bar roller can ensure a fine and light consolidated surface or a following harrow erases any tracks left by the tines.

Technical Information

Model Width No of Tines HP Weight
105878000 8m 94 175+ 3650kg

66630757034 - Fitted as standard with pivoting crossbar cat III (see Draw Bar Options).

Options & Accessories

Model No. Description
105896780 Strong front harrow in front of shattaboard
105897800 Shattaboard with wide wear points
105895800 Rear shattaboard
105878900 Following harrow
105898908 Flat bar roller and following harrow
105895015 Spring tine eradicator
105895150 Drawbar hitch to rear of Euro-Tiller inc 2 ext services pipes - short
105895170 Drawbar hitch to rear of Euro-Tiller inc 2 ext services pipes - long
105895300 Dolly with 11.5 / 80 x 15.3 wheels for towed press
103409400 HPV - Controller for rolls and tiller
105895305 Additional set hyd hoses on dolly

Available with a wide range of optional equipment, HE-VA’s Euro-Tiller can be specifically configured for individual farm requirements.

A strong front harrow with average tine spacing at 6.4 cm can be mounted in front of a Shattaboard to loosen and break the crust, wheel tracks or compressed soil so that the levelling bar performs a more precise levelling of the soil ahead of the harrow tines.

The aggressiveness (tine row angle) on the strong front harrow can be adjusted independently of the main harrow section. A following flat bar roller can ensure a fine and light consolidated surface or a following harrow erases any tracks left by the tines.

Technical Information

Model Width No of Tines HP Weight
105890000 9m 106 200+ 3900kg

66630757034 - Fitted as standard with pivoting crossbar cat III (see Draw Bar Options).

Options & Accessories

Model No. Description
105896900 Strong front harrow in front of shattaboard
105897900 Shattaboard with wide wear points
105895900 Rear shattaboard
105890900 Following harrow
105895015 Spring tine eradicator
105895150 Drawbar hitch to rear of Euro-Tiller inc 2 ext services pipes - short
105895170 Drawbar hitch to rear of Euro-Tiller inc 2 ext services pipes - long
105895300 Dolly with 11.5 / 80 x 15.3 wheels for towed press
103409400 HPV - Controller for rolls and tiller
105895305 Additional set hyd hoses on dolly
